Electric Pallet Stackers · Model ELES-20H

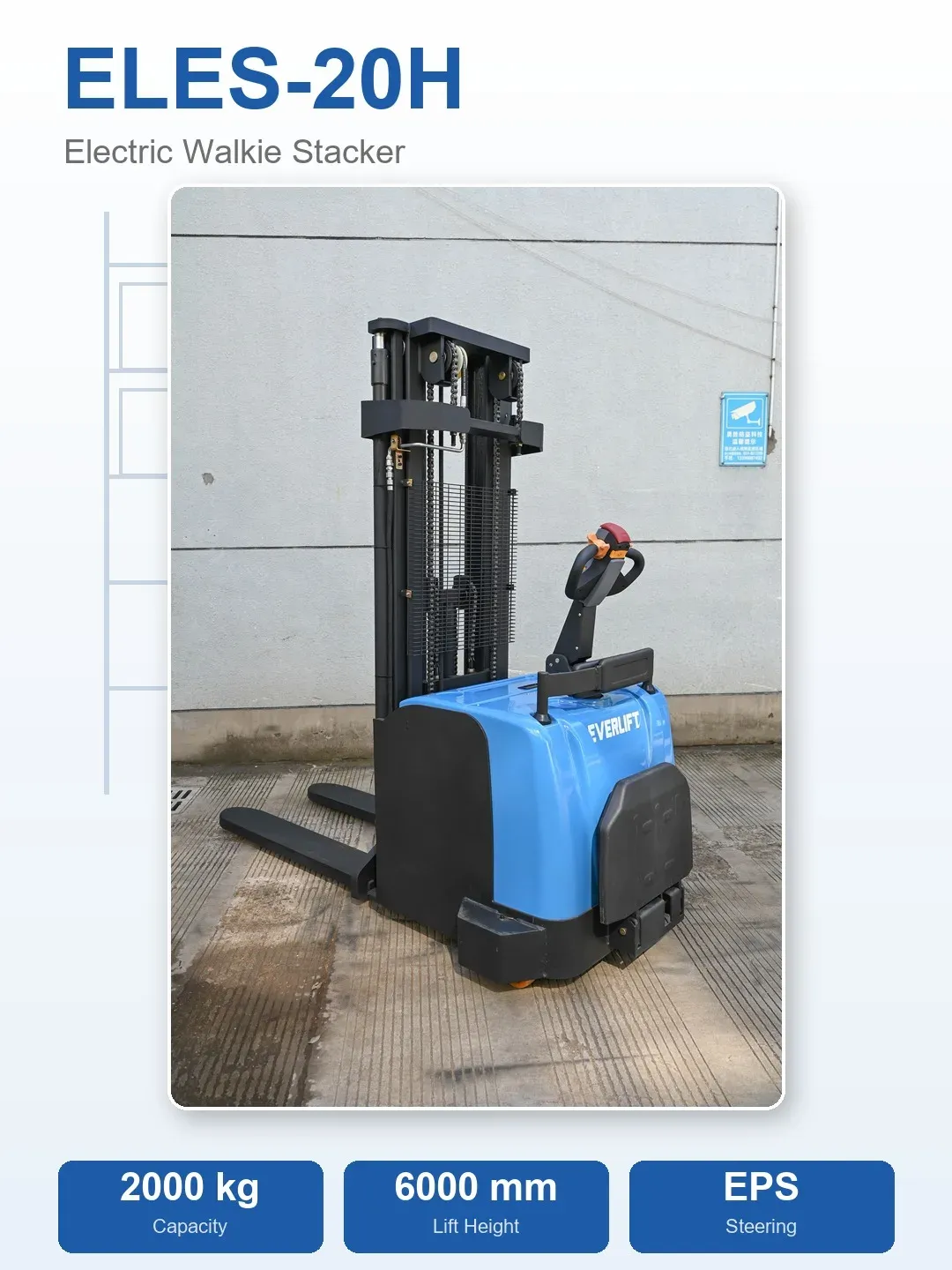

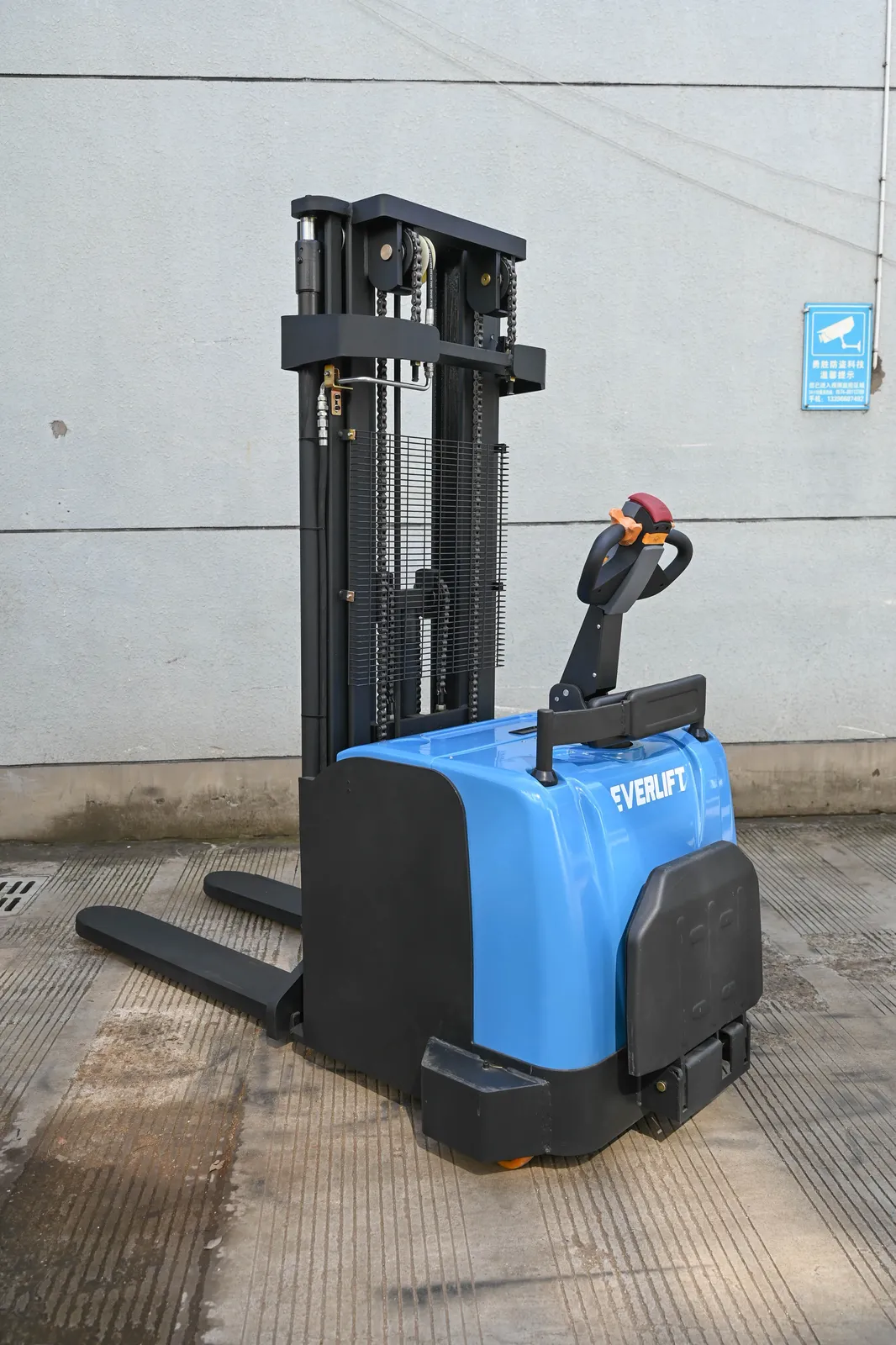

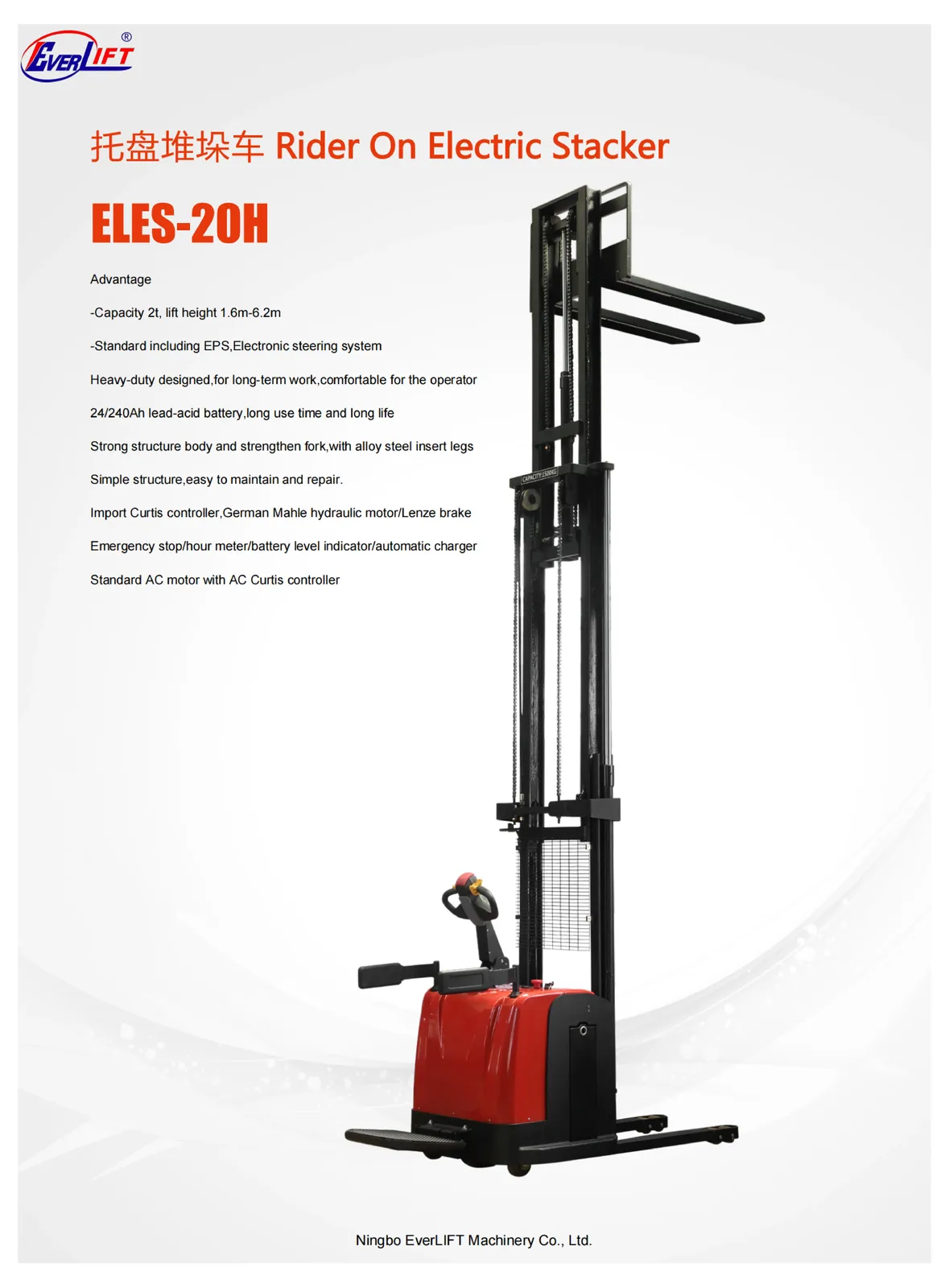

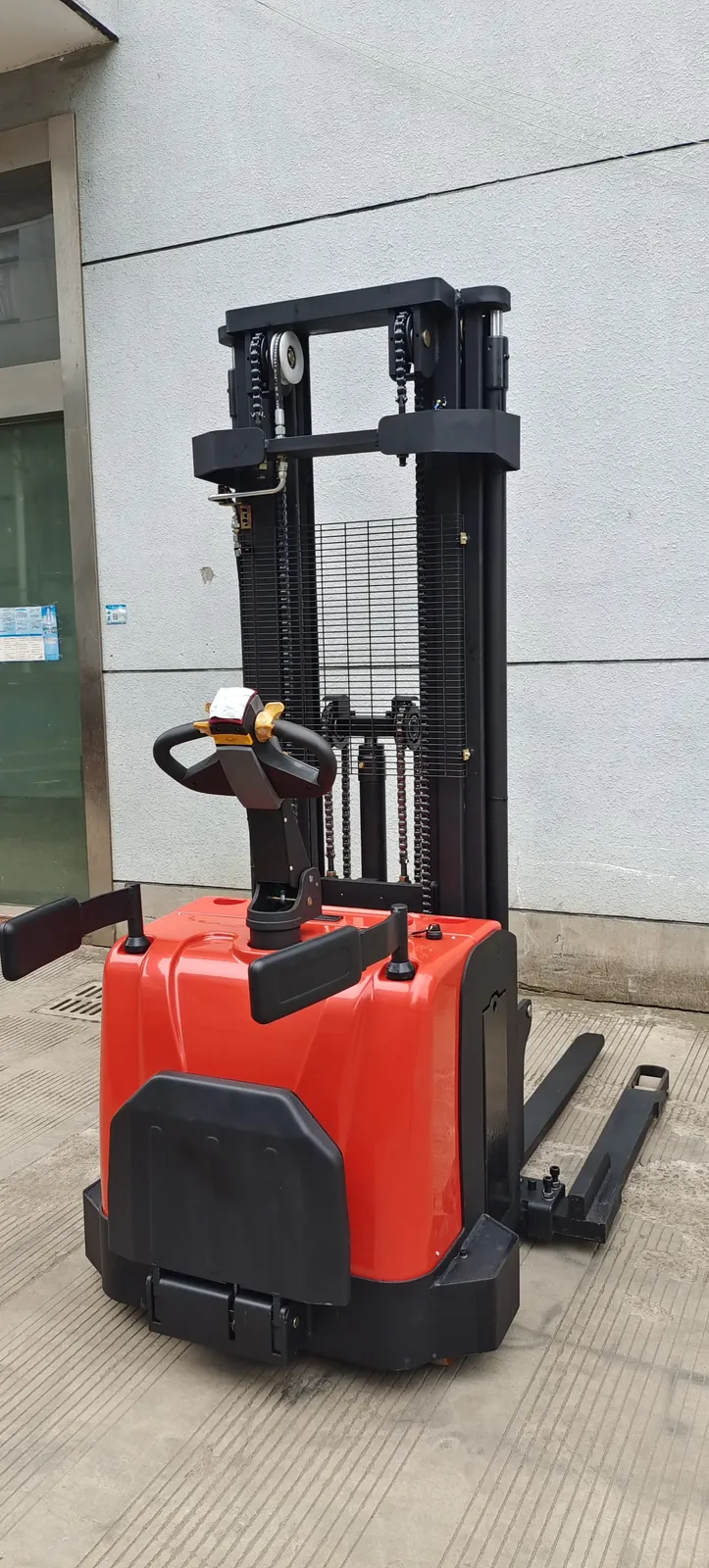

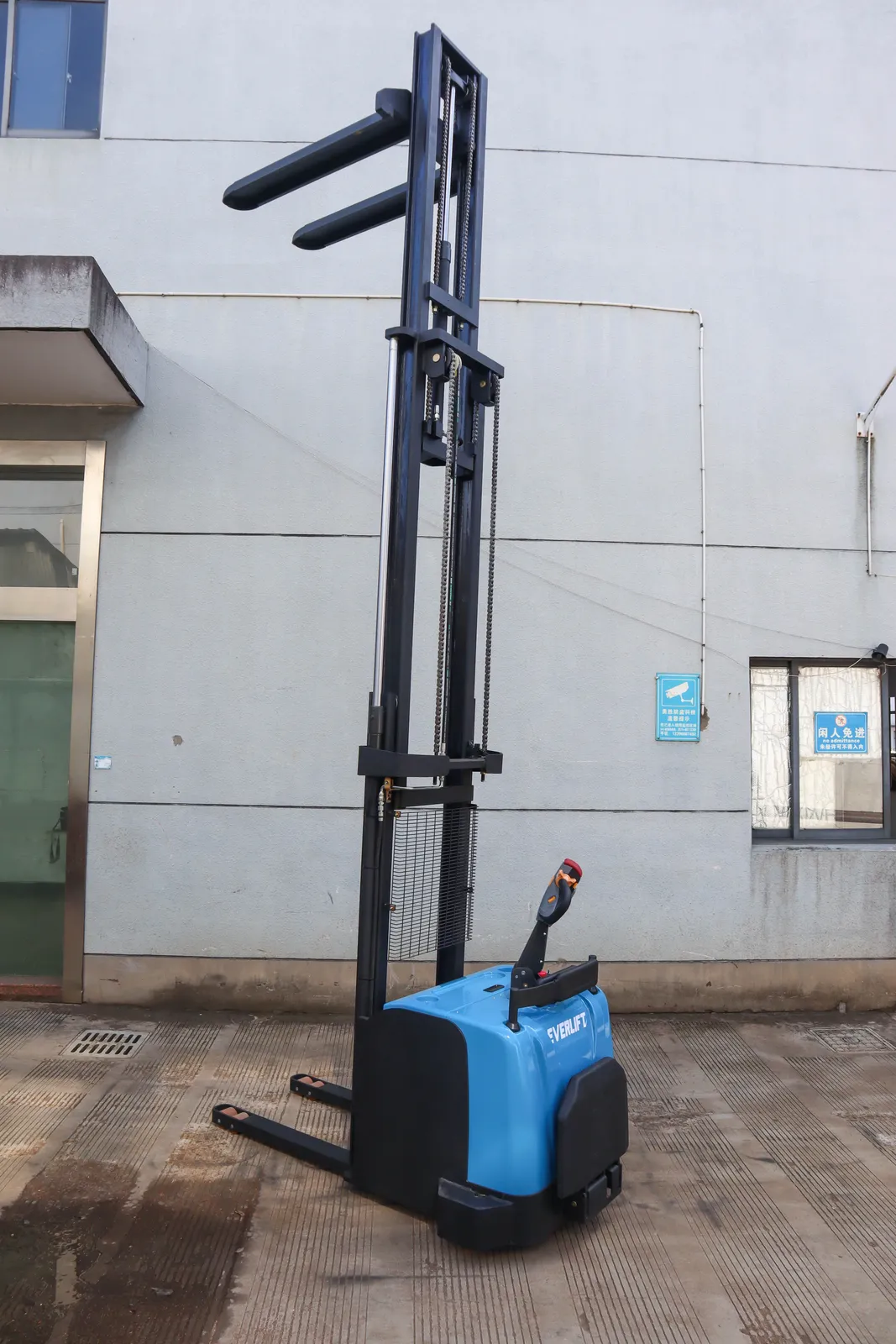

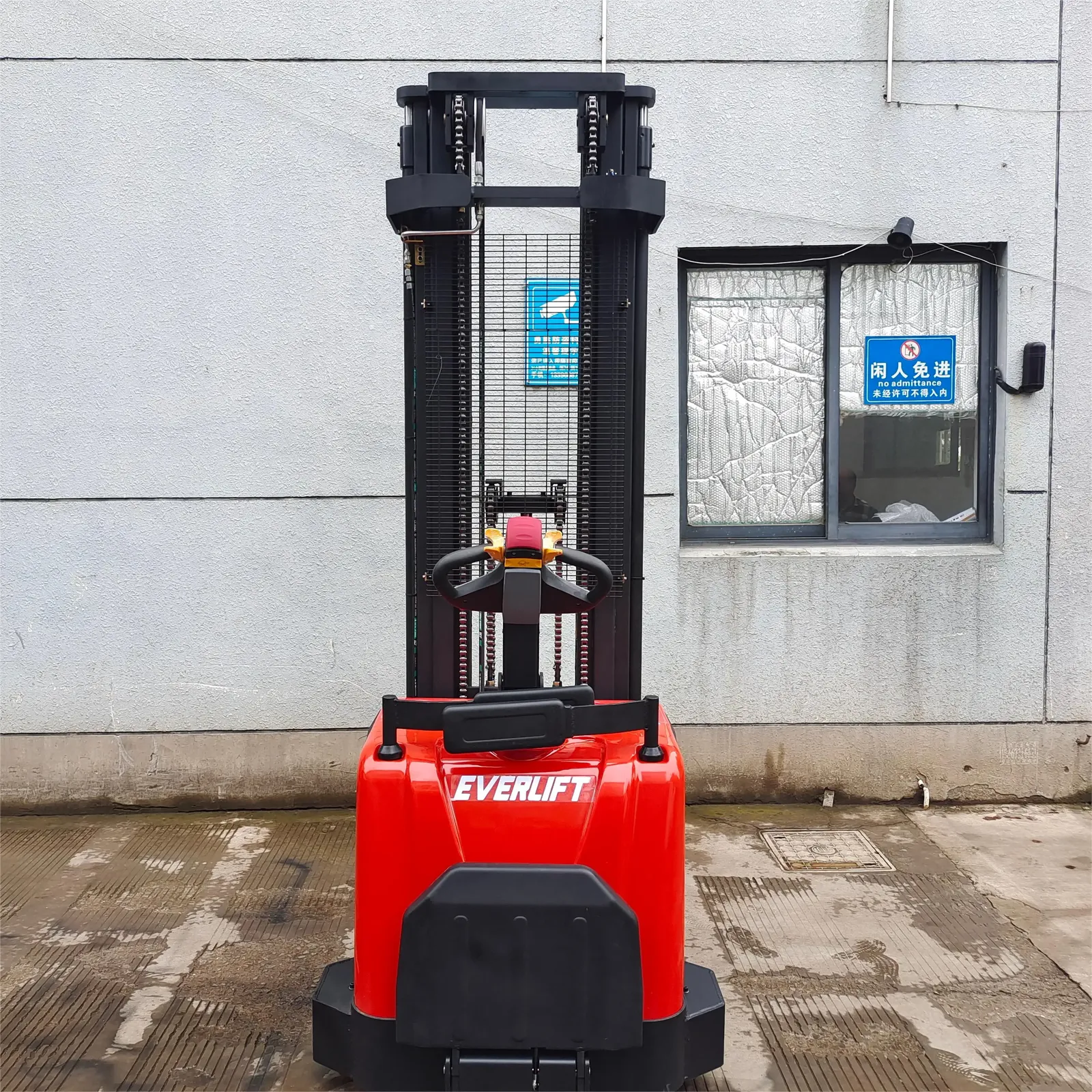

ELES-20H Narrow Leg Rider on Electric Stacker 2000 kg
2 tLead-acidForks 1150 mm marked
markedfrom£3,600per unit, ex VAT
Get a quote, reply in 2 hours
- 12-month warranty
- Photos and video before it ships
- No online payment, nothing is charged
Any quantity is welcome. Your price depends on the quantity and is confirmed on your written quote. Prices in GBP per unit, ex VAT. We convert the factory list at a buffered exchange rate, so normal day-to-day currency movement does not change the price you see. Your written quote adds freight, duty and VAT and is valid for 30 days.

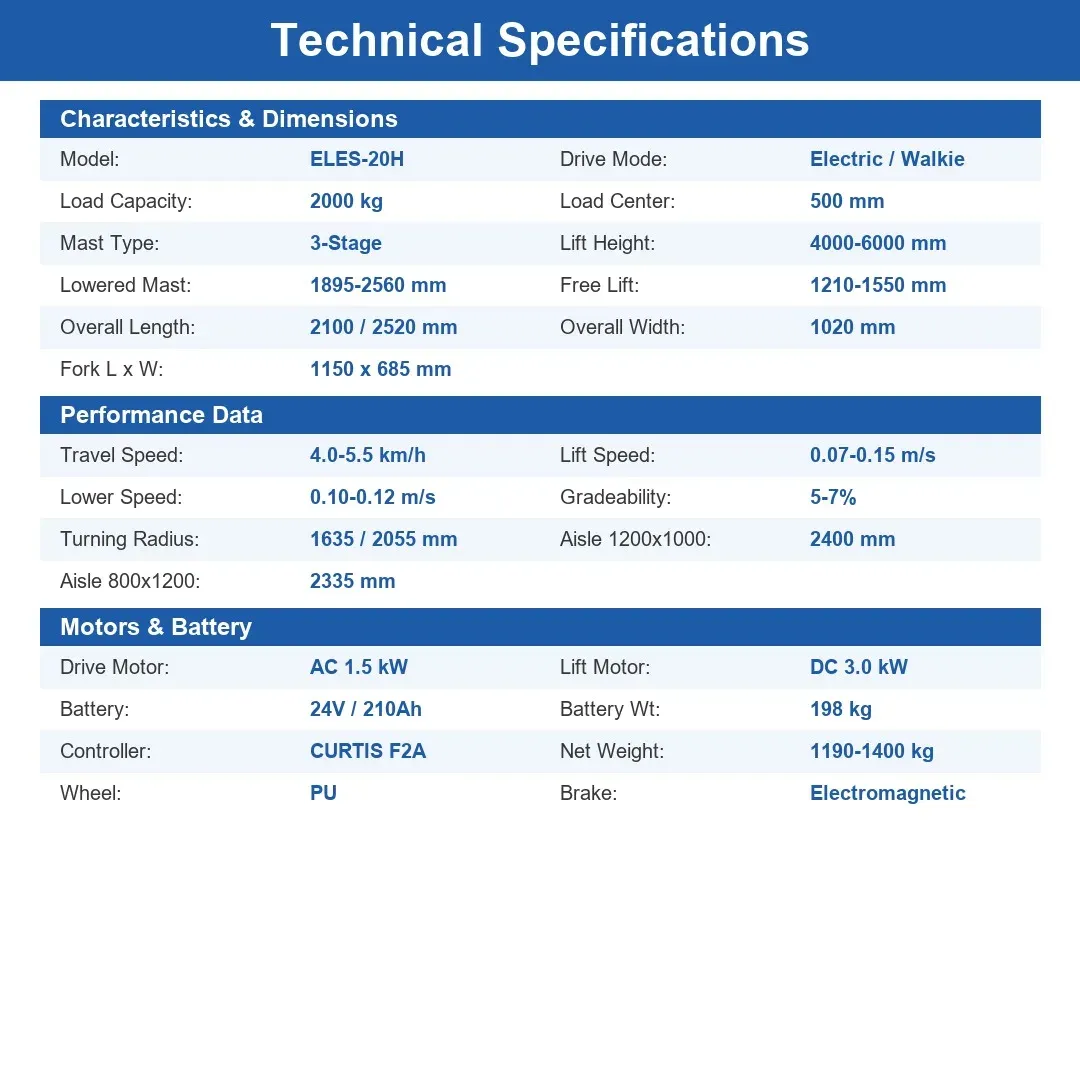

Rated Loading Capacity2 Ton
Truck TypeStacker Forklift
Line total
Nothing is sent yet: add the products you need, then send your quote request. We reply within 2 hours, Monday to Friday, 9am to 5pm.

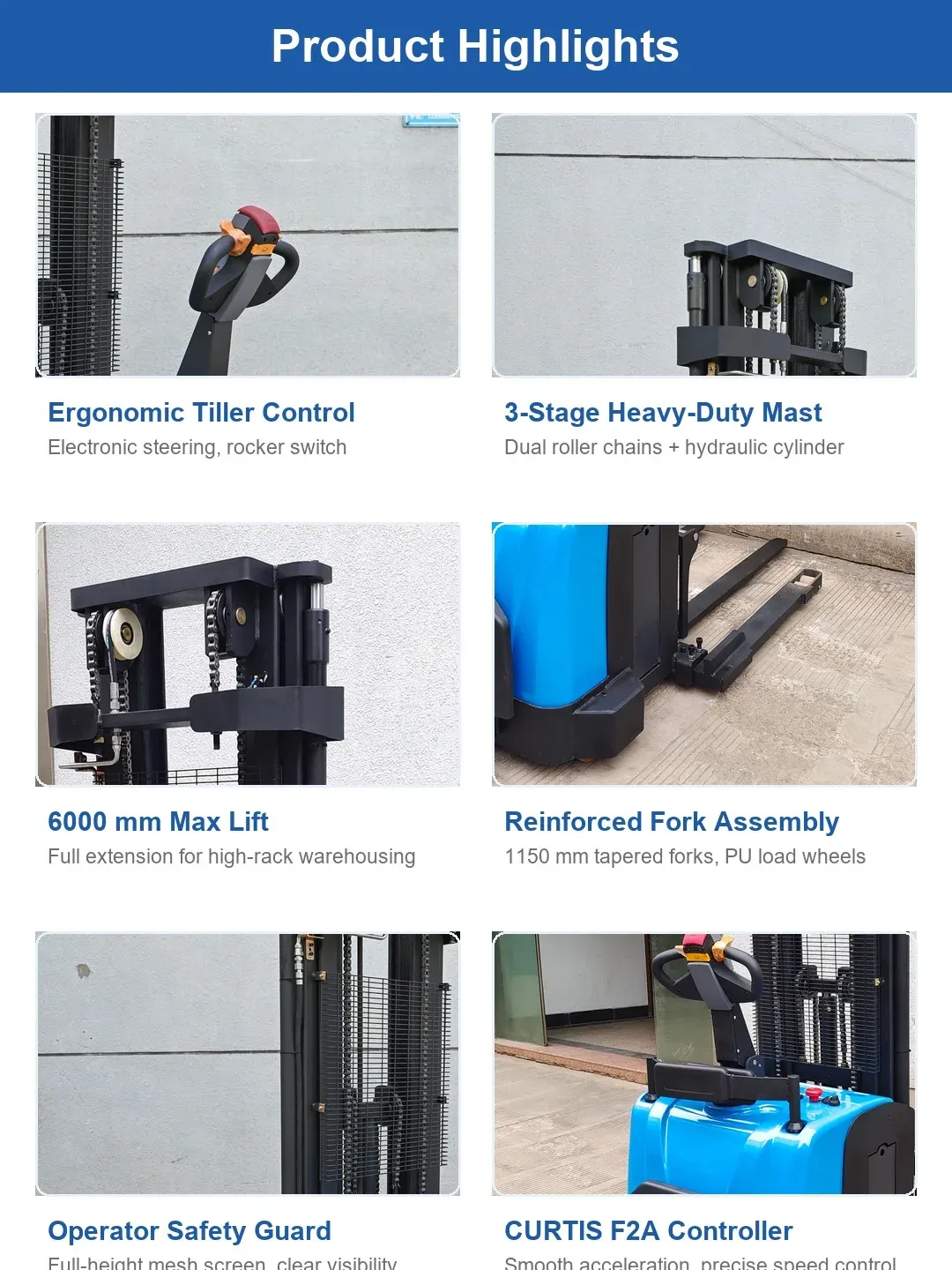

Or email sales@londonpallettrucks.co.ukProduct Highlights

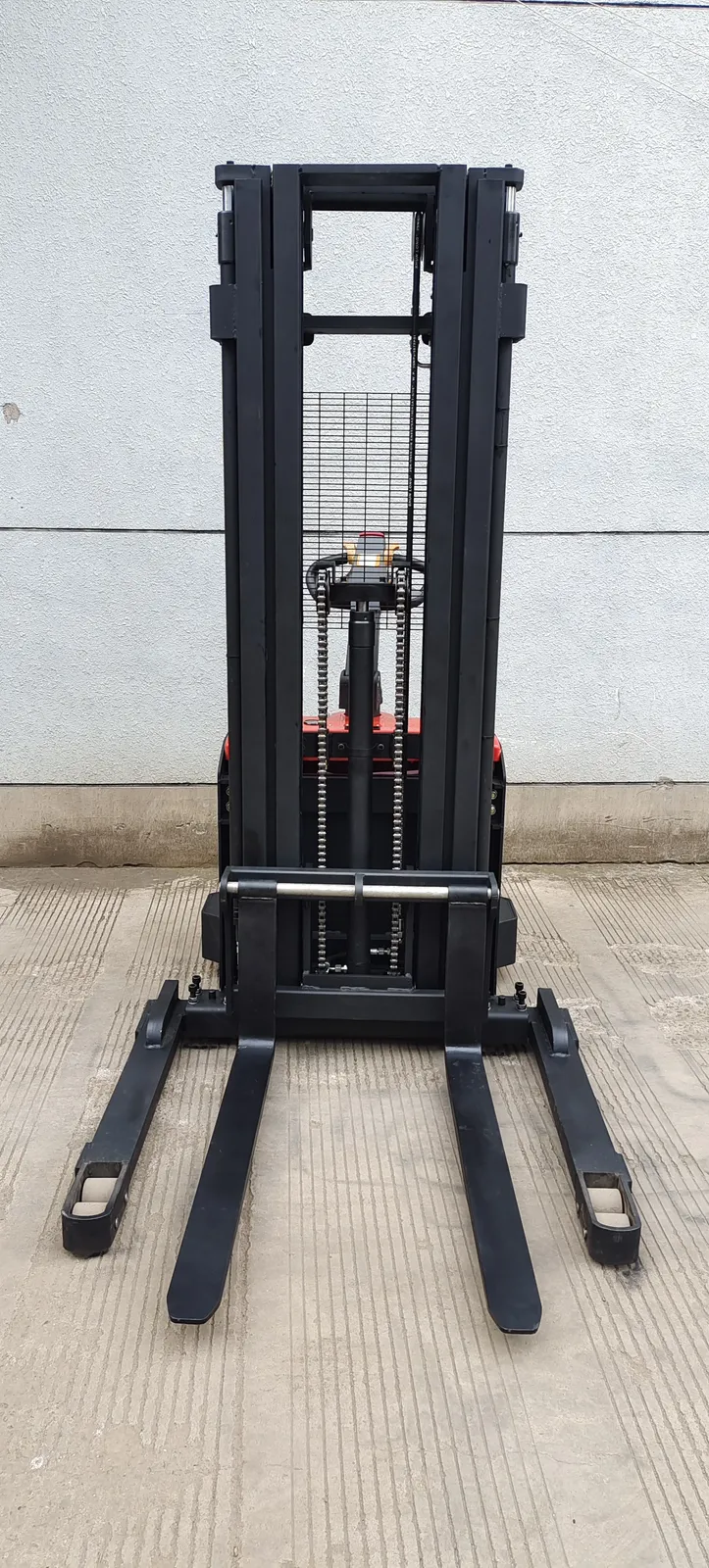

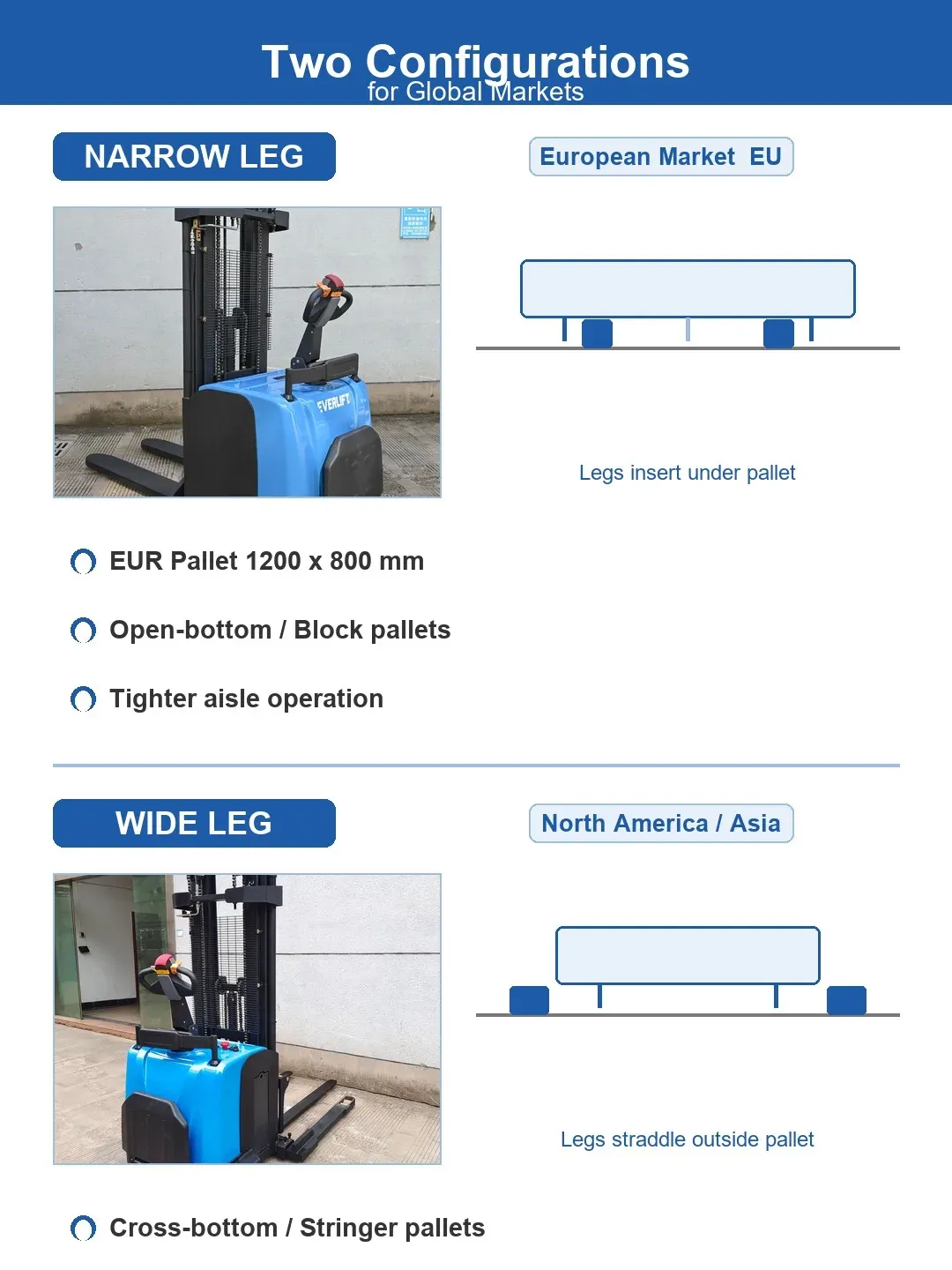

2000 kg rated capacity, narrow leg design, fits standard Euro & international pallets, great stability even at high lifting height.

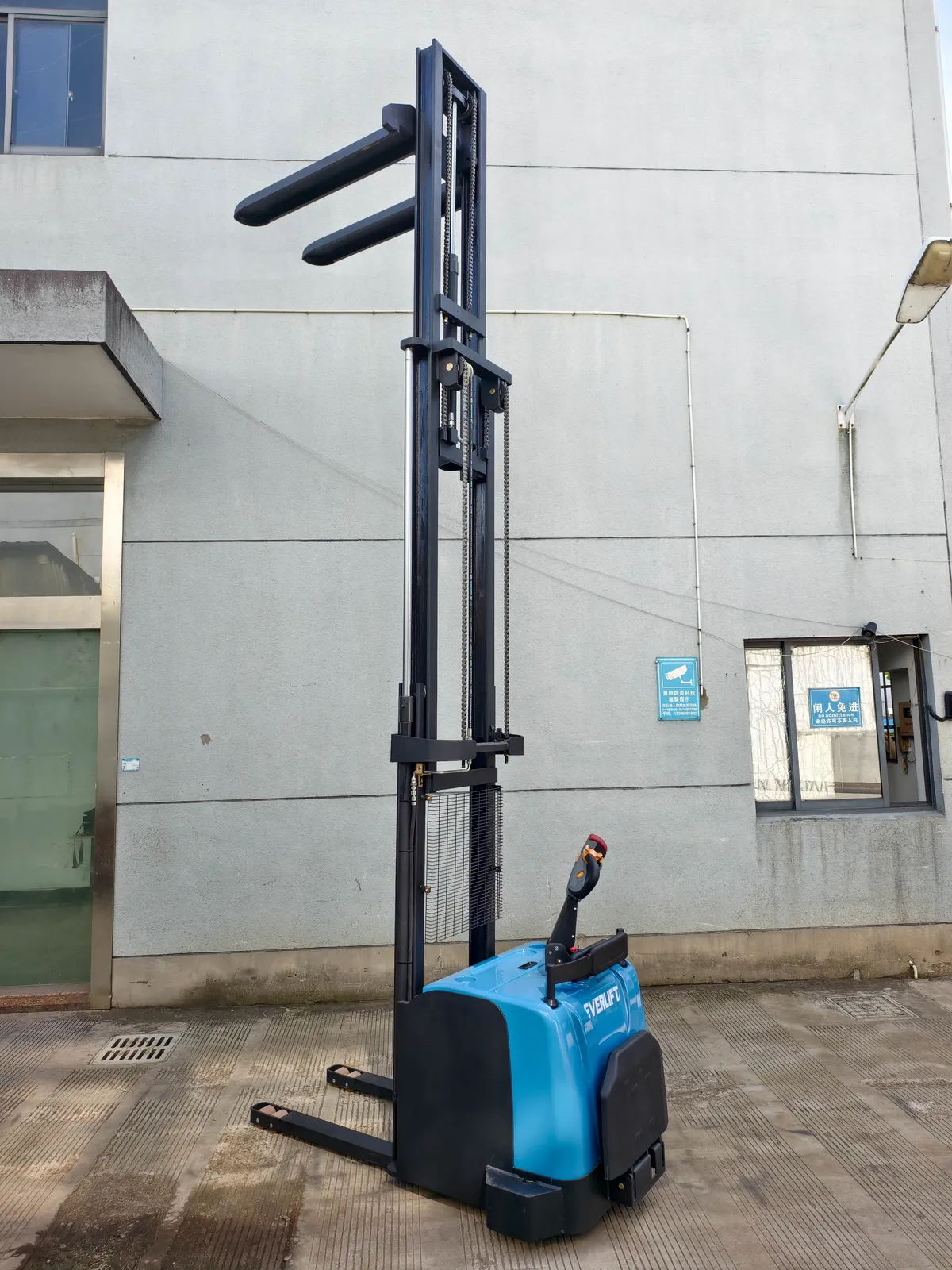

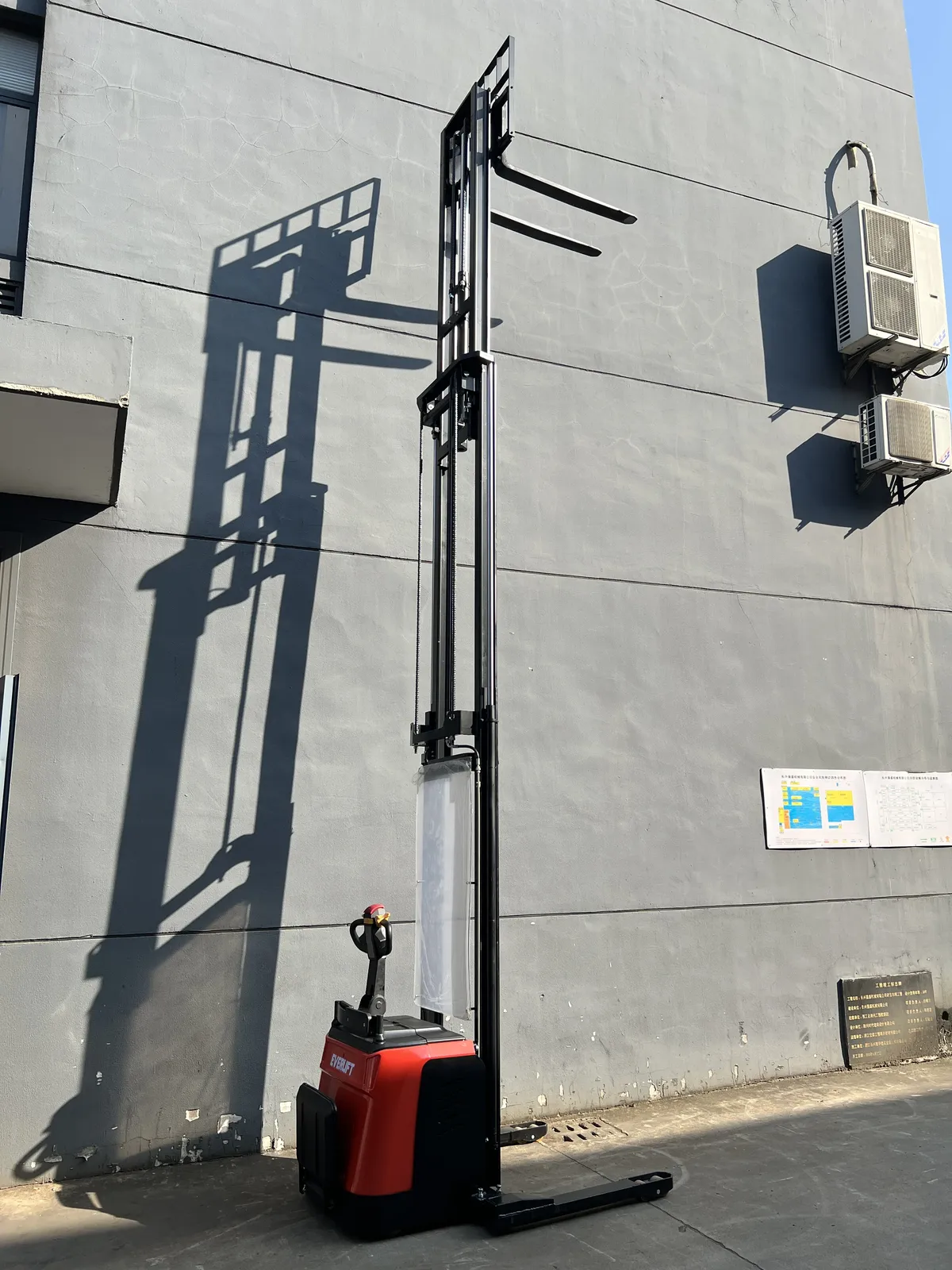

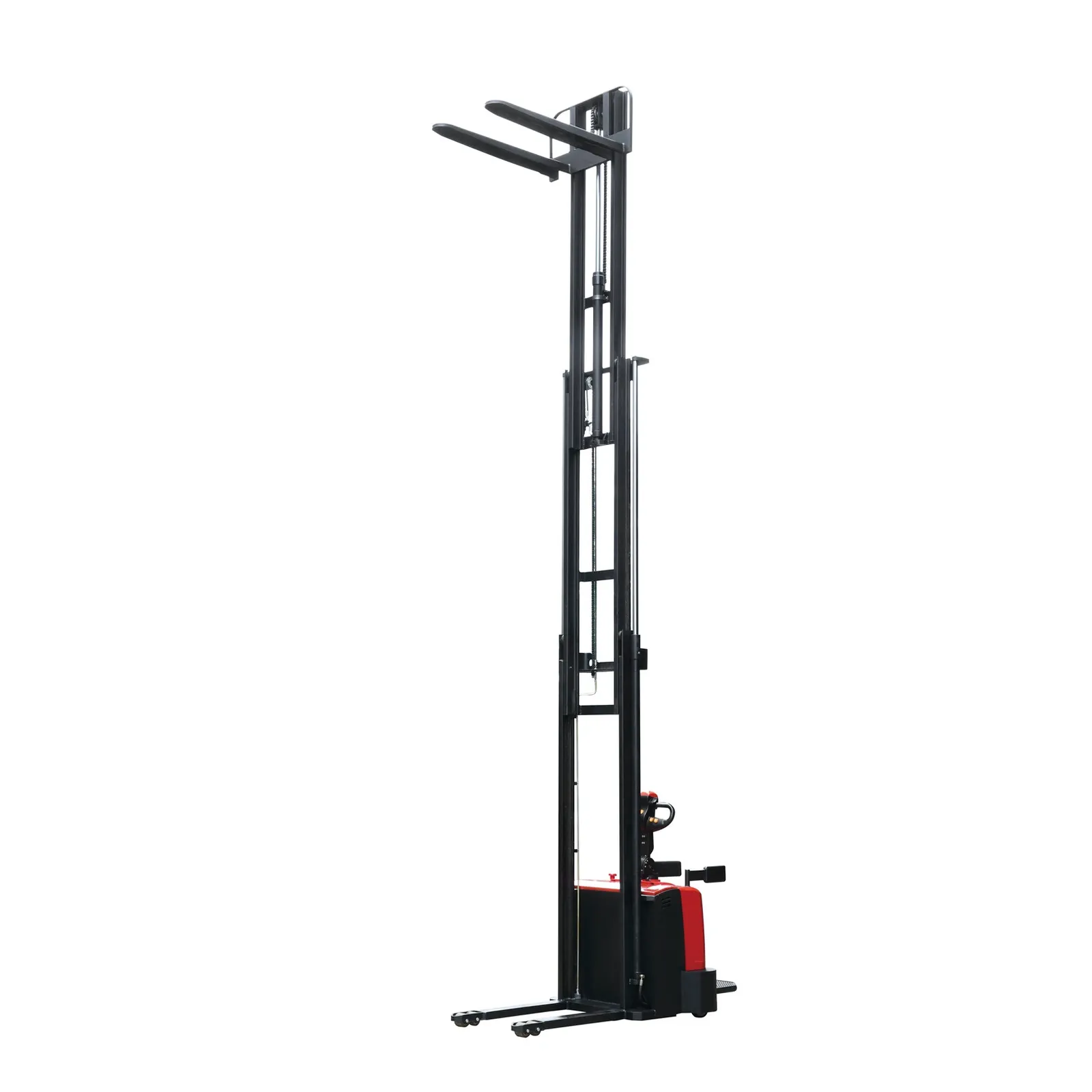

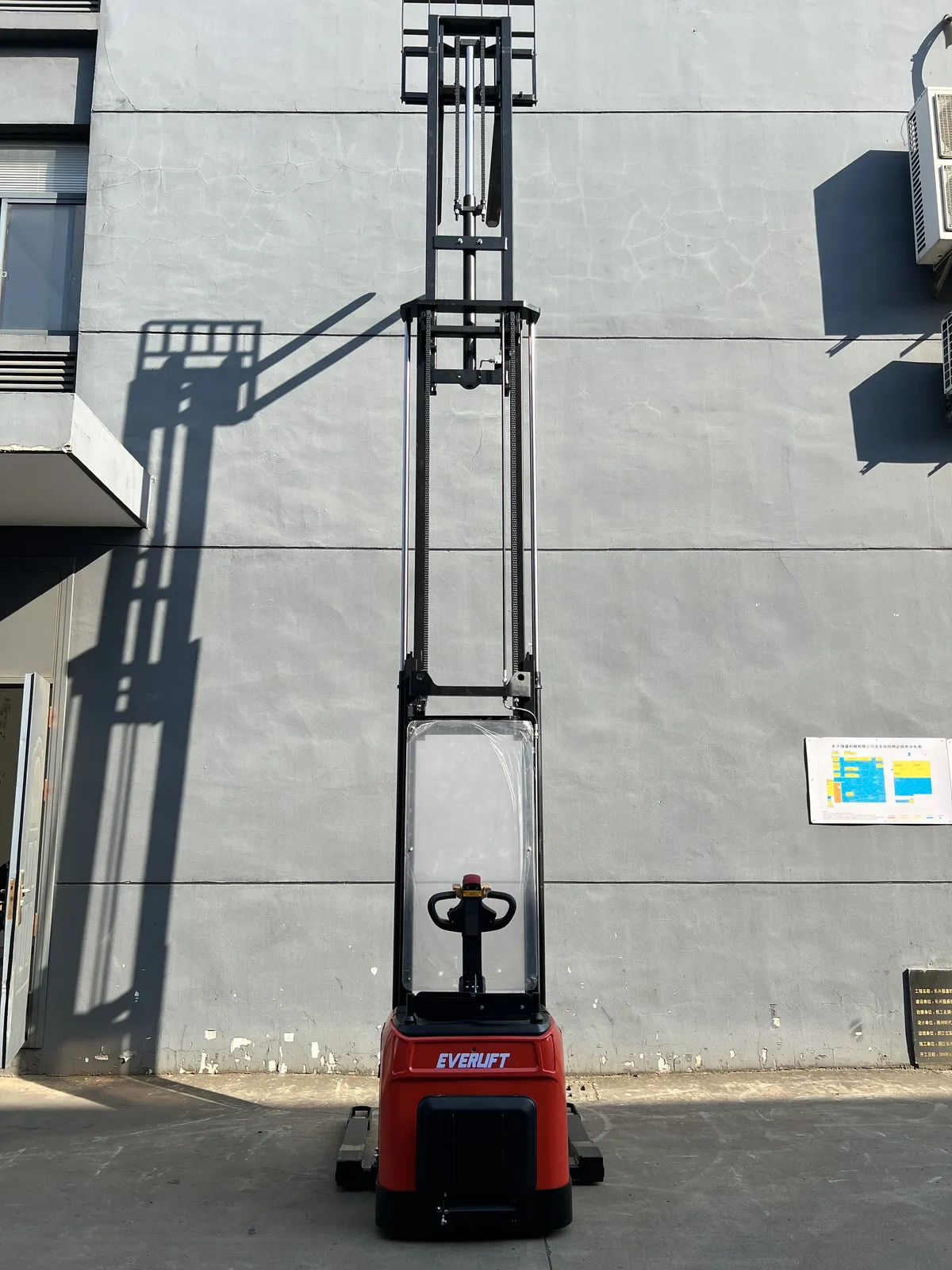

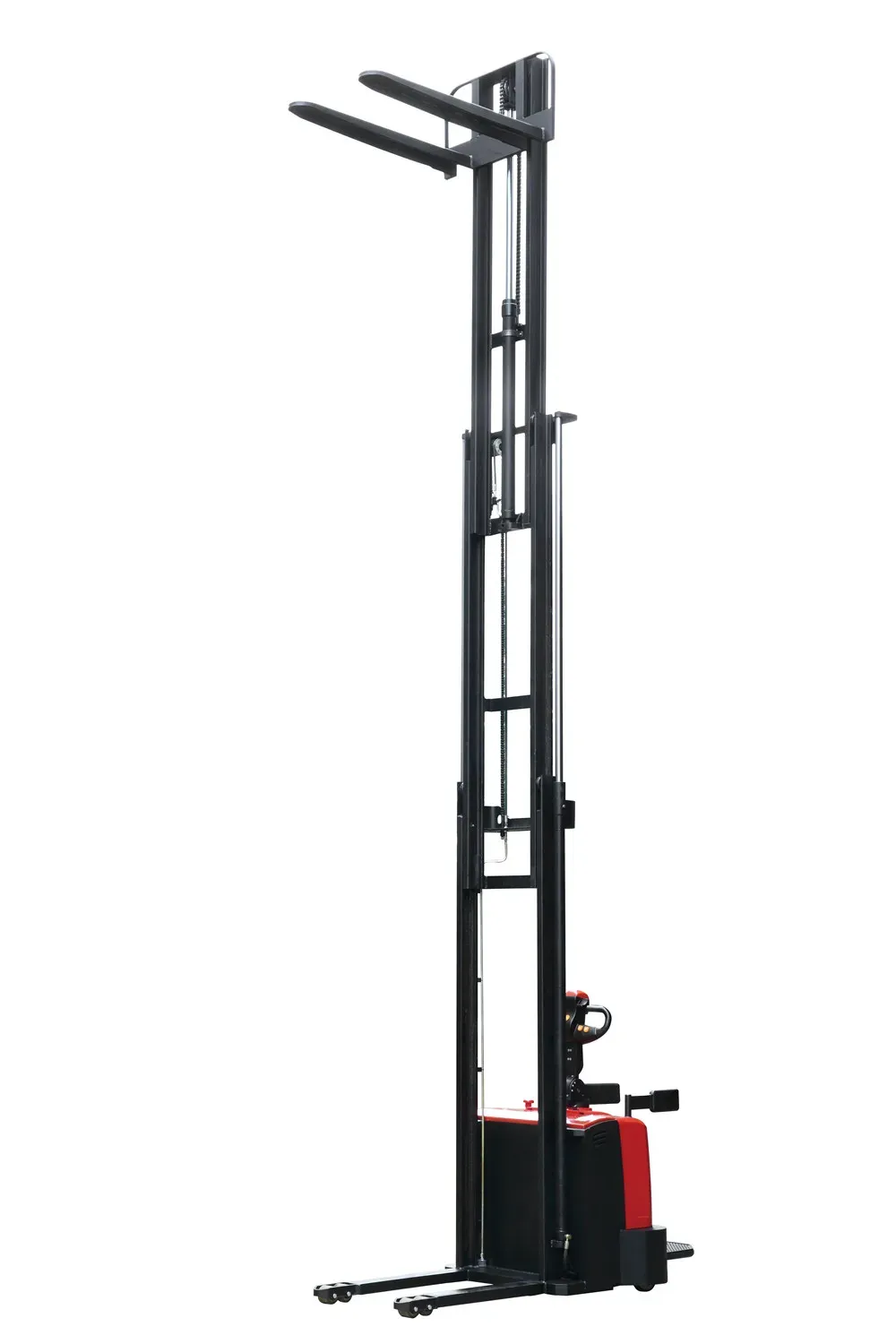

3‑stage triplex mast, max lifting height up to 6000mm, compact lowered mast height for elevator & low‑clearance warehouse operation.
Built‑in EPS electronic power steering, light & smooth steering force, effectively reduce operator fatigue during long‑hour shifts.
Imported Curtis F2A controller, reliable control performance, supports fault self‑diagnosis for easy maintenance.
24V/210Ah large lead‑acid battery, long working hours for intensive warehouse material‑handling tasks.
AC traction motor + DC lifting motor, stable travelling & lifting speed; electromagnetic brake ensures reliable stopping safety.
Premium PU wheels, low noise, wear‑resistant, perfect for indoor smooth concrete floor.

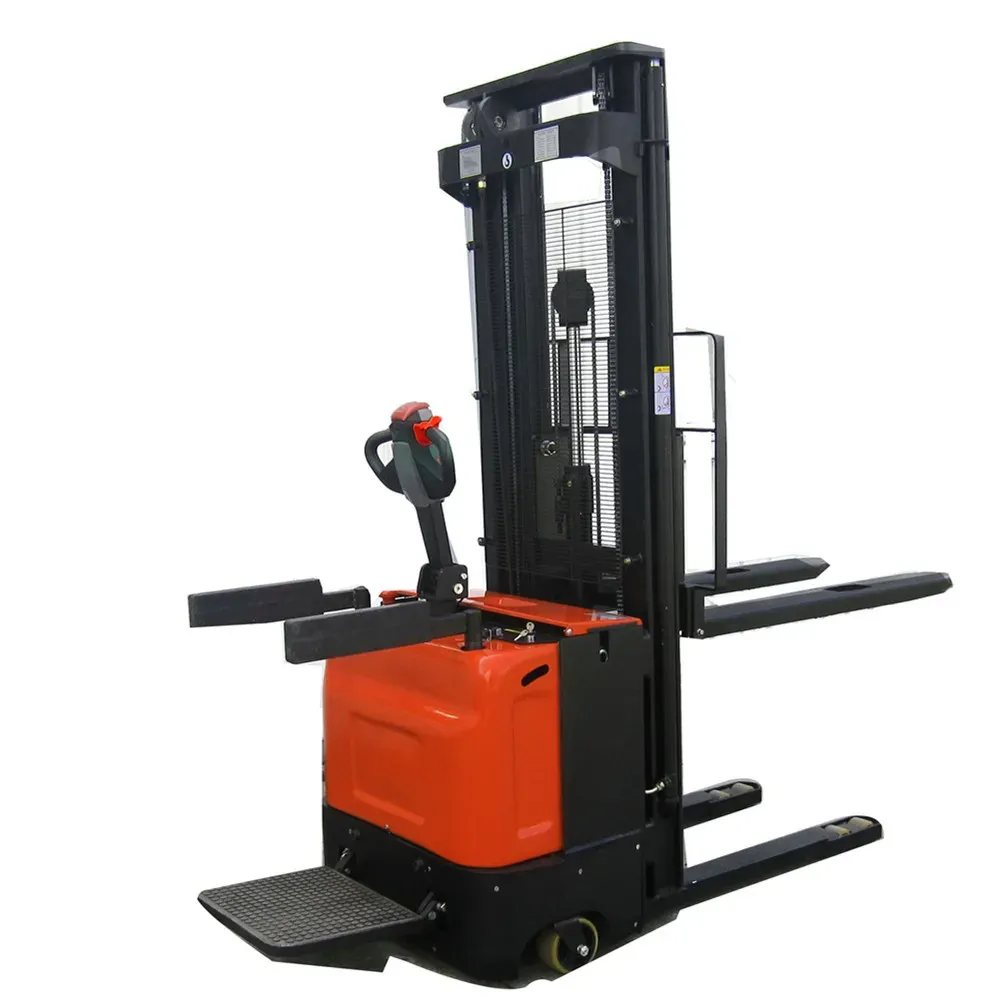

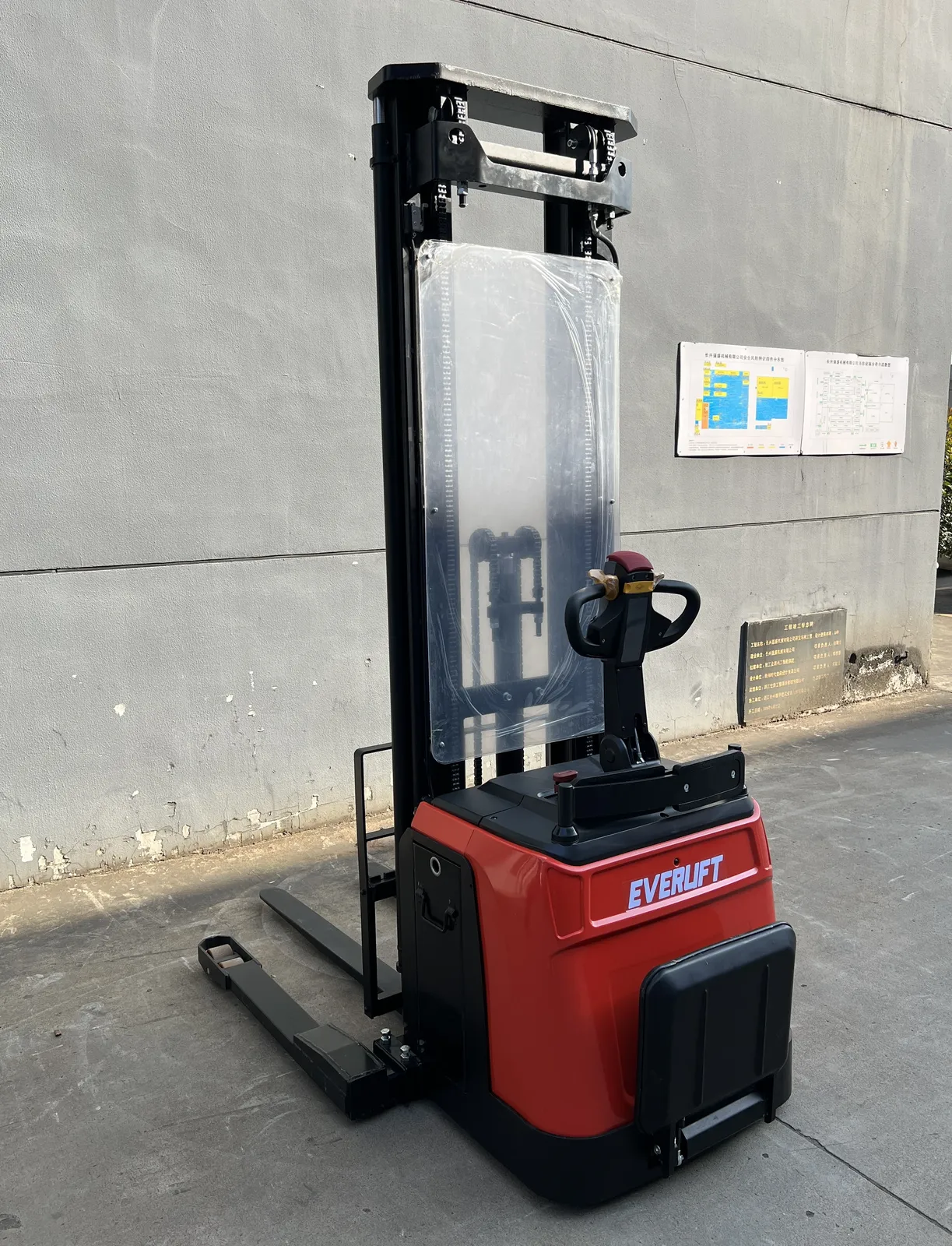

Stand‑on rider platform with protective structure; emergency stop button, hour counter & battery indicator are standard for safety monitoring.
Compact turning radius 1635mm, works efficiently in warehouse aisle width starting from 2400mm. Heavy‑duty welded frame & reinforced forks, durable for multi‑shift continuous operation; factory direct supply with full after‑sales technical support.

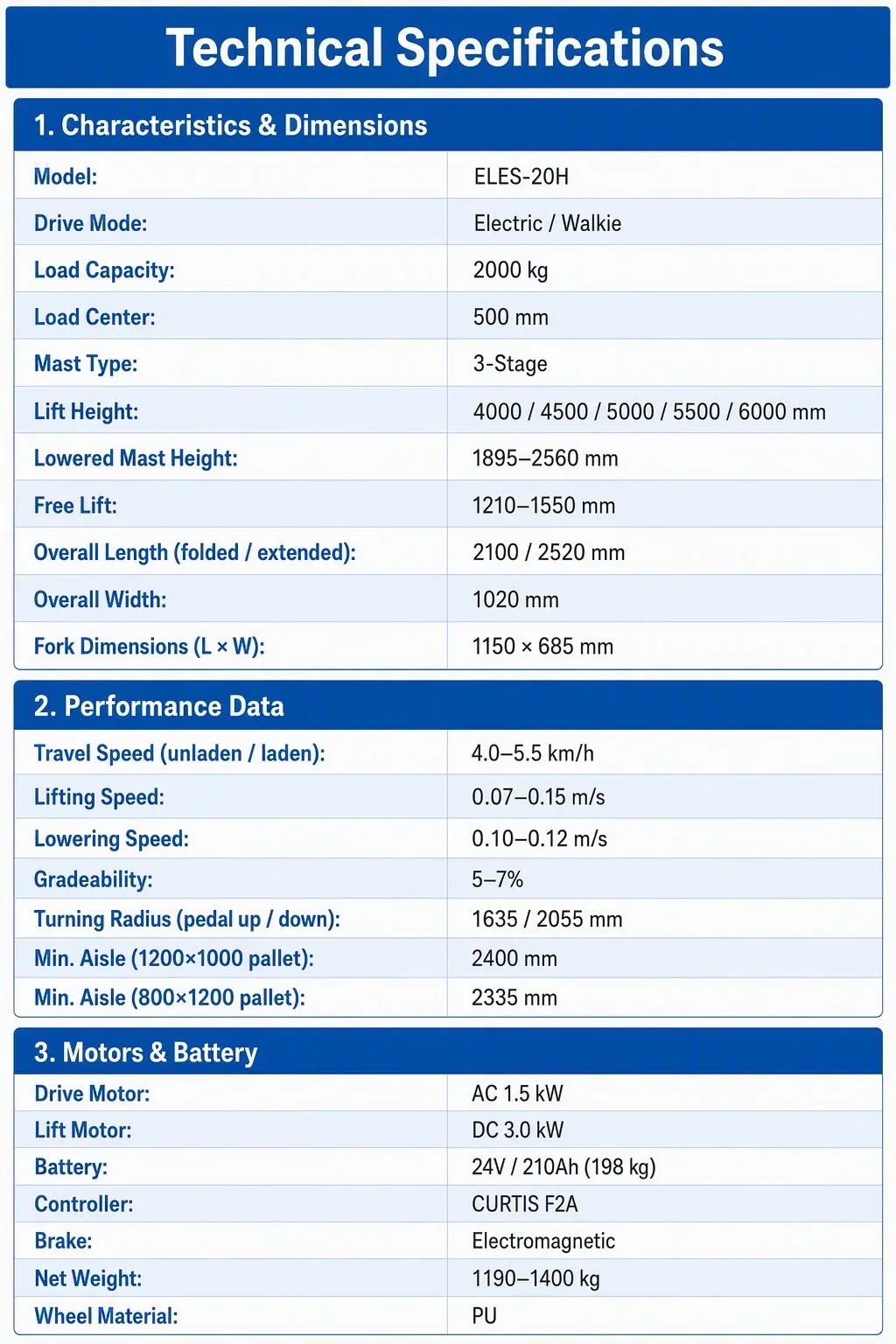

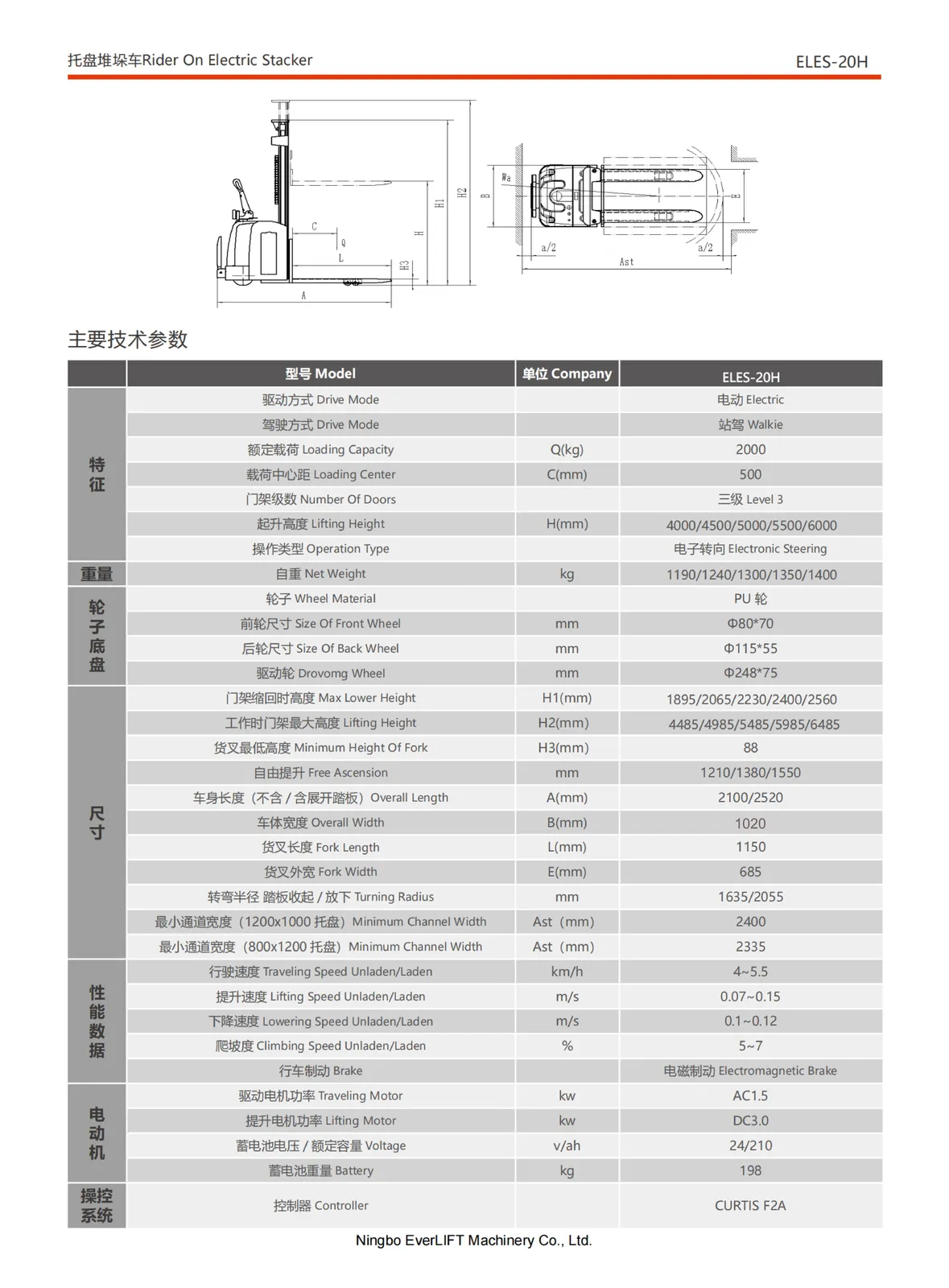

| Condition | New |
|---|---|

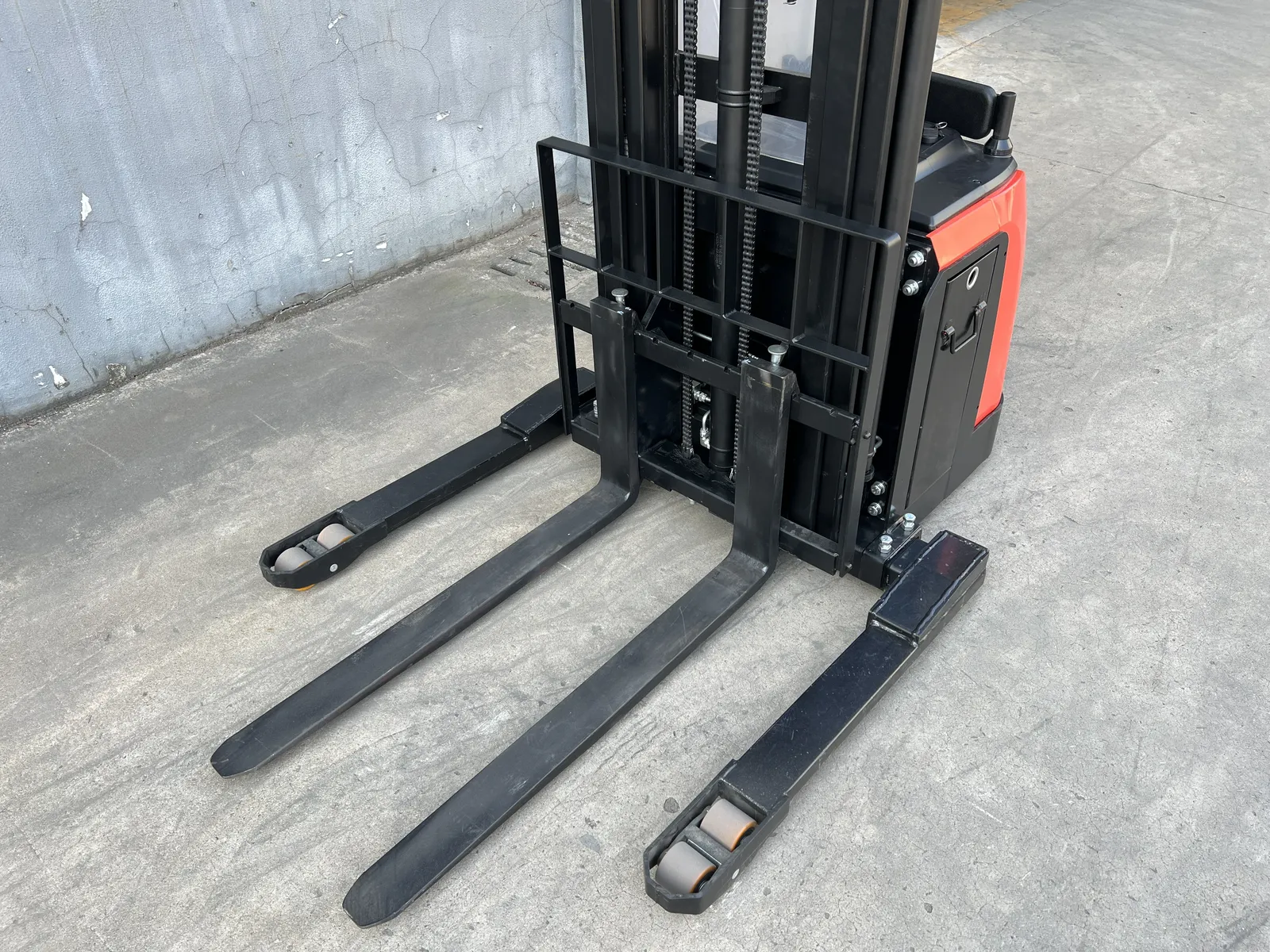

| Fork Specifications( L*W*H) | 1150 × 120 × 88 mm |
| Forklift Battery Type | Lead-Acid Battery |
| Side Shifter | Hydraulic Side Shifter, Electric Side Shifter |
| Drive Type | Fwd |
| Terrain Adaptability | Other, Rough Terrain, Outdoor Pavement, Offroad, Indoor Flooring |
| Load centre distance | 500 mm |
| Mast Type | Two-Stage Mast, Three-Stage Mas, Single-Stage Mast |
| Fork Width | 120 mm |
| Fork Length | 1150 mm |
| Operating Mode | Standing Operation |
| Forklift Tyre | Polyurethane Tyre |
| Battery voltage (V/AH) | 24V/210AH |
| Type | Stacker Forklift |
| Mast | 2 Stage /3 Stage Optional |
| Battery | 24V/210Ah |
| Capacity | 2 t |
| Operator type | Rider |
| Battery Type | Lead Aicd |
| Wheels | PU Wheels |
| Rated Loading Capacity options | 2 Ton |
| Truck Type options | Stacker Forklift |
| Max. Lifting Height options | 4000 mm, 4500 mm, 5000 mm, 5500 mm, 6000mm |
| Certificate | Number | Valid |
|---|---|---|
| 2006/42/EC | M.2026.206.C137529 | 30/03/2026 - 29/03/2031 |
| CE | M.2026.206.C134736 | 04/02/2026 - 03/02/2031 |
| CE | 3N251031.NEMS093 | 30/10/2025 - 29/10/2030 |
| EAC | 22/10/2023 - 22/10/2028 | |
| CE | M.2023.206.C83216 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83215 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83222 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83221 | 22/03/2023 - 21/03/2028 |
Certificates are supplied with your quote on request.
