1.5t 1.6t Electric Walkie Counterbalance Stacker 24V
1.5 to 1.6 tLead-acidForks 1070 mm
marked
markedfrom£3,480per unit, ex VAT
Electric Pallet Stackers · Ref LPT-84863
Walkie Electric Pallet Stacker 1.5Ton
1.5 tLead-acidForks 1150 to 1220 mm marked
markedfrom£3,470per unit, ex VAT
Get a quote, reply in 2 hours
- 12-month warranty
- Photos and video before it ships
- No online payment, nothing is charged
Any quantity is welcome. Your price depends on the quantity and is confirmed on your written quote. Prices in GBP per unit, ex VAT. We convert the factory list at a buffered exchange rate, so normal day-to-day currency movement does not change the price you see. Your written quote adds freight, duty and VAT and is valid for 30 days.
Rated Loading Capacity1.5 Ton
Truck TypeStacker Forklift
Line total
Nothing is sent yet: add the products you need, then send your quote request. We reply within 2 hours, Monday to Friday, 9am to 5pm.
Or email sales@londonpallettrucks.co.ukProduct Highlights

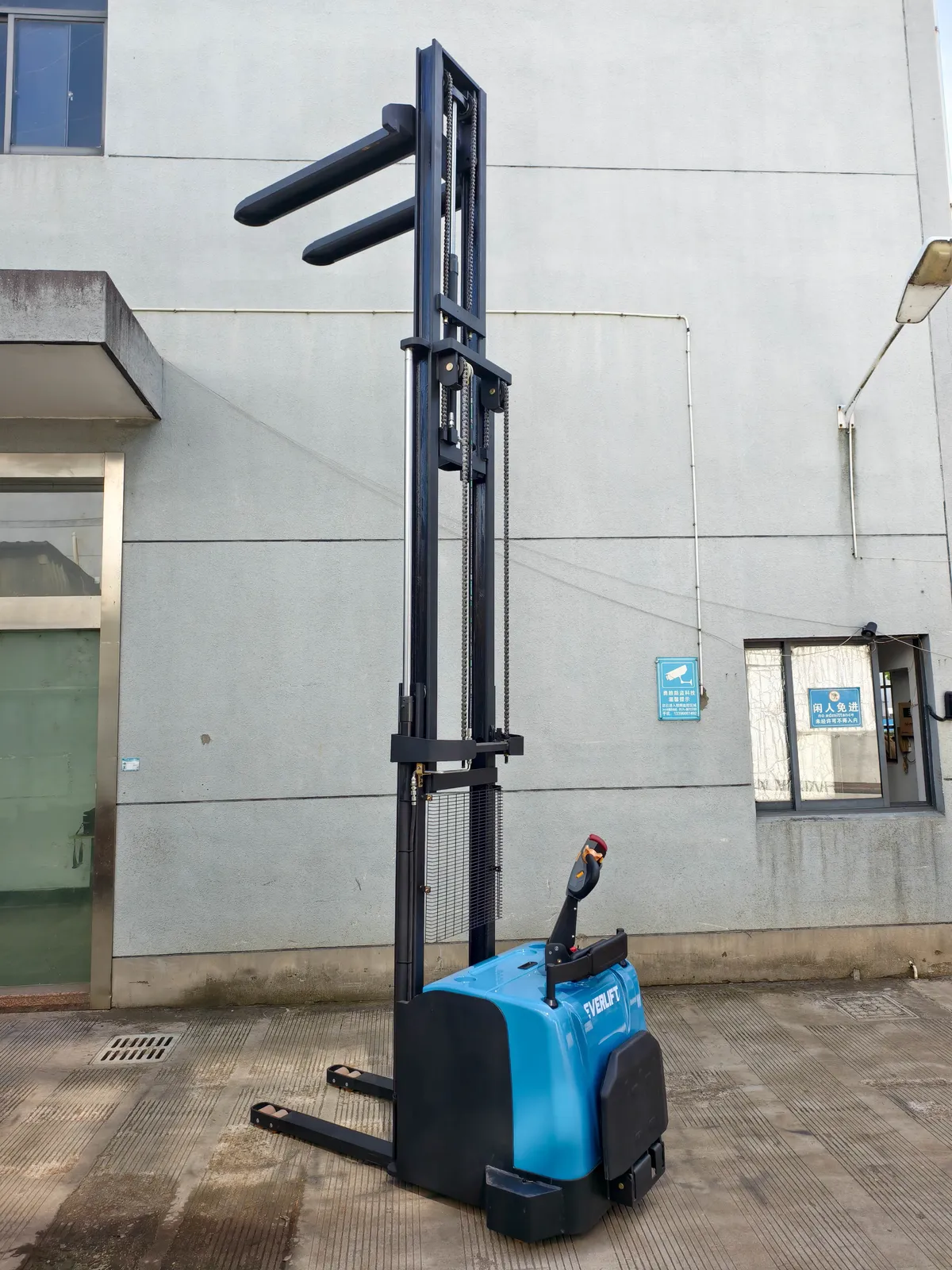

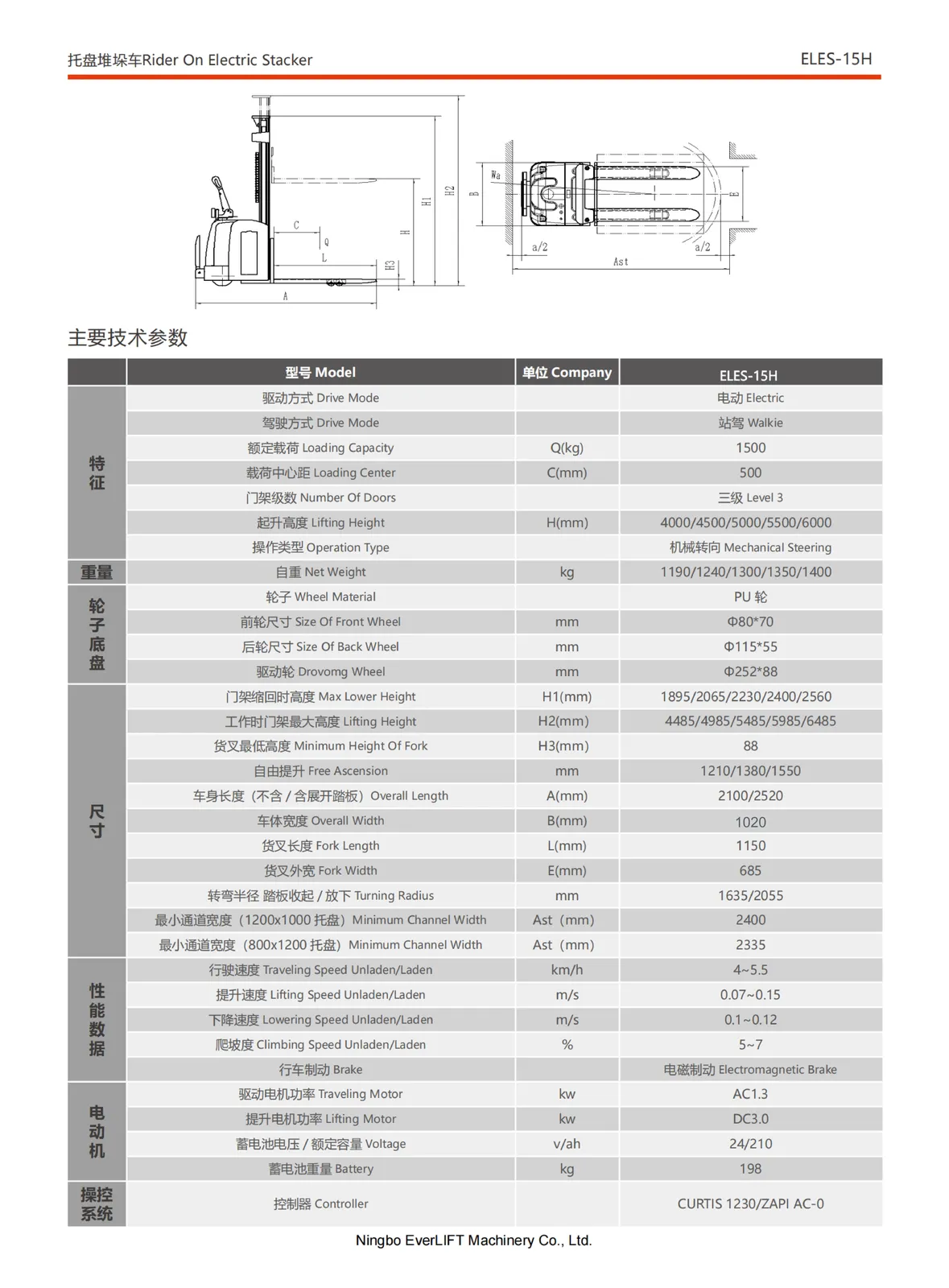

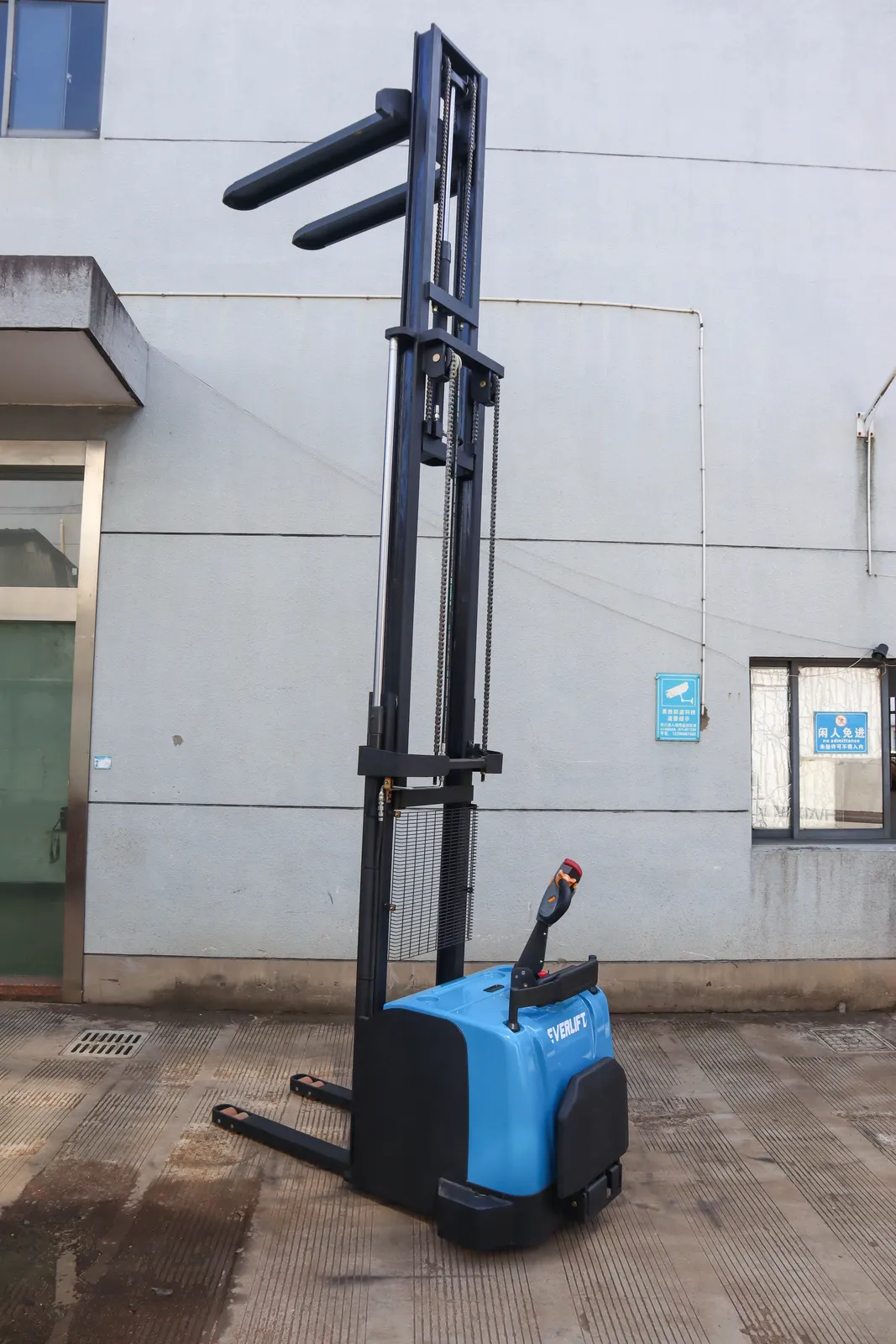

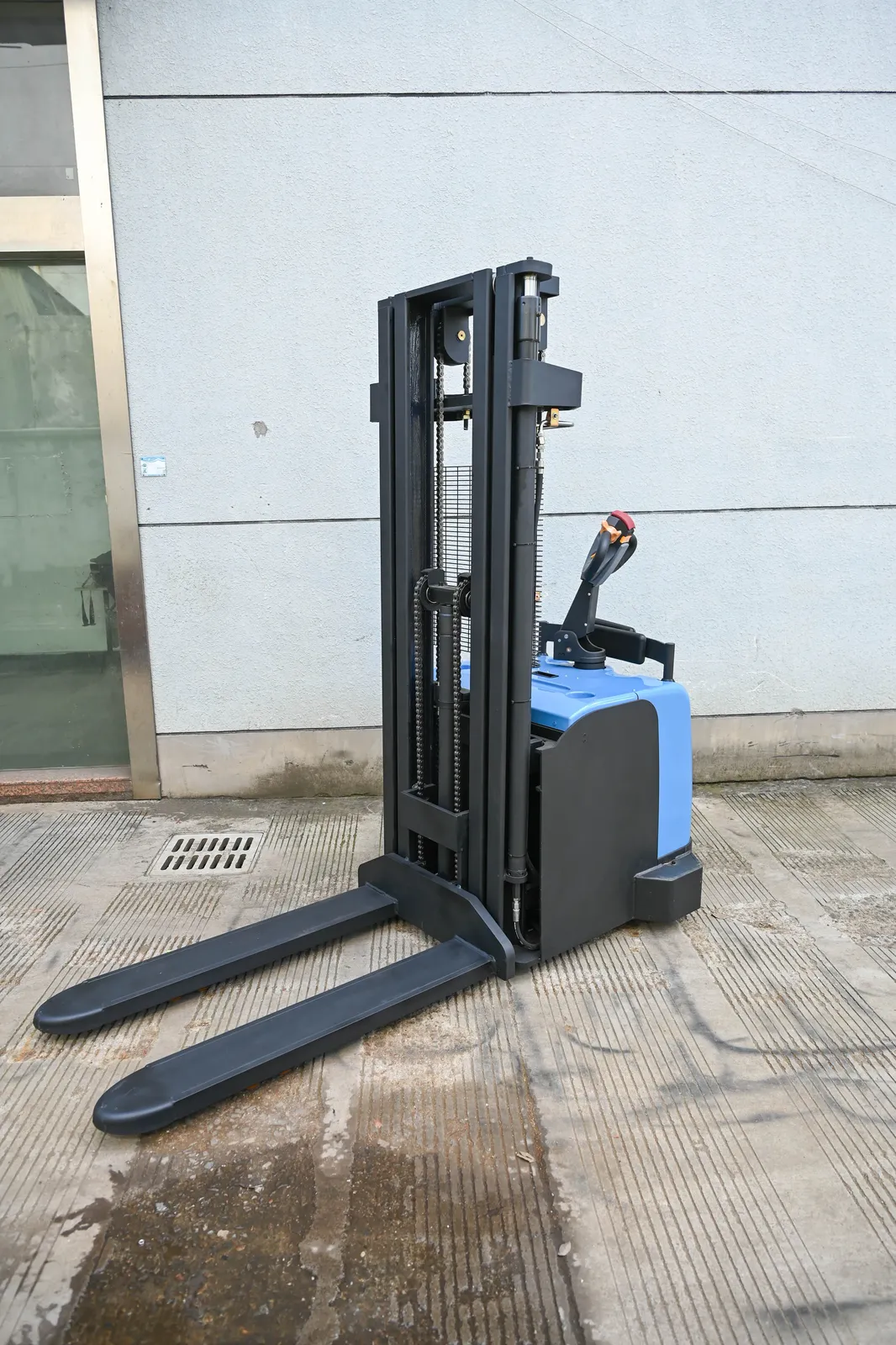

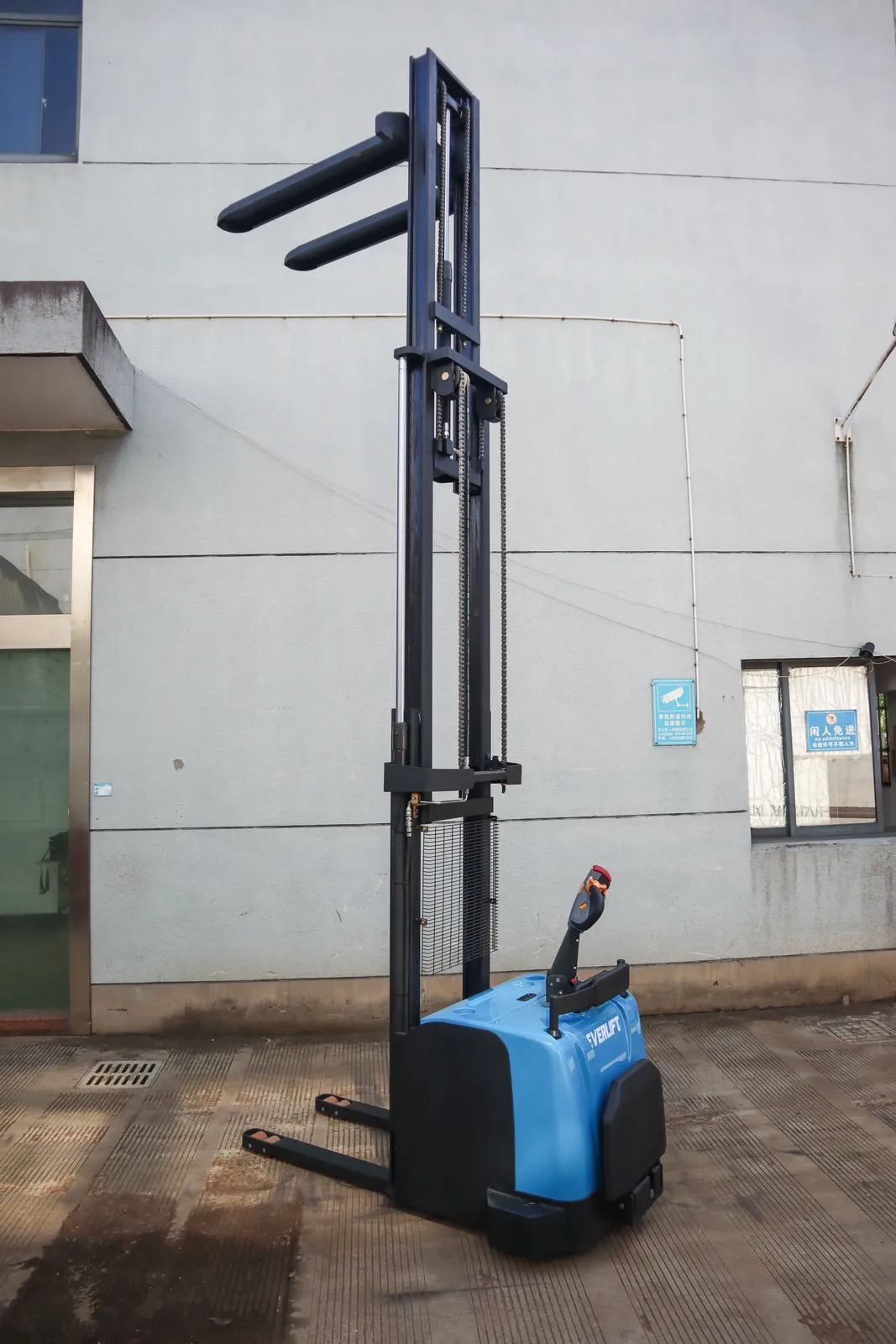

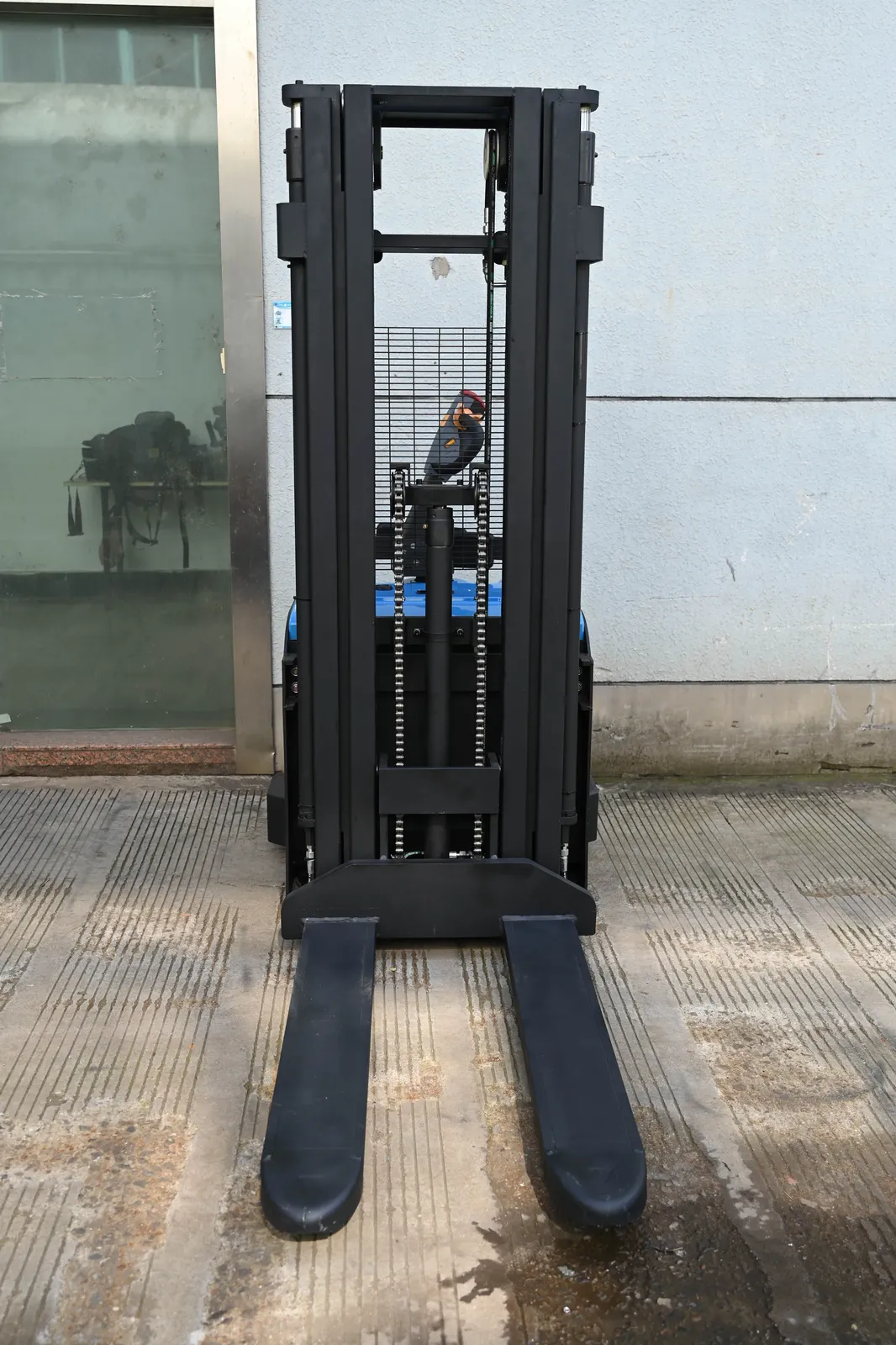

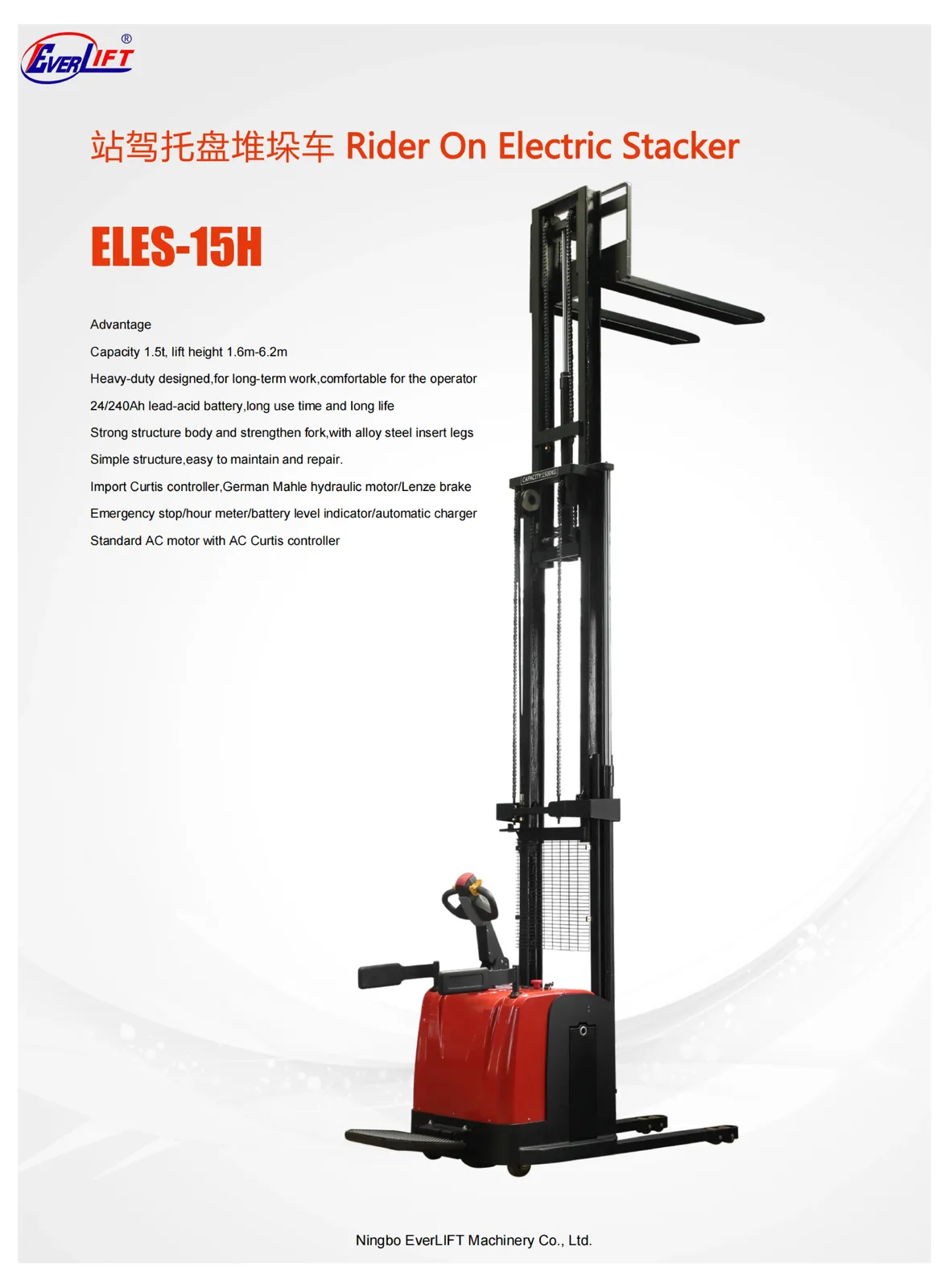

This rider-on electric stacker ELES-15H has a rated load of 1500 kg, equipped with 3-stage mast with optional lifting height ranging from 4000mm to 6000mm, which meets different high rack storage demands in warehouses.
It adopts stand-on operation and mechanical steering design, with turning radius between 1635mm and 2055mm. The minimum working aisle width is only 2335mm for 800\*1200 pallets, enabling flexible operation in narrow warehouse aisles.
The stacker is fitted with AC1.3kW drive motor and DC3.0kW lifting motor. Its empty load travel speed reaches 5.5km/h while laden speed is 4km/h, with stable lifting and lowering speed to improve daily pallet stacking efficiency.
The control system adopts CURTIS 1230 or ZAPI AC-0 controller for precise operation control. All wheels are made of durable PU material, and the machine supports 5~7% climbing gradient under both empty and laden conditions, suitable for various indoor logistics storage scenarios.
| Condition | New |
|---|---|
| Fork Specifications( L*W*H) | 1150 × 685 × 88 mm |
| Forklift Battery Type | Lead-Acid Battery |
| Side Shifter | Electric Side Shifter, Hydraulic Side Shifter |
| Drive Type | Fwd |
| Terrain Adaptability | Indoor Flooring, Offroad, Rough Terrain, Other, Outdoor Pavement |
| Load centre distance | 500 mm, 600 mm |
| Mast Type | Single-Stage Mast, Three-Stage Mas, Two-Stage Mast |
| Forklift Turning radius | 1635 mm/2055 mm |
| Fork Length | 1150 mm, 1220 mm |
| Operating Mode | Standing Operation |
| Forklift Tyre | Polyurethane Tyre |
| Mast Tilt Angle (Forward Tilt-Rear Tilt) | 6-12° |
| Battery voltage (V/AH) | 24v/240ah |
| Type | Stacker Forklift |
| Mast | 2 Stage /3 Stage Optional |
| Battery | Lead-acid Batterry |
| Battery capacity | 24v/240ah |
| Wheels | PU Wheels |
| Rated Loading Capacity options | 1.5 Ton |
| Truck Type options | Stacker Forklift |
| Max. Lifting Height options | 4000 mm, 4500 mm, 5000 mm, 5500 mm, 6000mm, 6200 mm |
| Certificate | Number | Valid |
|---|---|---|
| 2006/42/EC | M.2026.206.C137529 | 30/03/2026 - 29/03/2031 |
| CE | M.2026.206.C134736 | 04/02/2026 - 03/02/2031 |
| CE | 3N251031.NEMS093 | 30/10/2025 - 29/10/2030 |
| EAC | 22/10/2023 - 22/10/2028 | |
| CE | M.2023.206.C83216 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83215 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83222 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83221 | 22/03/2023 - 21/03/2028 |
Certificates are supplied with your quote on request.
