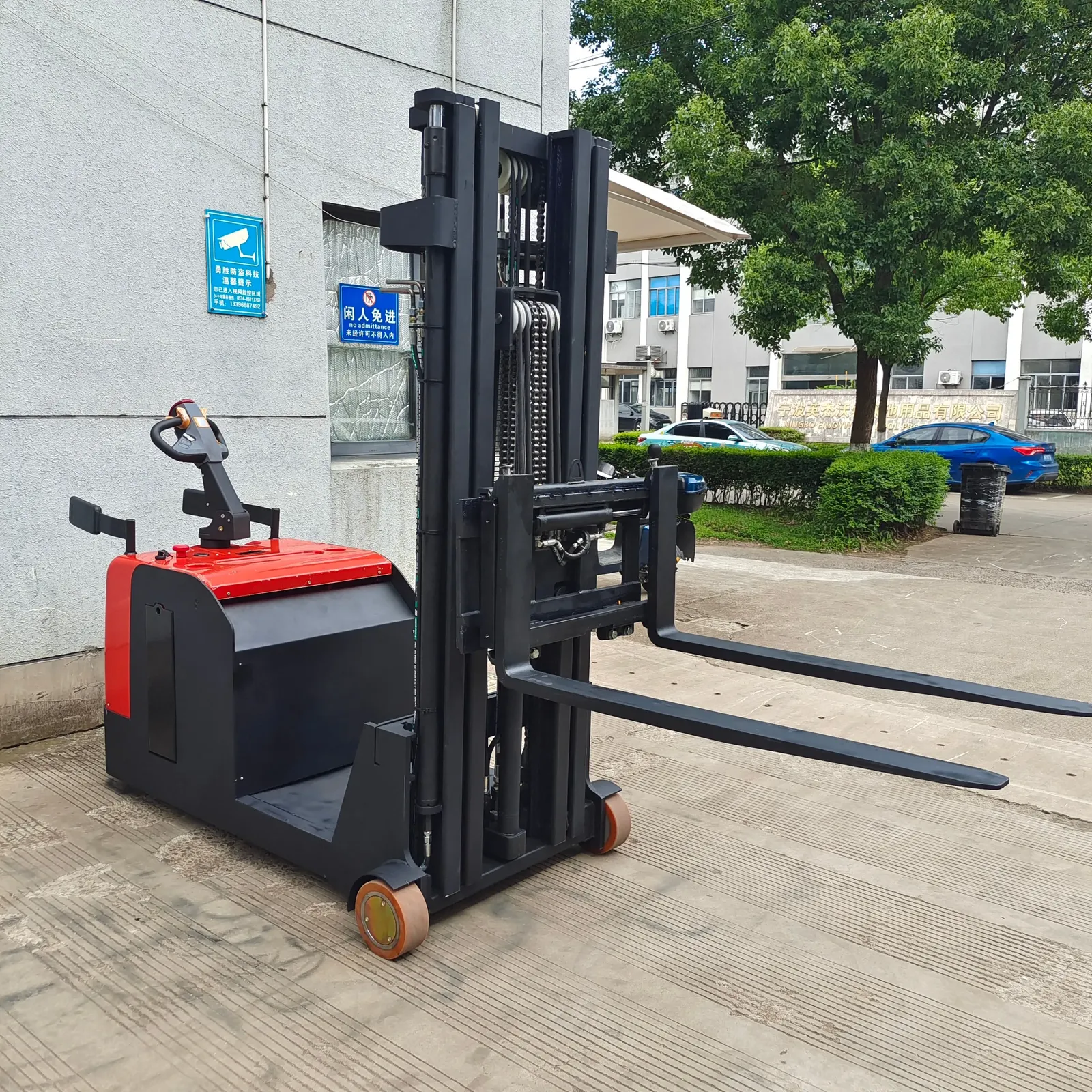

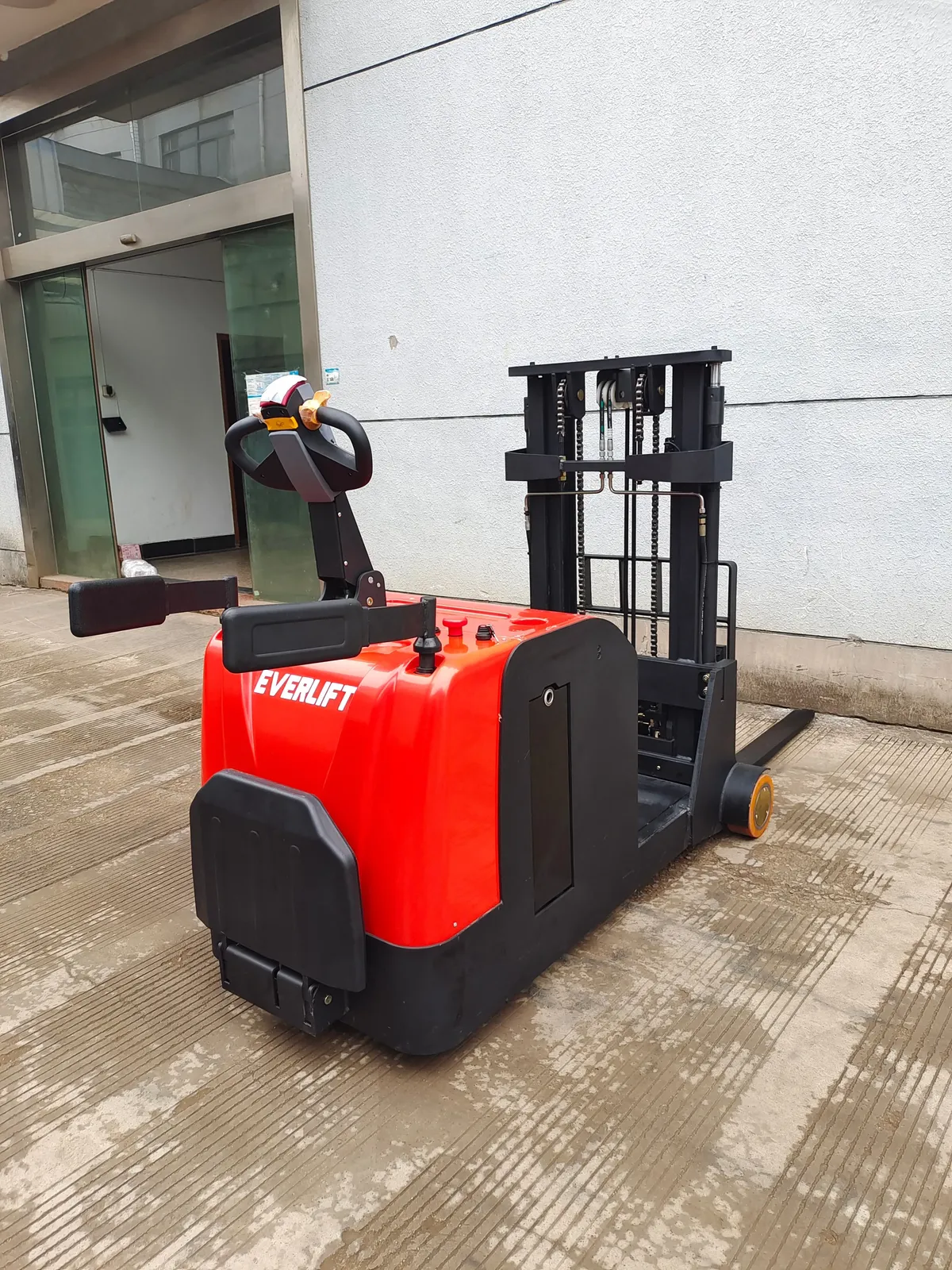

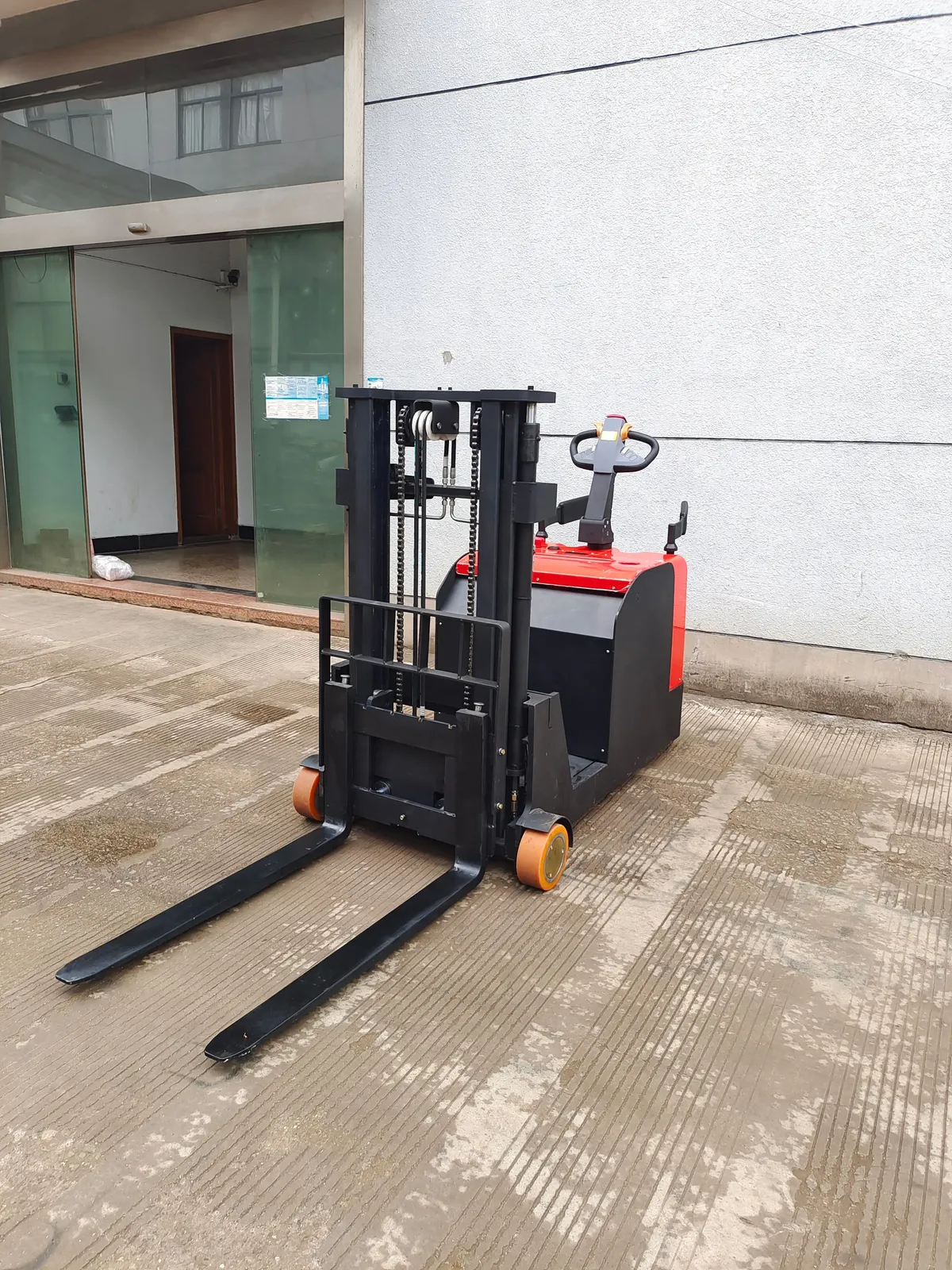

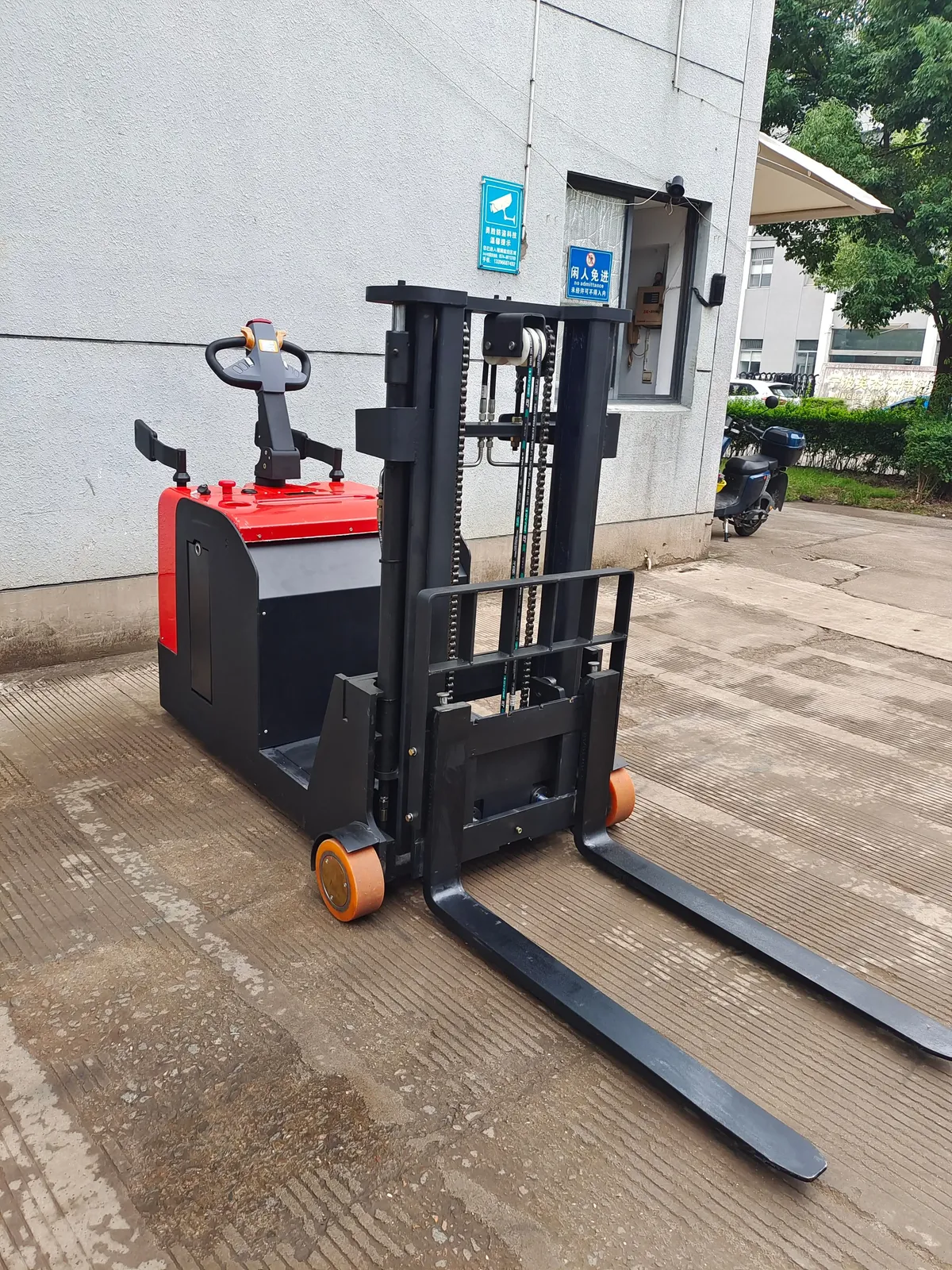

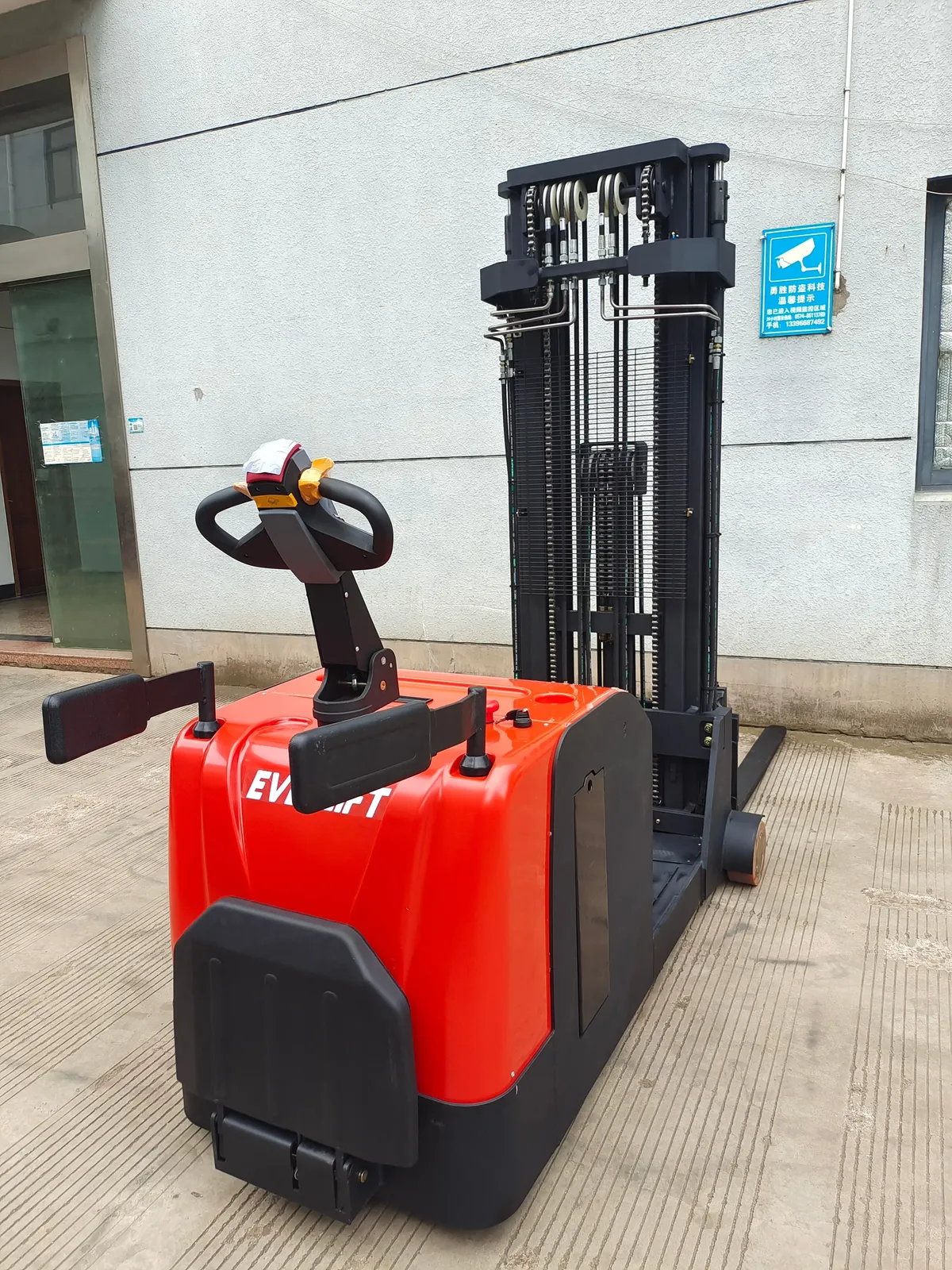

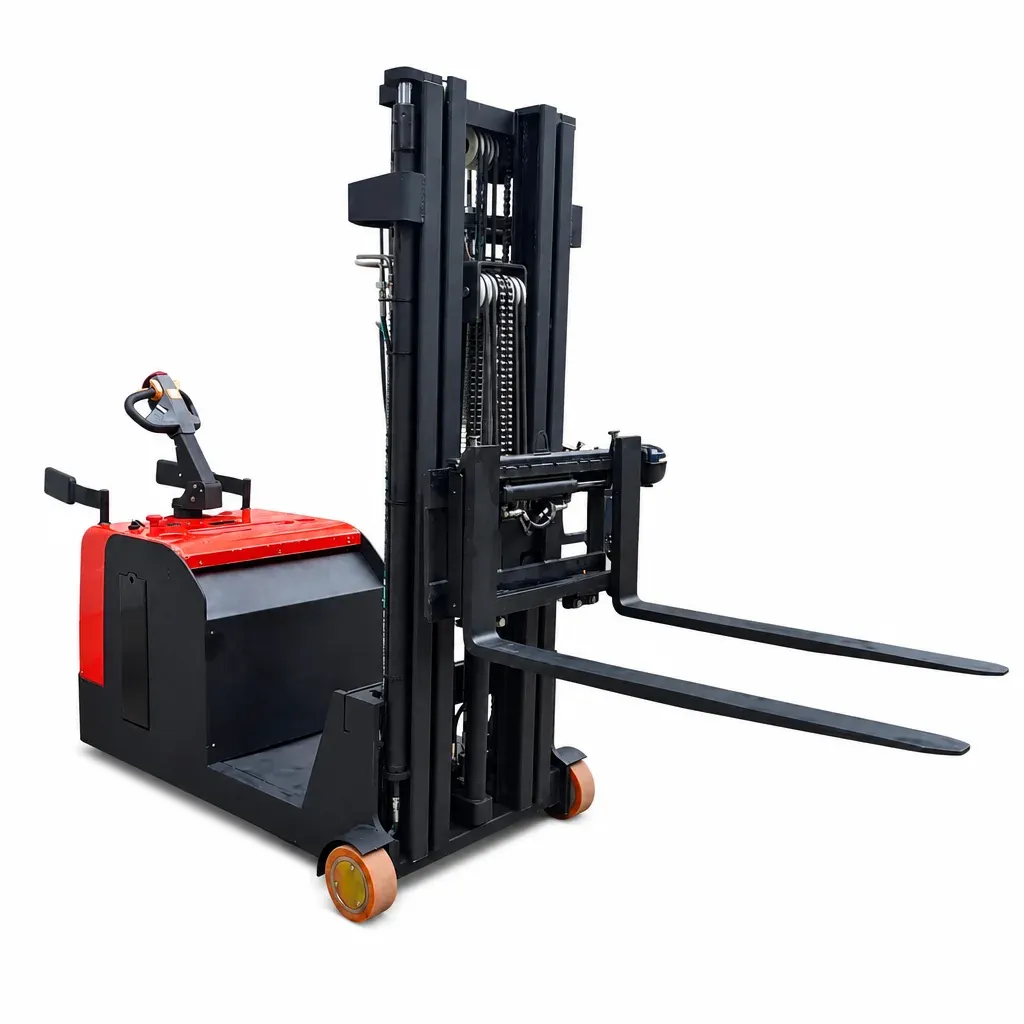

1.5t 1.6t Electric Walkie Counterbalance Stacker 24V
1.5 to 1.6 tLead-acidForks 1070 mm marked
markedfrom£3,480per unit, ex VAT
Get a quote, reply in 2 hours
- 12-month warranty
- Photos and video before it ships
- No online payment, nothing is charged
Any quantity is welcome. Your price depends on the quantity and is confirmed on your written quote. Prices in GBP per unit, ex VAT. We convert the factory list at a buffered exchange rate, so normal day-to-day currency movement does not change the price you see. Your written quote adds freight, duty and VAT and is valid for 30 days.
Truck TypeStacker Forklift
Line total
Nothing is sent yet: add the products you need, then send your quote request. We reply within 2 hours, Monday to Friday, 9am to 5pm.
Or email sales@londonpallettrucks.co.ukProduct Highlights

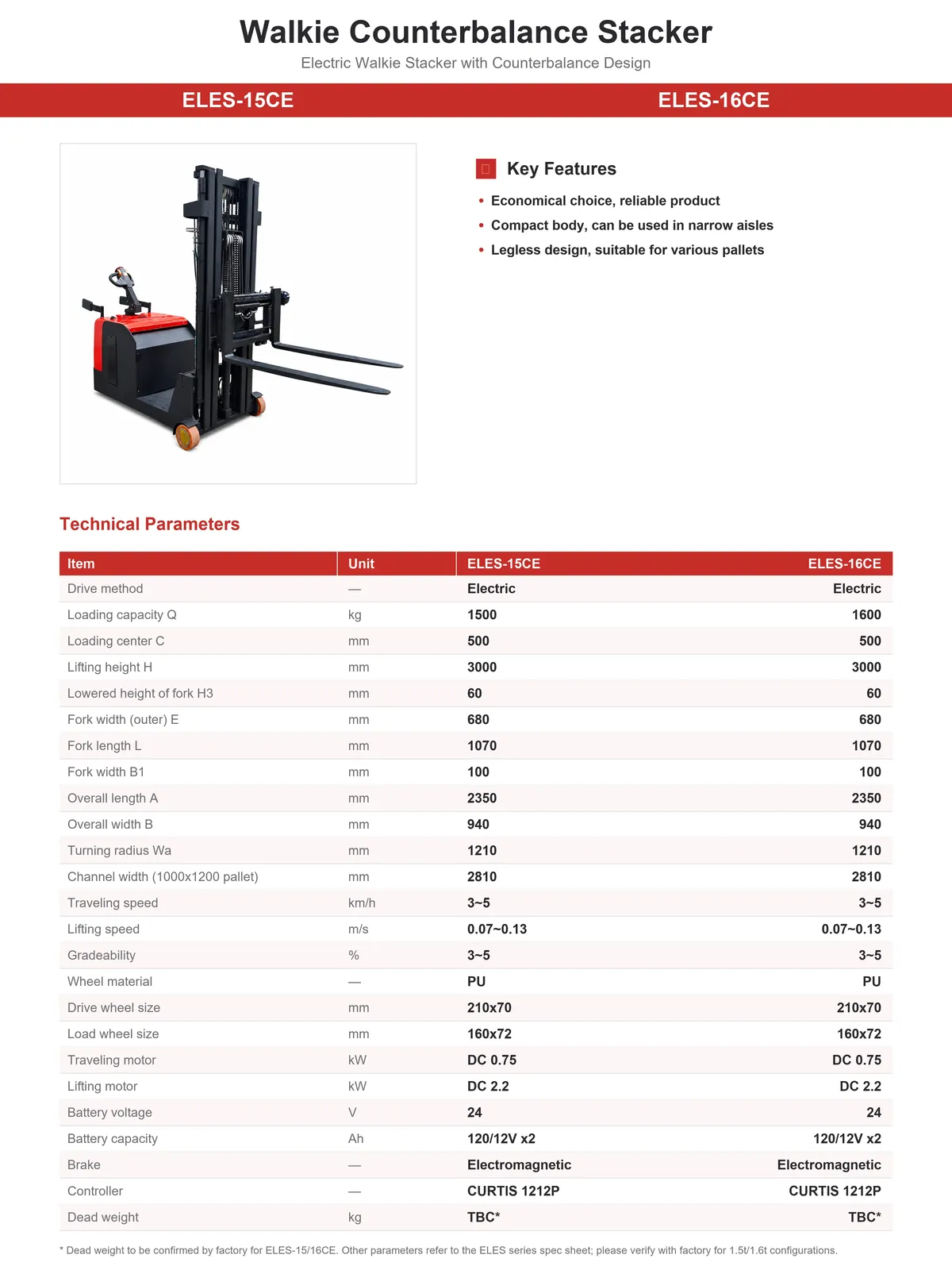

1.5t / 1.6t capacity with 3m lift, ELES-15CE rated 1500 kg and ELES-16CE rated 1600 kg, lifting height up to 3000mm (other heights available), load centre 500mm. Economical choice, reliable product.

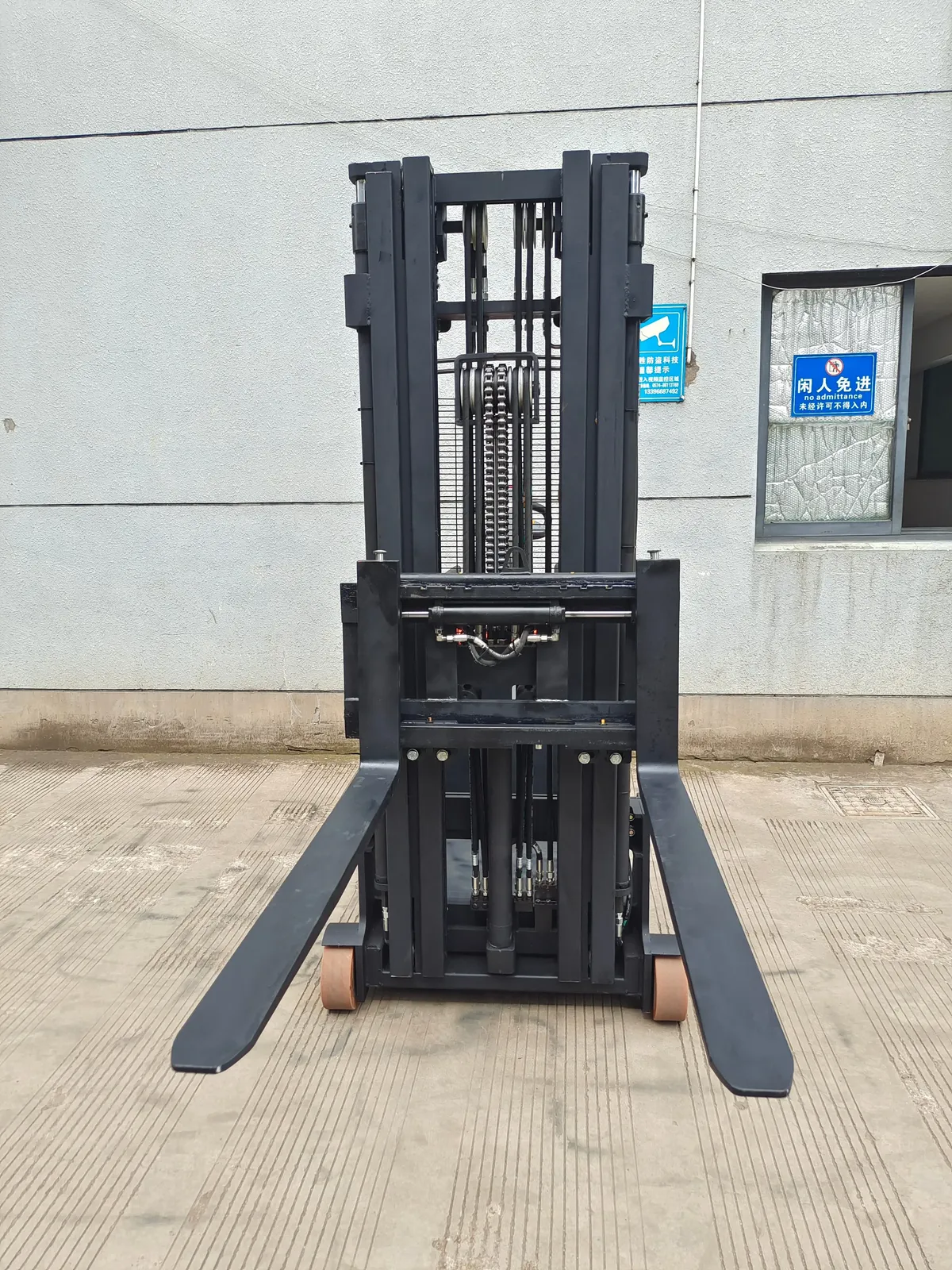

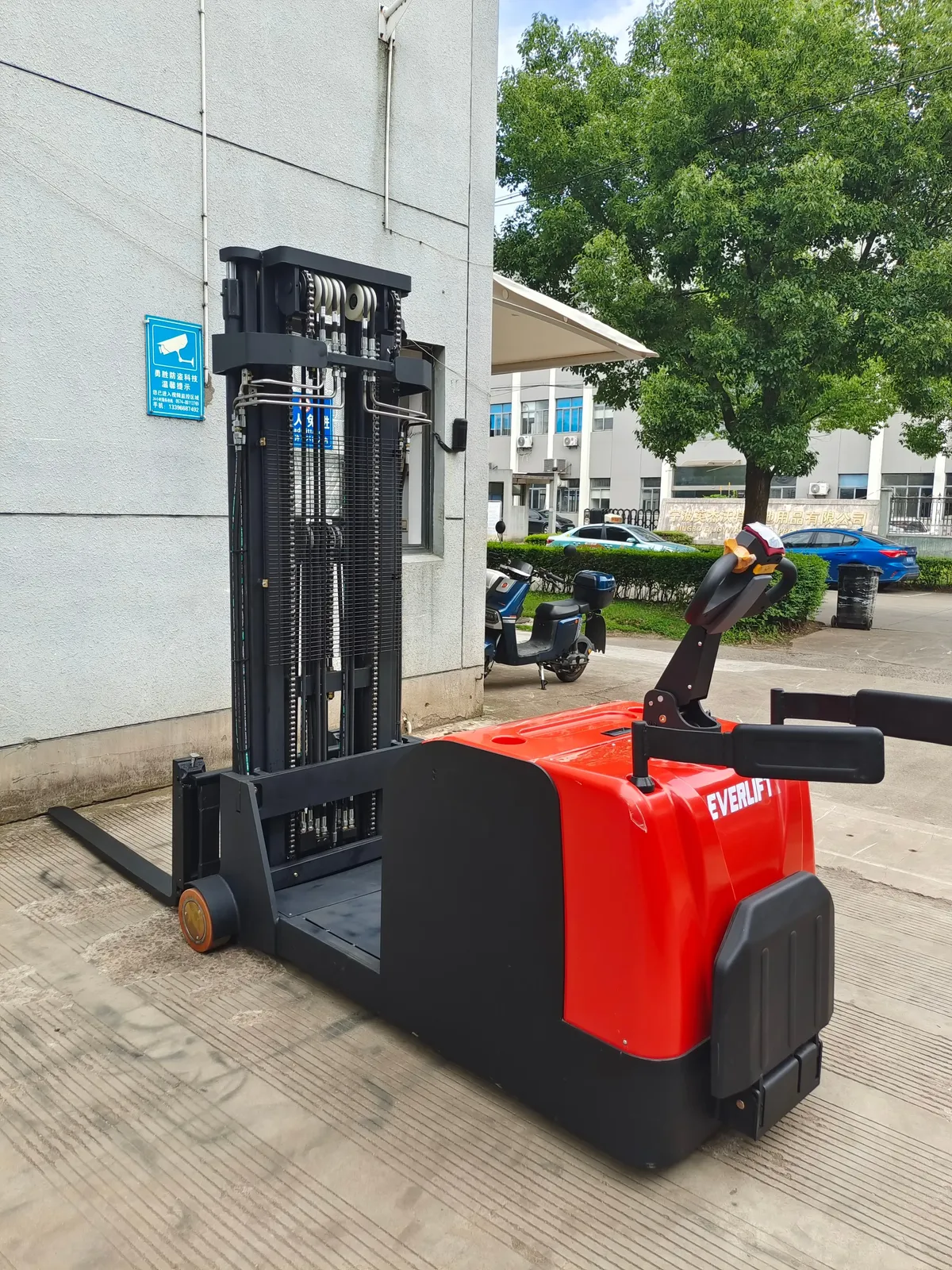

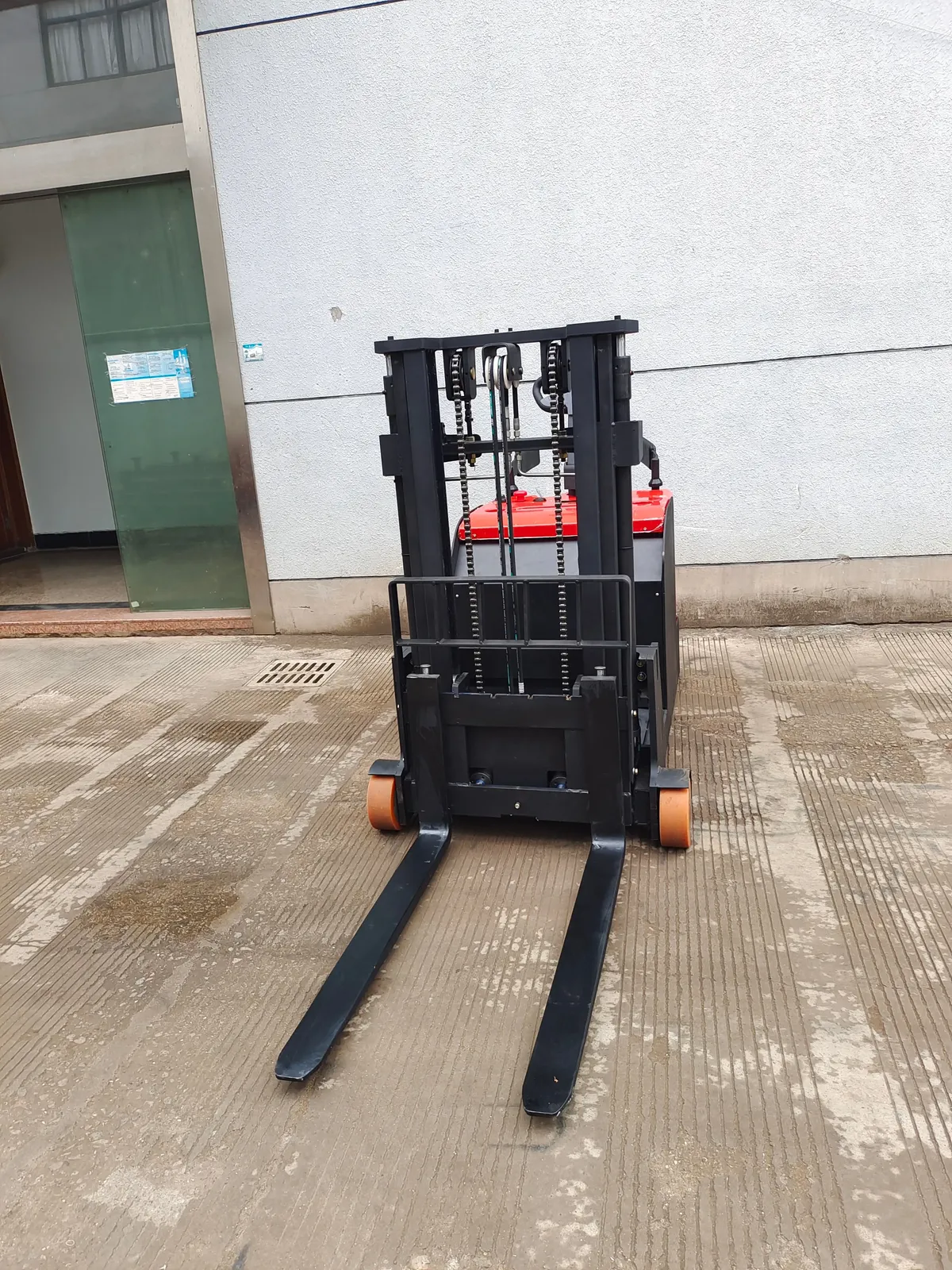

Legless counterbalance design, No outrigger legs under the forks, so the stacker suits various pallets (wooden, plastic, different widths); the counterweight provides stability for safe lifting.
Compact and manoeuvrable, Compact body (940mm wide, 1210mm turning radius) works in narrow aisles and standard doorways; channel width only 2810mm with 1000×1200 pallets.
High-performance electric system, 24V electric drive (DC 0.75kW travel / DC 2.2kW lift), lifting speed 0.07 to 0.13 m/s, smooth electromagnetic brake; CURTIS 1212P controller ensures precise, reliable control.
Durable wheels, low maintenance, PU wheels (drive 210×70mm, load Φ160×72mm) provide good grip and floor protection; long-life 24V/120Ah battery (12V×2) keeps the machine running through shifts.

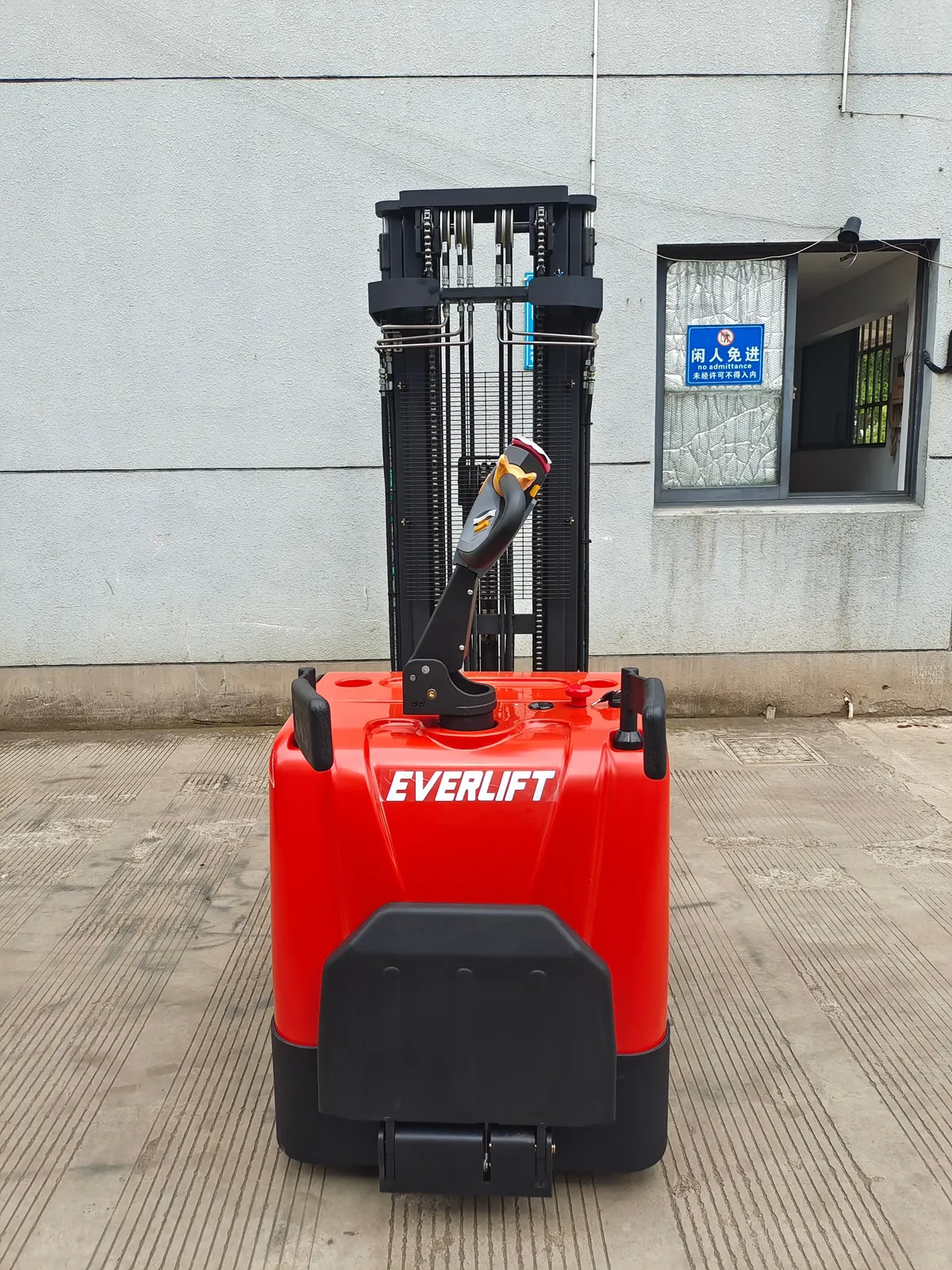

Safe operation, Electromagnetic braking, low speed design for indoor safety (3 to 5 km/h), easy walkie tiller control with all functions at your fingertips, ideal for factory, warehouse and retail environments.
| Condition | New |
|---|---|
| Fork Specifications( L*W*H) | 1070 × 100 × 40 mm |
| Forklift Battery Type | Lead-Acid Battery |
| Side Shifter | Hydraulic Side Shifter, Electric Side Shifter |
| Drive Type | Fwd |
| Terrain Adaptability | Other, Rough Terrain, Outdoor Pavement, Offroad, Indoor Flooring |
| Load centre distance | 500 mm |
| Mast Type | Single-Stage Mast, Three-Stage Mas, Two-Stage Mast |
| Forklift Turning radius | 1210 mm |
| Fork Width | 100 mm |
| Fork Length | 1070 mm |
| Operating Mode | Standing Operation |
| Forklift Tyre | Polyurethane Tyre |
| Mast Tilt Angle (Forward Tilt-Rear Tilt) | 6-12° |
| Battery voltage (V/AH) | 24V / 120Ah |
| Fork height,lowered | 60mm |
| Type | Electric Stacker |
| Mast | 2 Stage /3 Stage Optional |
| Product Type | Electric Battery Stacker |
| Operator type | Rider |
| Battery | 24V / 120Ah |
| Lifting height | 1.6m-5m |
| Capacity | 1.5/1.6t |
| Rated Loading Capacity options | 1.5 Ton, 1.6t |
| Truck Type options | Stacker Forklift |
| Max. Lifting Height options | 1 600 mm, 2 000 mm, 2500 mm, 3000mm, 3500 mm, 4000 mm, 4500 mm, 5000 mm |
| Certificate | Number | Valid |
|---|---|---|
| 2006/42/EC | M.2026.206.C137529 | 30/03/2026 - 29/03/2031 |
| CE | M.2026.206.C134736 | 04/02/2026 - 03/02/2031 |
| CE | 3N251031.NEMS093 | 30/10/2025 - 29/10/2030 |
| EAC | 22/10/2023 - 22/10/2028 | |
| CE | M.2023.206.C83216 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83215 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83222 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83221 | 22/03/2023 - 21/03/2028 |
Certificates are supplied with your quote on request.
