Forklifts · Ref LPT-15173

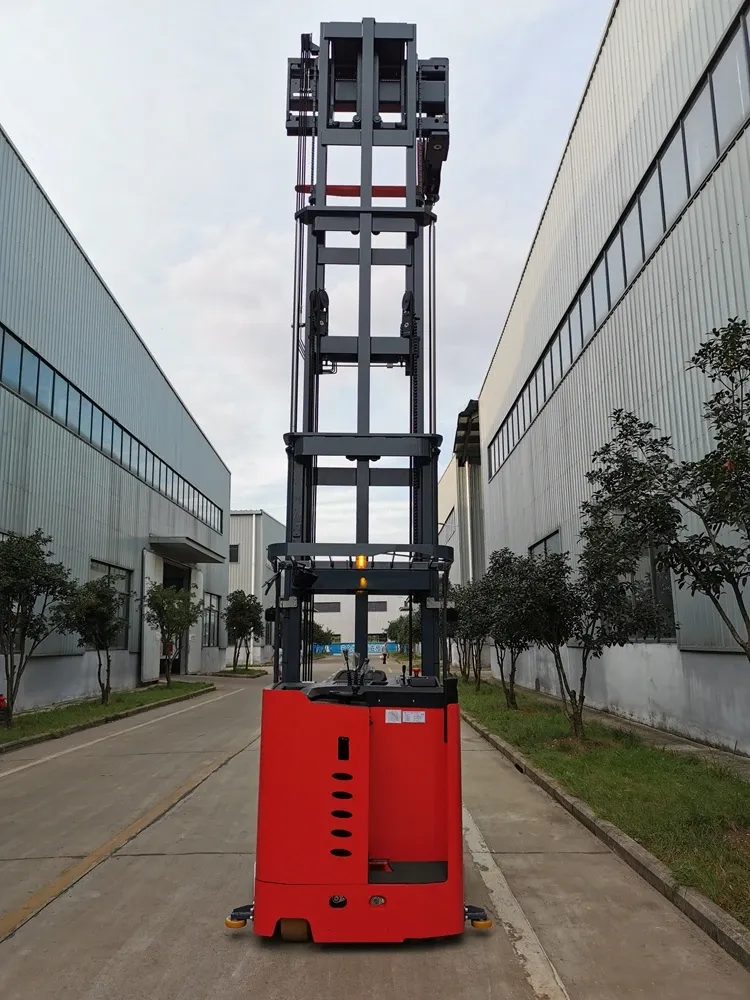

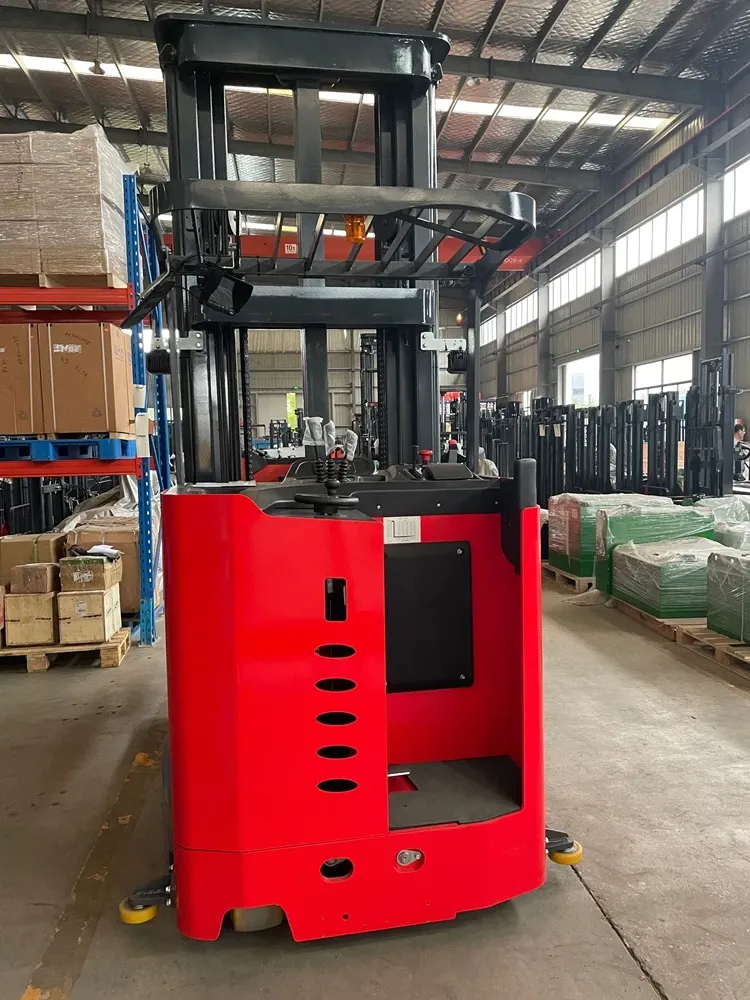

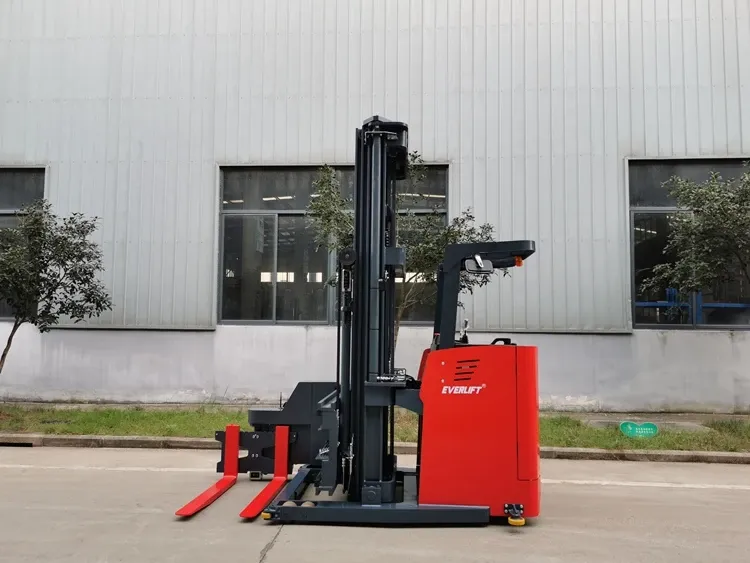

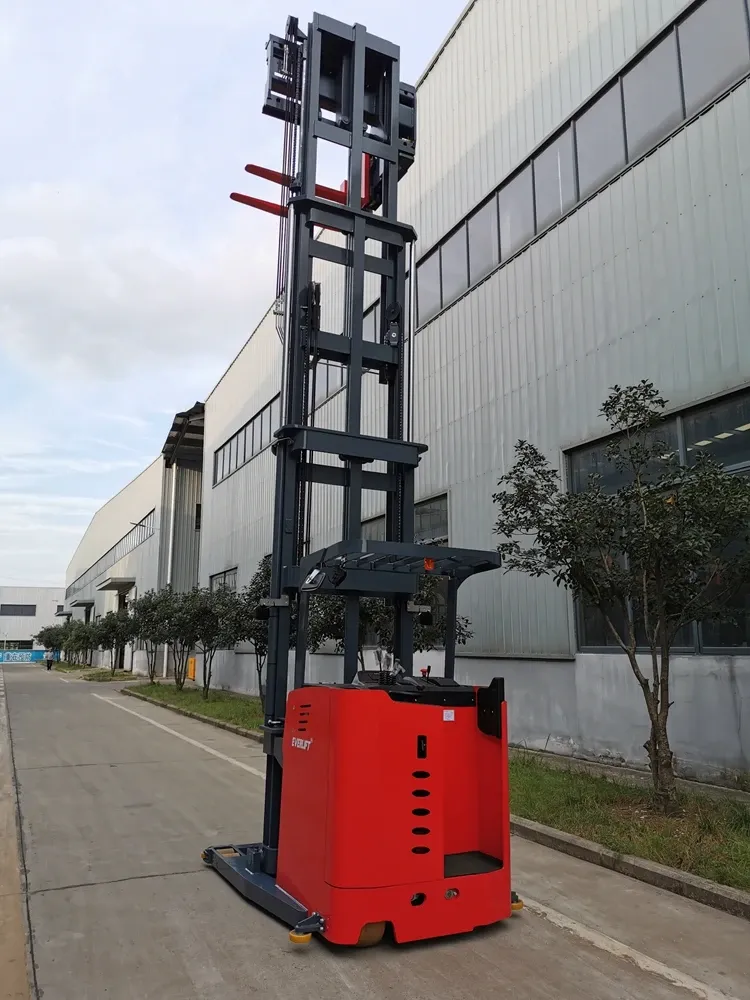

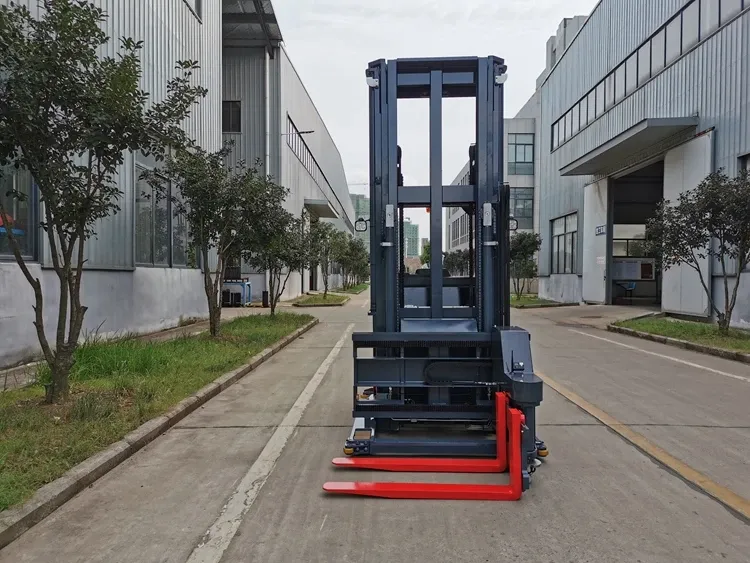

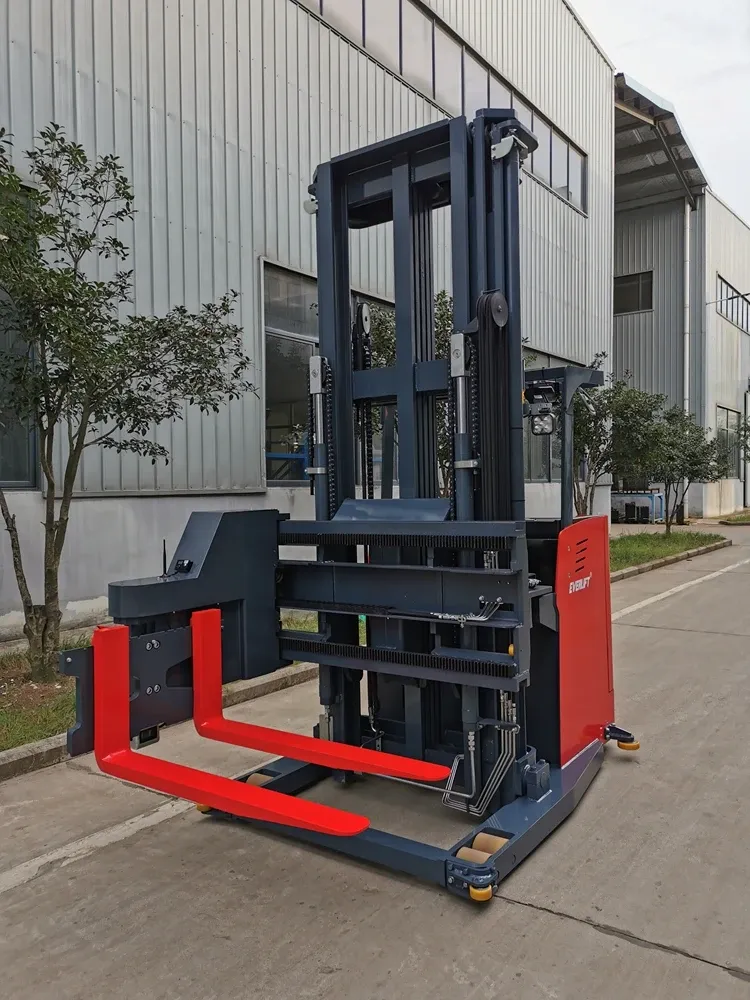

3m-10m Height Battery Operated Electric 2Ton 3 Way Pallet Stacker
1.5 to 2 tElectricForks 1070 mm
from £22,980per unit, ex VAT
| Quantity | Price per unit |
|---|---|
| 1 to 4 units | £23,860 |
| 5+ units | £22,980 |
Minimum order 1 unit from the factory; any range minimum is confirmed on your quote. Prices in GBP per unit, ex VAT. We convert the factory list at a buffered exchange rate, so normal day-to-day currency movement does not change the price you see. Your written quote adds freight, duty and VAT and is valid for 30 days.
Truck TypeVery Narrow Aisle Forklift
Line total
No online payment. The basket becomes an order request and we reply with a written GBP quote, deposit 30% on order, lead time 8 to 12 weeks.
Or email [email protected]Product Highlights

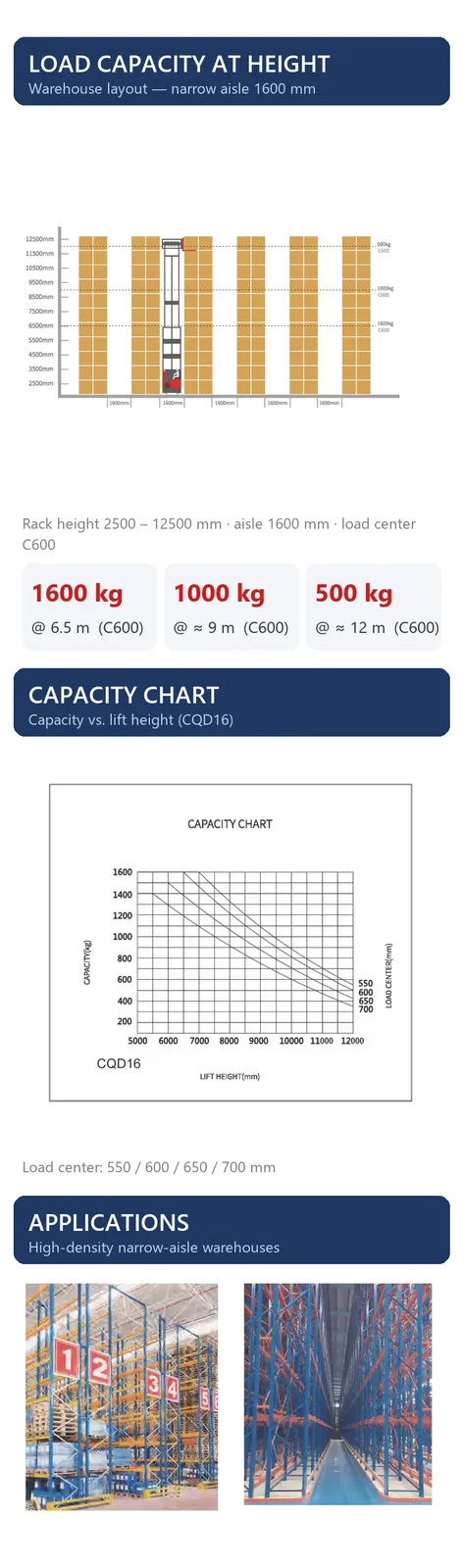

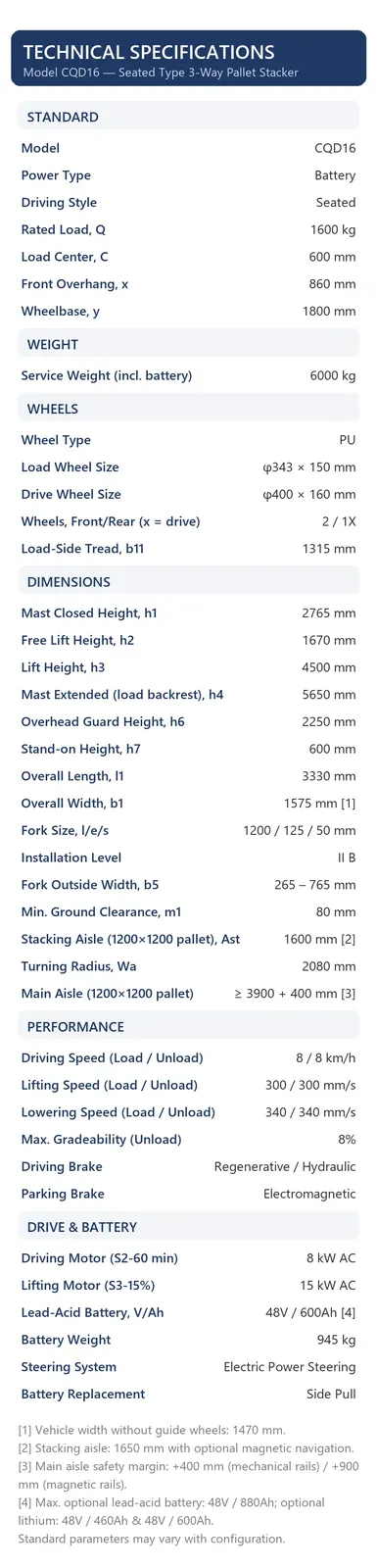

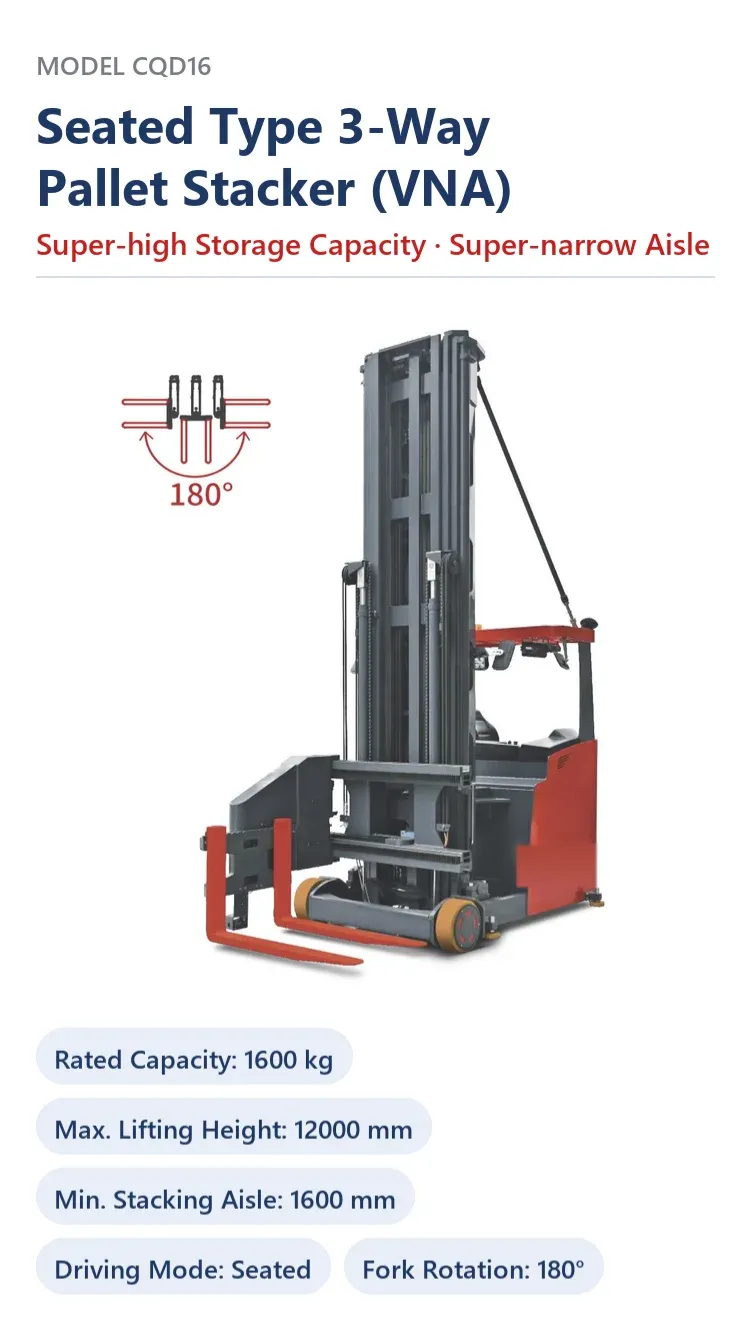

- (1) 1600kg Rated Load Capacity with 4500mm Lifting Height Delivers a rated capacity of 1600kg and a maximum lifting height of 4500mm, making it ideal for high-bay warehousing and heavy-load stacking operations.

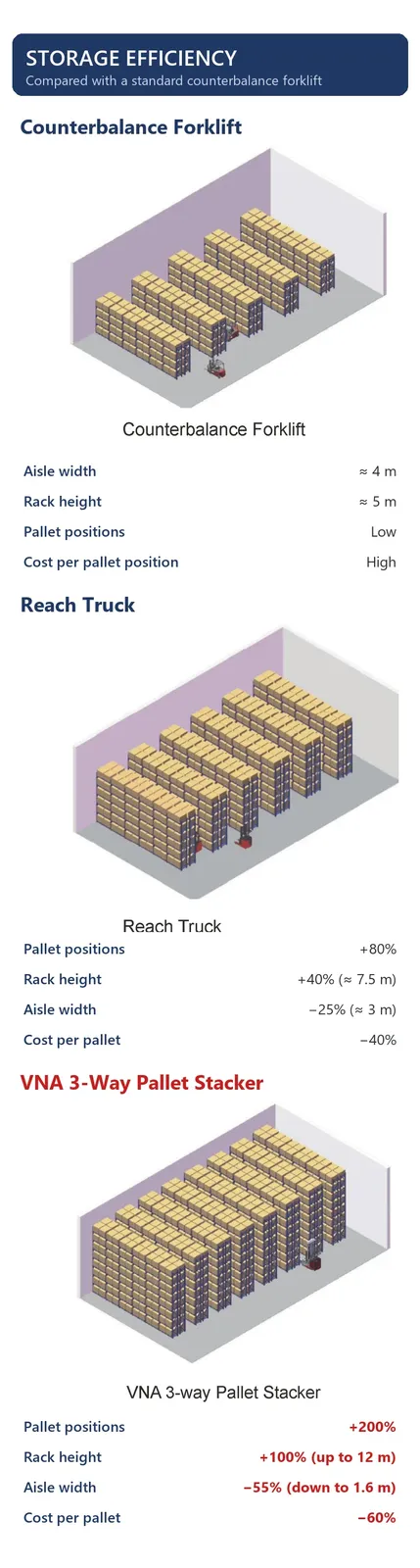

- (2) 1600mm Ultra-Narrow Stacking Aisle Requires only a 1600mm stacking aisle for 1200×1200 pallets, significantly increasing warehouse storage density and maximising available floor space.

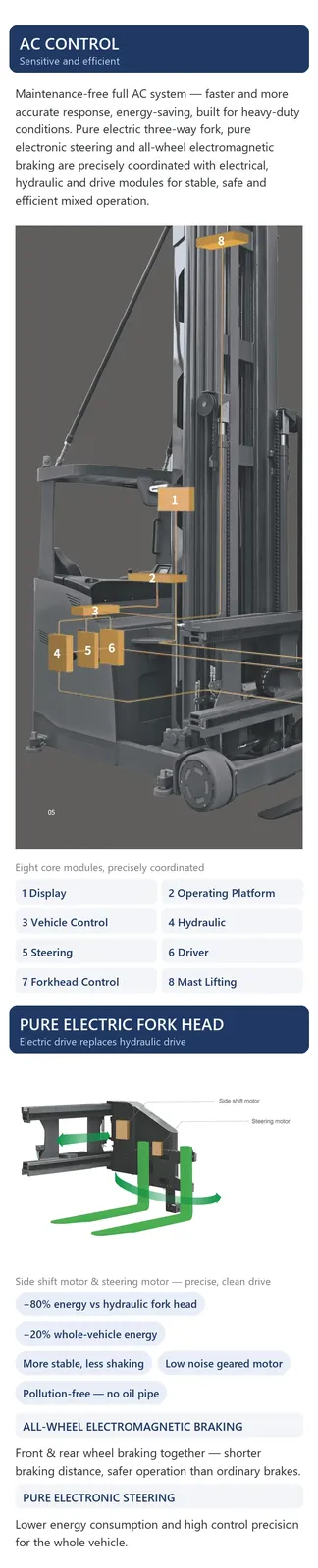

- (3) 8kW AC Driving Motor with 8km/h Travel Speed Powered by a high-performance 8kW AC drive motor, delivering consistent travel speed of 8km/h under both loaded and unloaded conditions for efficient horizontal transport.
- (4) 15kW AC Lifting Motor with 300mm/s Lifting Speed Equipped with a powerful 15kW AC lifting motor, providing fast lifting speed of 300mm/s under full load to minimise cycle times and improve productivity.
- (5) 48V/600Ah Lead-Acid Battery with Side Pull-Out Replacement Powered by a durable 48V/600Ah battery with convenient side pull-out replacement design, supporting extended operations and quick battery changes for multi-shift use. Optional 880Ah battery and lithium options also available.
- (6) 2080mm Turning Radius for Efficient Manoeuvring Features a compact turning radius of 2080mm, enabling smooth and precise manoeuvring within narrow warehouse aisles.

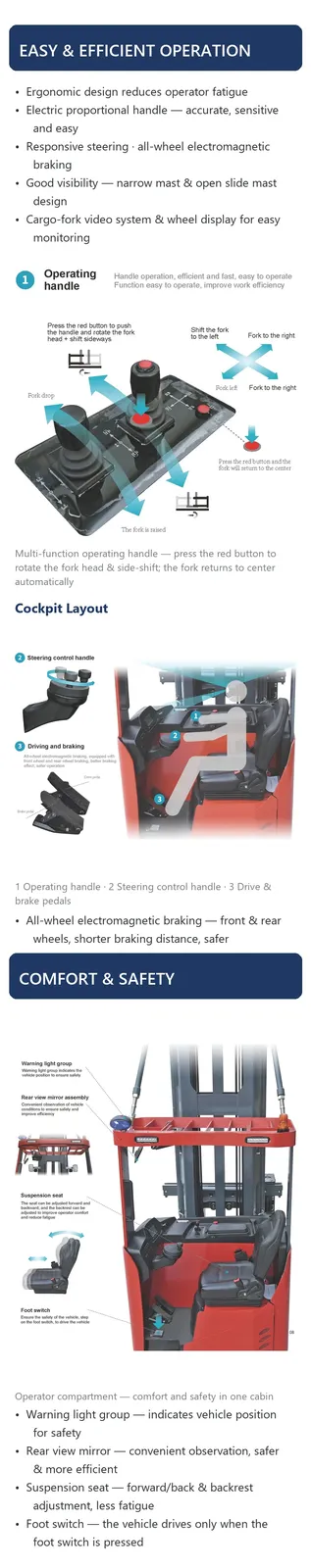

- (7) Seated Operation with Electric Power Steering Designed with a comfortable seated operating position and electric power steering system, reducing operator fatigue during long shifts and enhancing overall handling precision.
- (8) Regenerative and Hydraulic Dual Brake System Combines regenerative and hydraulic braking for reliable stopping power, with an additional electromagnetic parking brake for enhanced safety during stationary periods.
- (9) Flexible Fork Width Adjustment (265-765mm) Fork outside width adjusts from 265mm to 765mm, accommodating various pallet sizes and load configurations for versatile application flexibility.
- (10) 6000kg Service Weight with Heavy-Duty Construction Weighing 6000kg with a durable PU wheel set (load wheel φ343×150mm, drive wheel φ400×160mm), ensuring exceptional stability and long-term reliability in demanding industrial environments.
| Condition | New |
|---|---|
| Fork Specifications( L*W*H) | 1220*125*50 |
| Forklift Battery Type | Hydrogen Fuel Cell |
| Side Shifter | Hydraulic Side Shifter |
| Load centre distance | 500 mm |
| Fork Width | 125mm |
| Fork Length | 1070mm |
| Operating Mode | Standing Operation |
| Forklift Tyre | Polyurethane Tyre |
| Type | 3 ways forklift |
| Lifting height | 3m-6m |
| Overall Dimensions | 1615*550*1212mm |
| Min. Lifting Height | 85mm |
| Max. Lifting Height | 3m-6m |
| Power Souce | AC Motor |
| Capacity | 2ton/2.5ton/3ton/3.5ton |
| Battery voltage/capacity | 48V/400AH |
| Load Centre | 600mm |
| Model | CQD10/CQD15 |
| Rated Loading Capacity options | 1.5 Ton, 1.8 Ton, 2 Ton |
| Truck Type options | Very Narrow Aisle Forklift |
| Max. Lifting Height options | 2 000 mm, 2500 mm, 3000mm, 3500 mm, 4000 mm, 5000 mm, 5500 mm, 6000mm, 7000mm |
| Certificate | Number | Valid |
|---|---|---|
| EAC | — | 22/10/2023 - 22/10/2028 |
| CE | M.2023.206.C83216 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83222 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83221 | 22/03/2023 - 21/03/2028 |
Certificates are supplied with your quote on request.
