Forklifts · Model CE

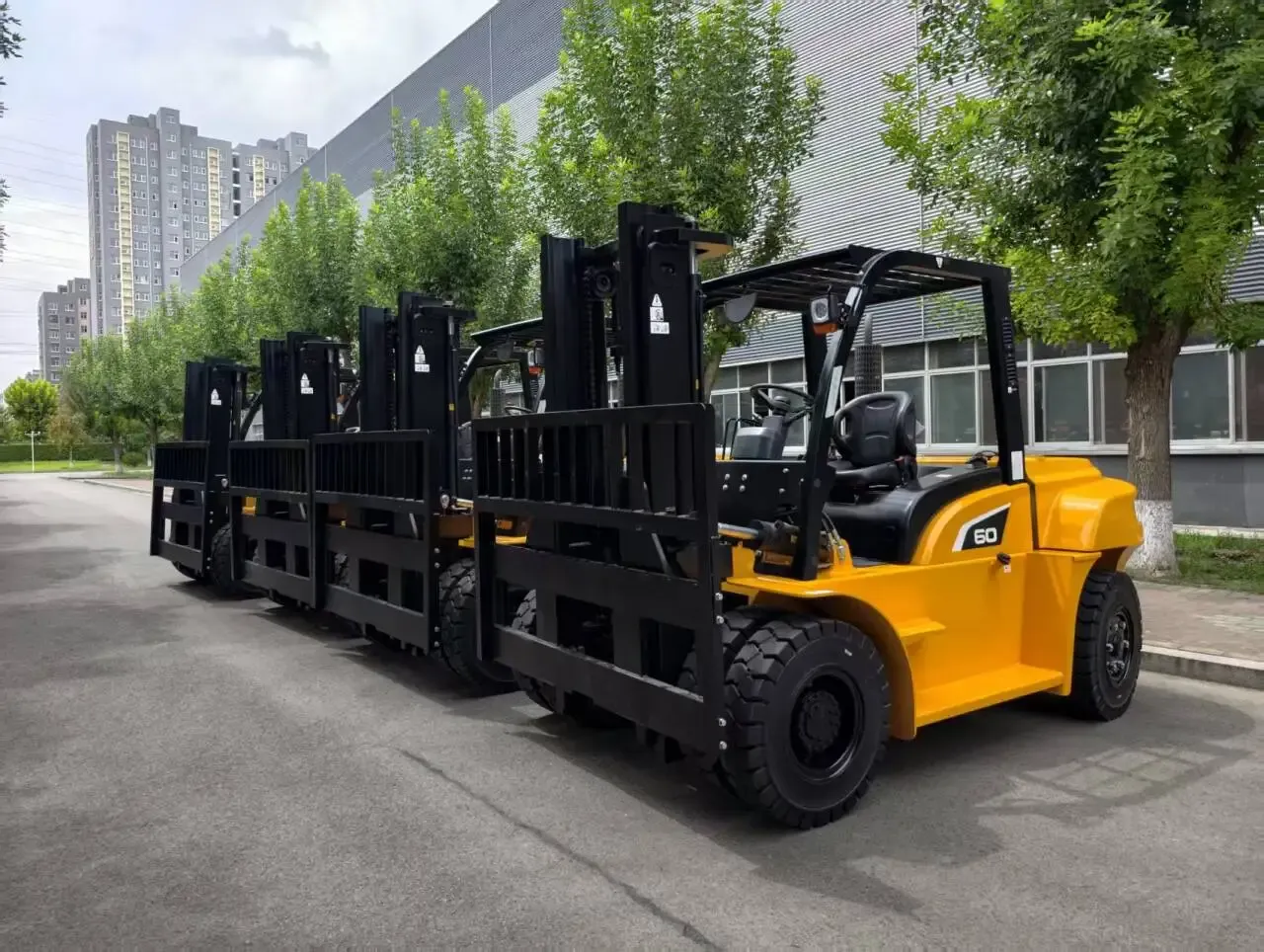

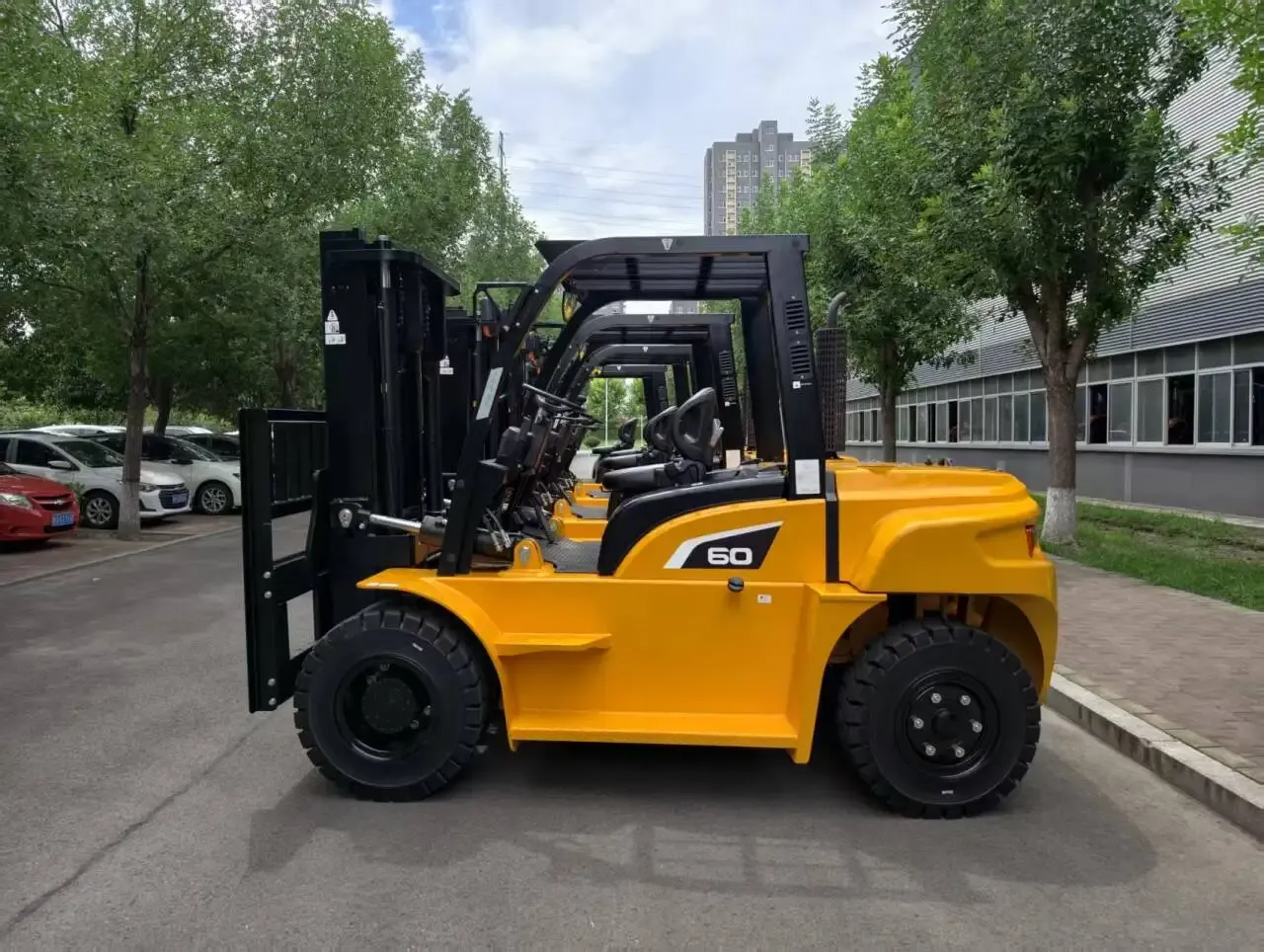

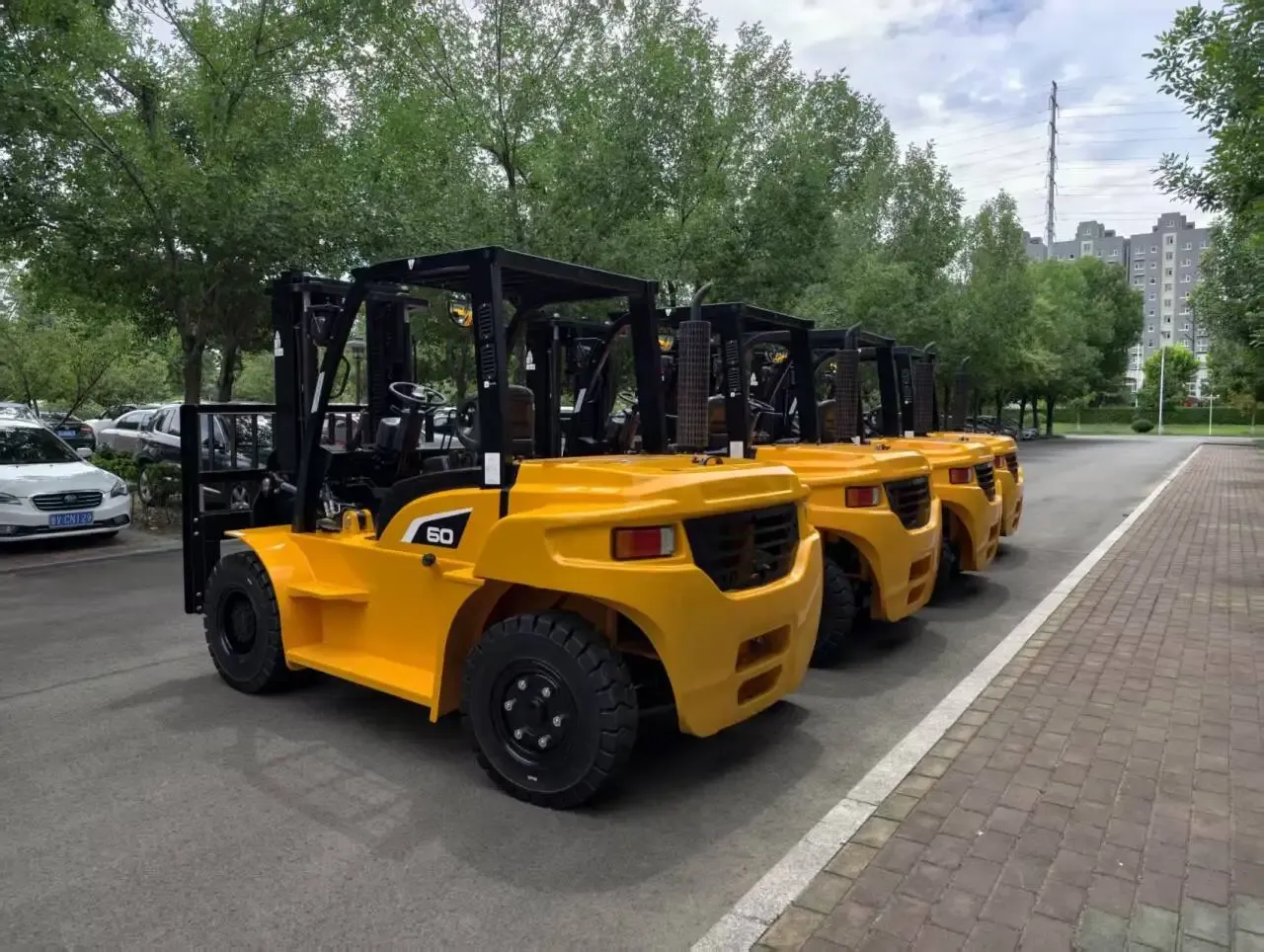

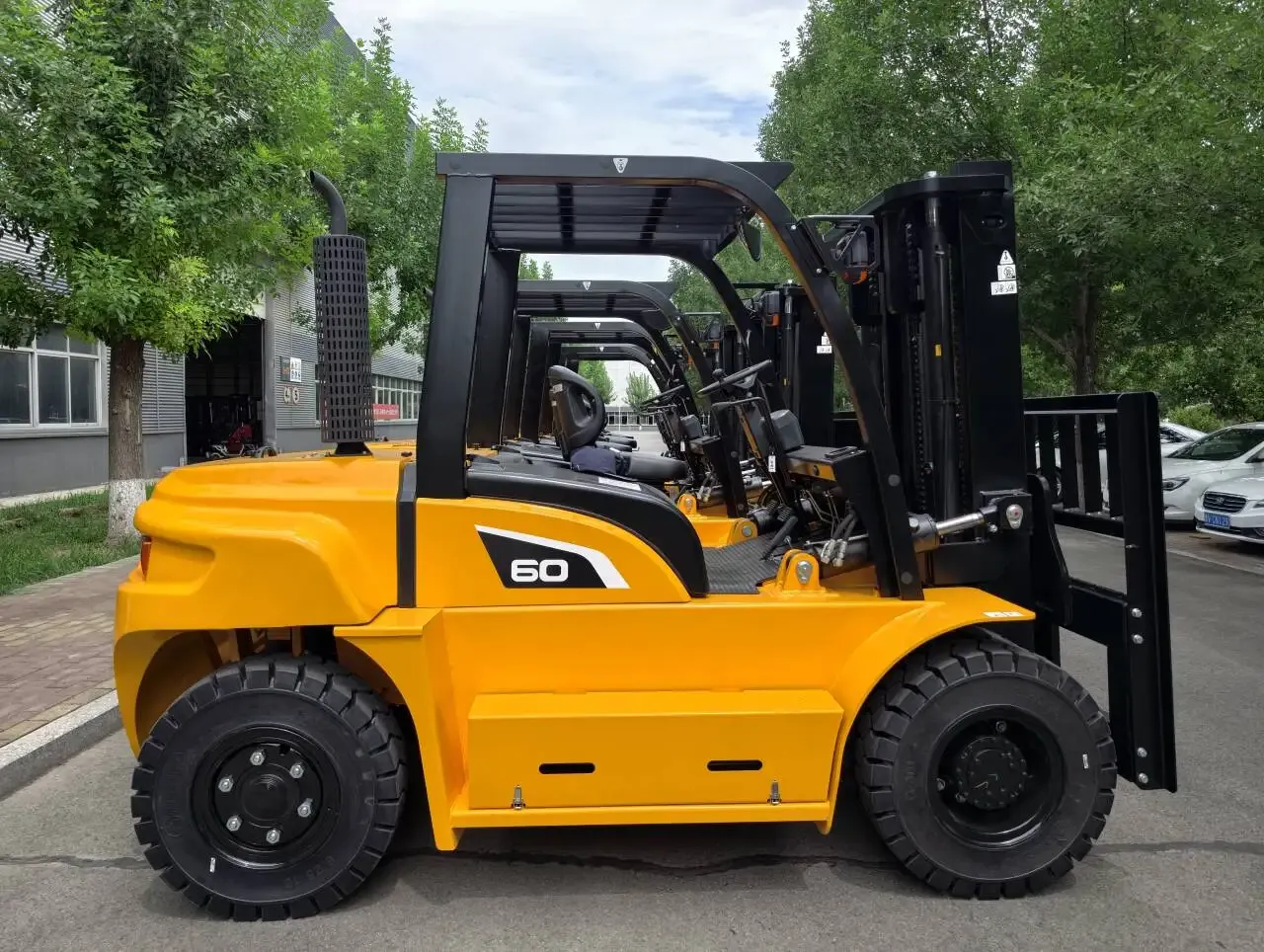

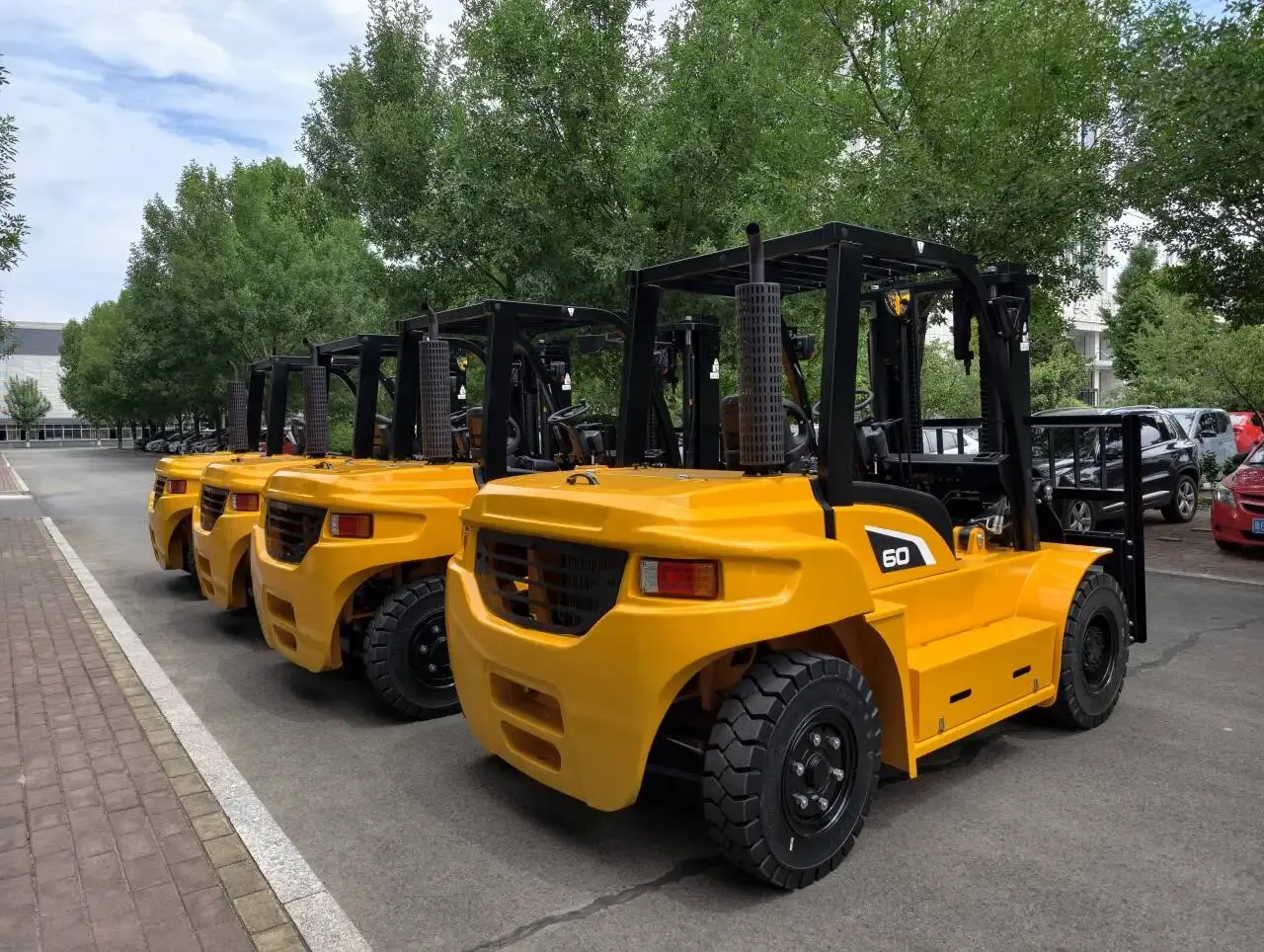

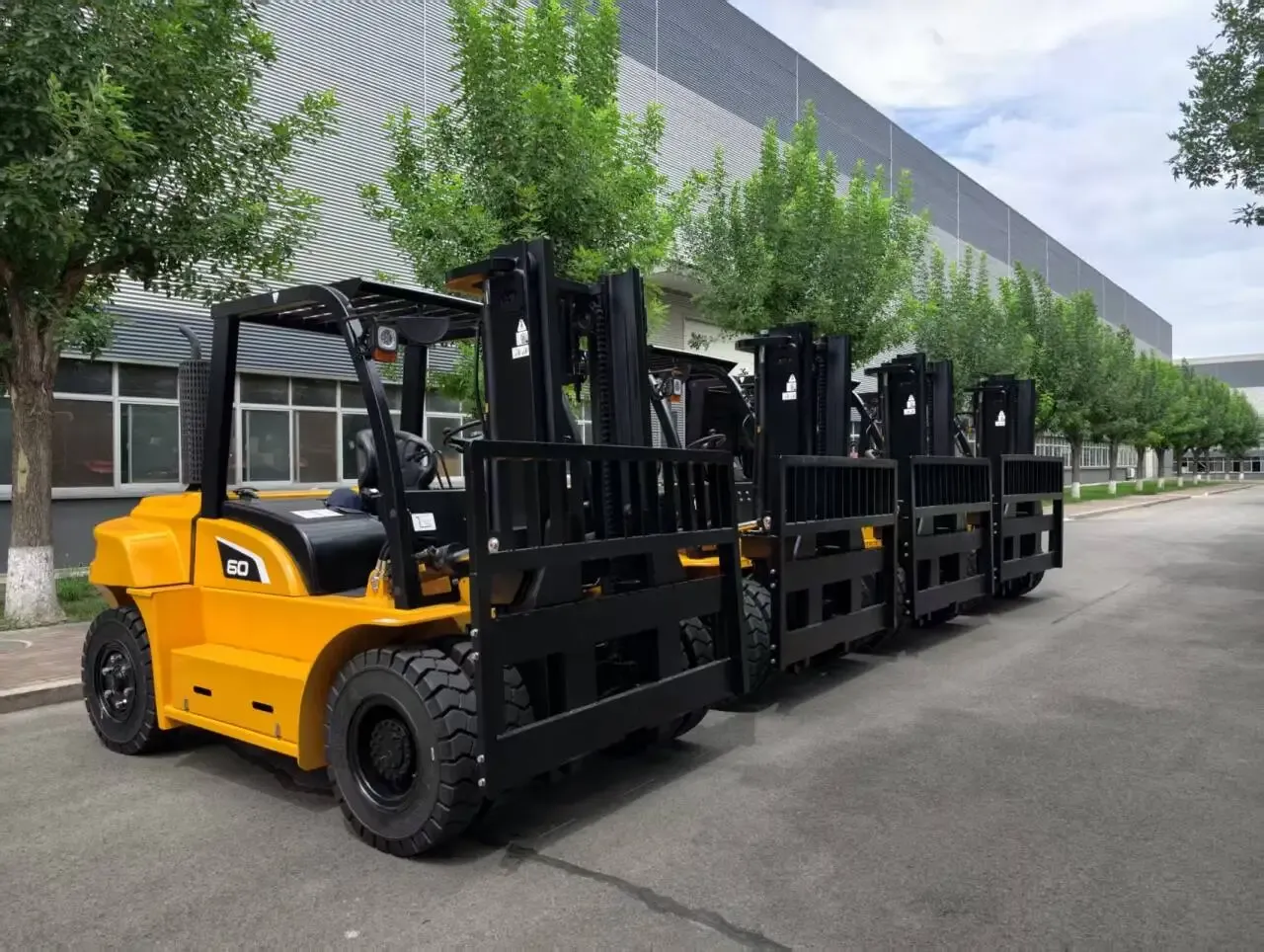

EPA Diesel Forklift 6Ton
4 to 9 tDieselForks 1220 mm
from £11,140per unit, ex VAT
| Quantity | Price per unit |
|---|---|
| 1+ units | £11,140 |
Minimum order 1 unit from the factory; any range minimum is confirmed on your quote. Prices in GBP per unit, ex VAT. We convert the factory list at a buffered exchange rate, so normal day-to-day currency movement does not change the price you see. Your written quote adds freight, duty and VAT and is valid for 30 days.
Truck TypeCounterbalance Forklift
Line total
No online payment. The basket becomes an order request and we reply with a written GBP quote, deposit 30% on order, lead time 8 to 12 weeks.
Or email [email protected]Product Highlights
Powerful & economical — Xinchai A498BPG 4-cylinder diesel engine: 45 kW rated power, 193 N·m max torque, low fuel consumption for long shifts.
Smooth operation—hydro-dynamic driveline gives shock-free shifting, protects the drivetrain, reduces operator fatigue.
Agile & stable — 3000 mm turning radius and 1400 mm width for tight spaces; 20% gradeability and 22 kN drawbar pull for ramps and uneven yards.
Efficient lifting — 3000 mm mast, 340 mm/s loaded lifting speed, 6°/12° mast tilt to shorten every working cycle.
| Condition | New |
|---|---|
| Fork Specifications( L*W*H) | 1220*150*50 |
| Fork Length | 1220 mm |
| Fork Width | 150 mm |
| Forklift Turning radius | 3000 mm |
| Power Source | Diesel |
| Mast Type | Two Stage Mast, Three Stage Mast, Single Stage Mast |
| Load centre distance | 500 mm |
| Forklift Wheelbase | 1950 mm |
| Terrain Adaptability | Outdoor Pavement |
| Drive Type | Fwd |
| Operating Mode | Seated Operation |
| Forklift Tyre | Pneumatic Tyre |
| Mast Tilt Angle (Forward Tilt-Rear Tilt) | 6-12° |
| Side Shifter | Hydraulic Side Shifter, Electric Side Shifter |
| Model Number | FD60 |
| Product Type | 6 Ton Diesel Forklift |
| Capacity | 6T |
| Mast | 2 Stage /3 Stage Optional |
| Lifting height | 3-6m |
| Power | 45/2000 |
| Load Centre | 500 Mm |
| Tyre | Pneumatic Tyre |
| Rated Loading Capacity options | 6 Ton, 4 Ton, 5 Ton, 7 Ton, 8 Ton, 9 Ton |
| Truck Type options | Counterbalance Forklift |

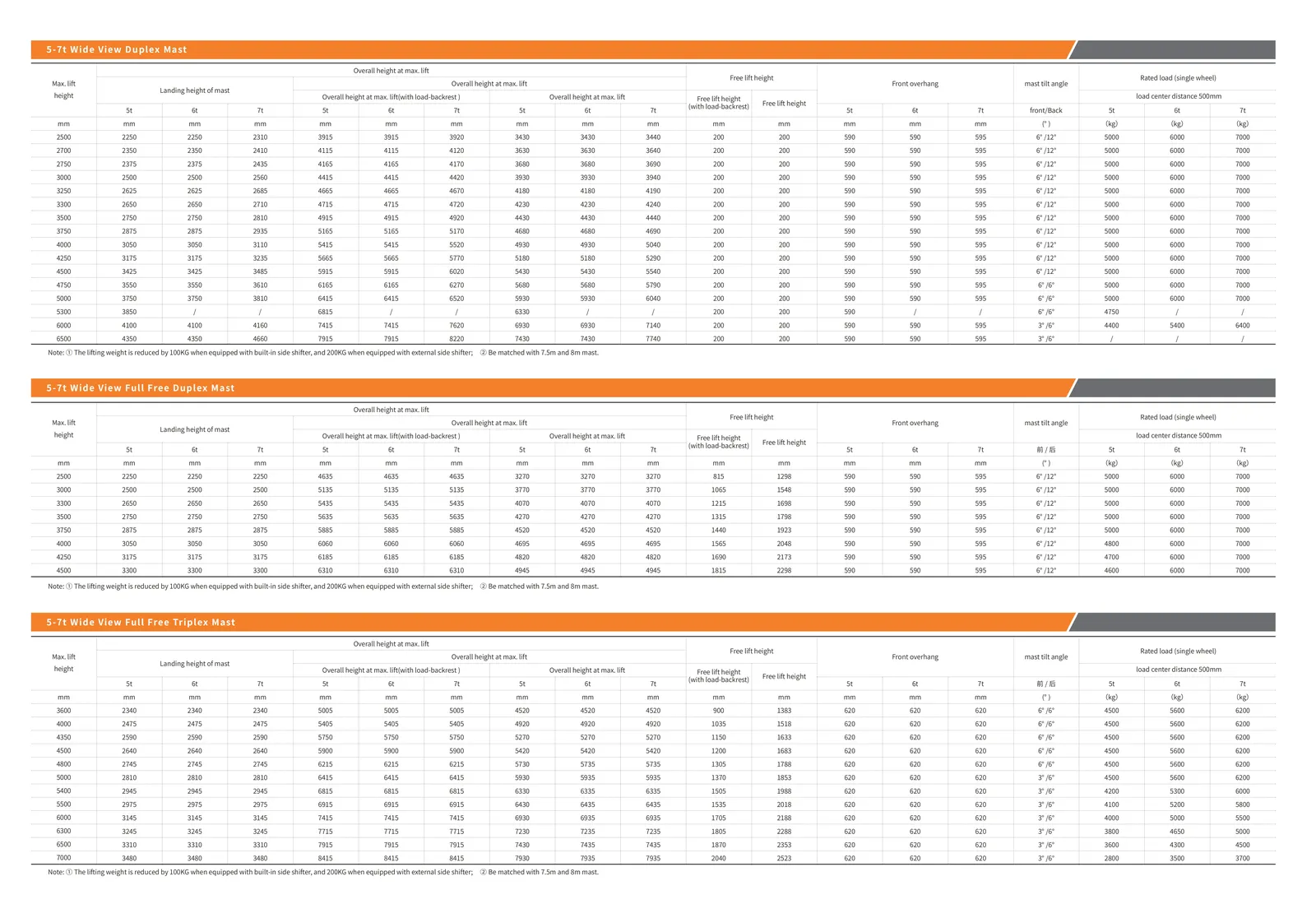

| Max. Lifting Height options | 3000mm, 3500 mm, 4000 mm, 4500 mm, 5000 mm, 5500 mm, 6000mm |

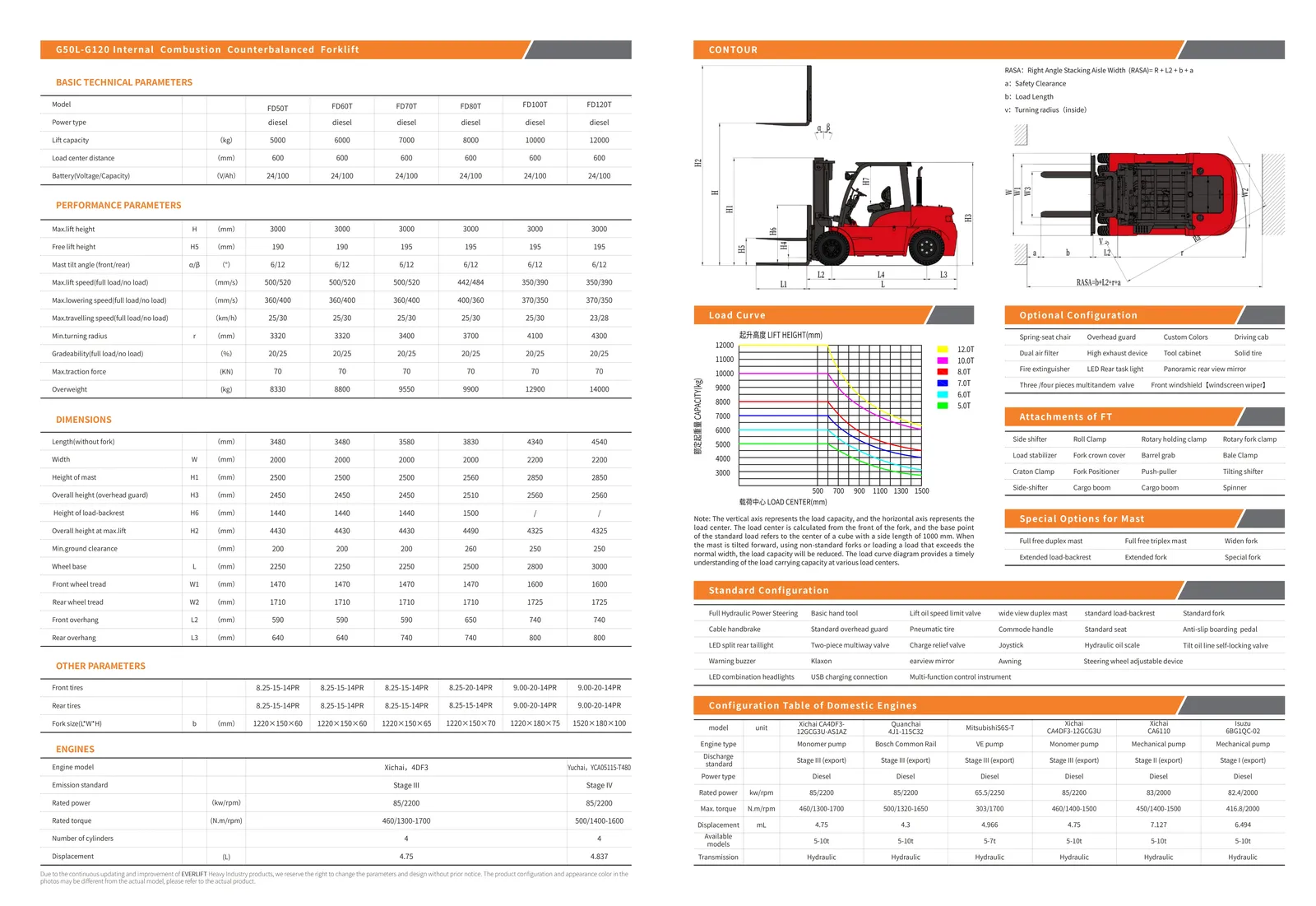

| Diesel Counterbalance Forklift Truck Technical Specification Sheet | |||
|---|---|---|---|
| No. | Item | Unit | Specification |
| Basic Parameters | |||
| 1 | Model | — | FD60 |
| 2 | Power Type | — | Diesel |
| 3 | Rated Load Capacity | kg | 6000 |
| 4 | Load Centre Distance | mm | 500 |
| 5 | Battery (Voltage / Capacity) | V / Ah | 12 / 80 |
| Performance Parameters | |||
| 6 | Max. Lifting Height | mm | 3000 |
| 7 | Free Lift Height | mm | 150 |
| 8 | Mast Tilt Angle (Forward / Backward) | ° | 6 / 12 |
| 9 | Max. Lifting Speed (Loaded / Unloaded) | mm/s | 340 / 400 |
| 10 | Max. Lowering Speed (Loaded / Unloaded) | mm/s | 390 / 350 |
| 11 | Max. Travel Speed (Loaded / Unloaded) | km/h | 21 / 22 |
| 12 | Min. Turning Radius | mm | 3000 |
| 13 | Gradeability (Loaded / Unloaded) | % | 20 / 21 |
| 14 | Max. Drawbar Pull | kN | 22 |
| 15 | Service Weight | kg | 5900 |
| Structural Dimensions | |||
| 16 | Overall Length (excl. forks) | mm | 3095 |
| 17 | Overall Width | mm | 1400 |
| 18 | Mast Height (lowered) | mm | 2180 |
| 19 | Overhead Guard Height | mm | 2190 |
| 20 | Load Backrest Height | mm | 1180 |
| 21 | Overall Height at Full Lift | mm | 4180 |
| 22 | Min. Ground Clearance | mm | 130 |
| 23 | Wheelbase | mm | 1950 |
| 24 | Front Wheel Track | mm | 1110 |
| 25 | Rear Wheel Track | mm | 990 |
| 26 | Front Overhang | mm | 545 |
| 27 | Rear Overhang | mm | 600 |
| Other Parameters | |||
| 28 | Front Tyres | — | 300-15-18PR |
| 29 | Rear Tyres | — | 7.00-12-12PR |
| 30 | Fork Dimensions (L × W × T) | mm | 1220 × 150 × 50 |
| Engine Option | |||
| 31 | Engine Model | — | Xinchai A498BPG |
| 32 | Rated Power | kW / rpm | 45 / 2500 |
| 33 | Max. Torque | N·m / rpm | 193 / 1675–1875 |
| 34 | Number of Cylinders | — | 4 |
| 35 | Displacement | L | 3.168 |
| Certificate | Number | Valid |
|---|---|---|
| 2006/42/EC | M.2026.206.C137529 | 30/03/2026 - 29/03/2031 |
| CE | M.2026.206.C134736 | 04/02/2026 - 03/02/2031 |
| CE | 3N251031.NEMS093 | 30/10/2025 - 29/10/2030 |
| EAC | — | 22/10/2023 - 22/10/2028 |
| CE | M.2023.206.C83216 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83222 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83221 | 22/03/2023 - 21/03/2028 |
Certificates are supplied with your quote on request.
