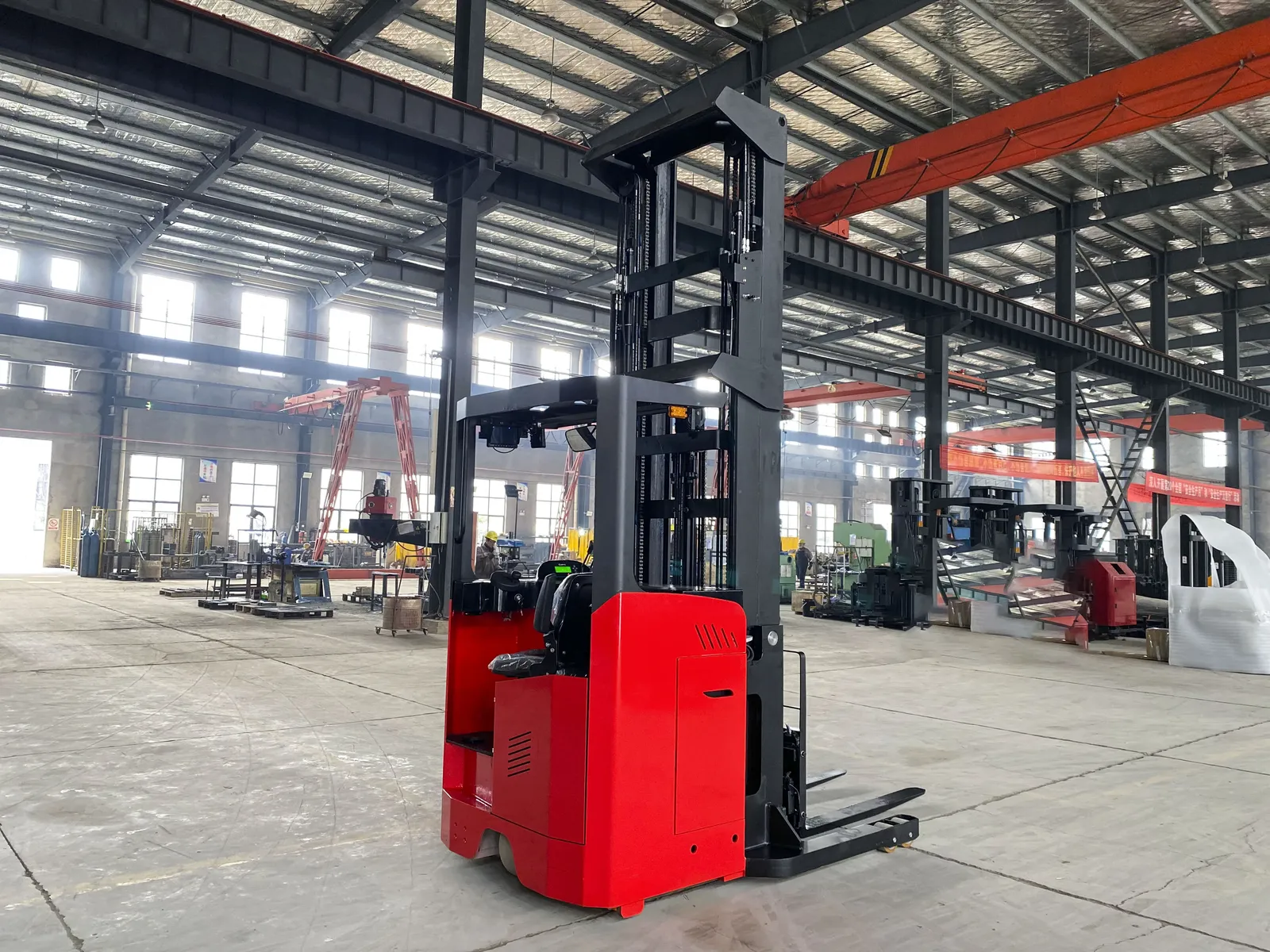

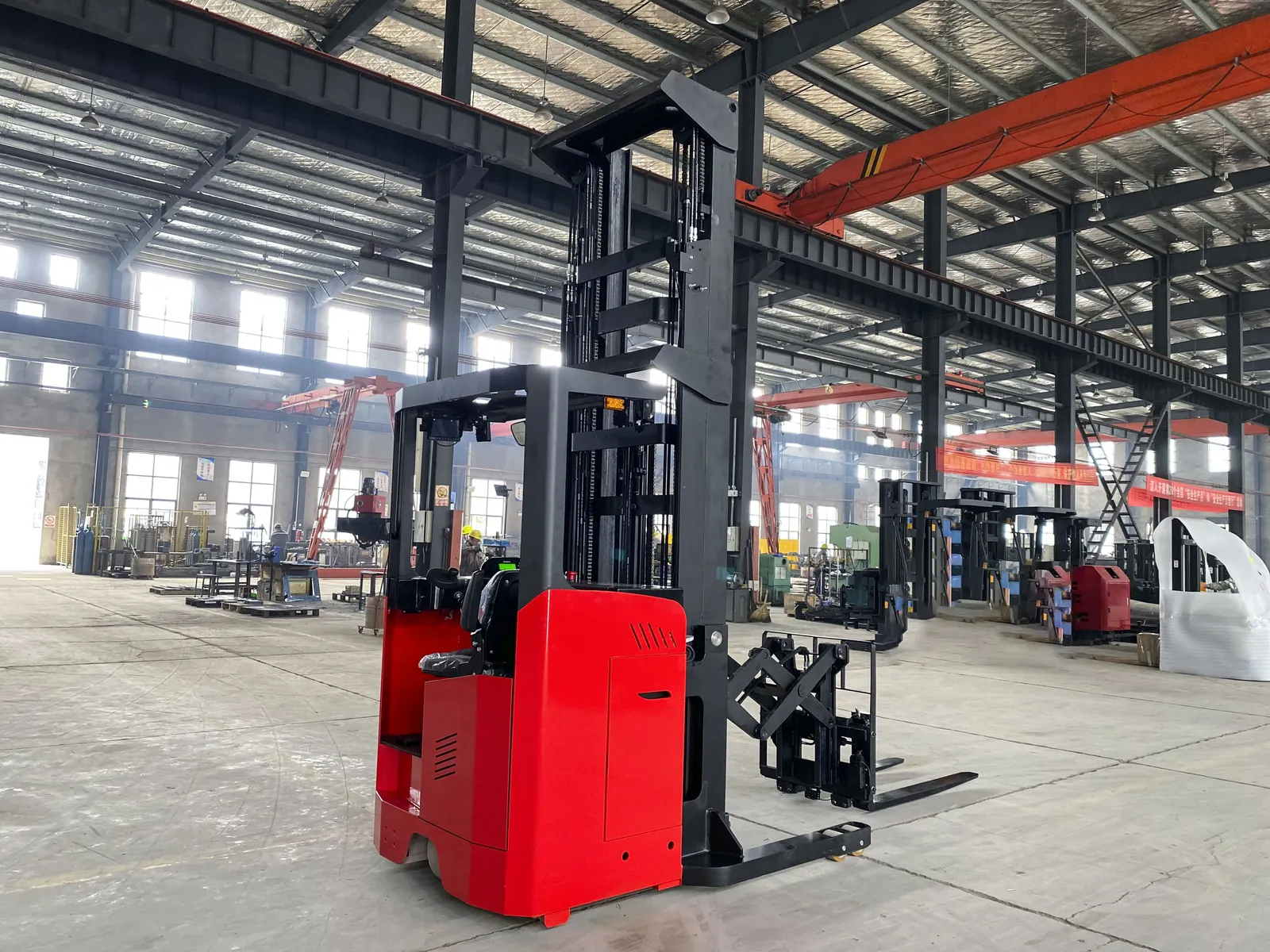

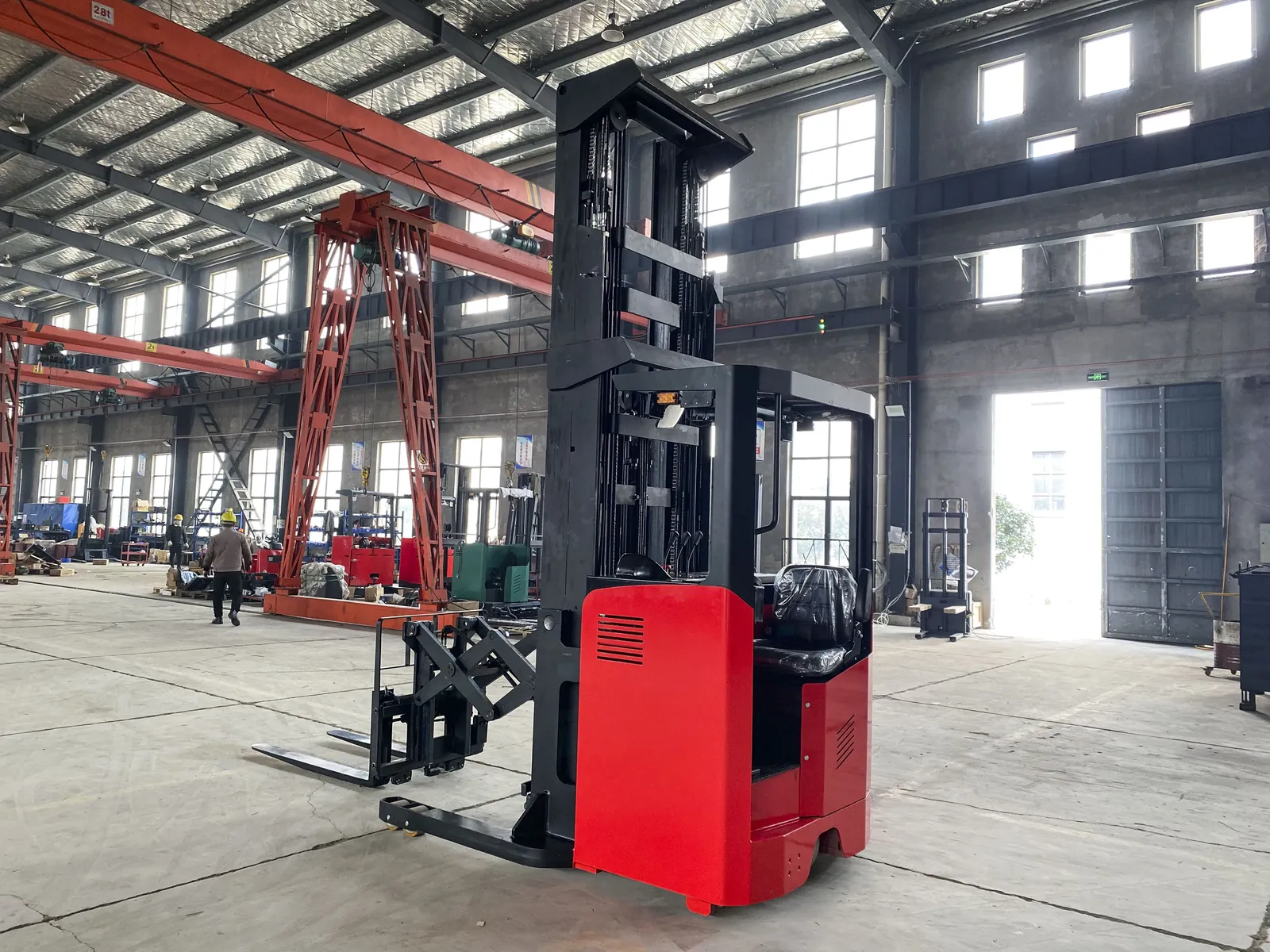

Narrow Aisle Deep Reach Truck, 1.6 to 2 t
1.6 to 2 tLead-acidForks 1070 mm marked
markedfrom£11,560per unit, ex VAT
Get a quote, reply in 2 hours
- 12-month warranty
- Photos and video before it ships
- No online payment, nothing is charged
Any quantity is welcome. Your price depends on the quantity and is confirmed on your written quote. Prices in GBP per unit, ex VAT. We convert the factory list at a buffered exchange rate, so normal day-to-day currency movement does not change the price you see. Your written quote adds freight, duty and VAT and is valid for 30 days.
Line total
Nothing is sent yet: add the products you need, then send your quote request. We reply within 2 hours, Monday to Friday, 9am to 5pm.
Or email sales@londonpallettrucks.co.ukProduct Highlights
- (1) Load Capacity a choice of 1.6 or 2 t at a 500mm load centre, for stacking work in high-bay warehouses.

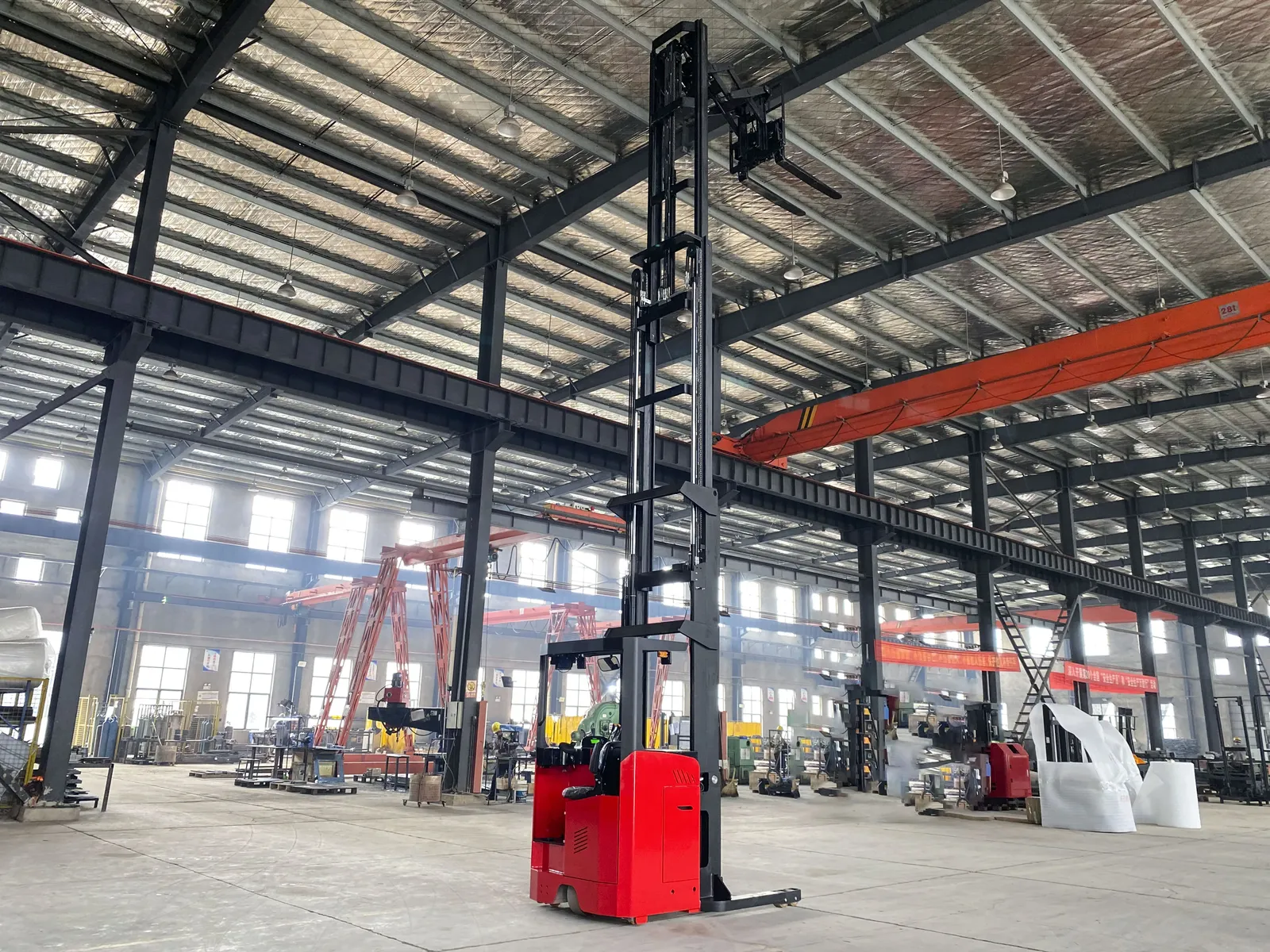

- (2) 6000mm Maximum Lifting Height Achieves a lifting height of 6000mm with a free lift height of 2050mm, allowing efficient handling of tall racking systems and maximising vertical storage space utilisation.

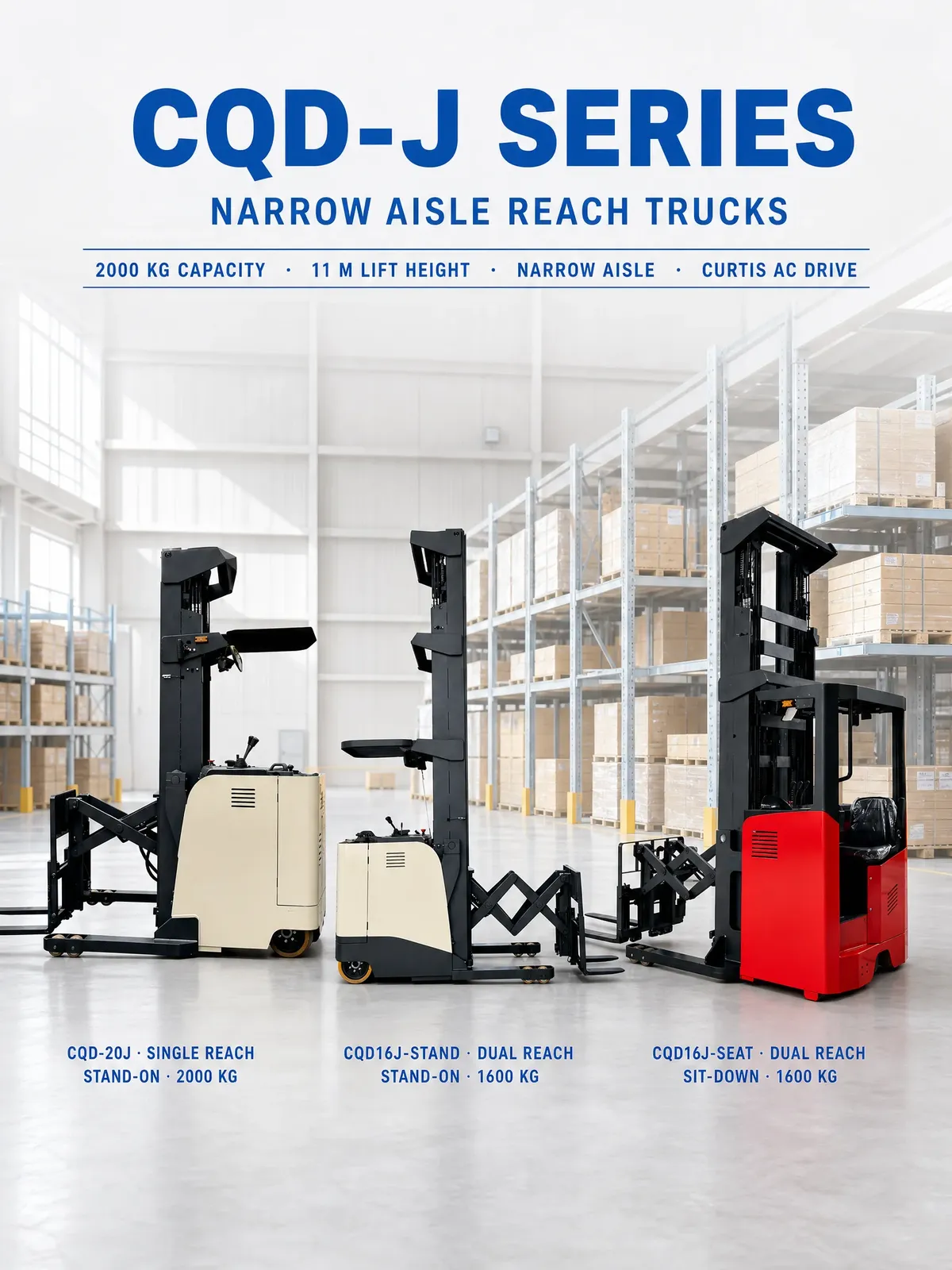

- (3) Multiple Driving Configurations for Operator Preference Available in stand-on, side stand-on, and seated driving styles, allowing operators to choose the configuration that best suits their comfort and operational requirements.
- (4) 48V/400Ah Lead-Acid Battery with Long-Lasting Performance Powered by a 48V/400Ah lead-acid battery weighing 655 kg, delivering reliable and extended operation to support full work shifts without frequent recharging.
- (5) AC Drive Motors for Enhanced Efficiency and Low Maintenance Equipped with high-performance AC drive motors (4.5kW to 6.5kW), providing smooth acceleration, energy efficiency, and reduced maintenance compared to DC motors.

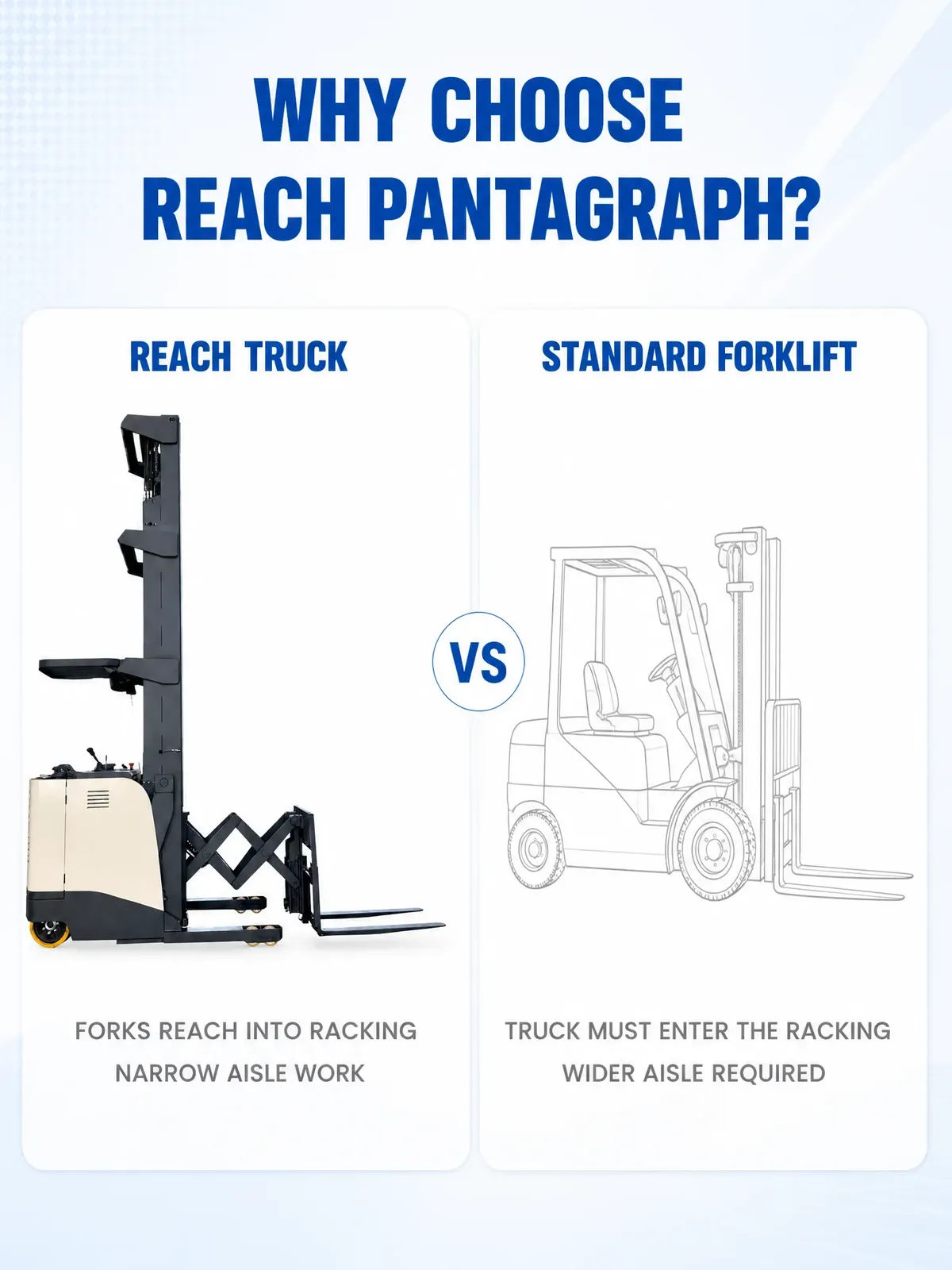

- (6) Compact Turning Radius for Narrow Aisle Navigation With turning radii ranging from 1920mm to 1975mm and stacking aisle widths from 3030mm to 3085mm, these forklifts manoeuvre efficiently in tight warehouse spaces.
- (7) 8.6kW Lifting Motor with Fast Lifting Speeds Powered by a robust 8.6kW lifting motor, delivering lifting speeds of 140mm/s (loaded) and 260-280mm/s (unloaded) for productive cycle times.
- (8) 7.8/8 km/h Travel Speed for Efficient Transport Achieves consistent travel speeds of 7.8km/h (loaded) and 8km/h (unloaded), reducing travel time between workstations and improving overall material handling efficiency.
- (9) Forks Lean Forward/Backward (3°/5°) with Flexible Fork Adjustment Forks lean 3° forward and 5° backward with fork outside width adjustable up to 1520mm, facilitating easier pallet engagement and accommodating various pallet sizes.
- (10) Polyurethane Tyres for Durable and Quiet Operation Equipped with polyurethane tyres on all wheels, providing wear resistance, smooth rolling, and excellent floor protection across various warehouse surfaces.

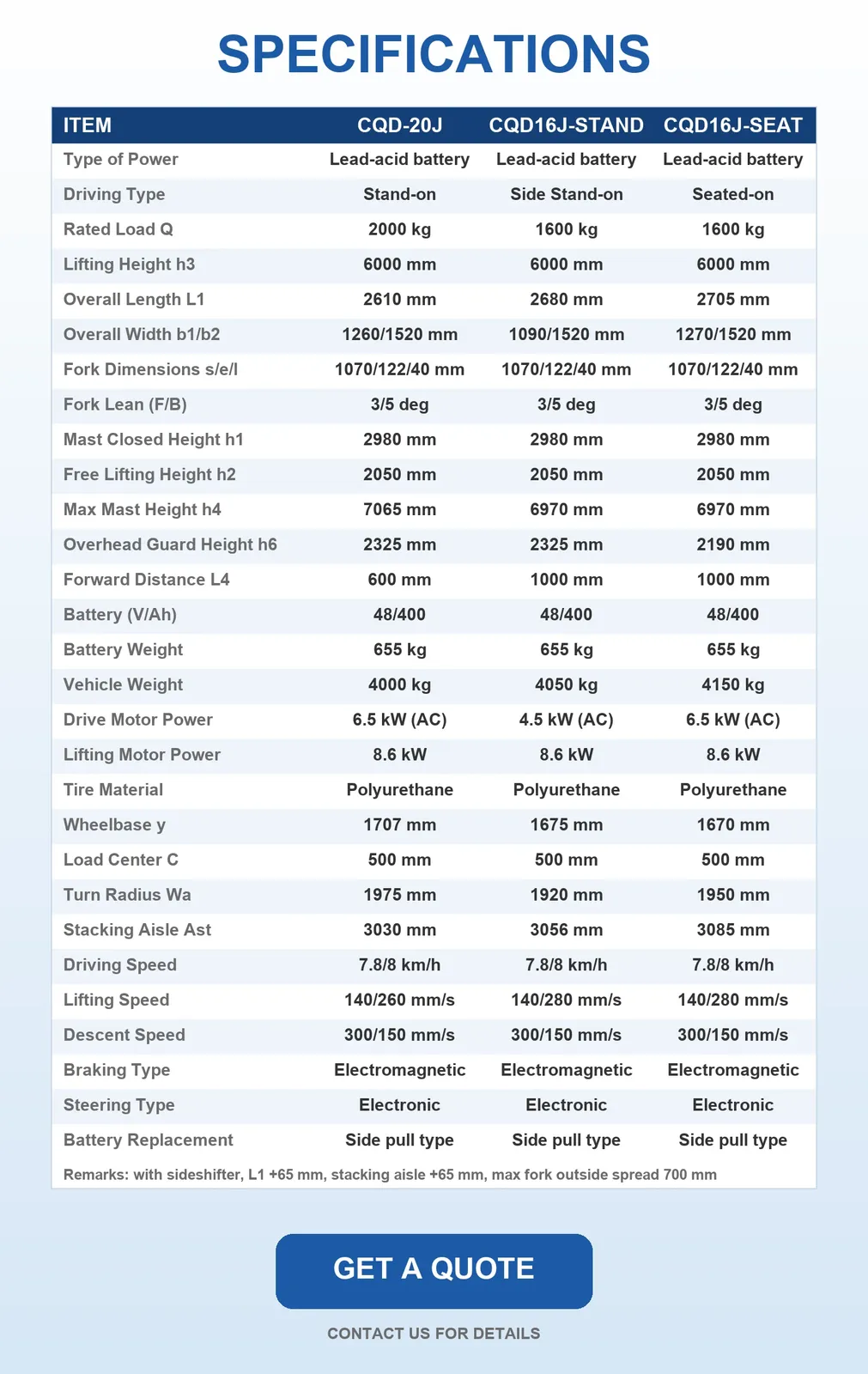

| Fork Length | 1070mm |
|---|---|
| Fork Width | 125mm |
| Power Source | DC Motor |
| Condition | New |
| Operating Mode | Seated Operation |
| Fork Size | 1070mm |
| Load Centre | 500mm |
| Battery | Lead Acid |
| Load capacity options | 1.6 Ton, 2 Ton |
| Max. Lifting Height options | 4500 mm, 5500 mm, 6000mm, 5000 mm, 3000mm, 3500 mm, 4000 mm |
| Certificate | Number | Valid |
|---|---|---|
| 2006/42/EC | M.2026.206.C137529 | 30/03/2026 - 29/03/2031 |
| CE | M.2026.206.C134736 | 04/02/2026 - 03/02/2031 |
| CE | 3N251031.NEMS093 | 30/10/2025 - 29/10/2030 |
| EAC | 22/10/2023 - 22/10/2028 | |
| CE | M.2023.206.C83216 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83222 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83221 | 22/03/2023 - 21/03/2028 |
Certificates are supplied with your quote on request.
