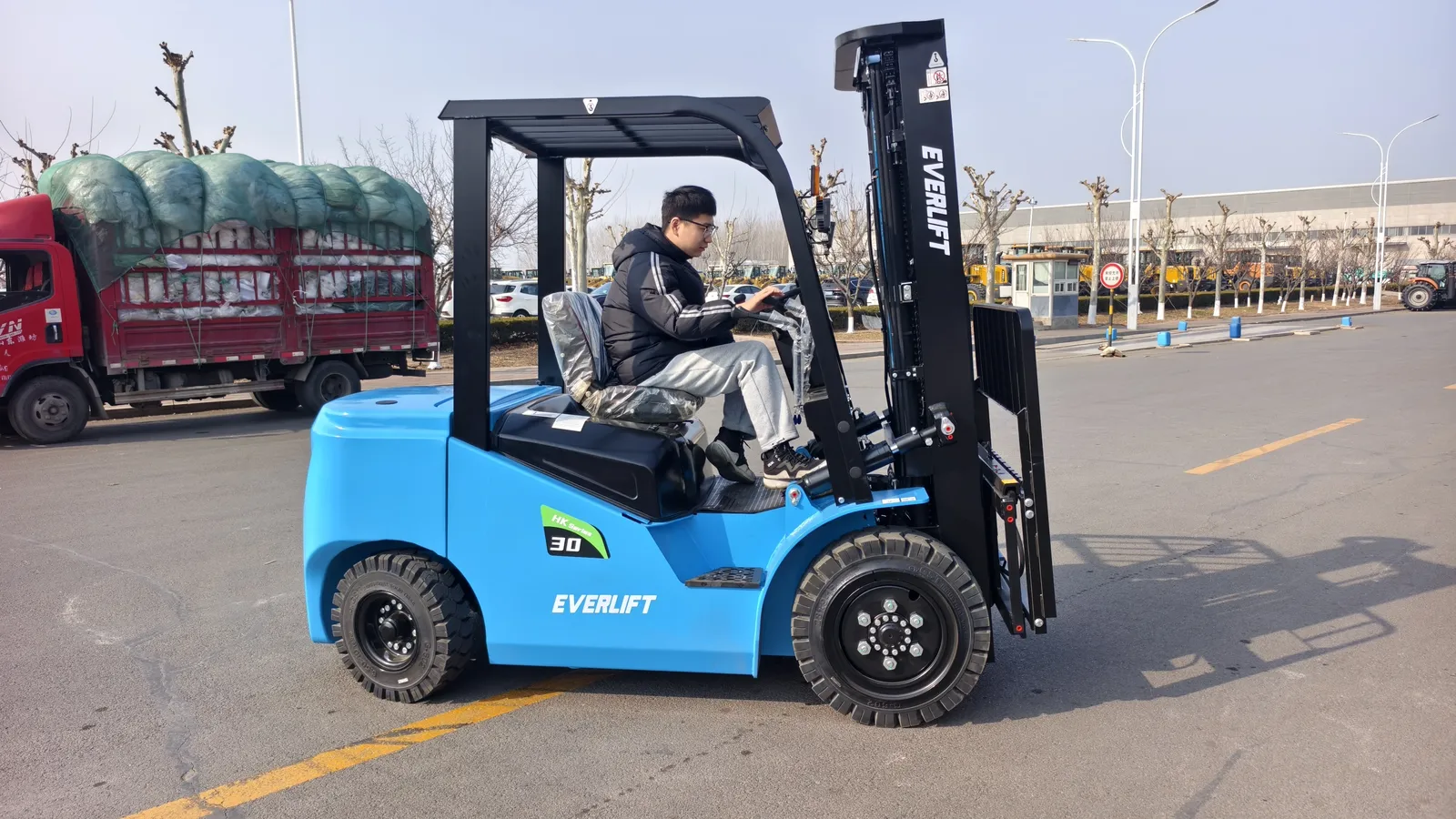

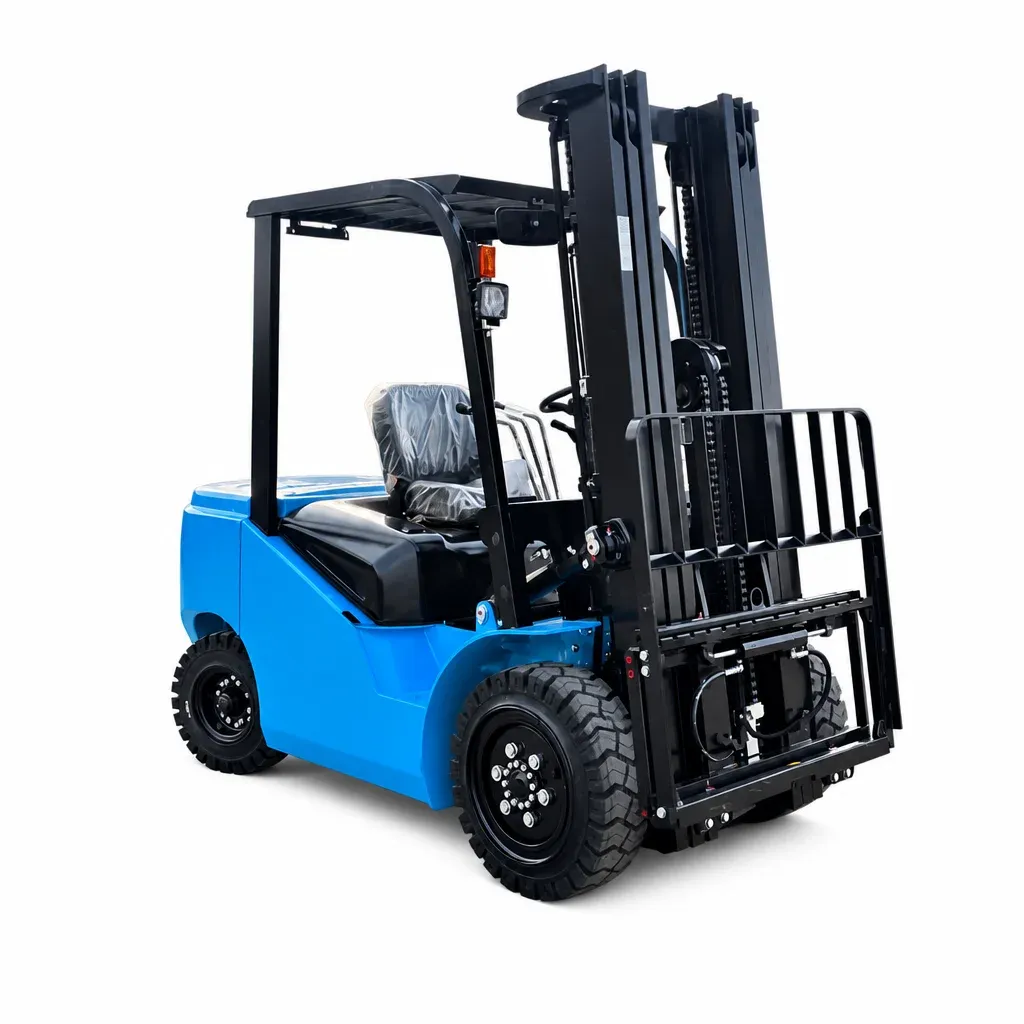

FB35 3.5 Ton Lithium Electric Forklift 80V AC
| Quantity | Price per unit |
|---|---|
| 1+ units | £8,150 |
Minimum order 1 unit from the factory; any range minimum is confirmed on your quote. Prices in GBP per unit, ex VAT. We convert the factory list at a buffered exchange rate, so normal day-to-day currency movement does not change the price you see. Your written quote adds freight, duty and VAT and is valid for 30 days.
Line total
No online payment. The basket becomes an order request and we reply with a written GBP quote, deposit 30% on order, lead time 8 to 12 weeks.
Or email [email protected]Product Highlights

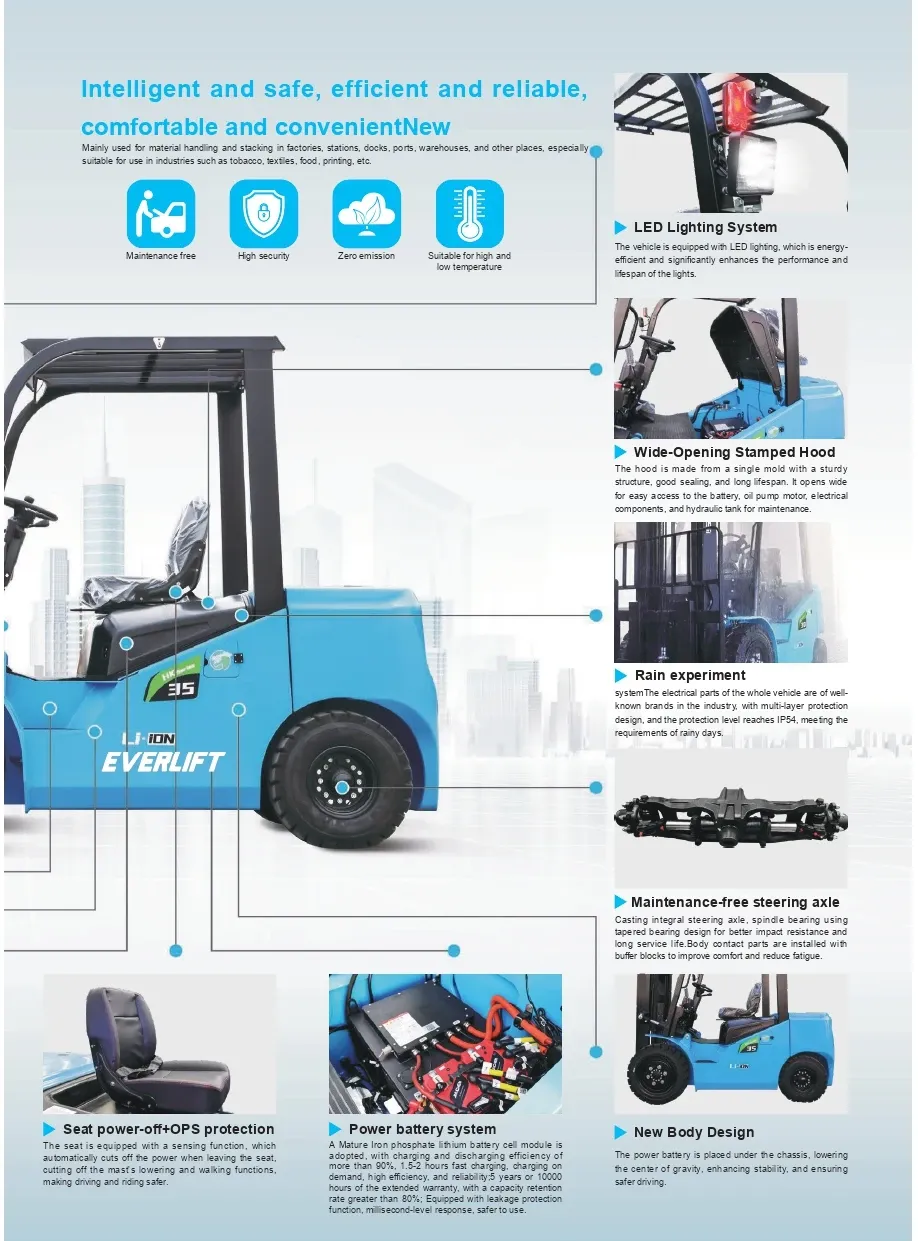

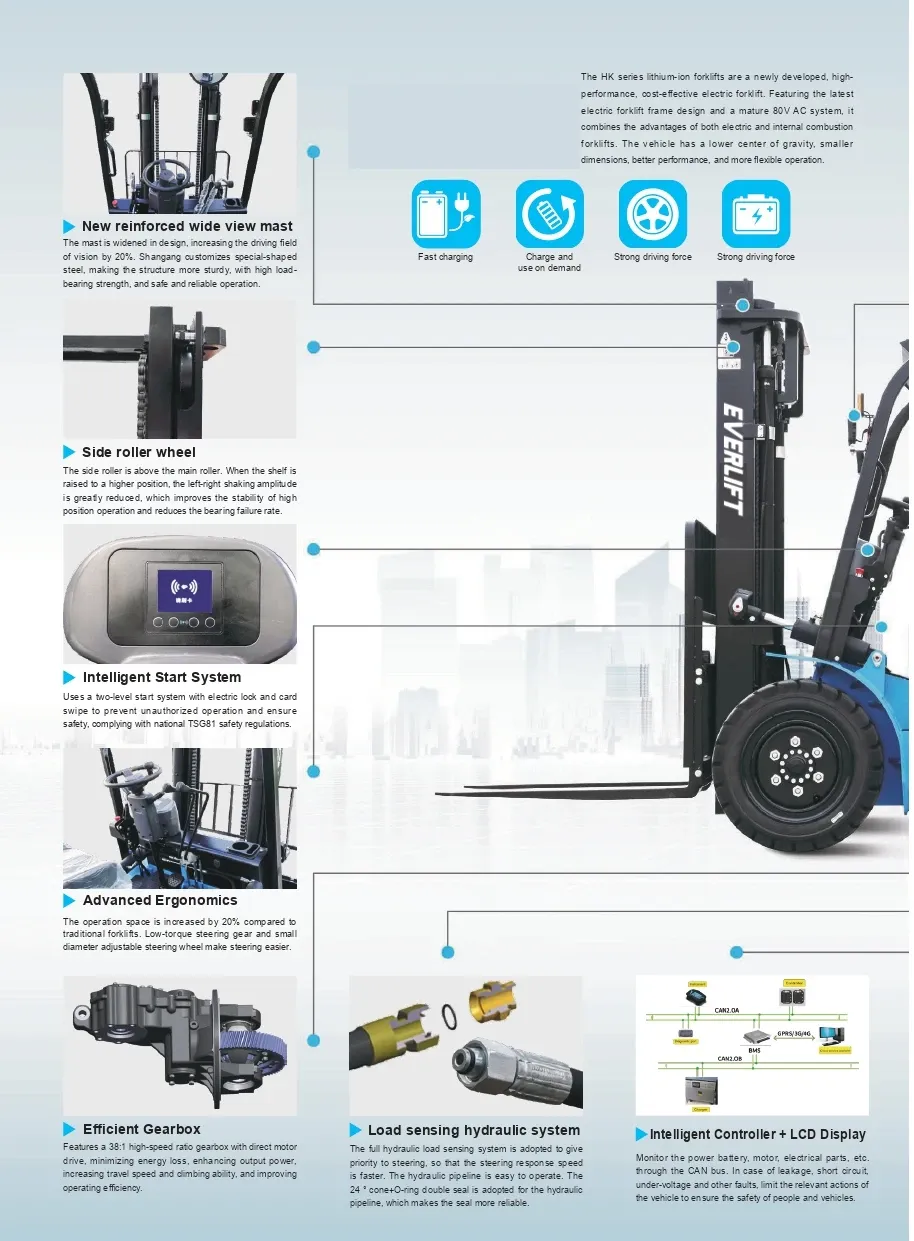

3.5-ton rated capacity at 500mm load centre with a mature 80V AC drive system — strong driving force and climbing ability (15/16 km/h travel speed, 15%/20% gradeability) combining the power of IC forklifts with the economy of electric.
Reinforced wide-view mast increases driving visibility by 20%; CAN bus continuously monitors battery, motor and electrical parts, automatically limiting vehicle actions against leakage, short circuit and under-voltage.
38:1 high-speed gearbox with direct motor drive minimises energy loss; load-sensing hydraulic system gives priority to steering with reliable 24° cone + O-ring double seal.
Low centre of gravity with battery mounted under the chassis, IP54 protection for rainy conditions, maintenance-free cast steering axle and LED lighting for safer, more comfortable operation.














| Condition | New |
|---|---|
| Fork Specifications( L*W*H) | 1070* 122 * 50 mm |
| Forklift Battery Type | Lithium-Ion Battery |
| Side Shifter | Electric Side Shifter, Hydraulic Side Shifter |
| Drive Type | Fwd |
| Terrain Adaptability | Other, Rough Terrain, Outdoor Pavement, Offroad, Indoor Flooring |
| Load centre distance | 500 mm |
| Mast Type | Two-Stage Mast, Three-Stage Mas, Single-Stage Mast |
| Forklift Turning radius | 2500 mm |
| Fork Width | 122 mm |
| Fork Length | 1070 mm |
| Operating Mode | Seated Operation |
| Forklift Tyre | Pneumatic Tyre |
| Forklift Wheelbase | 1750 mm |
| Mast Tilt Angle (Forward Tilt-Rear Tilt) | 6-12° |
| Model Number | FB35 |
| Battery voltage (V/AH) | 80V / 202Ah |
| Fork height,lowered | 140 mm |
| Product Type | Forklift |
| Mast | 2 Stage /3 Stage Optional |
| Battery | 76.8V / 202Ah |
| Operator type | Driver Seated |
| Capacity | 3.5t |
| Lifting height | 3000mm- 6000mm Customised |
| Certification | CE/ISO9001 |
| Tyre | Pneumatic Standard |
| Colour | Customised Colour |
| Rated Loading Capacity options | 3.5 Ton |
| Truck Type options | Electric Forklift |
| Max. Lifting Height options | 1 600 mm, 2 000 mm, 2500 mm, 3000mm, 3500 mm, 4000 mm, 4500 mm, 5000 mm, 5500 mm, 6000mm |
| Certificate | Number | Valid |
|---|---|---|
| 2006/42/EC | M.2026.206.C137529 | 30/03/2026 - 29/03/2031 |
| CE | M.2026.206.C134736 | 04/02/2026 - 03/02/2031 |
| CE | 3N251031.NEMS093 | 30/10/2025 - 29/10/2030 |
| EAC | — | 22/10/2023 - 22/10/2028 |
| CE | M.2023.206.C83216 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83215 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83222 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83221 | 22/03/2023 - 21/03/2028 |
Certificates are supplied with your quote on request.
