Electric Stacker
1.5 Ton Full Electric Straddle Stacker Stand-on Pallet
1.5 tLithium-ionForks 1150 mm
Price on requestwritten quote

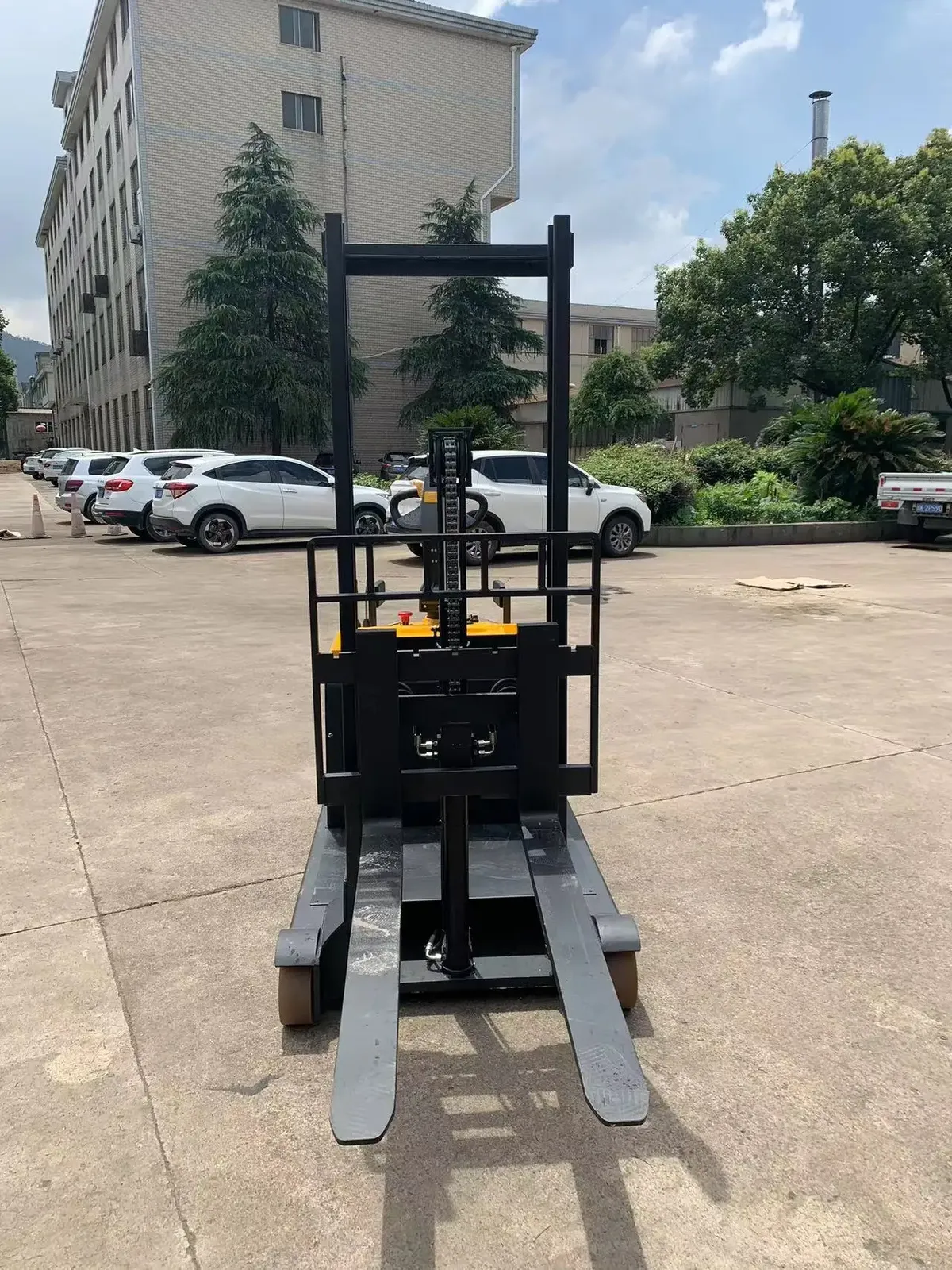

Electric Stackers · Ref LPT-19061
Counterbalanced Stacker, Electric Pallet Stacker
1.2 to 2 tLithium-ionForks 1150 to 1220 mm
from £3,250per unit, ex VAT
| Quantity | Price per unit |
|---|---|
| 1+ units | £3,250 |
Minimum order 1 unit from the factory; any range minimum is confirmed on your quote. Prices in GBP per unit, ex VAT. We convert the factory list at a buffered exchange rate, so normal day-to-day currency movement does not change the price you see. Your written quote adds freight, duty and VAT and is valid for 30 days.
Truck TypeStacker Forklift
Line total
No online payment. The basket becomes an order request and we reply with a written GBP quote, deposit 30% on order, lead time 8 to 12 weeks.

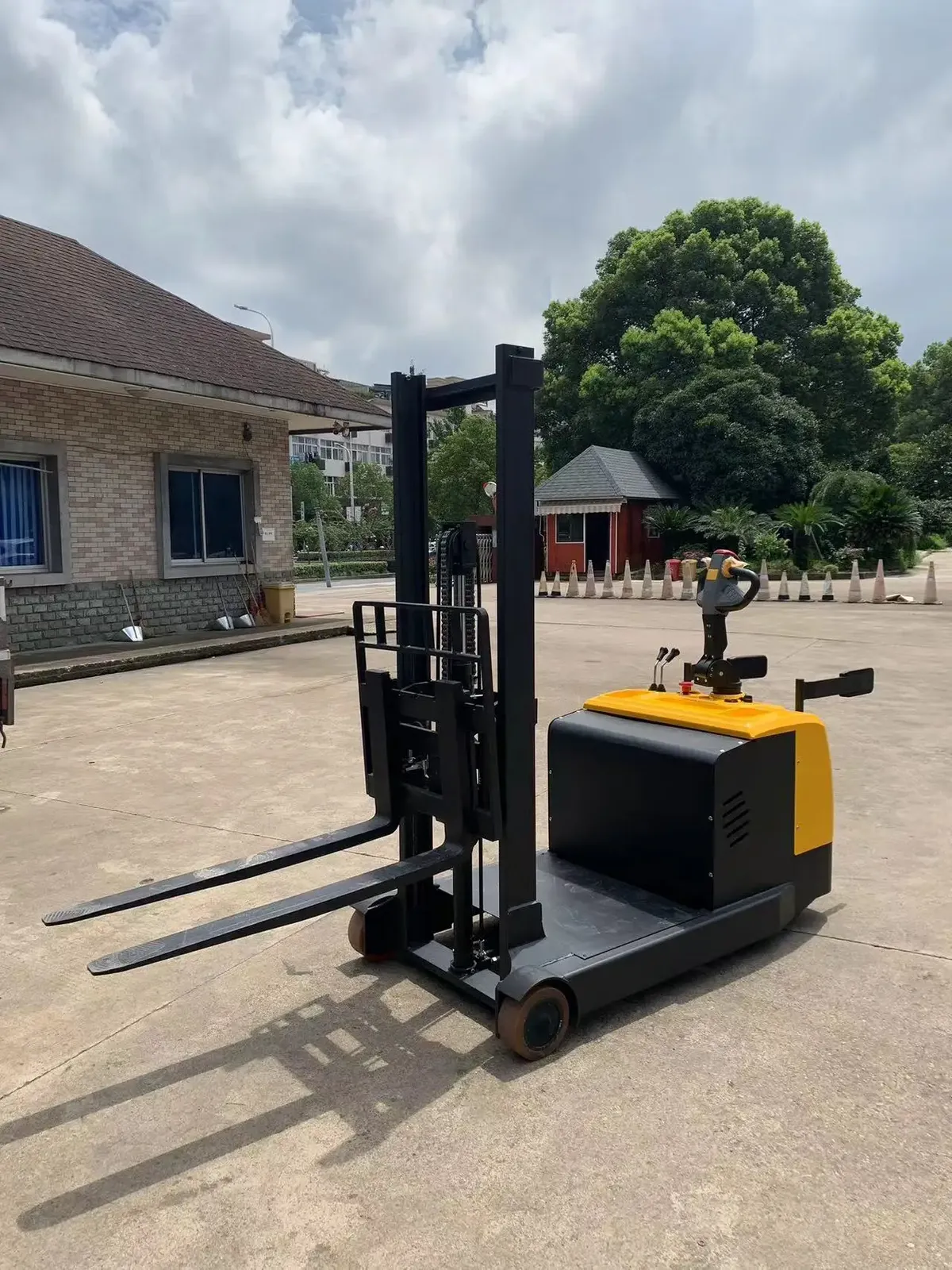

Or email [email protected]ELES-15CE 1.5 Ton Counterbalanced Electric Stacker 5m Stand-on Forklift 50mm Low Fork for All Pallets Warehouse
5005mm High Lift Mast: Professional 5m electric stacker designed for high-shelf racking and storage tasks.
Counterbalanced No-Leg Design: No outrigger design allows handling all pallets including closed pallet types.
Ultra-Low 50mm Fork Height: 50mm low profile forks are ideal for special low-clearance pallets and loads.
Powerful 3.0kW Boost Motor: Heavy duty DC lift motor ensures fast and stable 5 metre vertical handling.
Advanced AC Drive System: 2.2kW AC drive motor provides strong power and maintenance-free operation shift.
Large 240Ah Battery Capacity: Industrial battery powered stacker ensures long-lasting and reliable daily work.
Comfortable Stand-on Platform: Ride-on pallet stacker with expansion pedal to reduce operator fatigue in warehouse.
Precise Electromagnetic Brake: Advanced braking system ensures immediate safety stop for heavy load operation.
| Condition | New |
|---|---|
| Fork Specifications( L*W*H) | 1550*550*50, 1220*685*50 |
| Forklift Battery Type | Lithium-Ion Battery |
| Side Shifter | Electric Side Shifter, Hydraulic Side Shifter |
| Drive Type | Fwd |
| Terrain Adaptability | Indoor Flooring, Offroad, Rough Terrain, Outdoor Pavement, Other |
| Load centre distance | 500 mm, 600 mm |
| Mast Type | Single-Stage Mast, Three-Stage Mas, Two-Stage Mast |
| Fork Length | 1150 mm, 1220 mm |
| Operating Mode | Standing Operation |
| Forklift Tyre | Polyurethane Tyre |
| Mast Tilt Angle (Forward Tilt-Rear Tilt) | 6-12° |
| Model Number | ELES-12/15/20CE |
| Model | ELES-12/15/20CE |
| Capacity | 1200KG-2000KG |
| Certification | CE/ISO9001 |
| Tyre | Solid PU |
| Lifting height | 1.6m-3.5m |
| Advantage | Low Consumption High Efficiency |
| Colour | Customer Demanded |
| Rated Loading Capacity options | 1.5 Ton, 1.2 Ton, 2 Ton, 1.6Ton |
| Truck Type options | Stacker Forklift |
| Max. Lifting Height options | 1 600 mm, 2 000 mm, 2500 mm, 3000mm, 3500 mm, 4000 mm, 4500 mm, 6000mm |

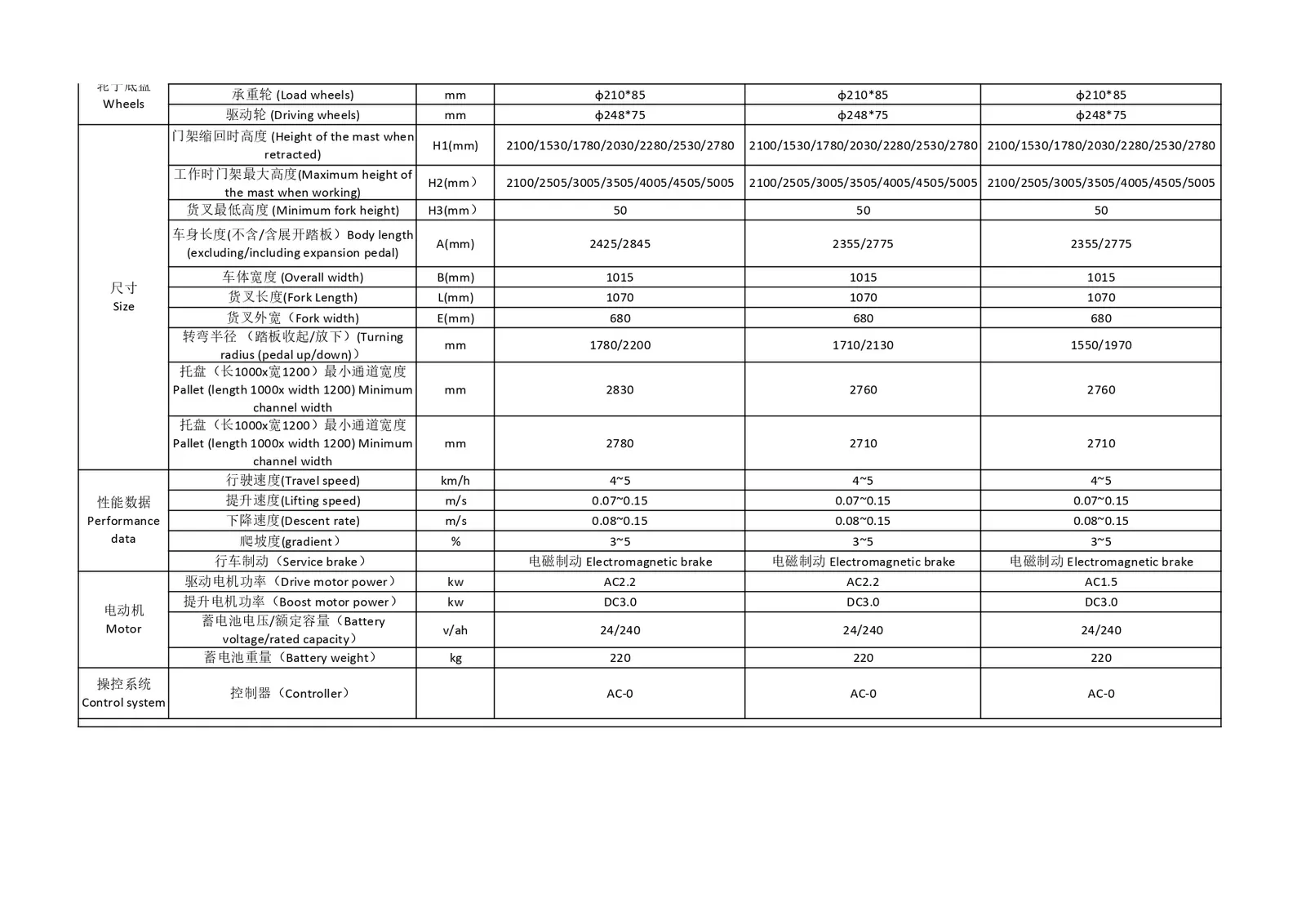

| Manufacturer | ||
|---|---|---|
| Model designation | ELES-15F | |
| Operator type | Stand-on | |
| Load capacity | Q(kg) | 1500 |
| Load centre | C(mm) | 500 |
| Wheelbase | Y(mm) | 1382 |
| Axle centre to fork face | x(mm) | 854 |
| Service weight(Incl.battery) | kg | 720 |
| Tyre Material | PU | |
| Driving wheel size | mm | φ210×70 |
| Bearing wheel size | mm | Φ80×70 |
| Additional wheel size | mm | φ115×55 |
| Wheels,number frontbean(x=dive) | 1×+2/4 | |
| Front wheel track | b₁₀ (mm) | 600 |
| Back wheel track | b1(mm) | 525 |
| Lift height | h₃ (mm) | 160D/2500/3000/3500 |
| Min./Max.height of tiller arm in operatin | h₁ (mm) | 1023/1382 |
| Fork height,lowered | h1₃ (mm) | 90 |
| overall length | I₁ (mm) | 1900 |
| overall vidth | b₁ (mm) | 850 |
| Fork dimensions | S/E/L(mm) | 54mmx160mmx1000mm |
| Fork Vidth | b₅ (mm) | 685 |
| Height of mast,extended | H₄ (mm) | 1990/2950/3450/3950 |
| Height of mast,Ilowered | H₁ (mm) | 1990/1740/1990/2240 |
| Ground clearance,centre of wheelbase | m(mm) | 30 |
| Aisle width,1000×1200 pallet crossways | Ast(mm) | 2145 |
| Aisle width,800×1200 pallet lengthways | Ast(mm) | 2195 |
| Length to face of forks | l₂ (mm) | 795 |
| outer turning radius | Wa(mm) | 1600 |
| Travel speed,laden/unladen | km/h | 5.8/6 |
| Lifting speed,laden/unladen | ms | 0.08/0.10 |
| Lowering speed,laden/unladen | ms | 0.12/0.10 |
| Maximum gradeability,laden/unladen | % | 4-10 |
| Service brake | Electromagnetic | |
| Drive motor rating | KW | 0.75 |
| Lift motor rating | kW | 2.2 |
| Battery voltage/rated capacity | V/Ah | 24/100Ah |
| Battery weight | kg | 640 |
| Battery Size(L×W×H) | mm | 360×172×275 |
| dB(A) | 70 |
Certificates are supplied with your quote on request.
