Electric Pallet Stackers · Ref LPT-32307

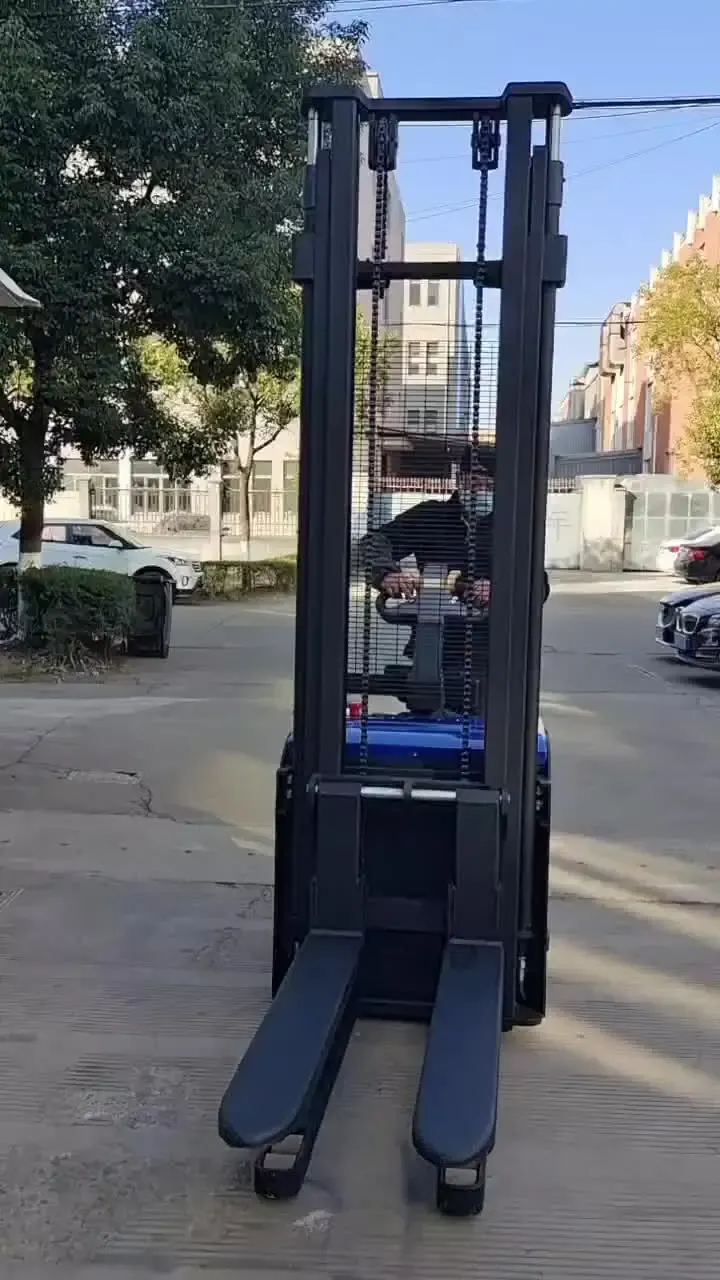

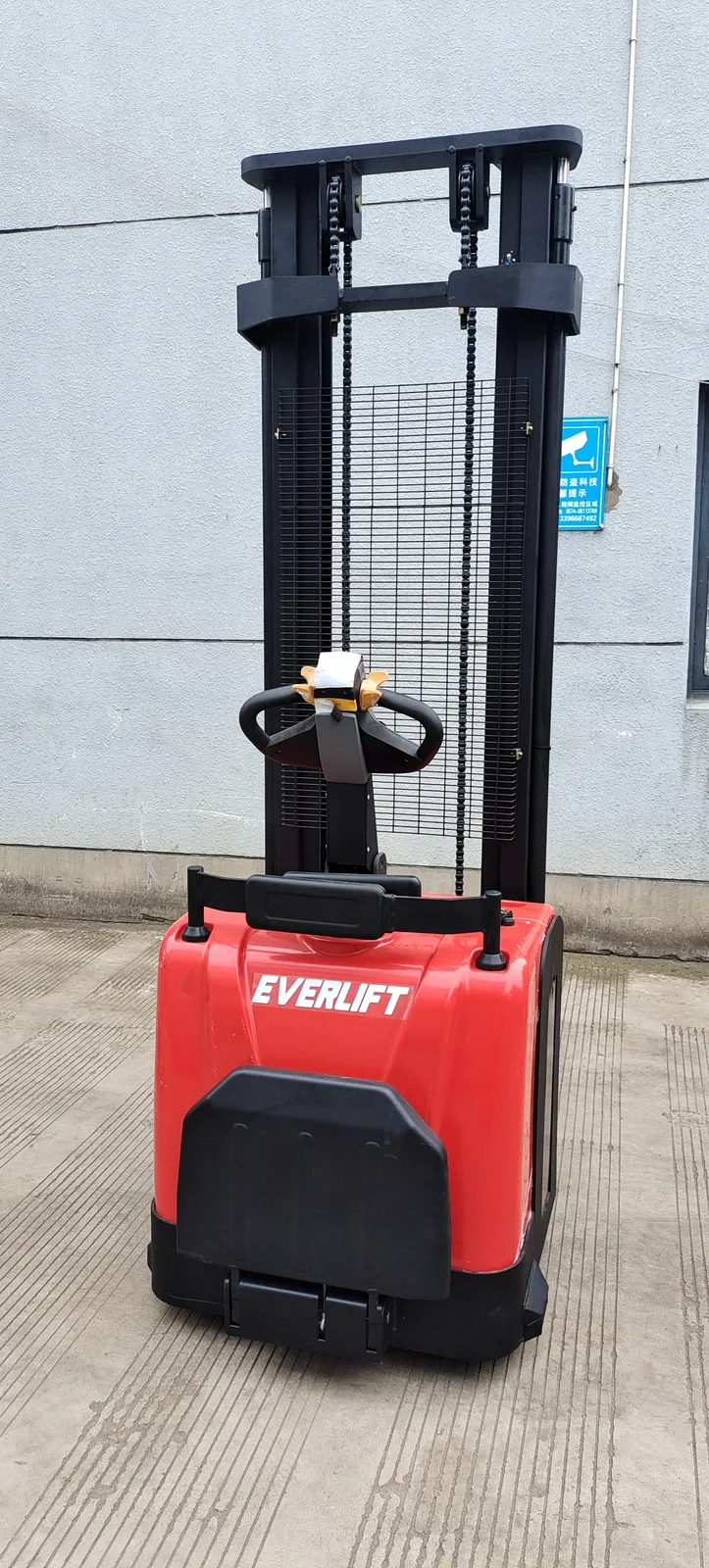

Stand on Electric Pallet Stacker ELES-16P 1.5t
1.5 tLead-acidForks 1150 to 1220 mm marked
markedfrom£3,280per unit, ex VAT
Get a quote, reply in 2 hours
- 12-month warranty
- Photos and video before it ships
- No online payment, nothing is charged
Any quantity is welcome. Your price depends on the quantity and is confirmed on your written quote. Prices in GBP per unit, ex VAT. We convert the factory list at a buffered exchange rate, so normal day-to-day currency movement does not change the price you see. Your written quote adds freight, duty and VAT and is valid for 30 days.
Rated Loading Capacity1.5 Ton
Truck TypeStacker Forklift
Line total
Nothing is sent yet: add the products you need, then send your quote request. We reply within 2 hours, Monday to Friday, 9am to 5pm.
Or email sales@londonpallettrucks.co.ukProduct Highlights

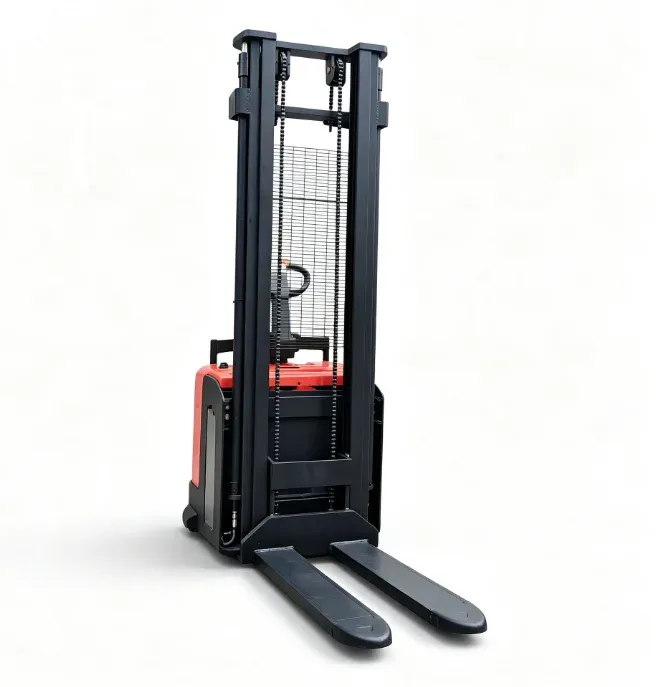

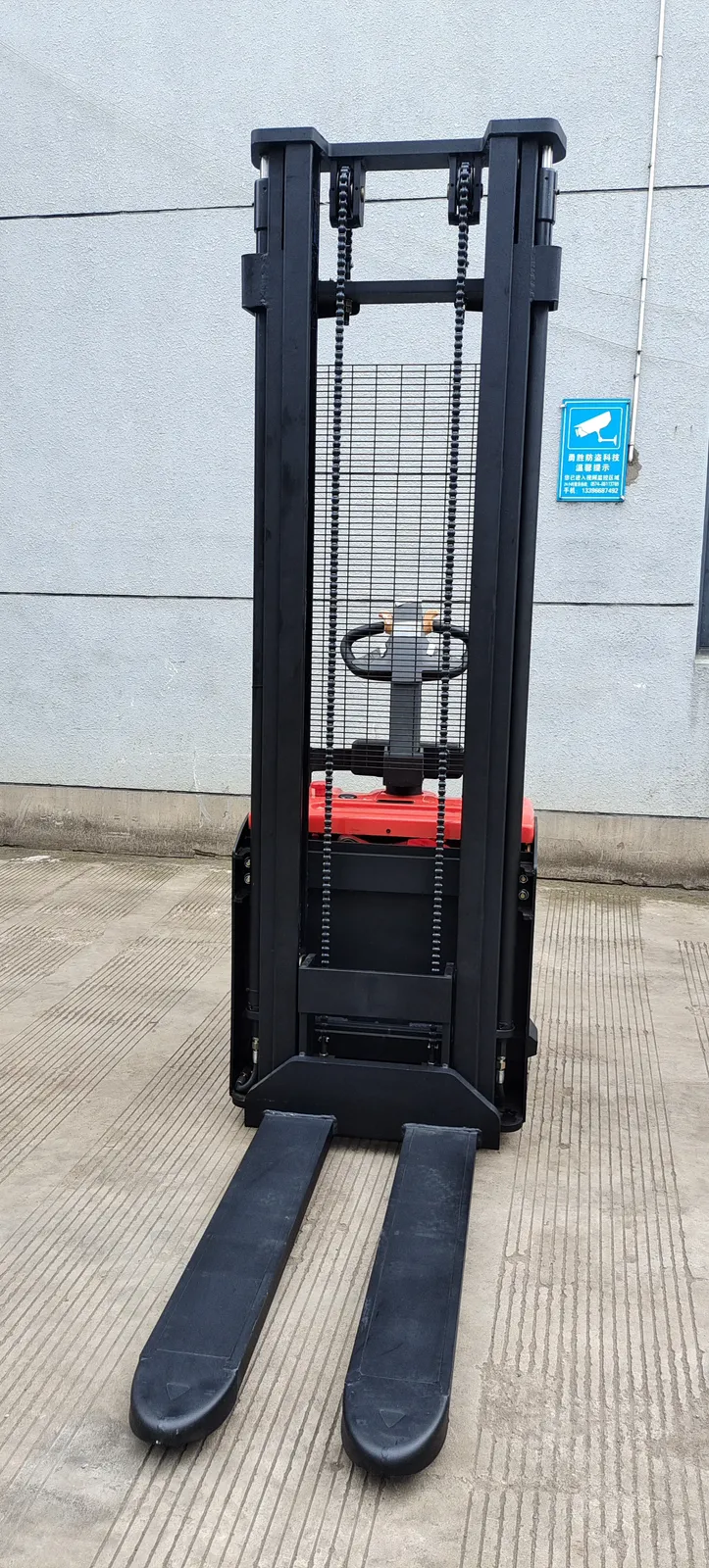

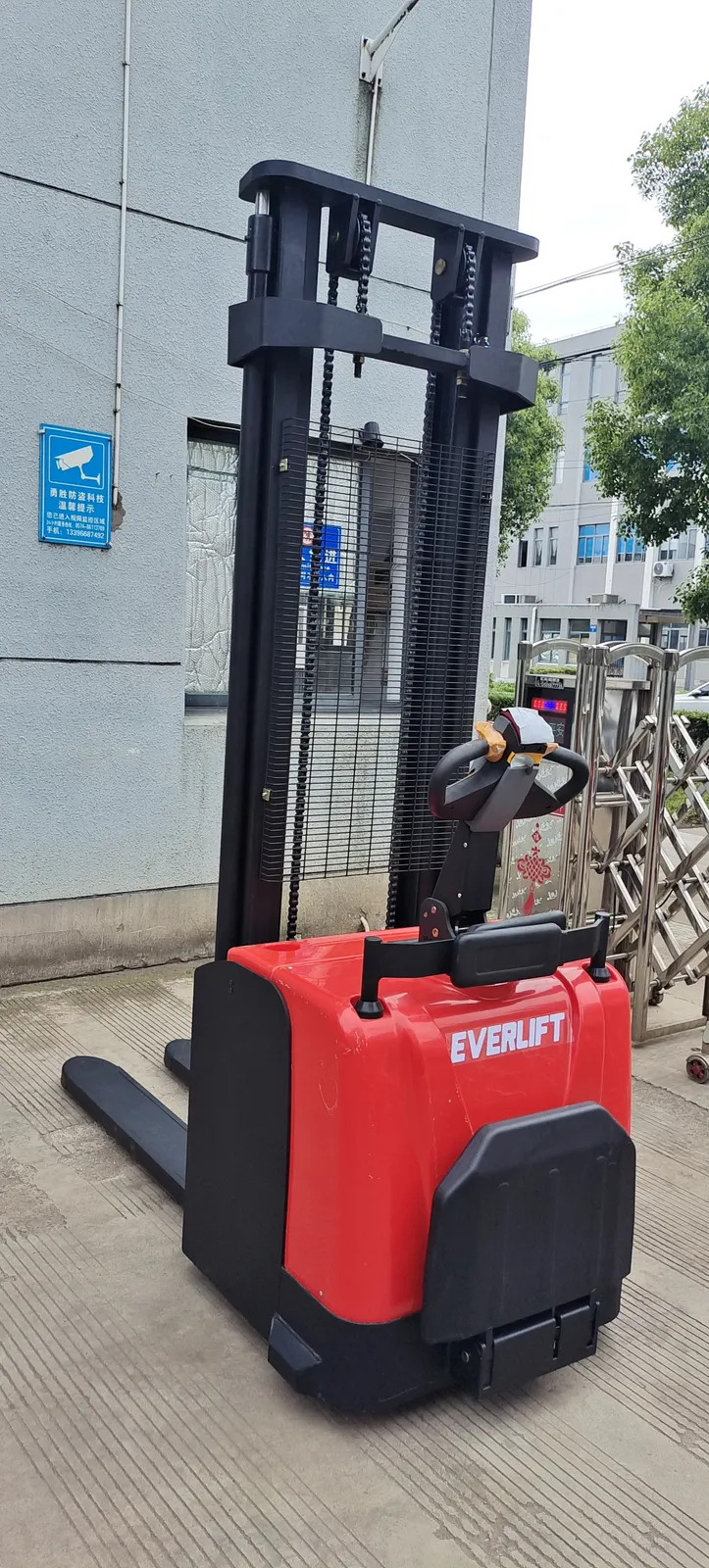

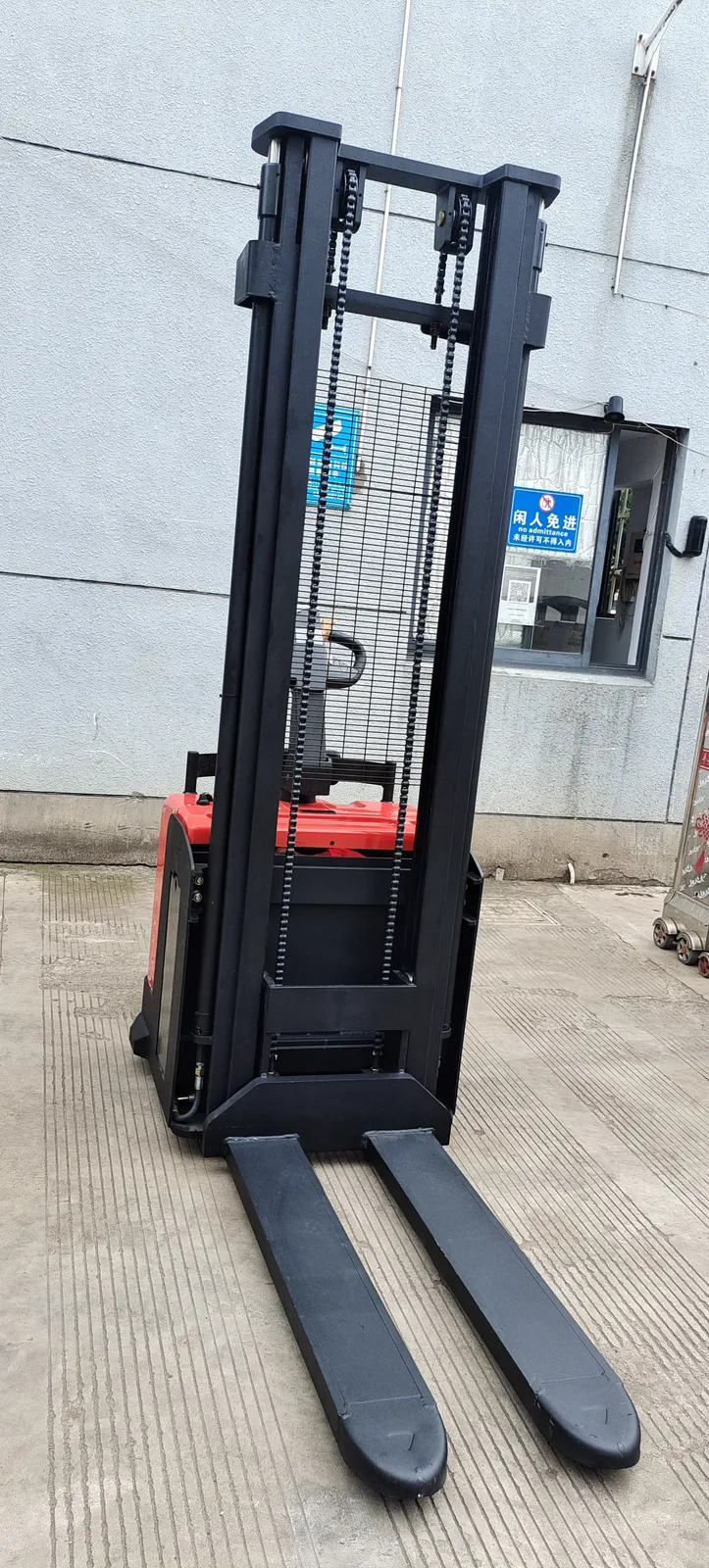

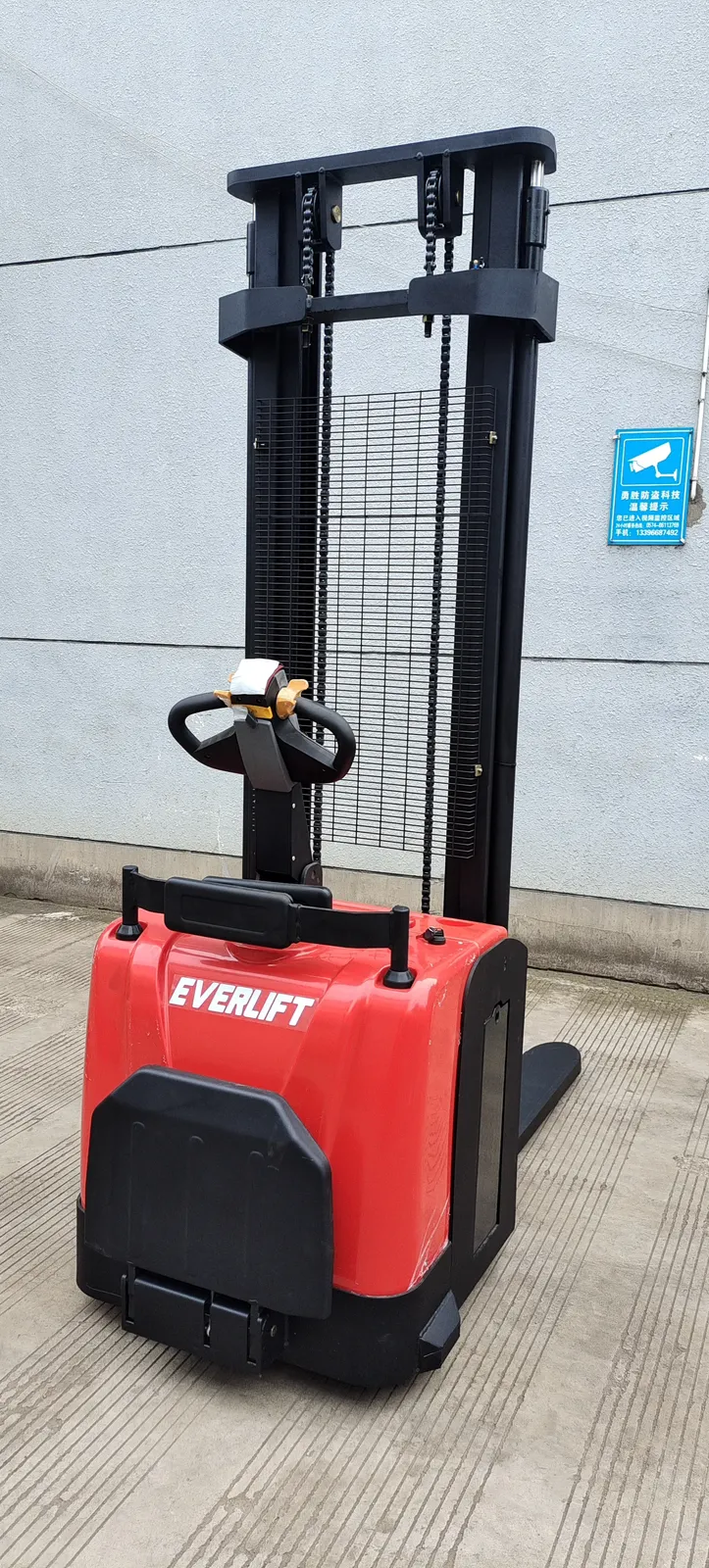

This stand-on electric stacker supports 1500 kg rated load and flexible lifting height options from 2000mm to 4000mm, matching the mainstream medium rack storage demands of most warehouse equipment distributors.
The machine is equipped with standard EPS electric power steering system, which brings lightweight and flexible operation and greatly eases long-hour working fatigue, a highly sought-after humanized design among global buyers.
It adopts imported CURTIS controller, stable AC drive assembly and dual lifting cylinders, delivering smooth speed regulation and steady lifting performance, effectively reducing maintenance troubles for end warehouse users.
Matched with 24V 210Ah large-capacity traction battery, the stacker supports long continuous operation and convenient quick charging. The robust heavy-duty body and reinforced fork ensure durable service for high-frequency logistics work.
Complete safety configurations including electromagnetic braking, emergency stop function and ergonomic protective arm fully meet international industrial operation standards, which is a core evaluation factor for factory purchasers and regional dealers.
945 / 985 / 1020 / 1055 / 1090
5For 5 lifting heights
Pu / Pu
Front Wheel PU / Rear Wheel PU
φ85×70 / φ80×70
Front φ85×70 / Rear φ80×70
| Condition | New |
|---|---|
| Fork Specifications( L*W*H) | 1150*550*75MM |
| Forklift Battery Type | Lead-Acid Battery |
| Side Shifter | Electric Side Shifter, Hydraulic Side Shifter |
| Drive Type | Fwd |
| Terrain Adaptability | Indoor Flooring, Rough Terrain, Other, Outdoor Pavement, Offroad |
| Load centre distance | 500 mm, 600 mm |
| Mast Type | Single-Stage Mast, Three-Stage Mas, Two-Stage Mast |
| Fork Length | 1150 mm, 1220 mm |
| Operating Mode | Standing Operation |
| Forklift Tyre | Polyurethane Tyre |
| Mast Tilt Angle (Forward Tilt-Rear Tilt) | 6-12° |
| Battery voltage (V/AH) | 24v/210Ah |
| Product Type | Electric Battery Stacker |
| Mast | 2 Stage |
| Battery | Lead-acid Batterry |
| Capacity | 1.5t |
| Operator type | Stand-up |
| Lifting height | 2-4m |
| Rated Loading Capacity options | 1.5 Ton |
| Truck Type options | Stacker Forklift |
| Max. Lifting Height options | 2 000 mm, 2500 mm, 3000mm, 3500 mm, 4000 mm |
| Item | Unit | Specification |
|---|---|---|
| Model | ELES-16P | |
| Rated Capacity Q | kg | 1500 |
| Load Centre C | mm | 500 |
| Leg Type | Standard Leg / Adjustable Wide Leg (Optional) | |
| Leg Width (Outer/Inner) | mm | ~795 / ~560 |
| Wheel Material | PU / PU Front Wheel PU / Rear Wheel PU | |
| Wheel Size φ | mm | φ85×70 / φ80×70 Front φ85×70 / Rear φ80×70 |
| Wheelbase Y | mm | ~1190 |
| Min. Ground Clearance | mm | ~35 |
| Fork Lowered Height h₁ | mm | |
| Overall Length L₁ | mm | ~2380 |
| Overall Width W | mm | ~795 |
| Min. Turning Radius R | mm | ~1685 |
| ××Fork Size (L×W×T) | mm | 1150 × 160 × 60 |
| Travel Speed (Loaded/Unloaded) | km/h | ~4.0 / ~4.5 |
| Lifting Speed (Loaded/Unloaded) | mm/s | ~70 / ~100 |
| Lowering Speed (Loaded/Unloaded) | mm/s | ~80 / ~60 |
| Gradeability (Loaded/Unloaded) | % | ~5 / ~7 |
| Noise Level | dB(A) | ≤75 |
| Drive Motor Power | kW | AC 1.5AC Motor |
| Lift Motor Power | kW | AC 1.5AC Motor |
| Battery (Voltage/Capacity) | V/Ah | 24V / 210Ah |
| Battery Type | Maintenance-free Lead-acid / Lithium Optional | |
| Charger | V/A | 24V / 30A |
| Charging Time (Full) | h | 8~10 |
| Controller | CURTISUSA CURTIS Controller | |
| Steering System | EPSEPS Electric Power Steering |
| Certificate | Number | Valid |
|---|---|---|
| 2006/42/EC | M.2026.206.C137529 | 30/03/2026 - 29/03/2031 |
| CE | M.2026.206.C134736 | 04/02/2026 - 03/02/2031 |
| CE | 3N251031.NEMS093 | 30/10/2025 - 29/10/2030 |
| EAC | 22/10/2023 - 22/10/2028 | |
| CE | M.2023.206.C83216 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83215 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83222 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83221 | 22/03/2023 - 21/03/2028 |
Certificates are supplied with your quote on request.
Spare parts for this model
Pallet truck and stacker load rollers, 80 x 70 mm polyurethane, set of 4from £41 per set ex VAT · check the size first
Electric stacker, reach truck and sweeper charger, 24 V 30 A, lead acid and gelfrom £108 per charger ex VAT · check your battery first
Electric pallet truck and stacker emergency stop switch, 125 Afrom £19 per unit ex VAT · check the fit first
Stacker mast lift chain, leaf chain cut to length, per metrefrom £22 per metre ex VAT · check your old part first
Electric stacker and pallet truck battery connector 175 A, grey, pairfrom £29 per pair ex VAT · check the plug first
Electric pallet truck and stacker horn, 24 V or 48 V, 100 dBfrom £14 per horn ex VAT · check your old part first
Electric pallet truck and stacker main contactor, 24 V coil, 100 Afrom £35 per contactor ex VAT · check your old part first
Electric pallet truck and stacker tiller gas spring, 156 mm, 600 Nfrom £23 per gas spring ex VAT · check the fixing first
Electric stacker and pallet truck lowering valve, 08 size normally closed cartridgefrom £32 per valve cartridge ex VAT · check your old part first
All spare parts. Send the model and the part you need if it is not listed.
