Electric Pallet Stackers · Ref LPT-64750

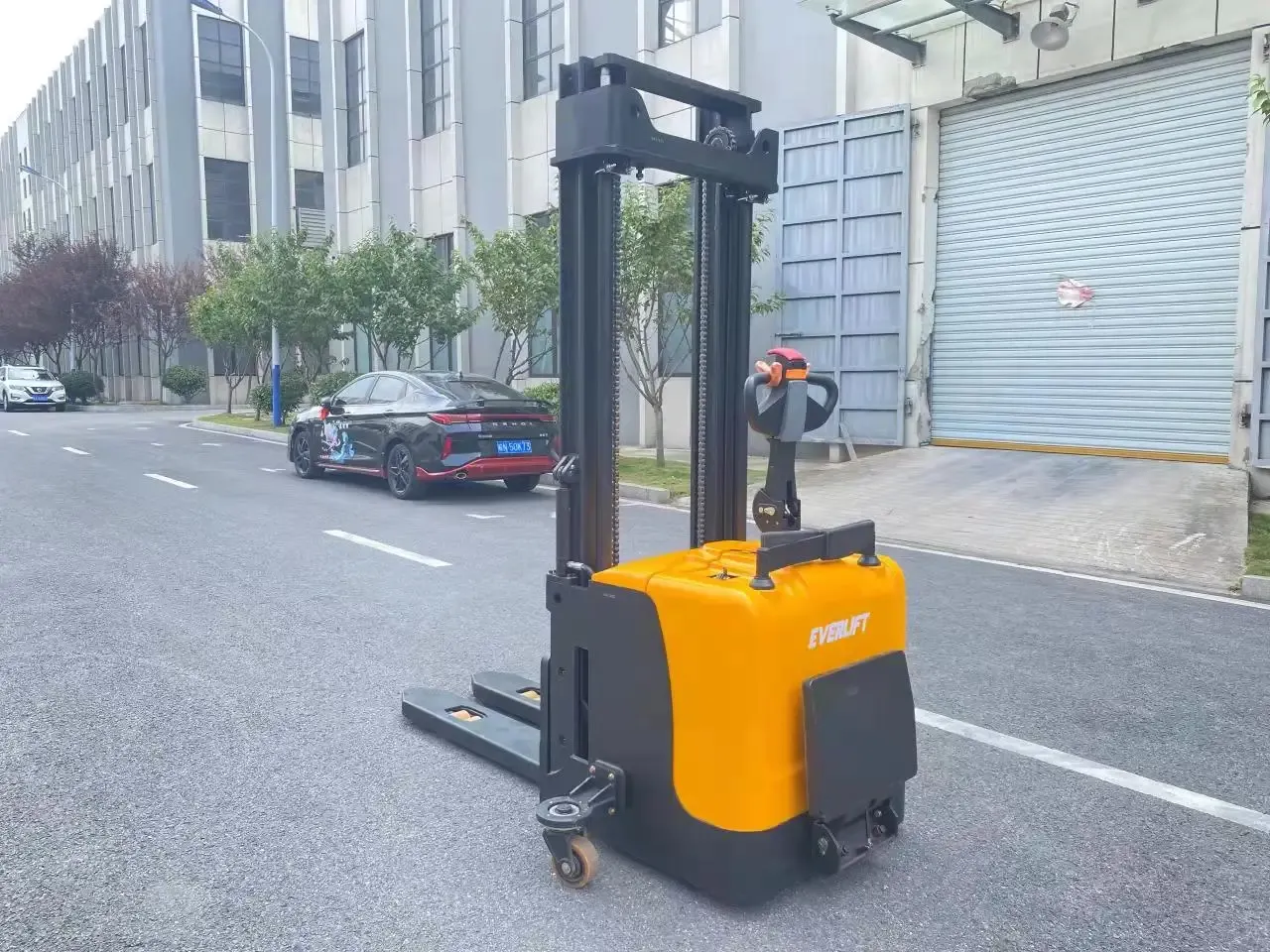

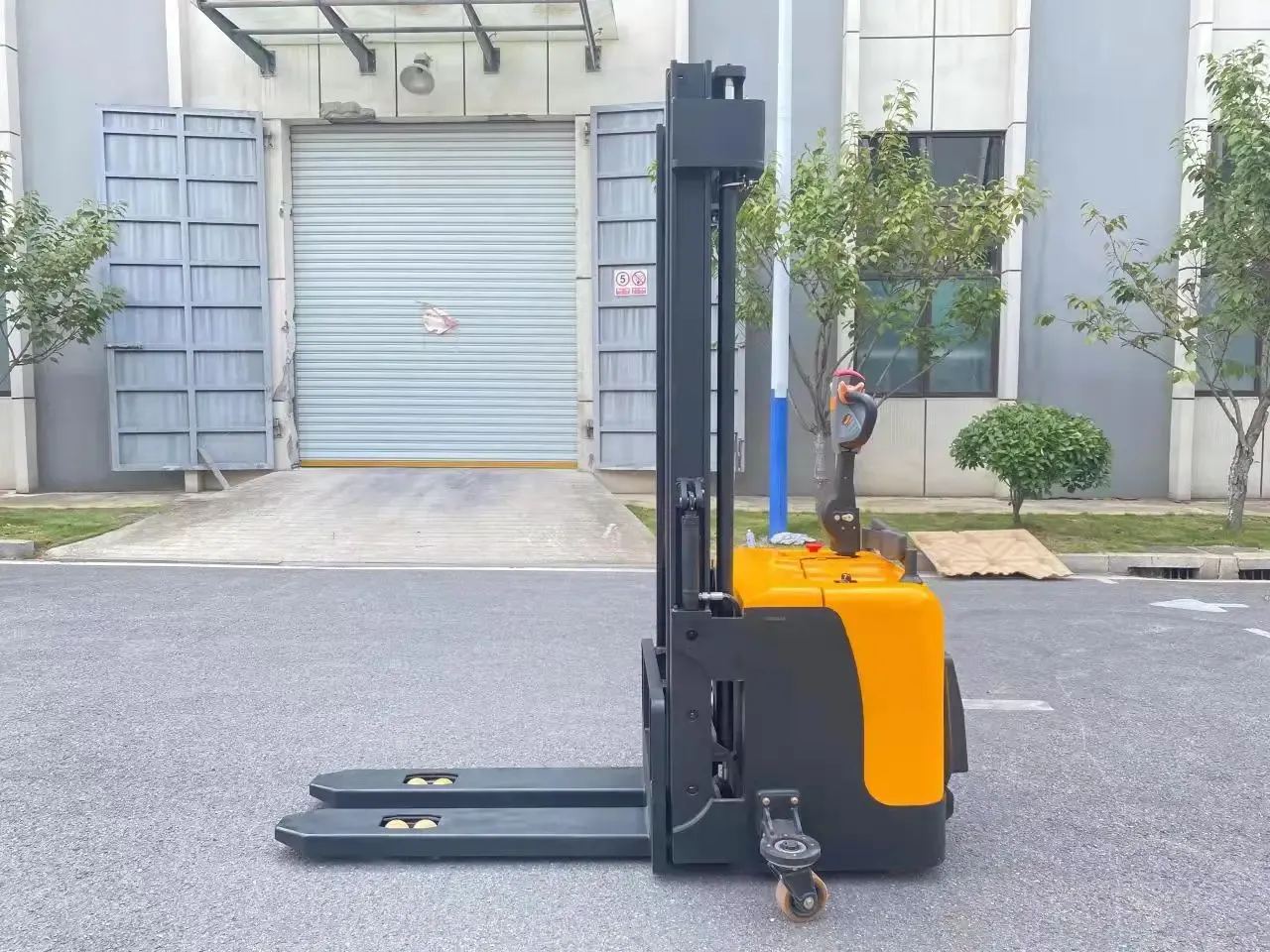

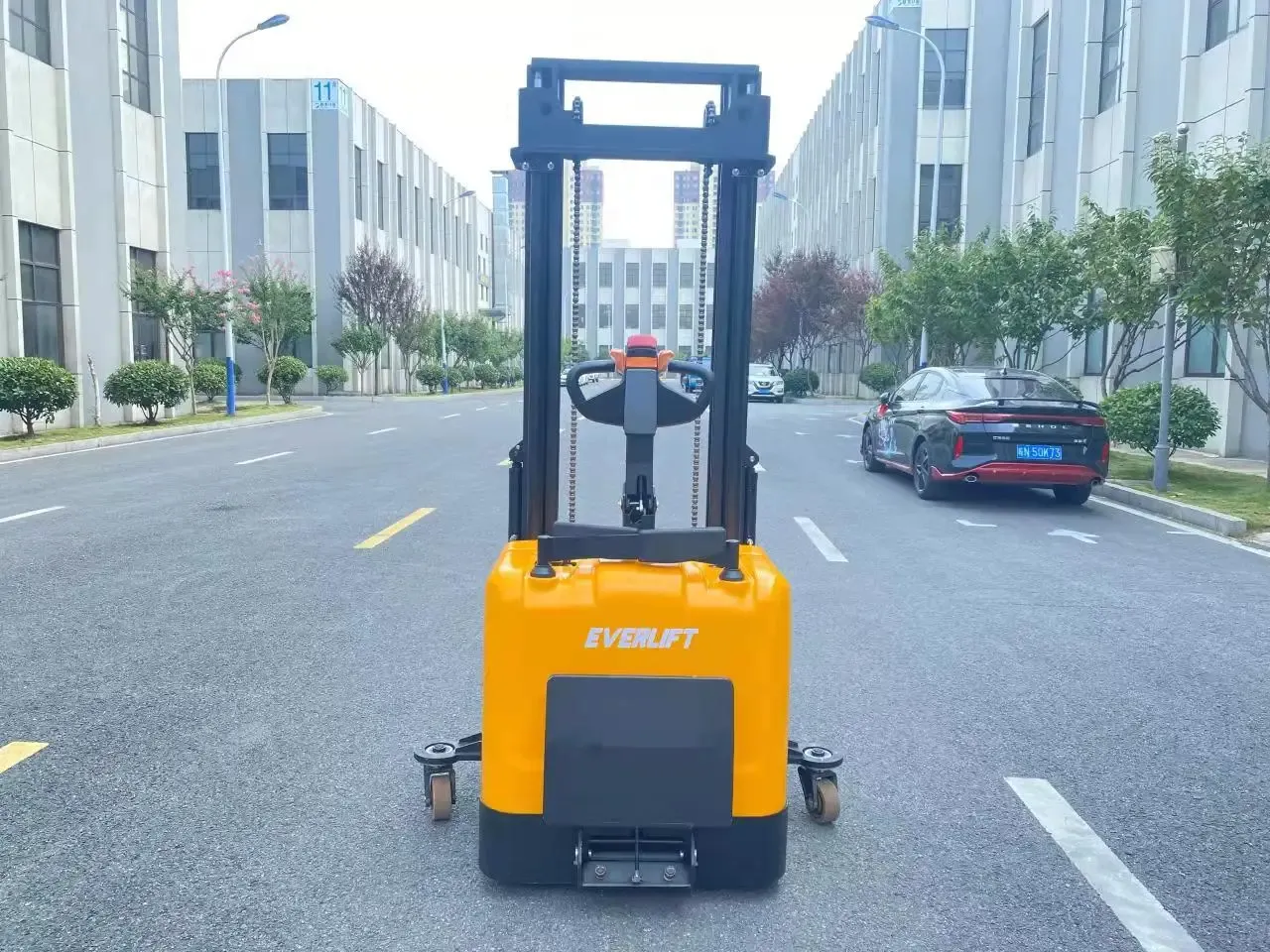

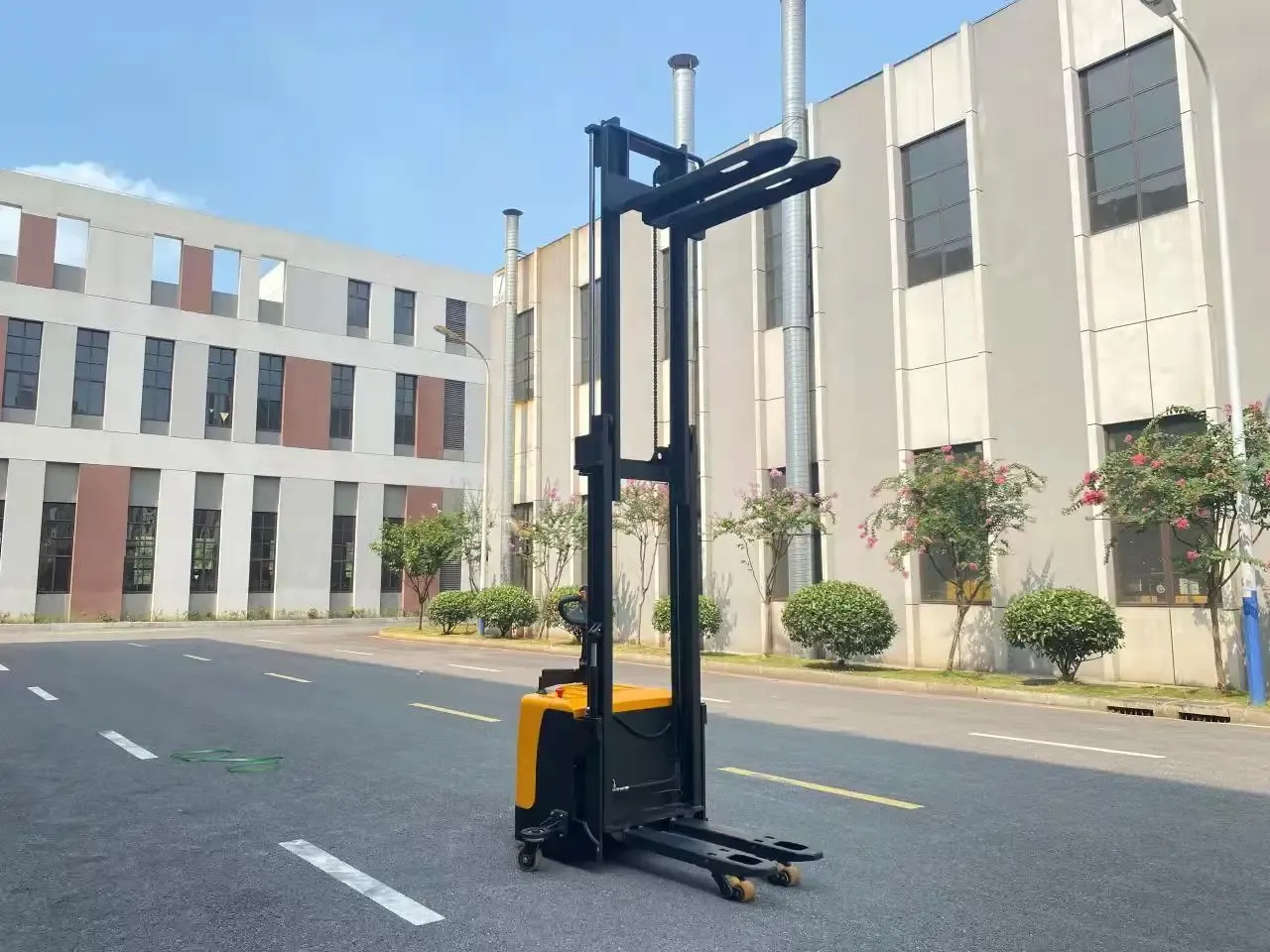

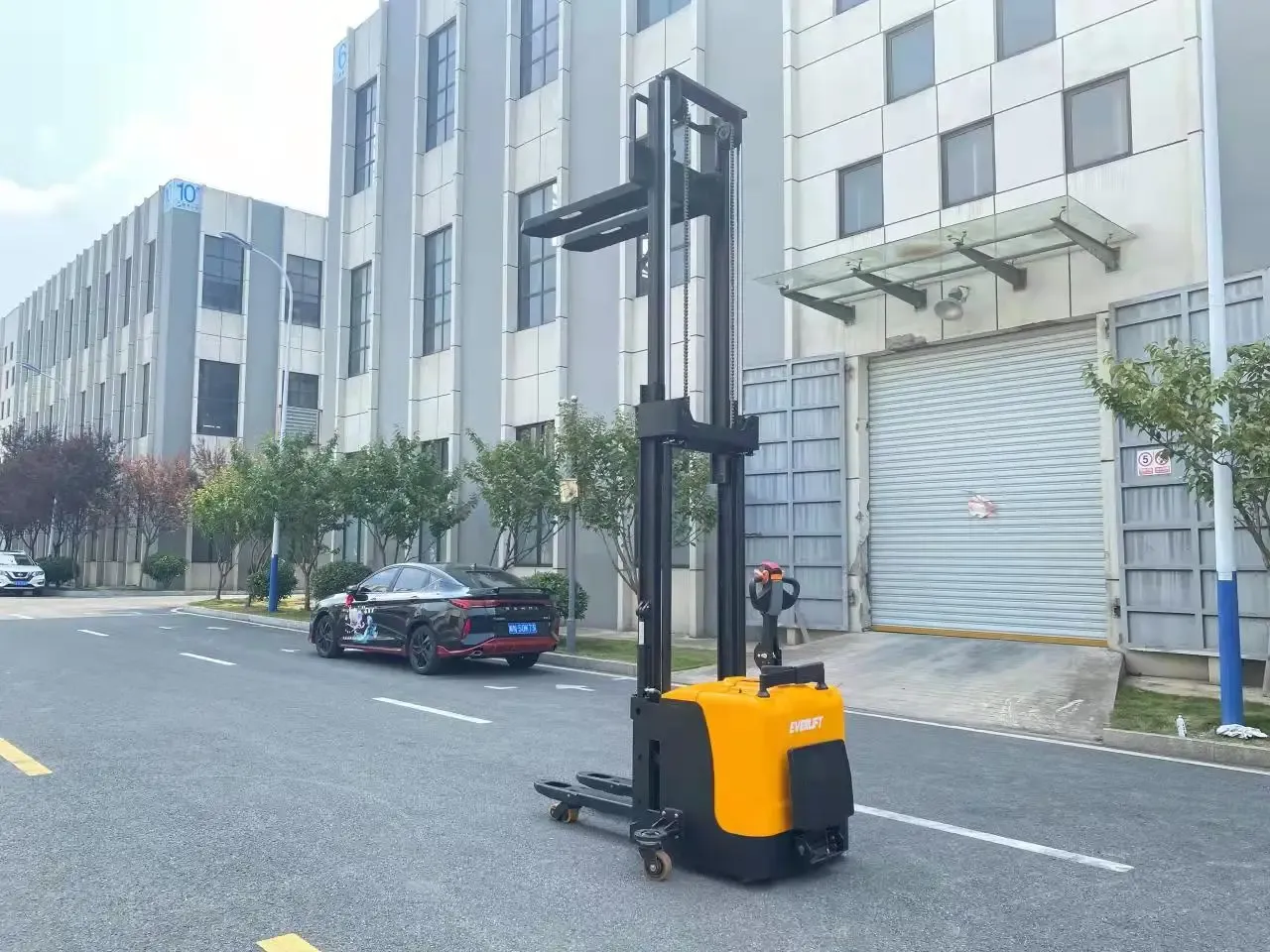

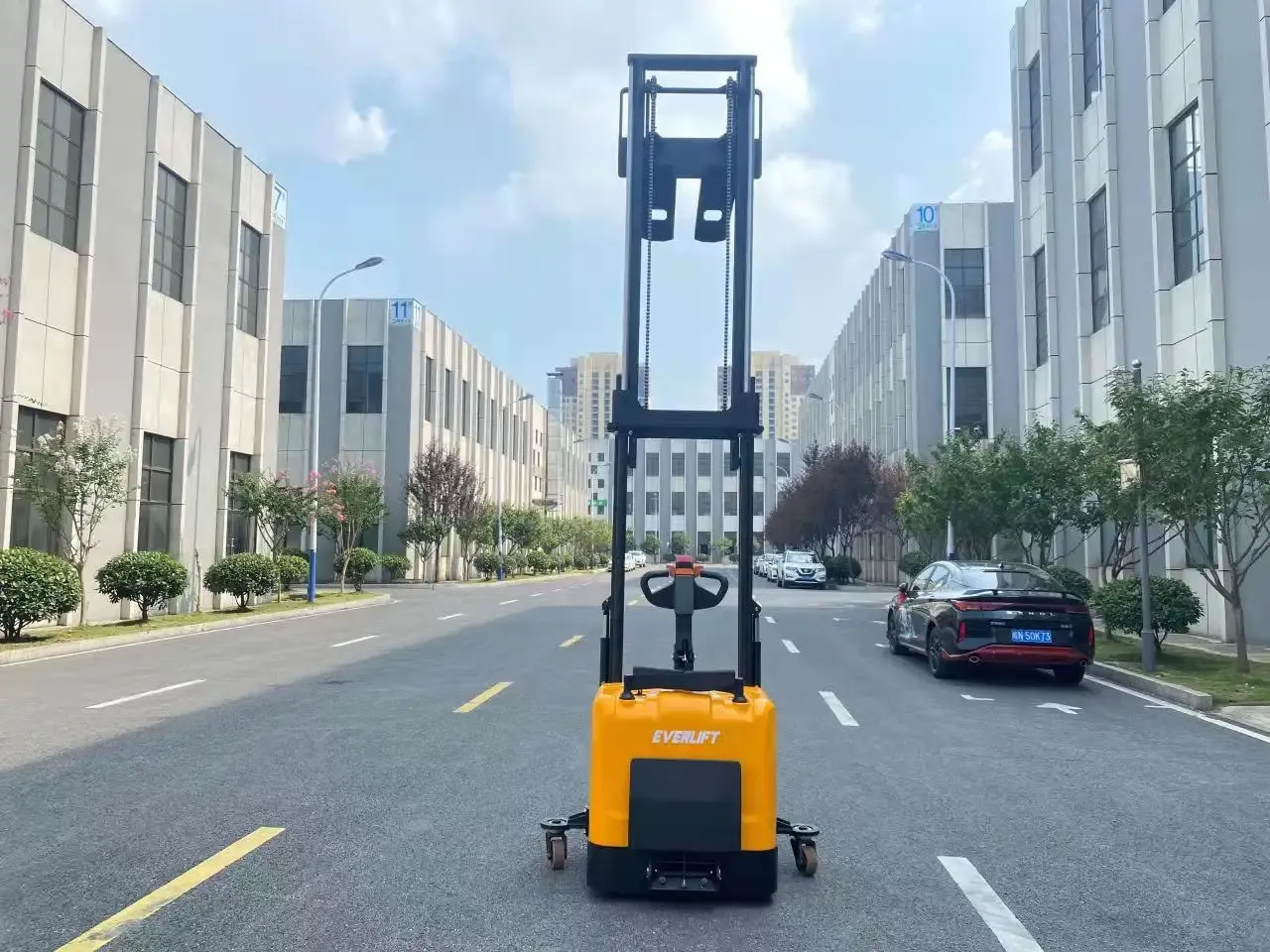

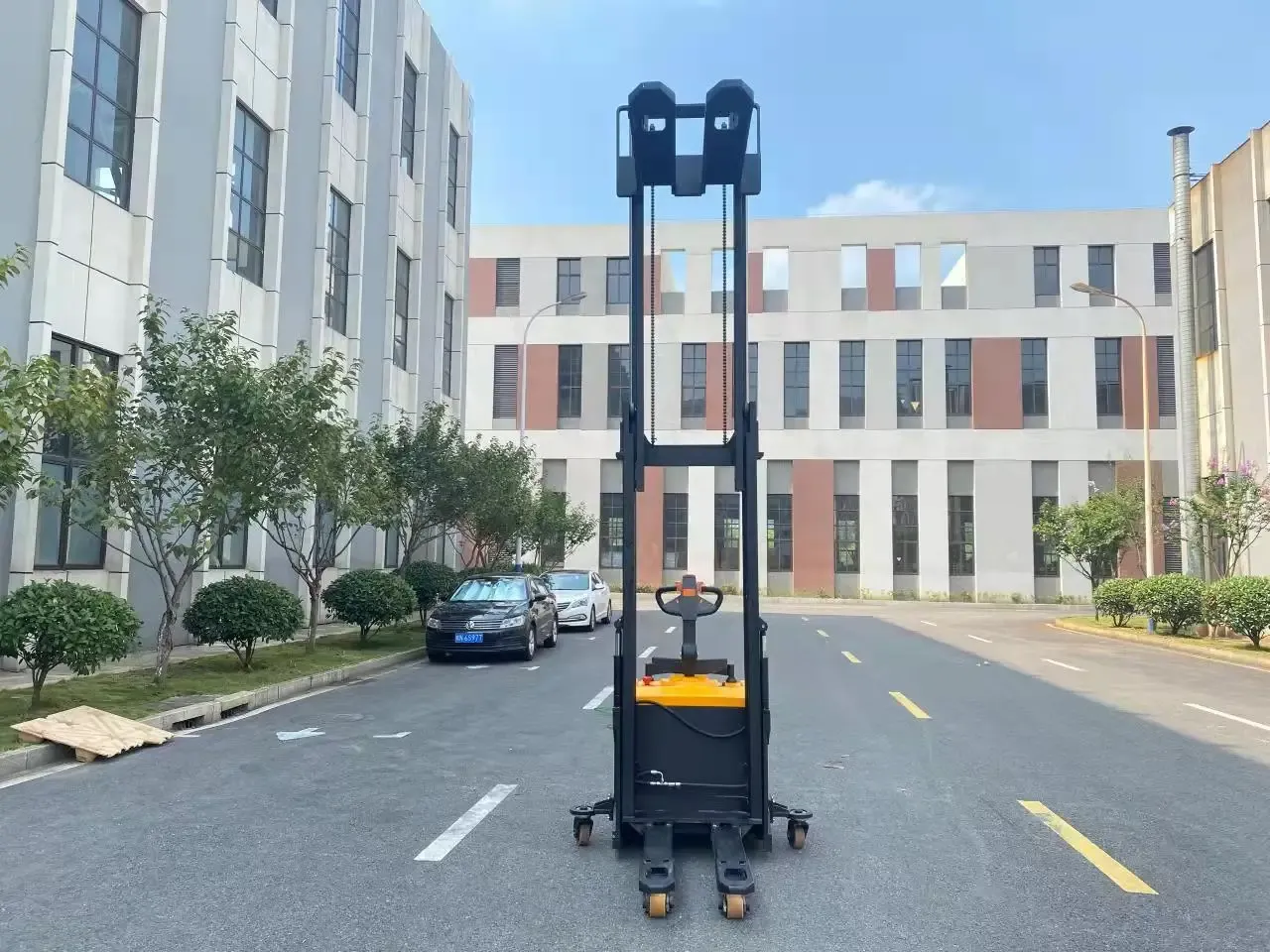

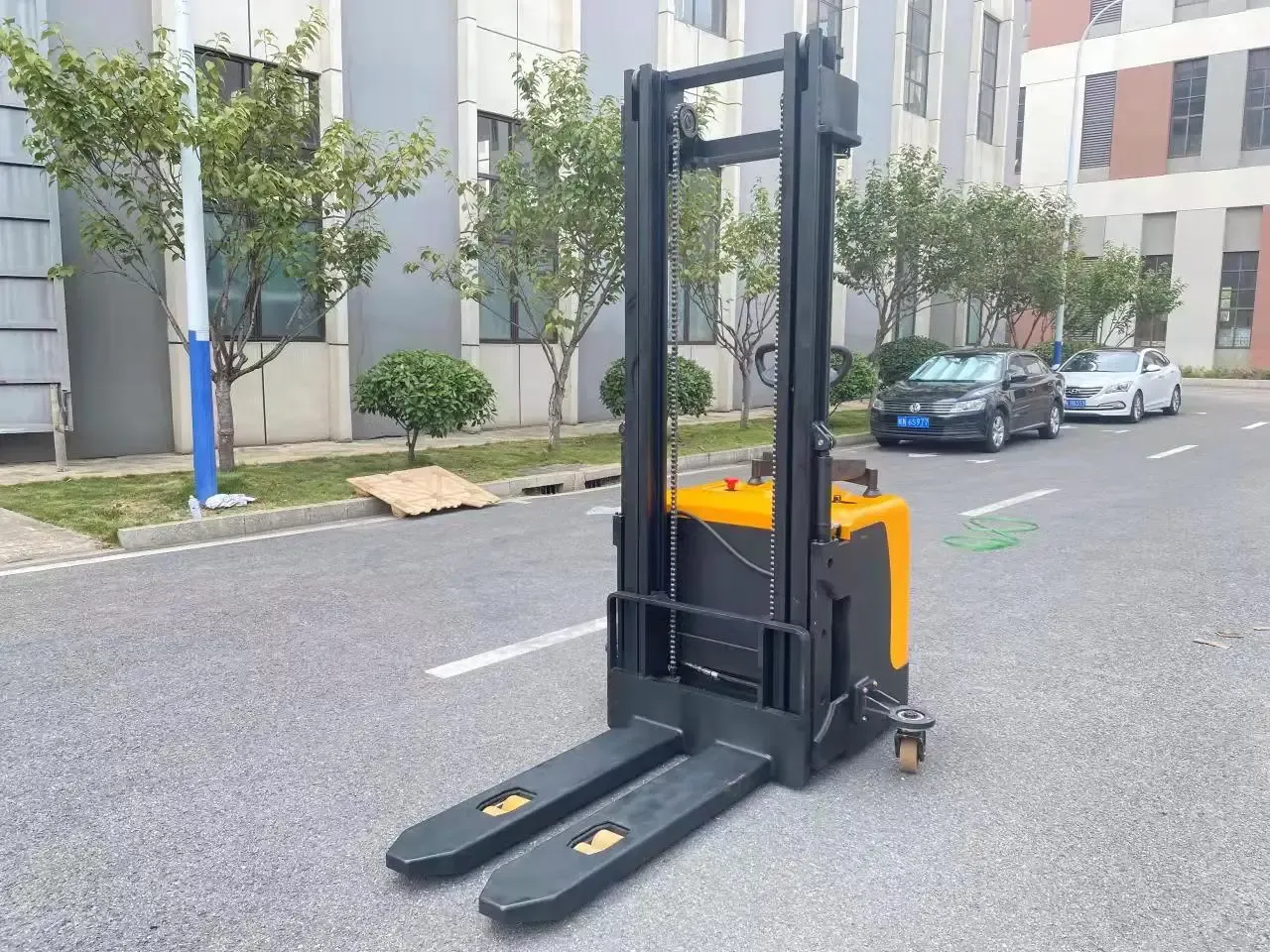

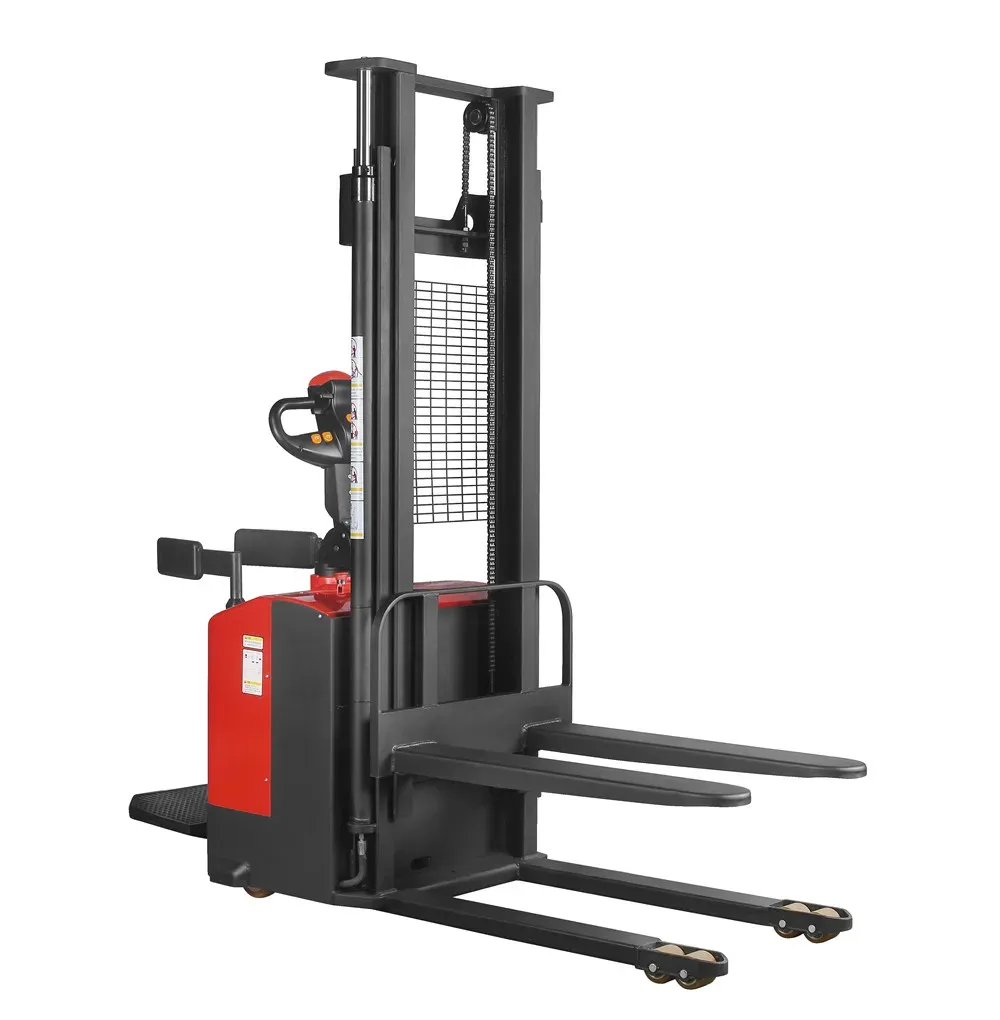

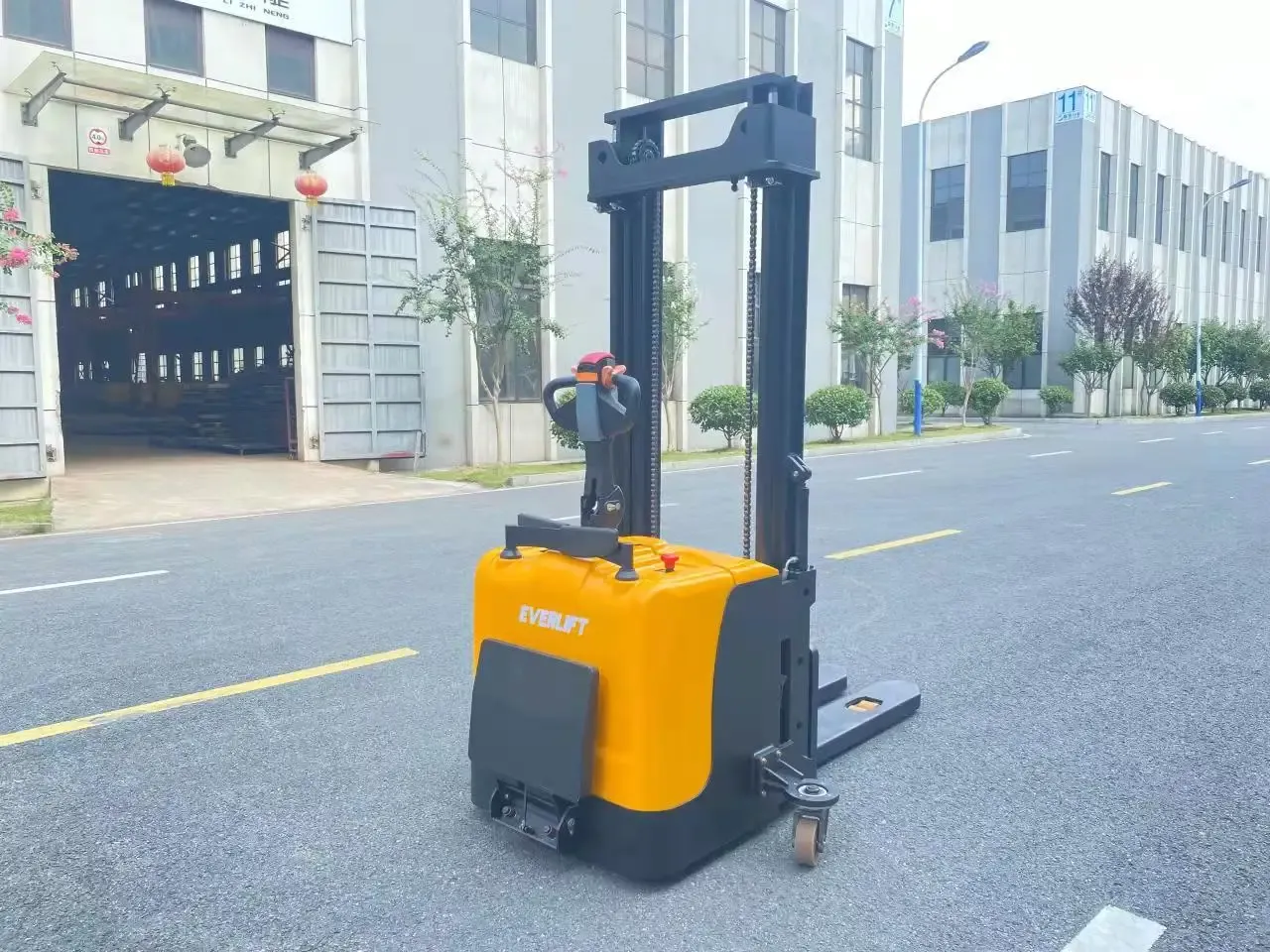

Electric Stacker 2 Ton
2 tLead-acidForks 1000 mm marked
markedfrom£2,390per unit, ex VAT
Get a quote, reply in 2 hours
- 12-month warranty
- Photos and video before it ships
- No online payment, nothing is charged
Any quantity is welcome. Your price depends on the quantity and is confirmed on your written quote. Prices in GBP per unit, ex VAT. We convert the factory list at a buffered exchange rate, so normal day-to-day currency movement does not change the price you see. Your written quote adds freight, duty and VAT and is valid for 30 days.
Rated Loading Capacity2 Ton
Truck TypeStacker Forklift
Line total
Nothing is sent yet: add the products you need, then send your quote request. We reply within 2 hours, Monday to Friday, 9am to 5pm.
Or email sales@londonpallettrucks.co.ukProduct Highlights

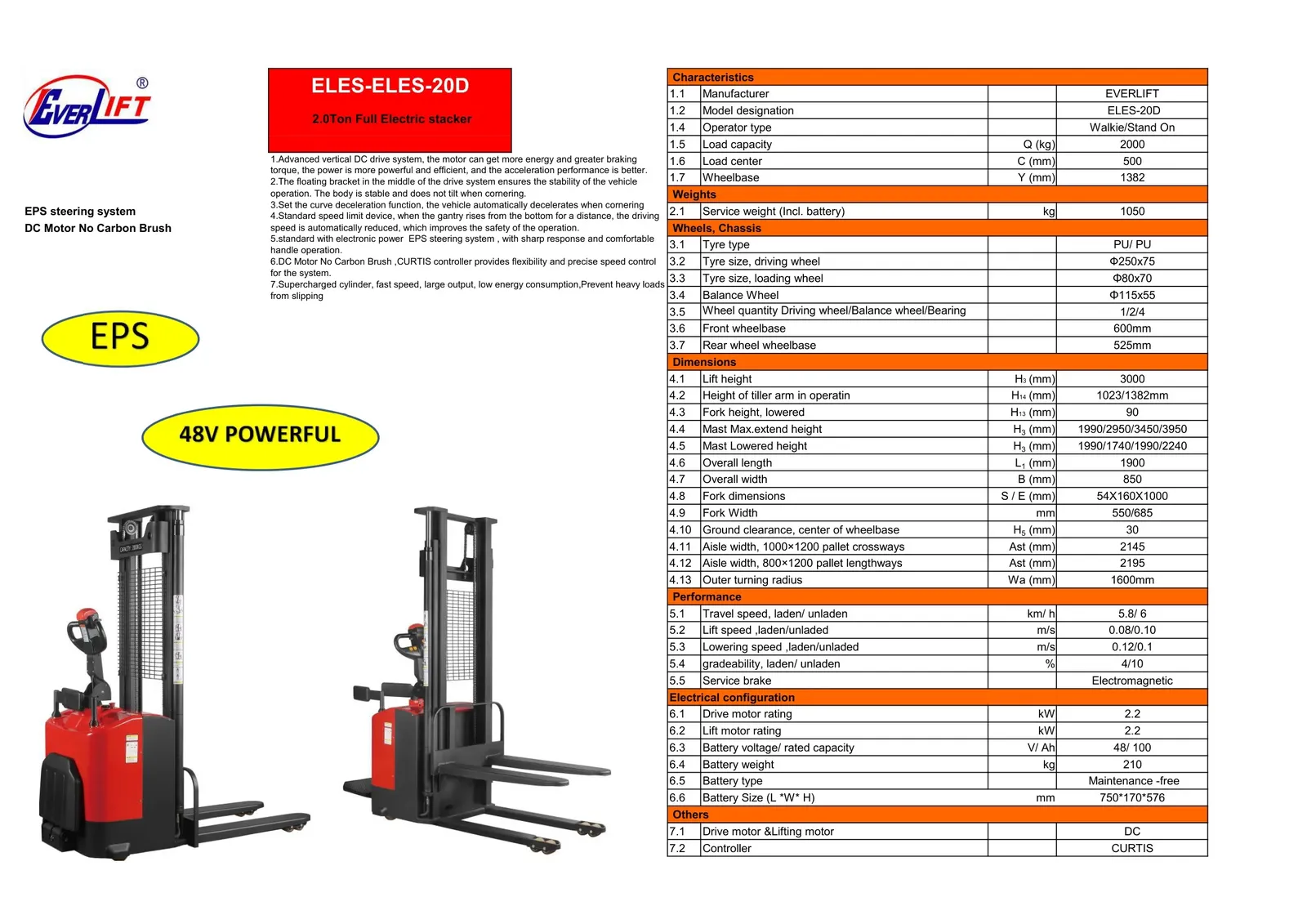

Advanced vertical DC drive system with DC motors (no carbon brush) delivers stronger power, greater braking torque and better acceleration, an electric pallet stacker built for 2000 kg daily work, with 5.8/6 km/h travel speed and 4%/10% gradeability laden/unladen.
Floating bracket drive system with balance wheels keeps the body stable and tilt-free when cornering, with a 1382mm wheelbase and 2145mm aisle requirement for confident narrow-aisle operation.
Curve deceleration function as standard, the stacker automatically slows down when cornering, improving safety for operators working at height.
Standard speed limit device automatically reduces travel speed when the mast is raised, protecting loads and operators during lifting operations.
EPS electronic power steering with sharp response and comfortable handle operation, in a compact 1600mm turning radius, precise and effortless control in narrow aisles.
CURTIS controller with flexible and precise speed control, plus a supercharged cylinder for fast lifting (0.08/0.10 m/s), high output and low energy consumption, powered by a 48V/100Ah maintenance-free battery with 2.2kW DC drive and lift motors.
| Condition | New |
|---|---|
| Fork Specifications( L*W*H) | 1000 × 160 × 54 mm |
| Forklift Battery Type | Lead-Acid Battery |
| Side Shifter | Hydraulic Side Shifter, Electric Side Shifter |
| Drive Type | Fwd |
| Terrain Adaptability | Other, Rough Terrain, Outdoor Pavement, Offroad, Indoor Flooring |
| Load centre distance | 500 mm |
| Mast Type | Two-Stage Mast, Three-Stage Mas, Single-Stage Mast |
| Forklift Turning radius | 1600 mm |
| Fork Length | 1000 mm |
| Operating Mode | Walkie |
| Forklift Tyre | Polyurethane Tyre |
| Mast Tilt Angle (Forward Tilt-Rear Tilt) | 6-12° |
| Battery voltage (V/AH) | 48V / 100Ah |
| Type | Stacker Forklift |
| Product Type | Electric Battery Stacker |
| Operator type | Wakie |
| Battery | Lead-acid Batteries |
| Capacity | 2t |
| Mast | 2 Stage /3 Stage Optional |
| Wheels | PU Wheels |
| Rated Loading Capacity options | 2 Ton |
| Truck Type options | Stacker Forklift |
| Max. Lifting Height options | 1 600 mm, 2 000 mm, 2500 mm, 3000mm, 3500 mm, 4000 mm, 4500 mm, 5000 mm, 5500 mm, 6000mm, 7000mm |
| Certificate | Number | Valid |
|---|---|---|
| 2006/42/EC | M.2026.206.C137529 | 30/03/2026 - 29/03/2031 |
| CE | M.2026.206.C134736 | 04/02/2026 - 03/02/2031 |
| CE | 3N251031.NEMS093 | 30/10/2025 - 29/10/2030 |
| EAC | 22/10/2023 - 22/10/2028 | |
| CE | M.2023.206.C83216 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83215 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83222 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83221 | 22/03/2023 - 21/03/2028 |
Certificates are supplied with your quote on request.
