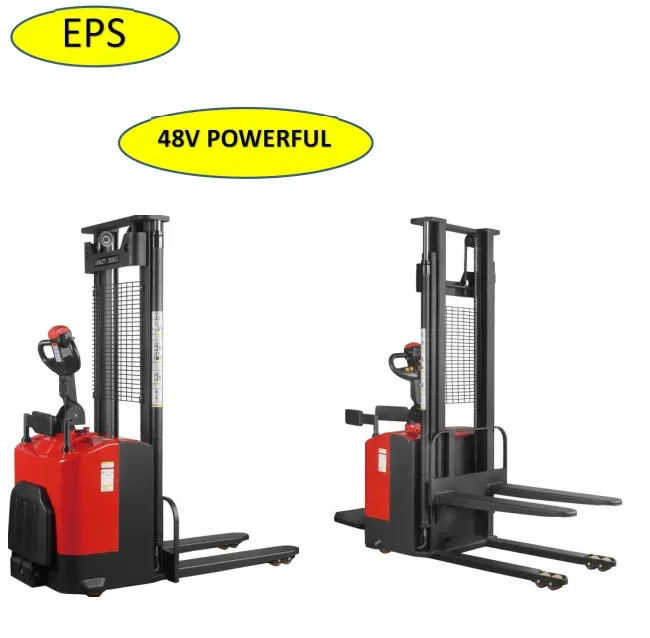

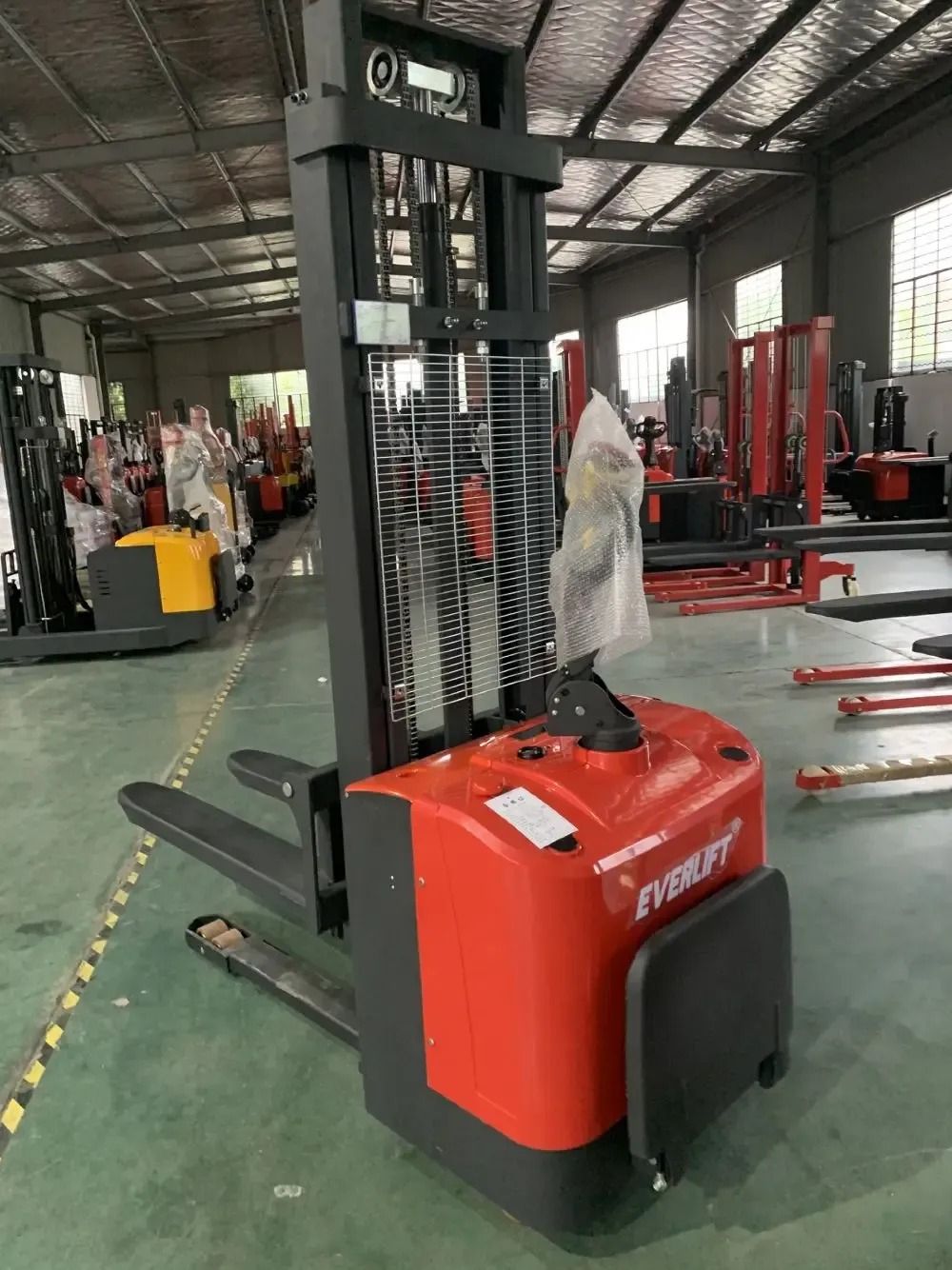

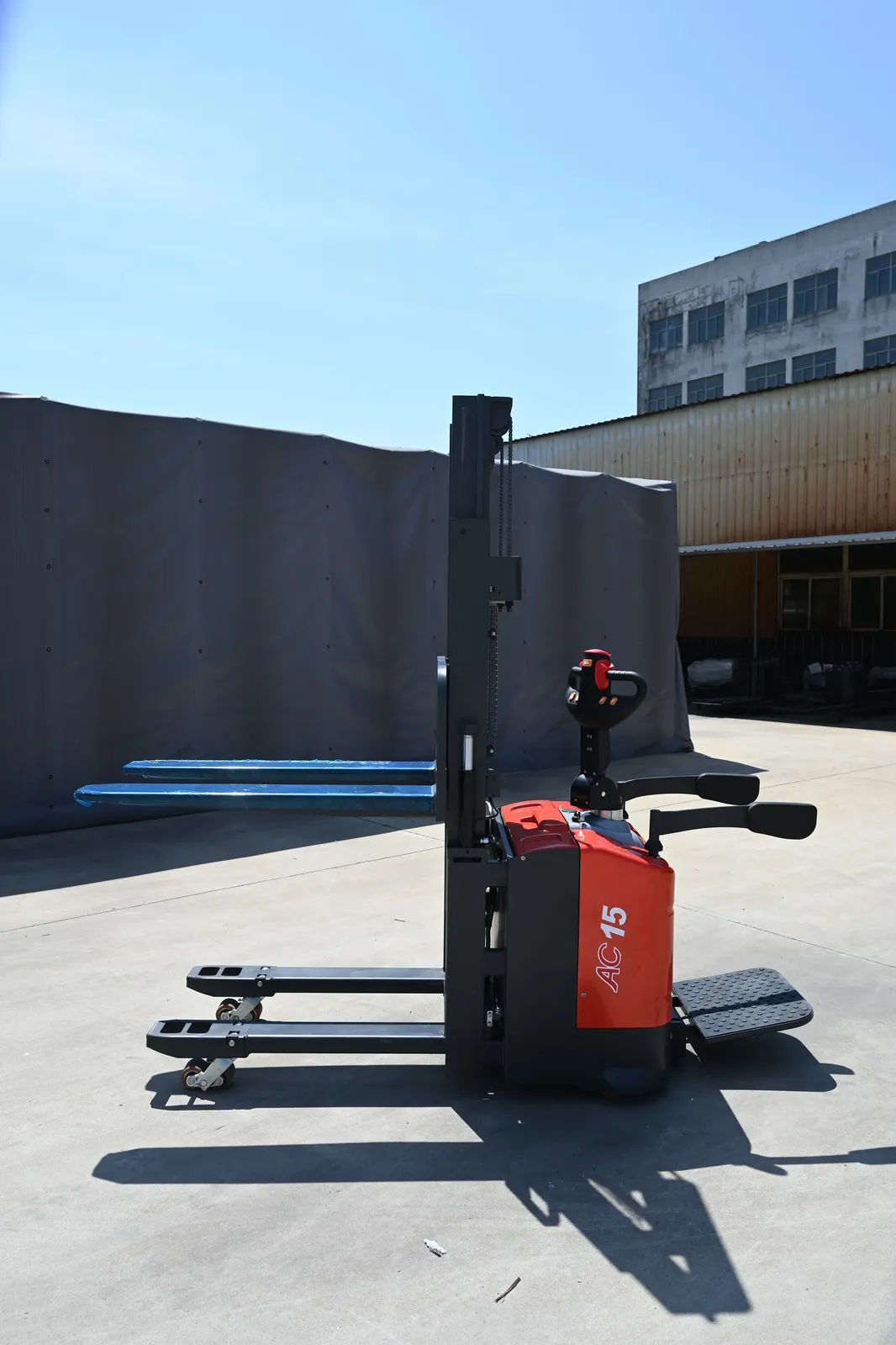

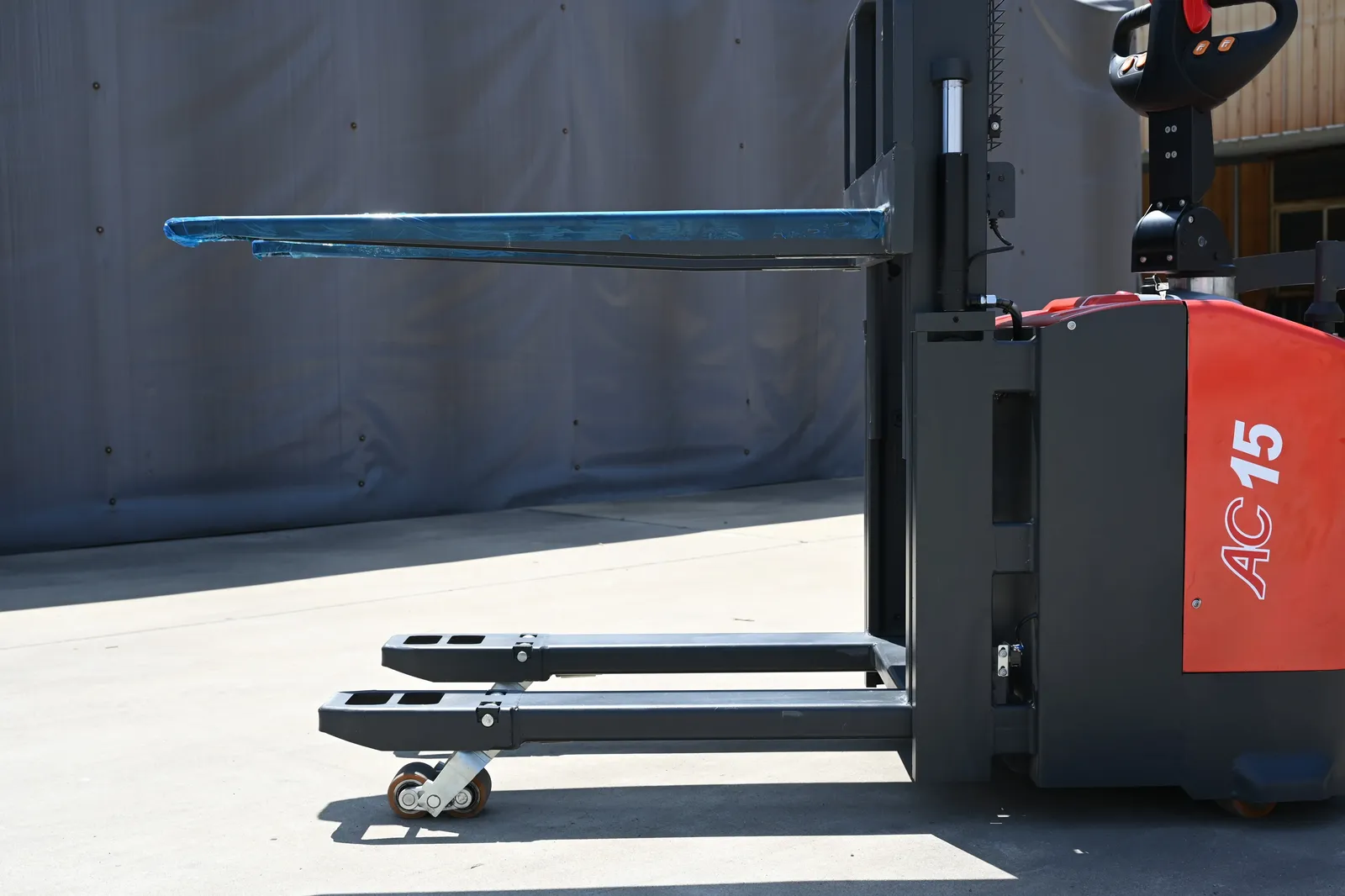

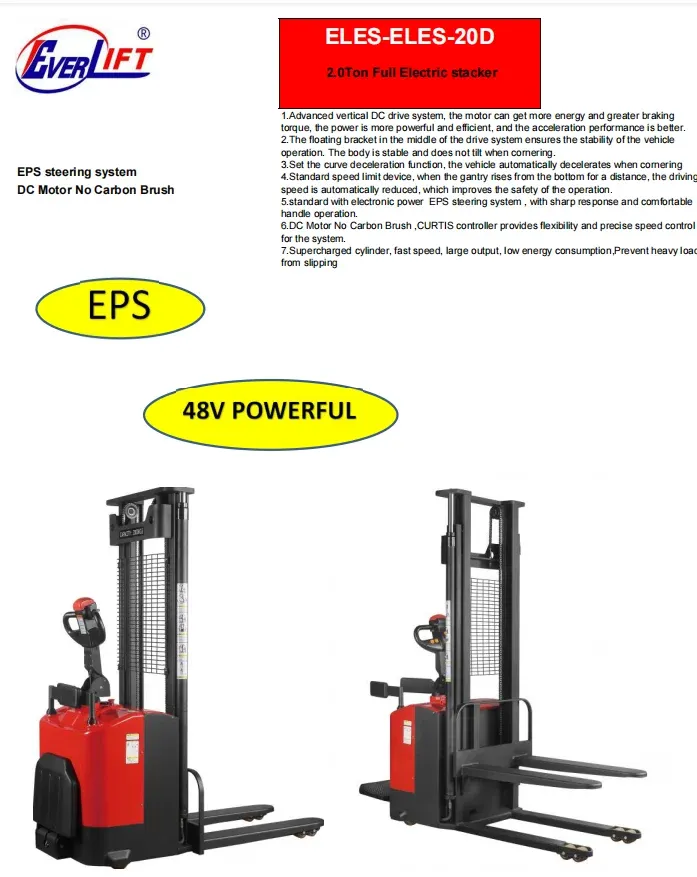

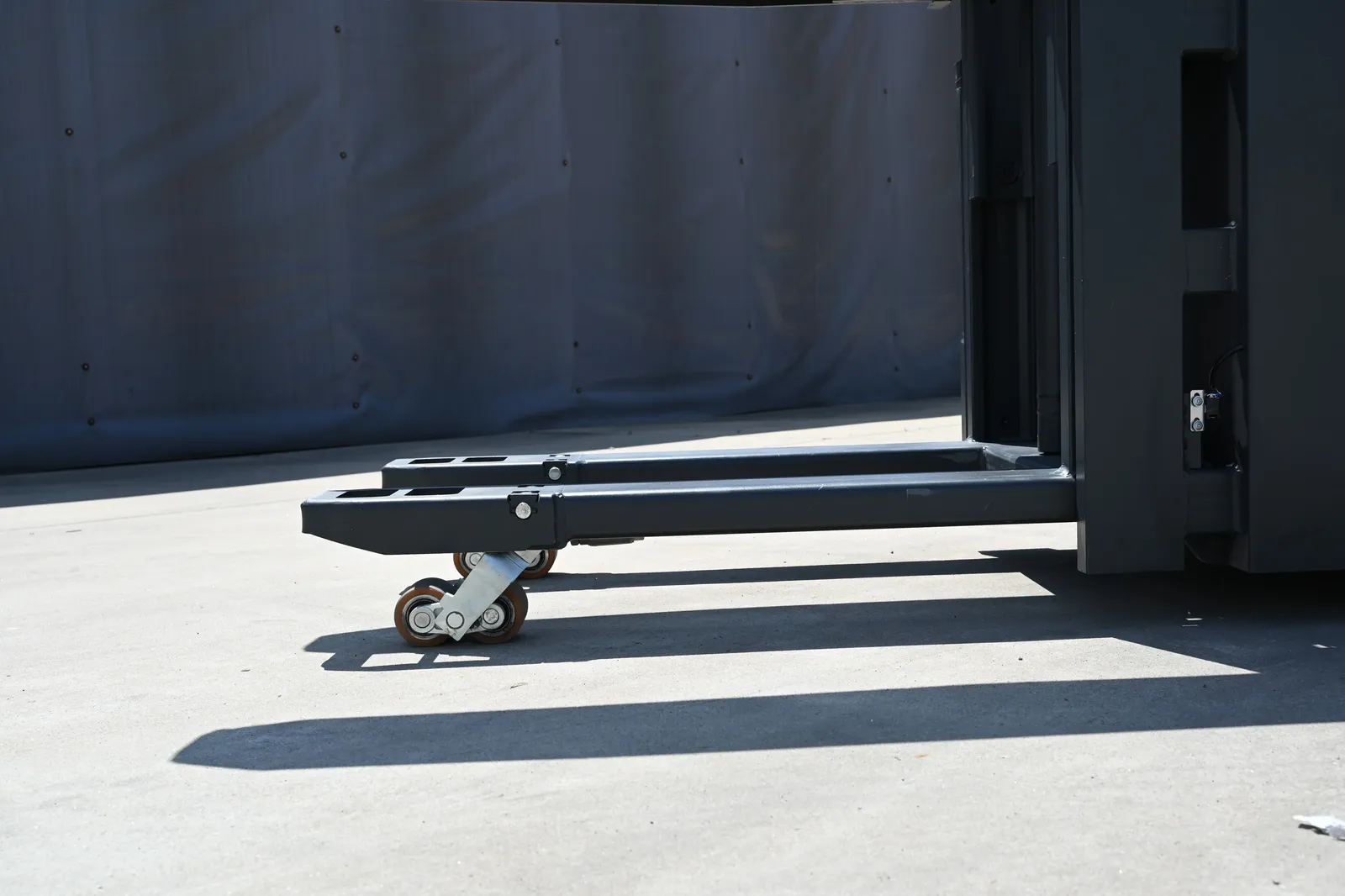

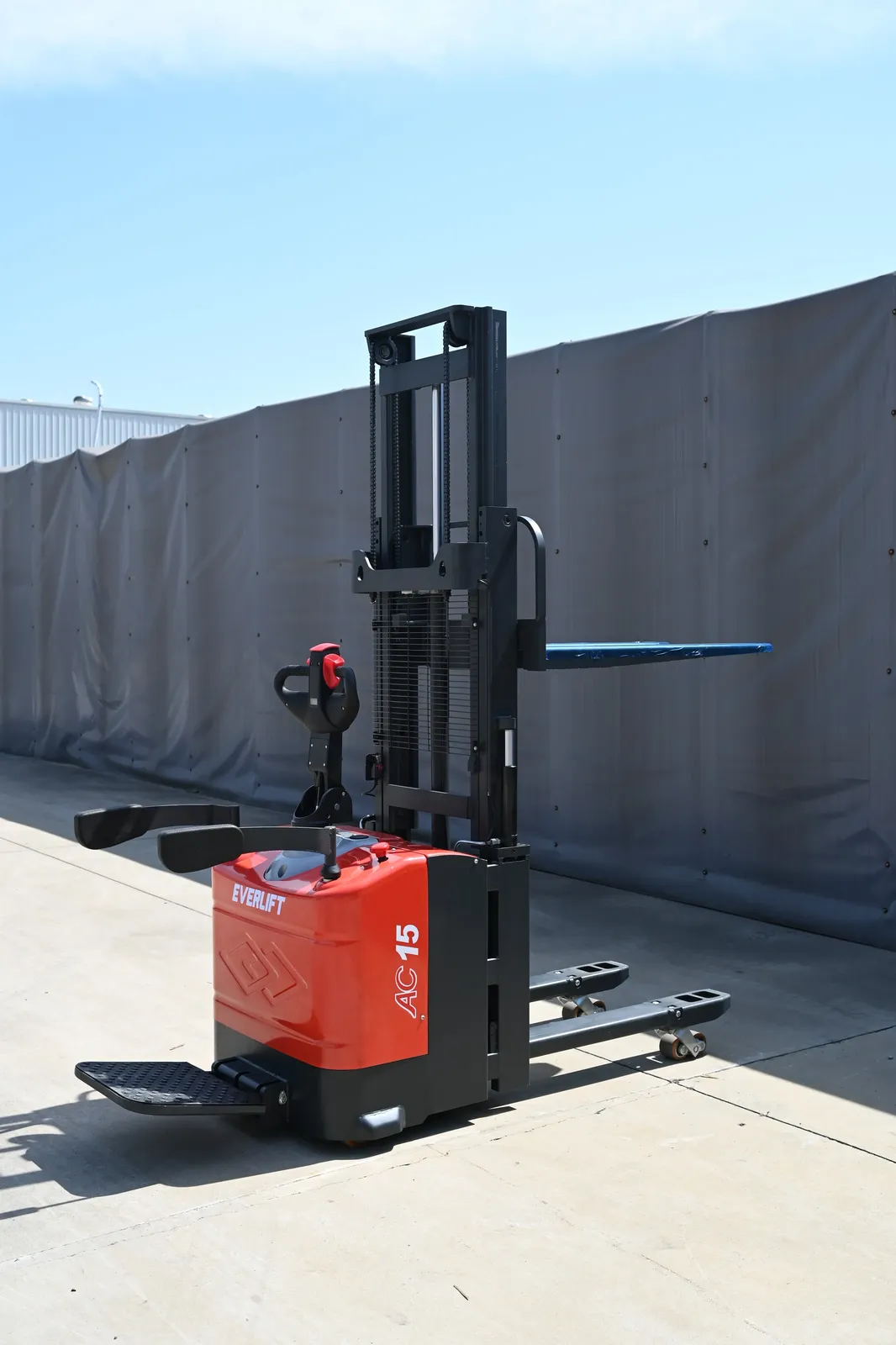

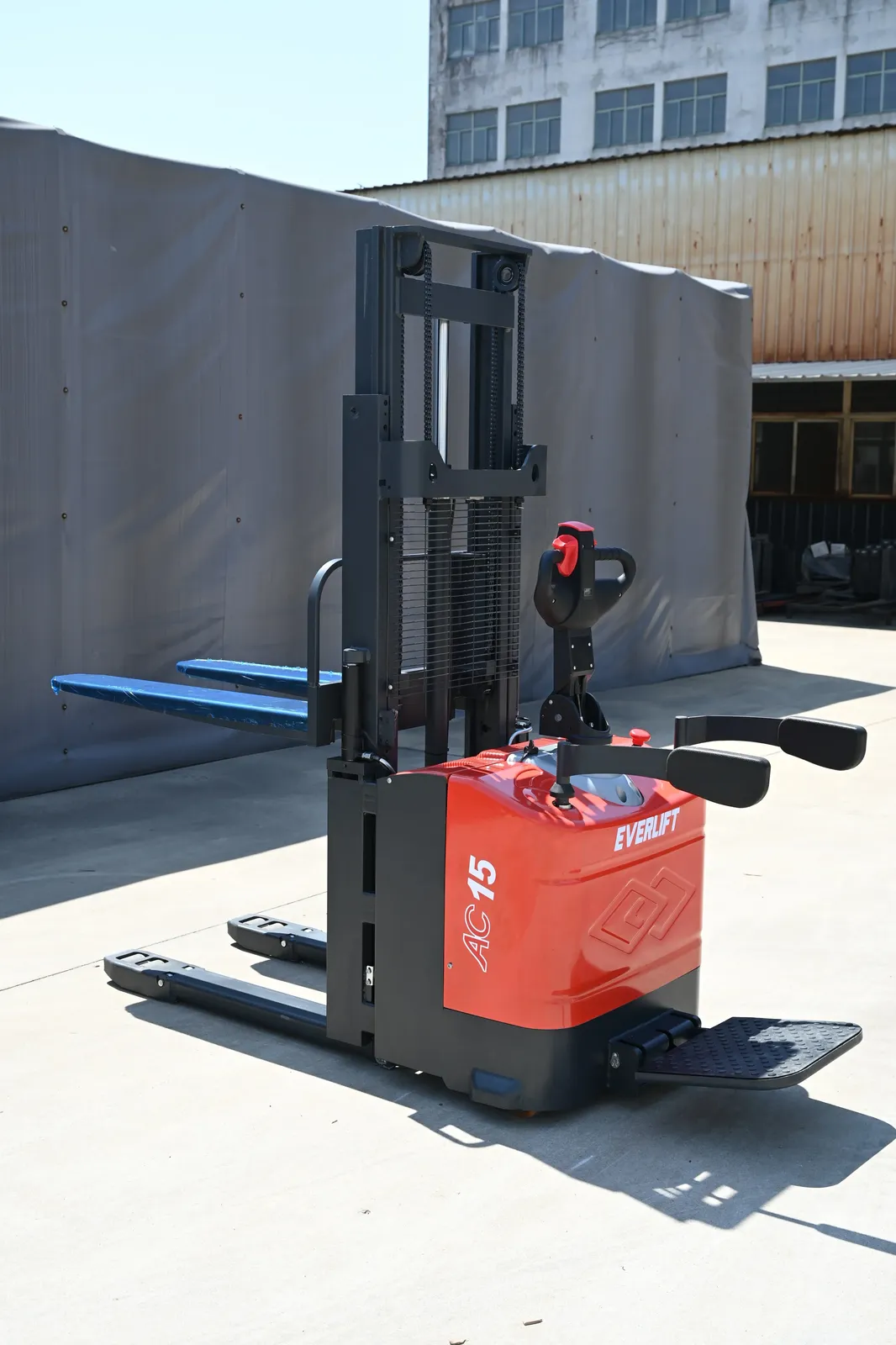

Electric Pallet Stackers · Model ELES-20D 1

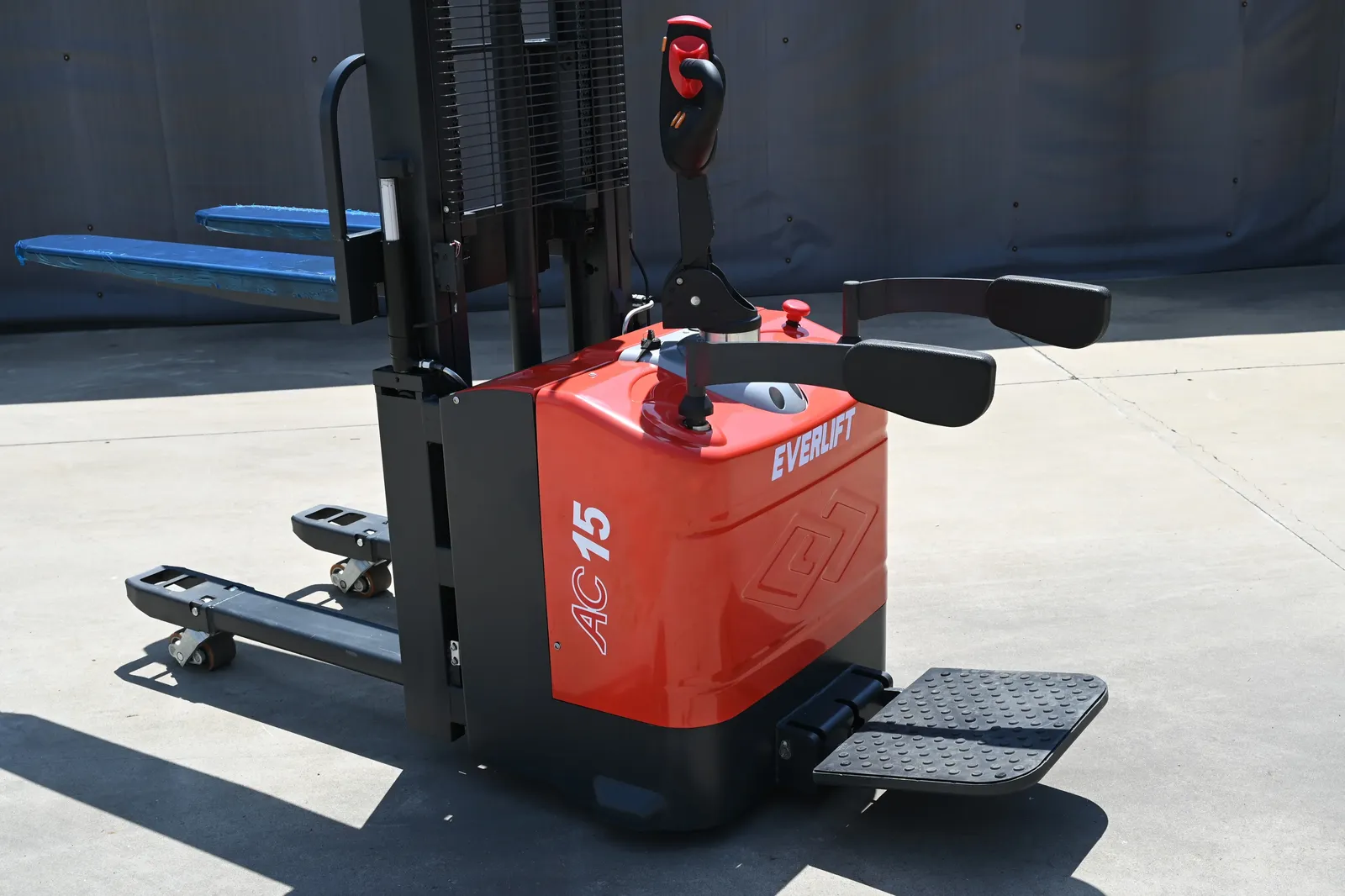

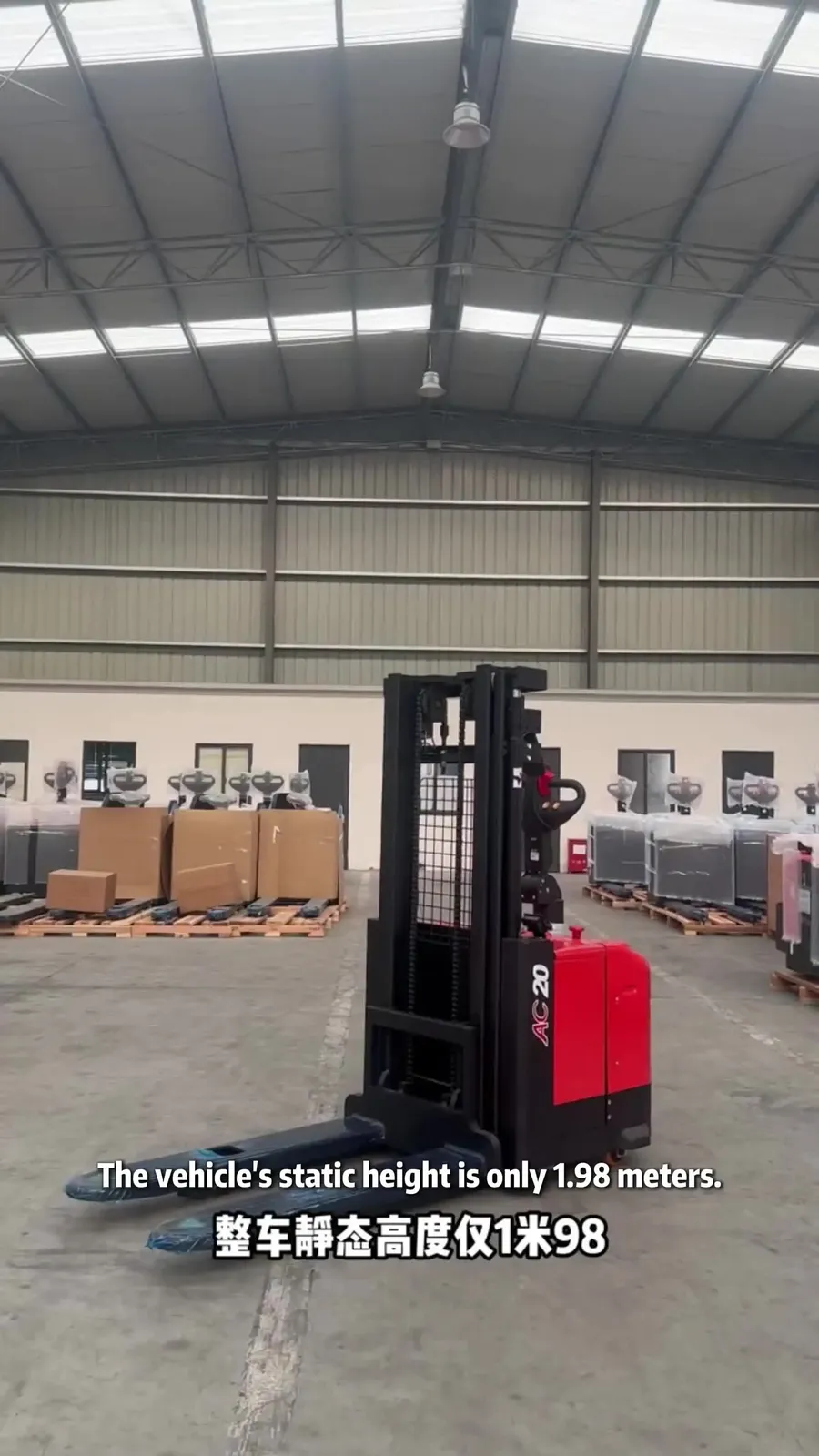

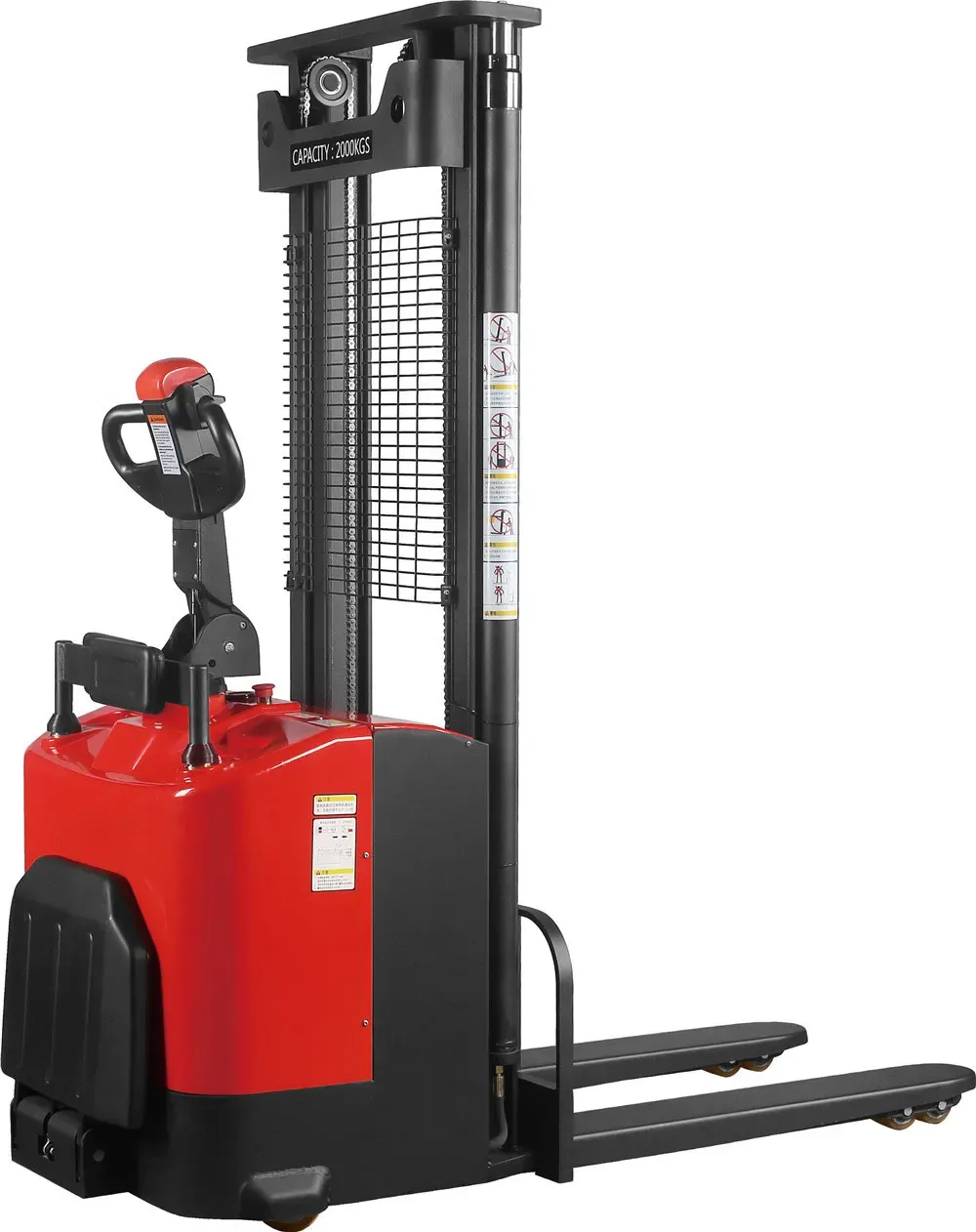

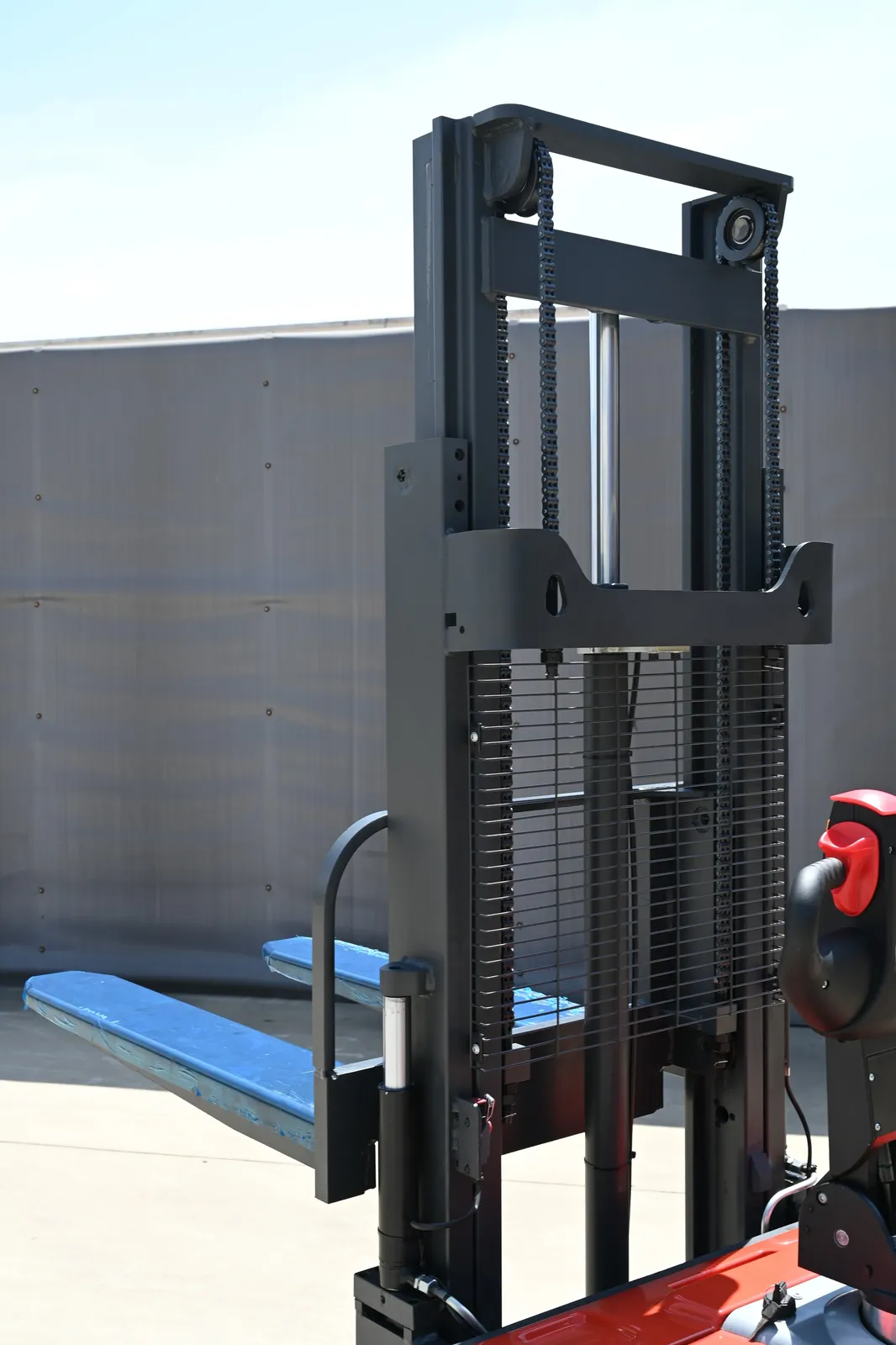

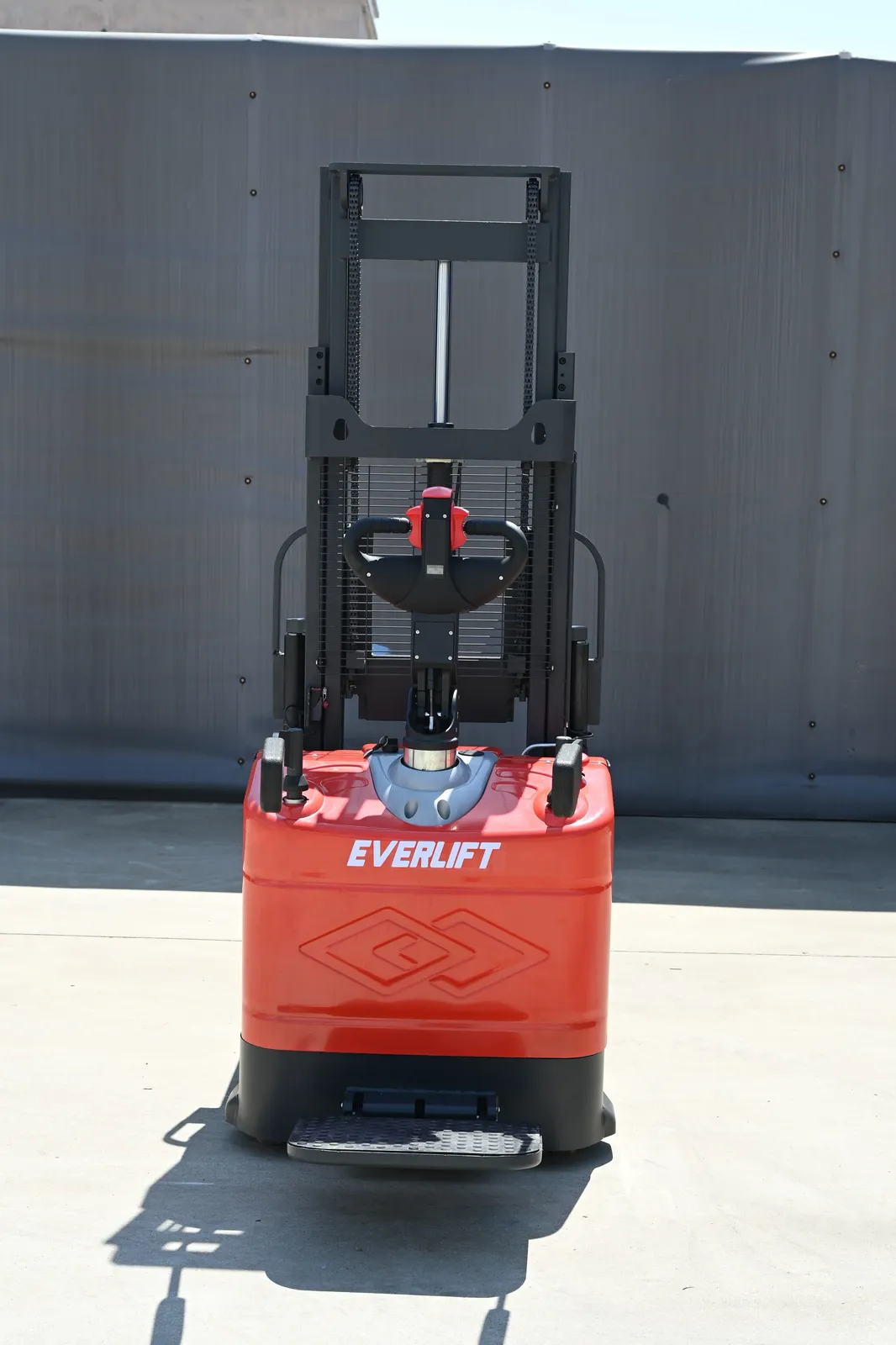

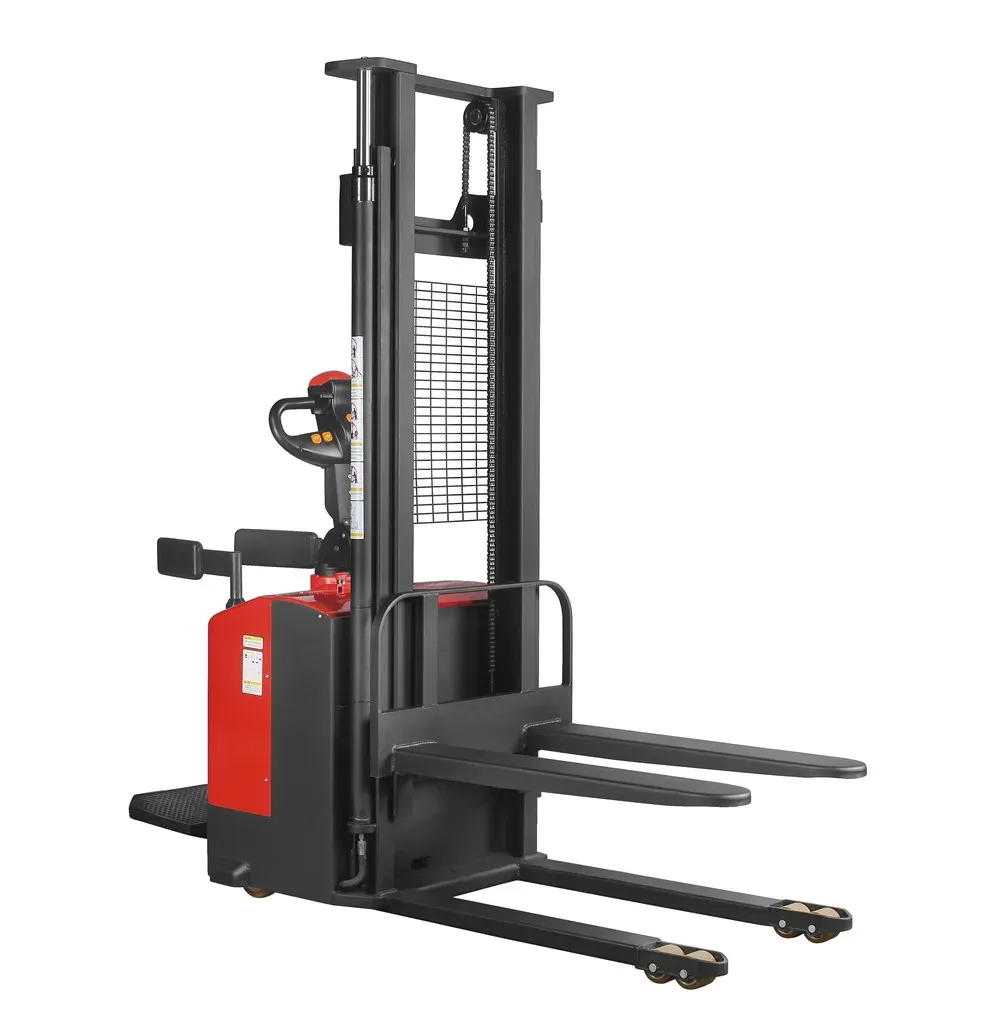

ELES-20D Walkie Electric Stacker, 0.5 to 2 t
marked
- 12-month warranty
- Photos and video before it ships
- No online payment, nothing is charged
Any quantity is welcome. Your price depends on the quantity and is confirmed on your written quote. Prices in GBP per unit, ex VAT. We convert the factory list at a buffered exchange rate, so normal day-to-day currency movement does not change the price you see. Your written quote adds freight, duty and VAT and is valid for 30 days.
Line total
Nothing is sent yet: add the products you need, then send your quote request. We reply within 2 hours, Monday to Friday, 9am to 5pm.
Or email sales@londonpallettrucks.co.ukProduct Highlights
0.5 to 2 Ton Rated Load Capacity
24V Battery-Powered
1448mm Minimum Turning Radius
Polyurethane (PU) Wear-Resistant Tyres
210-850mm Adjustable Fork Width
| Condition | New |
|---|---|
| Forklift Battery Type | Lithium-Ion Battery |
| Side Shifter | Electric Side Shifter |
| Drive Type | electric |
| Load centre distance | 500 mm |
| Forklift Turning radius | 1600 mm |
| Fork Width | 160 mm |
| Fork Length | 1150 mm |
| Operating Mode | Standing Operation |
| Forklift Tyre | Solid Tyre, Pneumatic Tyre, Non-Marking Tyre |
| Aisle width | 2200 |
| Battery voltage (V/AH) | 24V/100Ah |
| Rated Loading Capacity options | 0.5 Ton, 0.75 Ton, 1 Ton, 1.2 Ton, 1.5 Ton, 2 Ton |
| Truck Type options | Stacker Forklift |
| Max. Lifting Height options | 1 500 mm, 1 600 mm, 2 000 mm, 2500 mm, 3000mm, 3500 mm |
| Certificate | Number | Valid |
|---|---|---|
| CE | M.2026.206.C134736 | 04/02/2026 - 03/02/2031 |
Certificates are supplied with your quote on request.
Spare parts for this model
Electric pallet truck and stacker emergency stop switch, 125 Afrom £19 per unit ex VAT · check the fit first
Electric pallet truck and stacker key switch with 2 keys, 22 mm holefrom £14 per unit ex VAT · check the fit first
Stacker mast lift chain, leaf chain cut to length, per metrefrom £22 per metre ex VAT · check your old part first
Electric stacker hydraulic power unit, 24 V 2.2 kWfrom £210 per unit ex VAT · check your old part first
Electric pallet truck and stacker horn, 24 V or 48 V, 100 dBfrom £14 per horn ex VAT · check your old part first
Electric pallet truck and stacker main contactor, 24 V coil, 100 Afrom £35 per contactor ex VAT · check your old part first
Electric pallet truck and stacker tiller gas spring, 156 mm, 600 Nfrom £23 per gas spring ex VAT · check the fixing first
Electric stacker and pallet truck lowering valve, 08 size normally closed cartridgefrom £32 per valve cartridge ex VAT · check your old part first
All spare parts. Send the model and the part you need if it is not listed.
