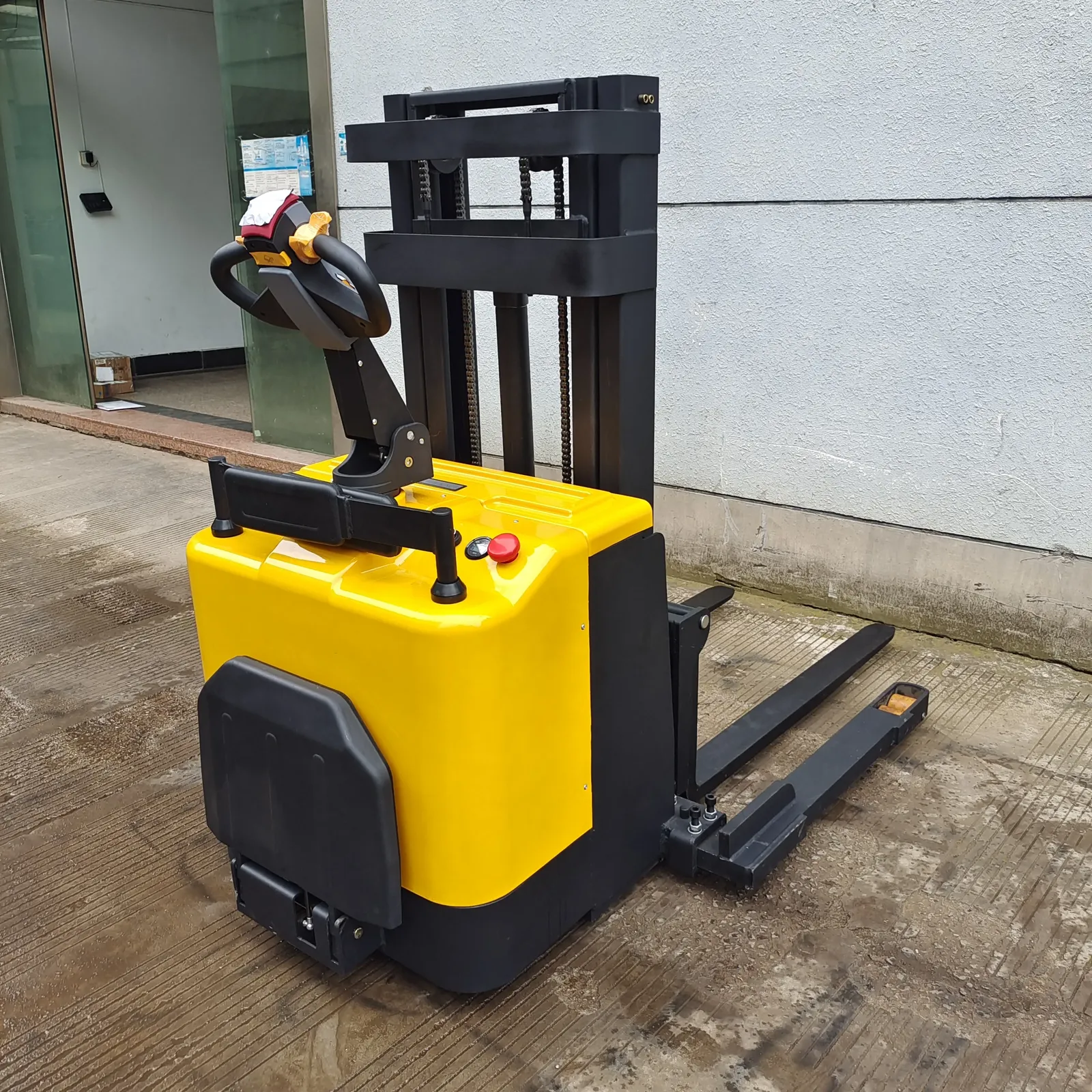

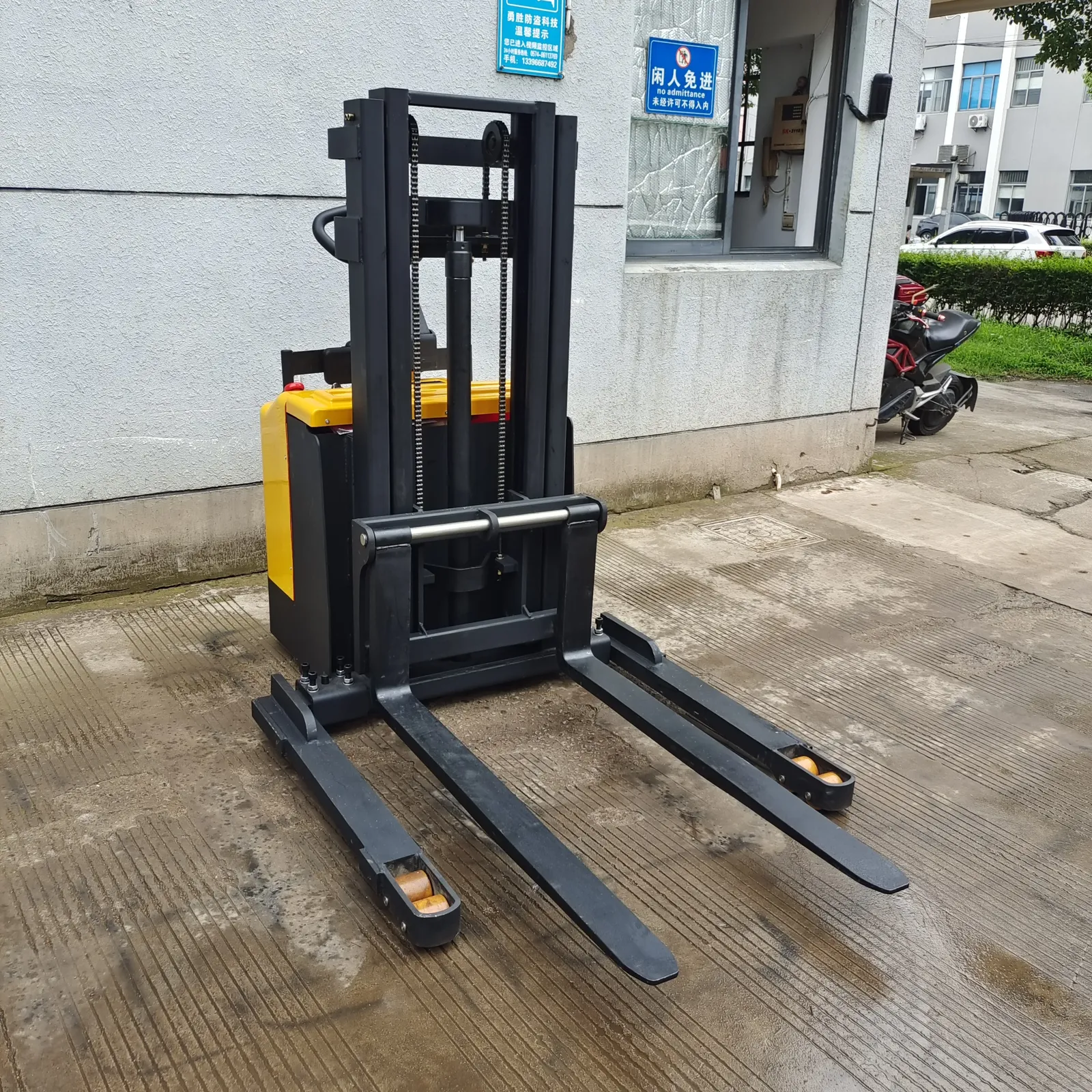

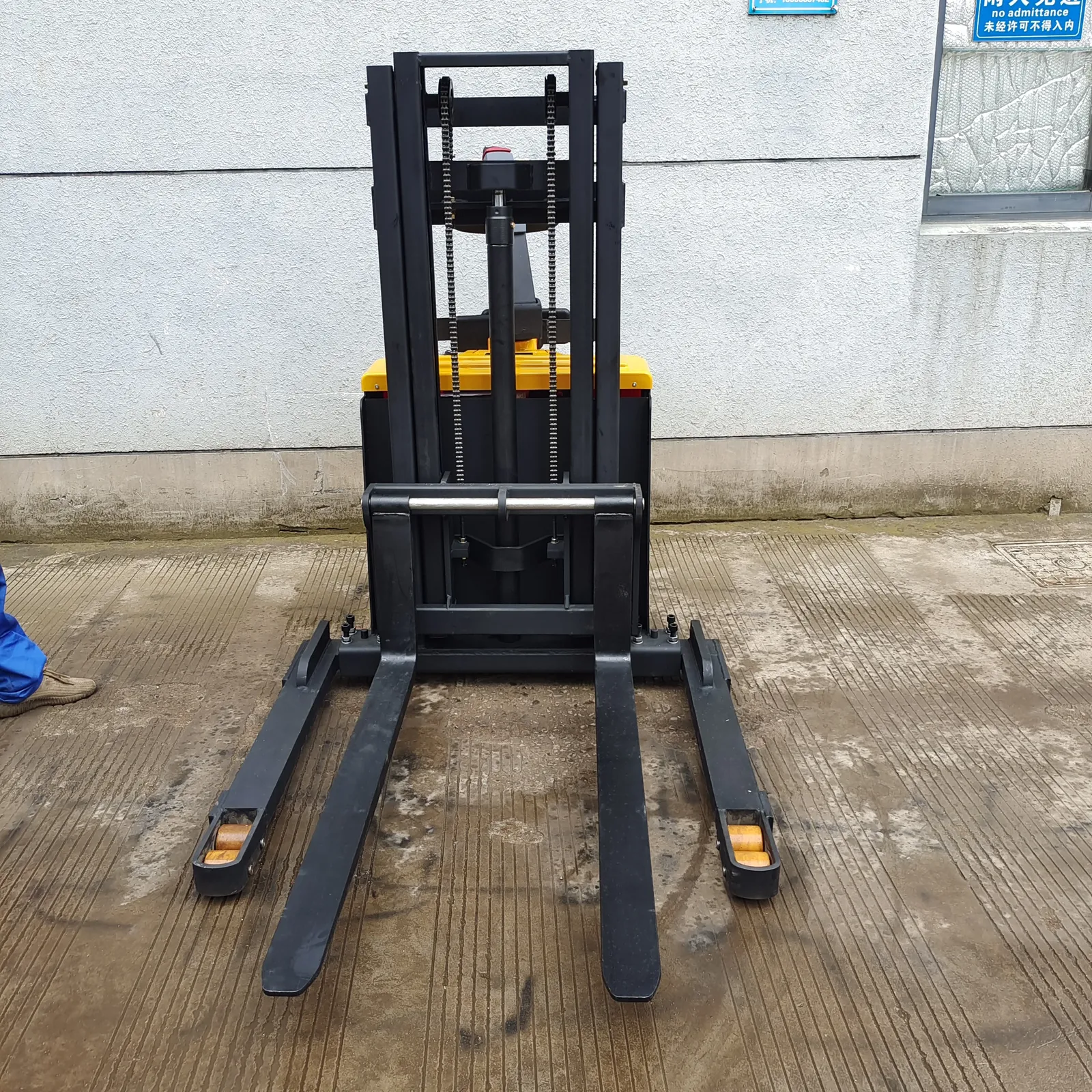

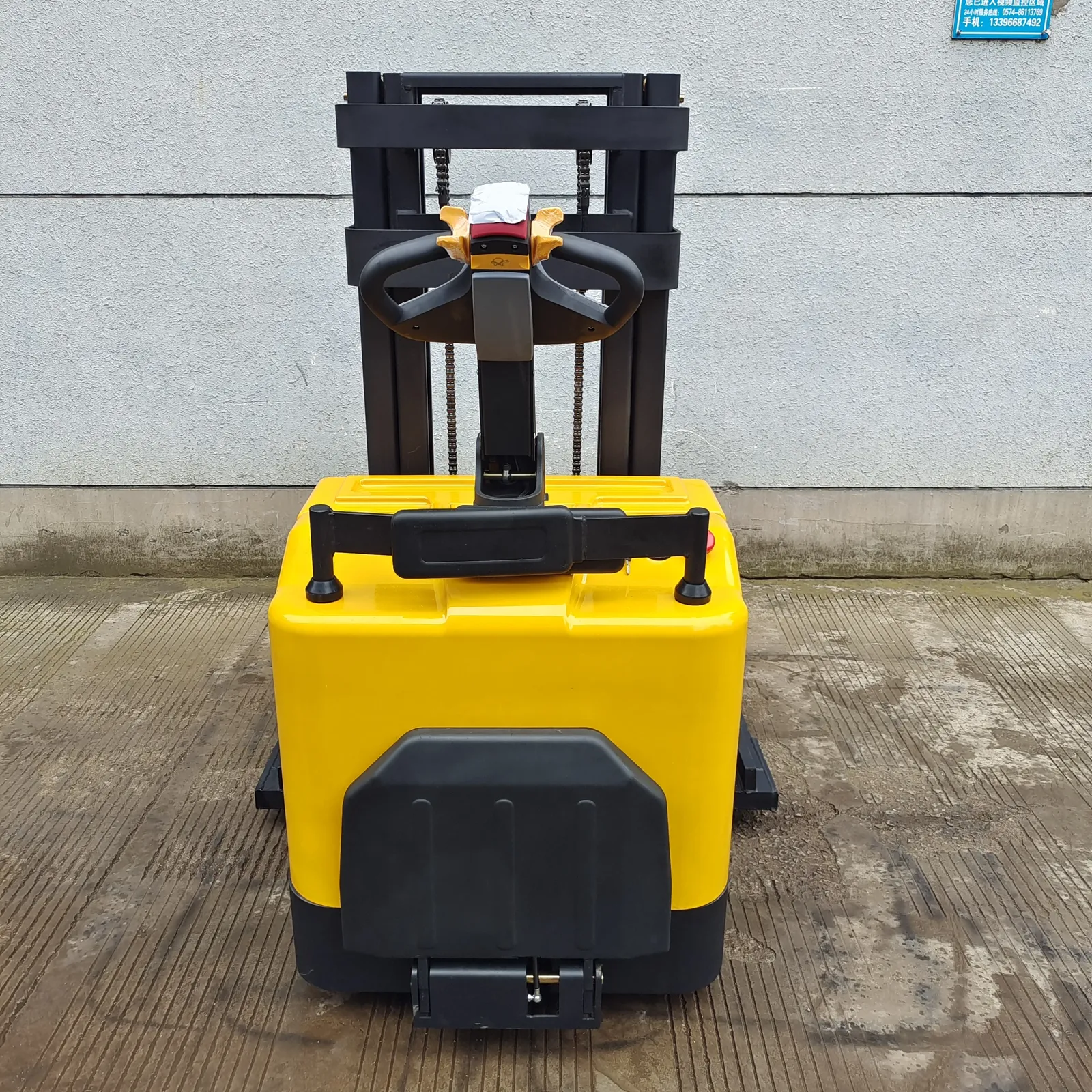

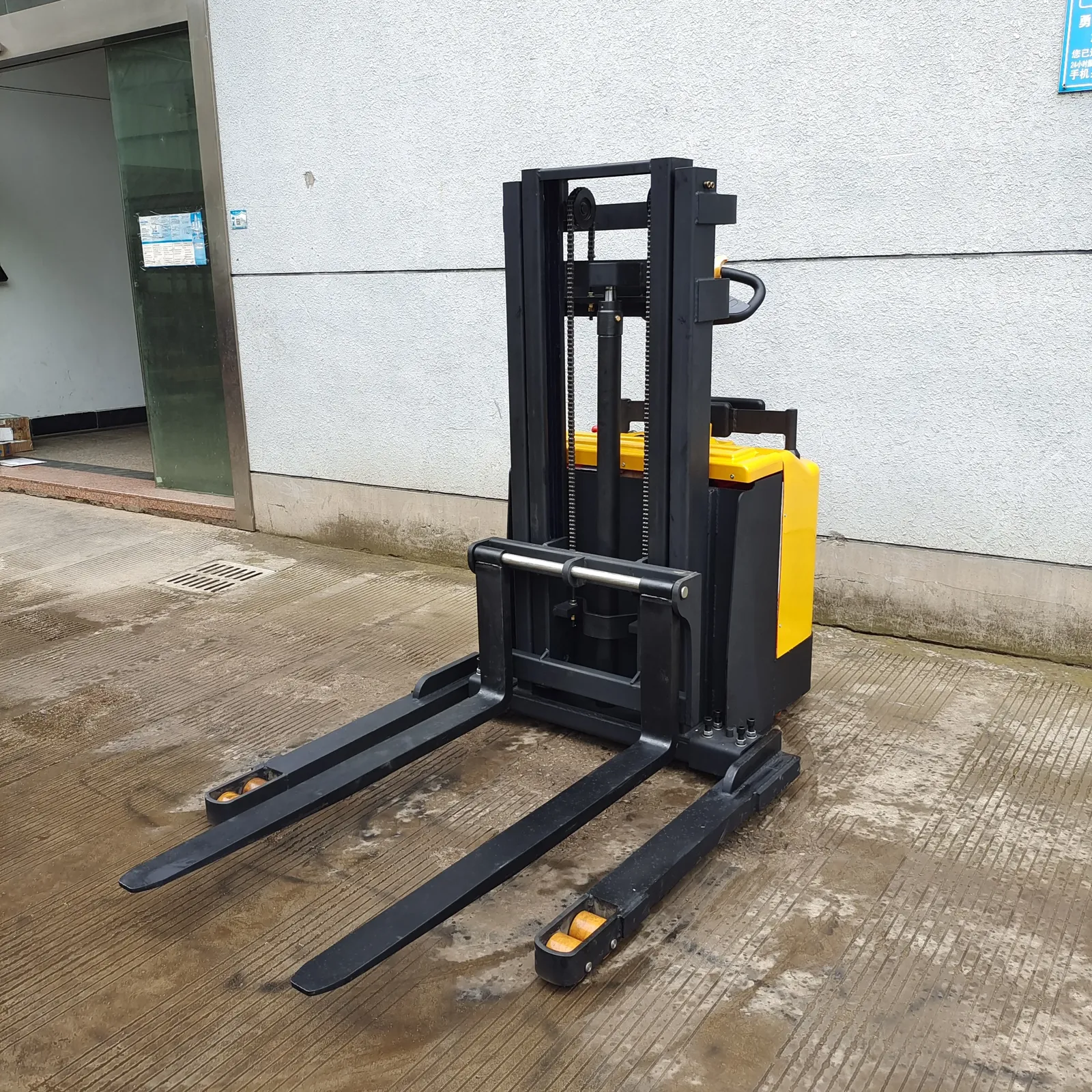

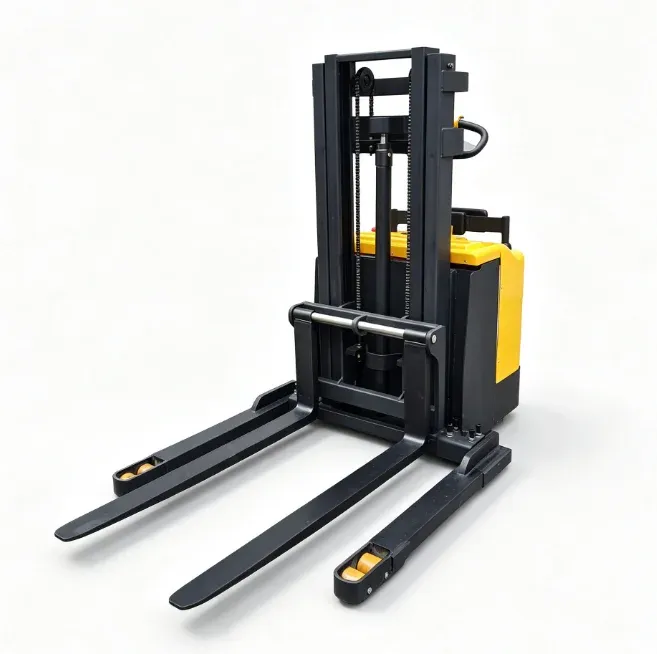

ELES-20D Stand-On Full Electric Stacker 2t
2 tLead-acidForks 1070 mm marked
markedfrom£2,390per unit, ex VAT
Get a quote, reply in 2 hours
- 12-month warranty
- Photos and video before it ships
- No online payment, nothing is charged
Any quantity is welcome. Your price depends on the quantity and is confirmed on your written quote. Prices in GBP per unit, ex VAT. We convert the factory list at a buffered exchange rate, so normal day-to-day currency movement does not change the price you see. Your written quote adds freight, duty and VAT and is valid for 30 days.
Rated Loading Capacity2 Ton
Truck TypeStacker Forklift
Line total
Nothing is sent yet: add the products you need, then send your quote request. We reply within 2 hours, Monday to Friday, 9am to 5pm.
Or email sales@londonpallettrucks.co.ukProduct Highlights
Rated Load Capacity reaches 2000 kg, fitted with robust double stage mast with maximum lifting height of 3500mm. Delivers stable and reliable stacking performance for daily warehouse cargo handling.
Adopts built-in EPS electronic power steering system. It provides lightweight steering control for effortless manoeuvring, effectively lowering operator fatigue during long-hour continuous operation.
Features adjustable wide leg structure with outer width 1270mm and inner width 1470mm. Great compatibility to work with multiple types and sizes of pallets in different working scenarios.
Equipped with high-strength forged durable forks in standard 1070mm length. Matched with maintenance-free 48V 100AH battery, offering long continuous working time and stable power output.

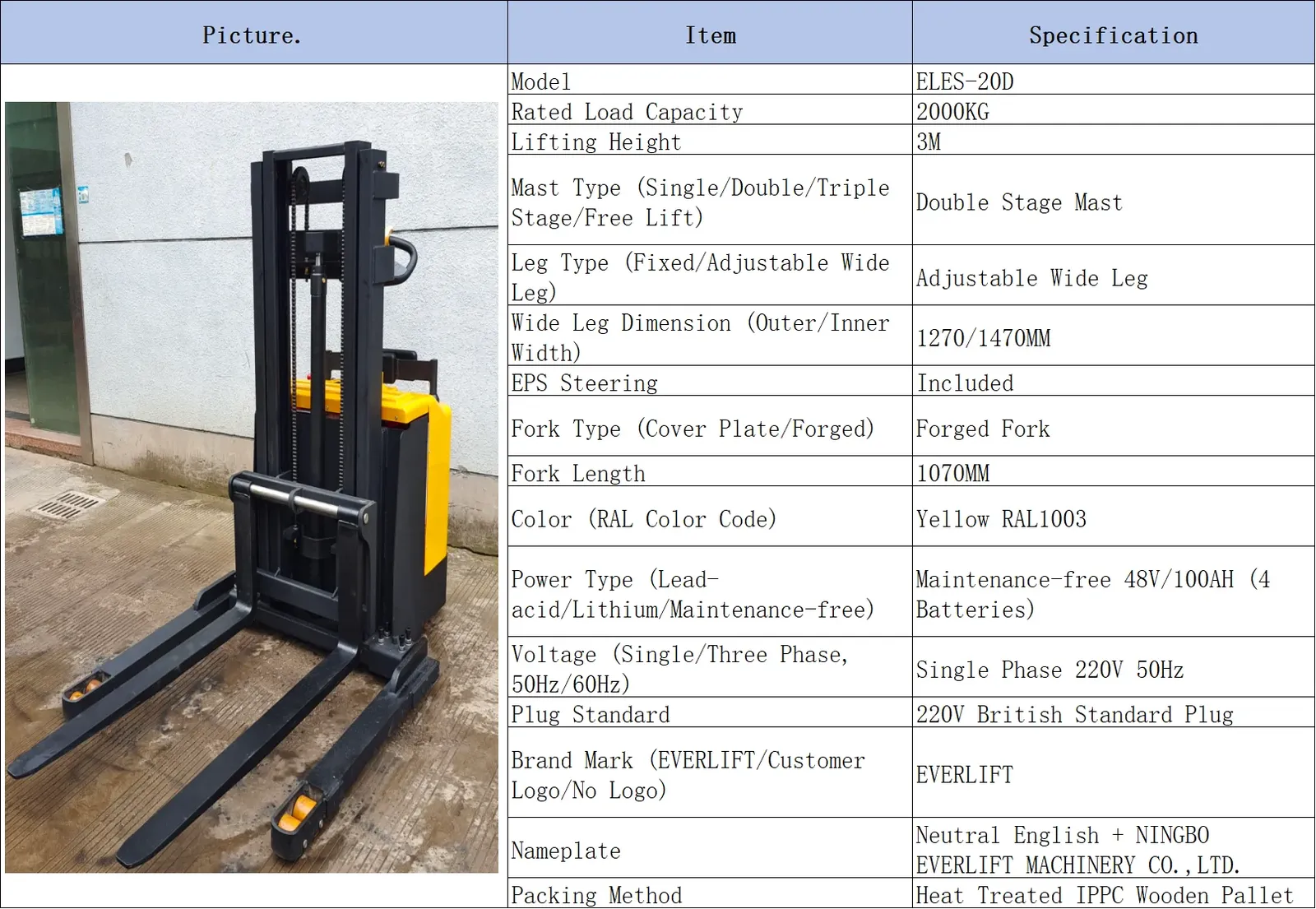

| Condition | New |
|---|---|
| Fork Specifications( L*W*H) | 1070mm |
| Forklift Battery Type | Lead-Acid Battery |
| Side Shifter | Electric Side Shifter, Hydraulic Side Shifter |
| Drive Type | Fwd |
| Terrain Adaptability | Indoor Flooring, Offroad, Outdoor Pavement, Rough Terrain, Other |
| Load centre distance | 500 mm |
| Mast Type | Single-Stage Mast, Three-Stage Mas, Two-Stage Mast |
| Fork Length | 1070 mm |
| Operating Mode | Standing Operation |
| Forklift Tyre | Polyurethane Tyre |
| Mast Tilt Angle (Forward Tilt-Rear Tilt) | 6-12° |
| Battery voltage (V/AH) | 48V/100AH |
| Fork height,lowered | 75/85mm |
| Product Type | Electric Battery Stacker |
| Mast | 2 Stage |
| Battery | Lead-acid Batterry |
| Capacity | 2t |
| Lifting height | 1.6-3.5m |
| Wheels | PU Wheels |
| Adjustable leg width | 1270/1470 mm |
| Rated Loading Capacity options | 2 Ton |
| Truck Type options | Stacker Forklift |
| Max. Lifting Height options | 1 600 mm, 2 000 mm, 2500 mm, 3000mm, 3500 mm |
| Certificate | Number | Valid |
|---|---|---|
| 2006/42/EC | M.2026.206.C137529 | 30/03/2026 - 29/03/2031 |
| CE | M.2026.206.C134736 | 04/02/2026 - 03/02/2031 |
| CE | 3N251031.NEMS093 | 30/10/2025 - 29/10/2030 |
| EAC | 22/10/2023 - 22/10/2028 | |
| CE | M.2023.206.C83216 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83215 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83222 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83221 | 22/03/2023 - 21/03/2028 |
Certificates are supplied with your quote on request.
