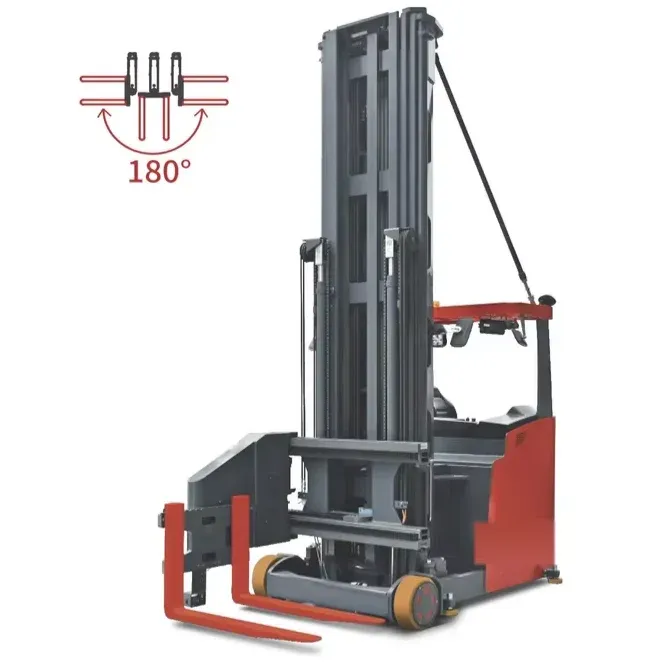

Electric 3 Way VNA Turret Truck with Suspension Seat, 1.6 t

Product Highlights

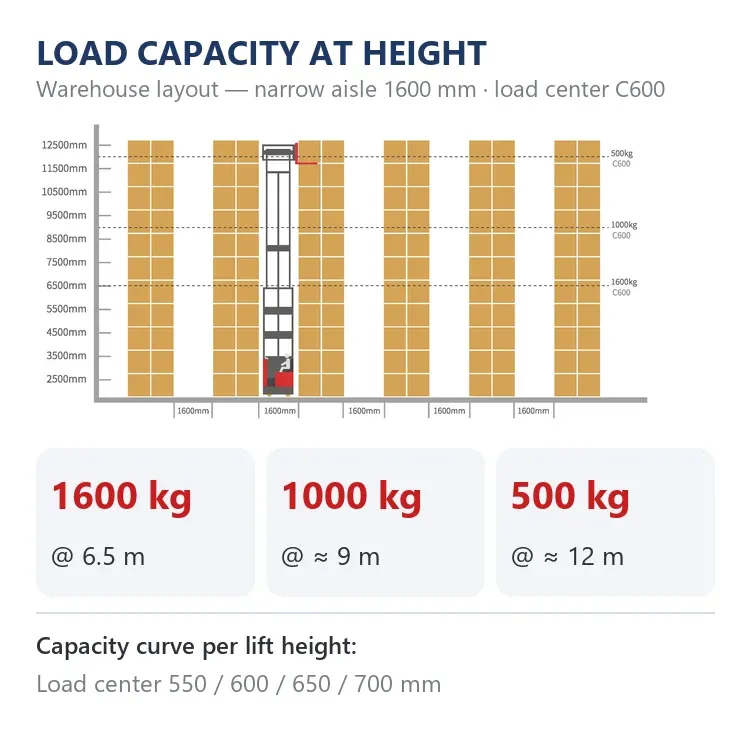

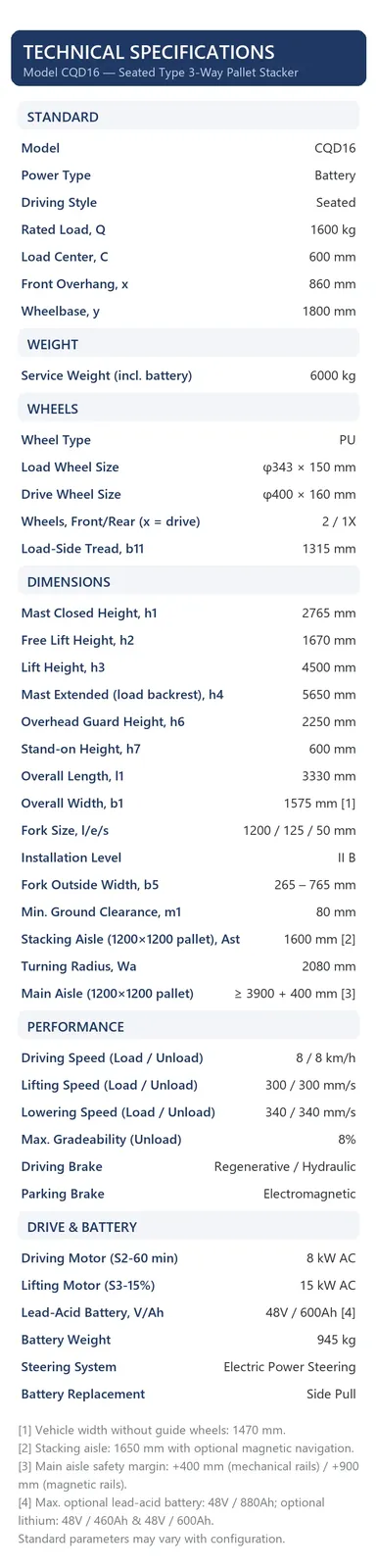

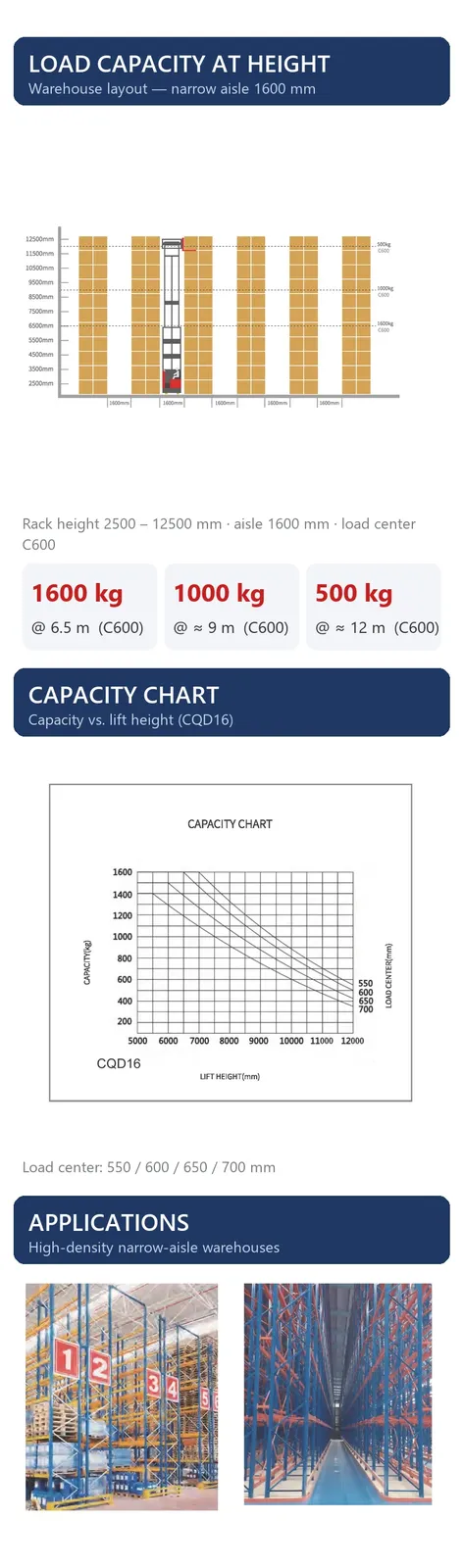

• (1) 1600 kg Rated Load Capacity with 4500mm Lifting Height Delivers a rated capacity of 1600 kg and a maximum lifting height of 4500mm, making it ideal for high-bay warehousing and heavy-load stacking operations.

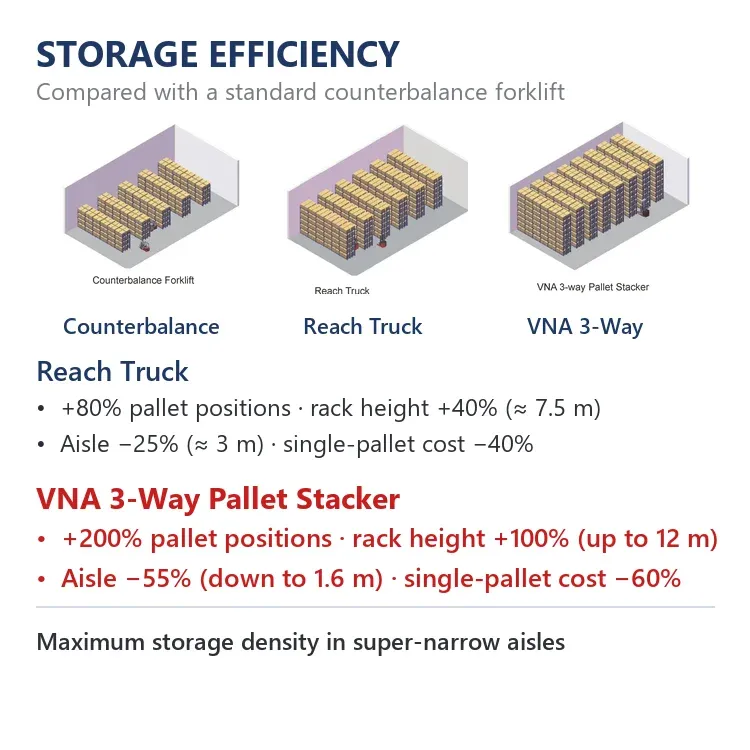

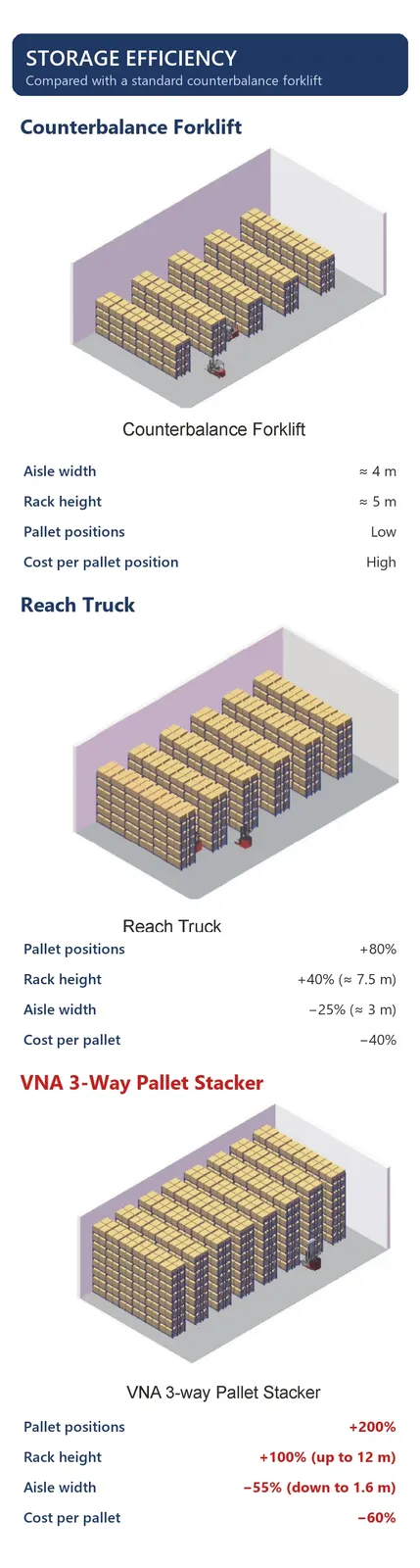

• (2) 1600mm Ultra-Narrow Stacking Aisle Requires only a 1600mm stacking aisle for 1200×1200 pallets, significantly increasing warehouse storage density and maximising available floor space.
• (3) 8kW AC Driving Motor with 8km/h Travel Speed Powered by a high-performance 8kW AC drive motor, delivering consistent travel speed of 8km/h under both loaded and unloaded conditions for efficient horizontal transport.
• (4) 15kW AC Lifting Motor with 300mm/s Lifting Speed Equipped with a powerful 15kW AC lifting motor, providing fast lifting speed of 300mm/s under full load to minimise cycle times and improve productivity.
• (5) 48V/600Ah Lead-Acid Battery with Side Pull-Out Replacement Powered by a durable 48V/600Ah battery with convenient side pull-out replacement design, supporting extended operations and quick battery changes for multi-shift use. Optional 880Ah battery and lithium options also available.
• (6) 2080mm Turning Radius for Efficient Manoeuvring Features a compact turning radius of 2080mm, enabling smooth and precise manoeuvring within narrow warehouse aisles.

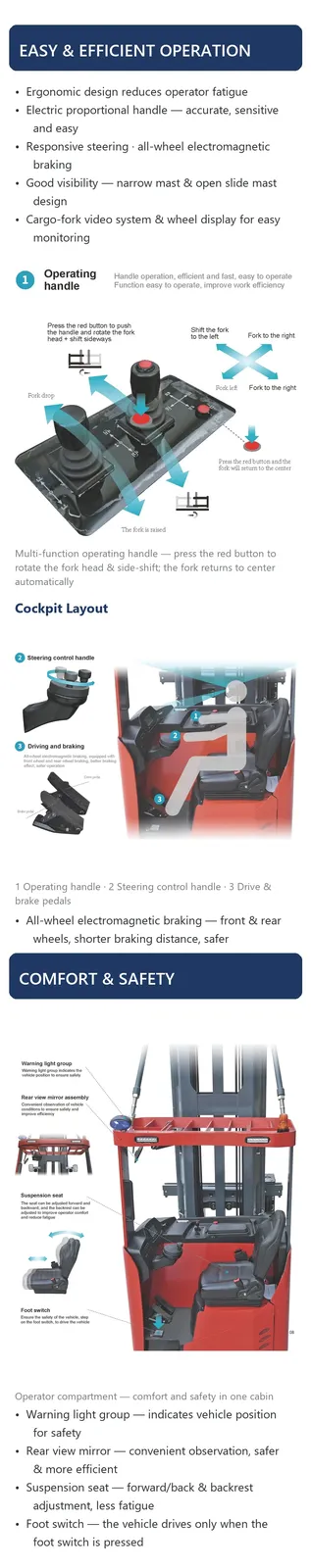

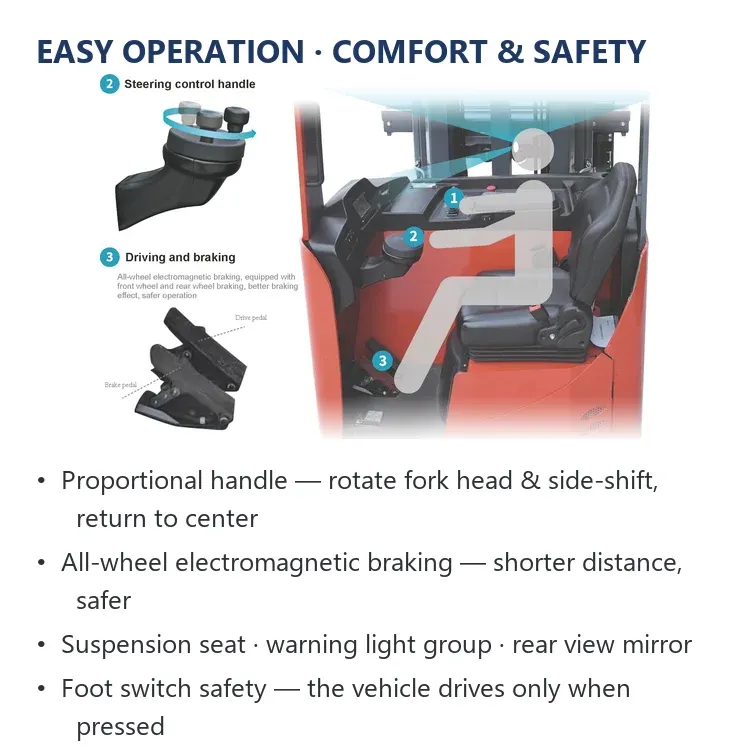

• (7) Seated Operation with Electric Power Steering Designed with a comfortable seated operating position and electric power steering system, reducing operator fatigue during long shifts and enhancing overall handling precision.

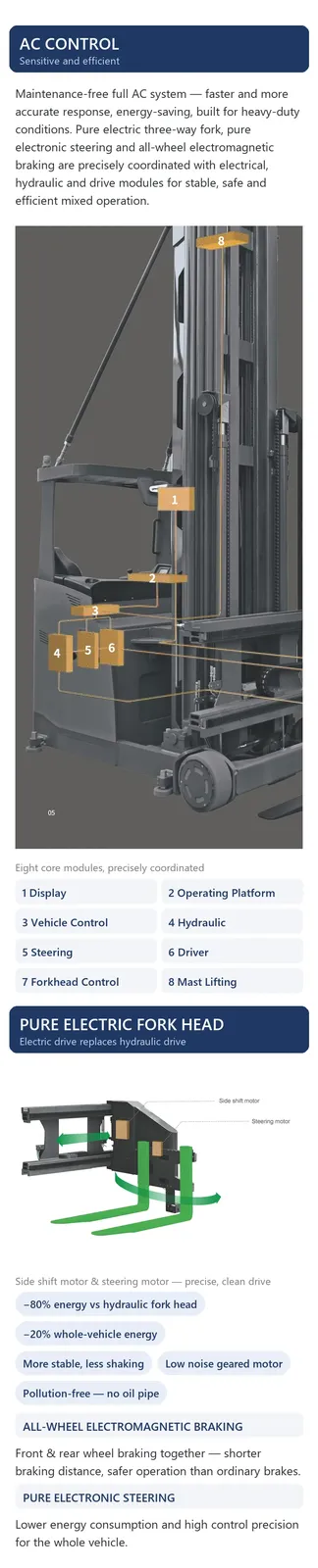

• (8) Regenerative and Hydraulic Dual Brake System Combines regenerative and hydraulic braking for reliable stopping power, with an additional electromagnetic parking brake for enhanced safety during stationary periods.
• (9) Flexible Fork Width Adjustment (265-765mm) Fork outside width adjusts from 265mm to 765mm, accommodating various pallet sizes and load configurations for versatile application flexibility.
• (10) 6000 kg Service Weight with Heavy-Duty Construction Weighing 6000 kg with a durable PU wheel set (load wheel φ343×150mm, drive wheel φ400×160mm), ensuring exceptional stability and long-term reliability in demanding industrial environments.
